Bachmann custom module 1x cinch audio stereo red and white (917.022)
The Bachmann custom module 1x cinch stereo audio (red+white) 917.022 is suitable for individually equipping the socket units of the Bachmann facility products. It has a specific configuration consisting of a red and white cinch stereo (without cables)
Custom Module Cinch Stereo
The Bachmann Custom Module Cinch 917.022 is a high-quality and versatile frame for integration into socket units of Bachmann facility products. This module has a specific configuration consisting of a 1x RCA stereo (red + white). The Cinch custom module makes it possible to create audio connections by integrating the cinch connection into the socket strip. This can be used, for example, to connect devices such as loudspeakers, amplifiers or other audio sources to the socket and play audio content.

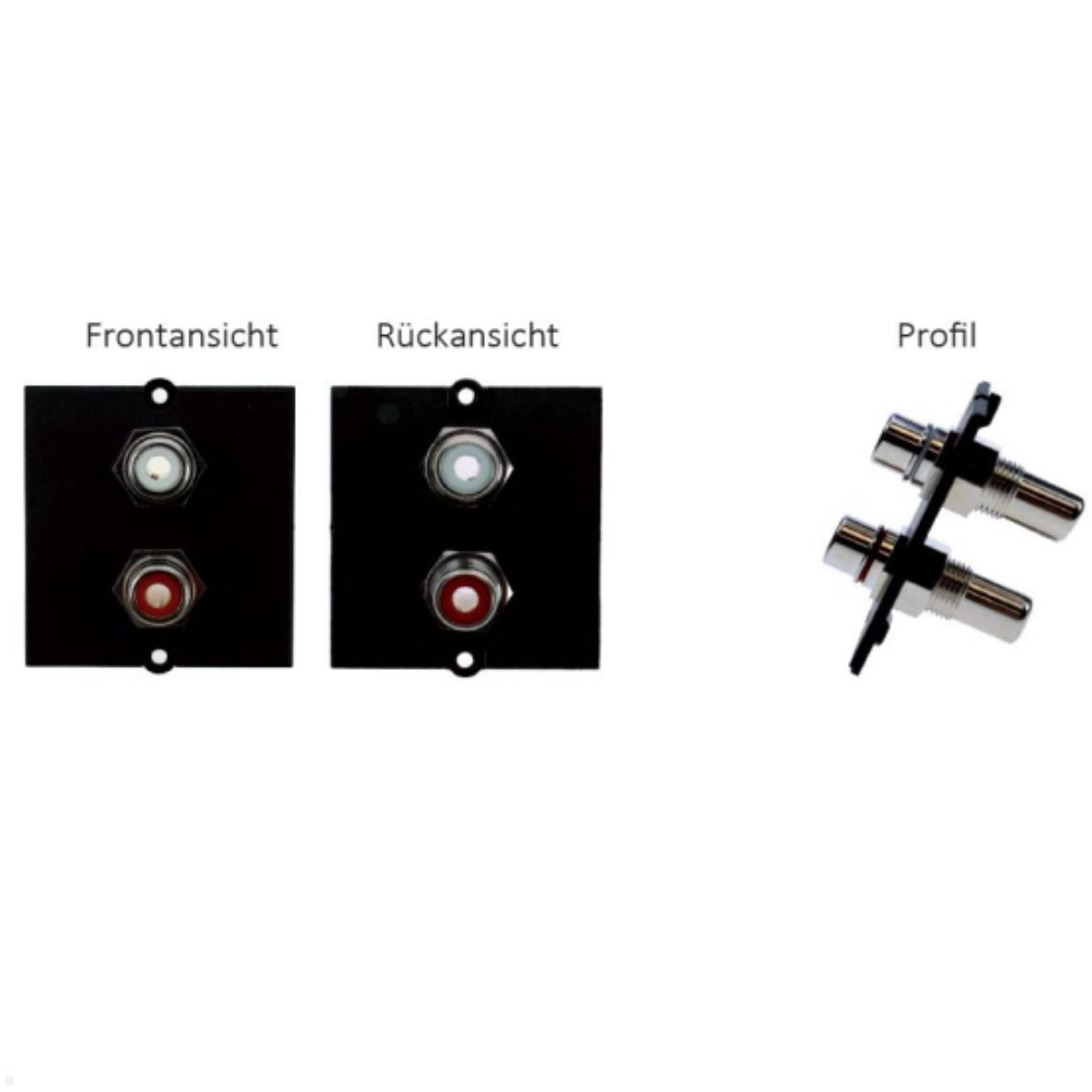

Key features custom module 917.022
- Custom Module (CM)
- Front: Cinch audio stereo socket (red + white)
- Rear: Cinch audio stereo socket (red + white ;), without cable
- Can be integrated in socket units from Bachmann Facility products
- Dimensions: device width: 37 mm / height: 40.2 mm / depth: 30 mm
- approx. 55 mm installation depth required
- 2 screws included in the scope of delivery
- Facility systems, rack installations and electrical installations
- Material: plastic
- Color: Black
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann socket strips with CM insert |
| Packaging dimensions (LxWxH in mm): | 40 x 40 x 30 |
| Scope of delivery: | 1 x custom module cinch and 1 x TRX screws |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
