Bachmann Custom Module USB C/C/C Charger with 180W Power Supply (BM0021867)
The Bachmann Custom Module USB C/C/C 140W (BM0021867) offers maximum charging power for laptops, tablets, and smartphones. Thanks to modern GaN technology, PD/PPS fast charging, and three USB-C ports, fast, efficient charging is guaranteed.

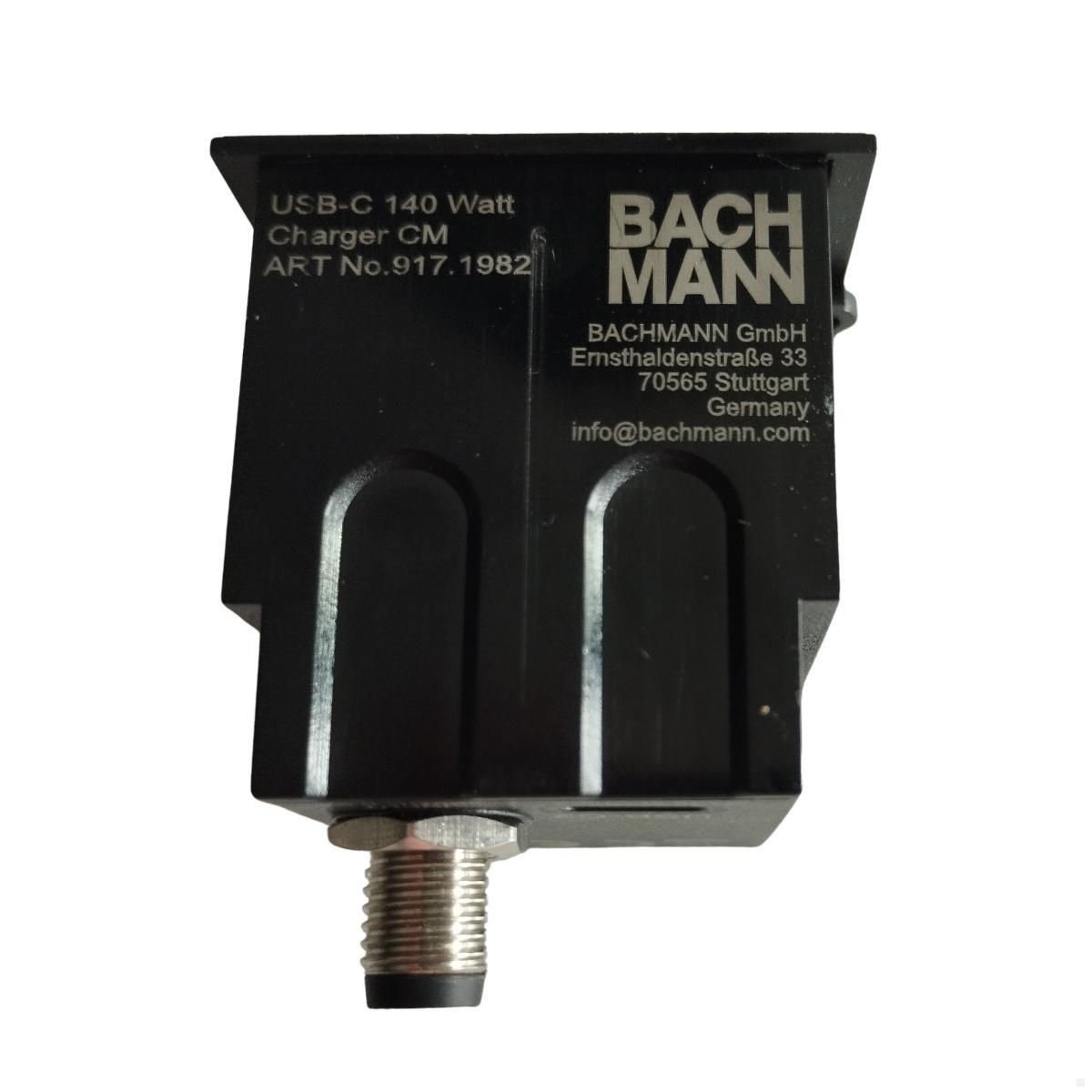

Bachmann BM0021867 Custom Module USB-C/C/C Charger
The Bachmann Custom Module USB C/C/C 140W is the premium solution for fast, safe, and versatile charging. Equipped with three USB-C ports and state-of-the-art GaN (gallium nitride) technology, it offers maximum performance in the smallest space. With up to 140 watts on ports C1 and C2, it charges even powerful laptops in the shortest possible time— At the same time, tablets and smartphones can also be optimally supplied with energy.
Thanks to the innovative GaN technology, the module operates up to 20% more efficiently than conventional silicon chargers, generates less heat, and remains particularly compact. Multiple USB-C ports enable parallel charging of different devices, while Power Delivery (PD) and Programmable Power Supply (PPS) not only ensure up to 40% faster charging times but also a longer battery life. Integrated safety features such as overcurrent, overvoltage, and overheating protection ensure worry-free charging at all times. With its IP44 certification, the module is also protected against dust and splash water and can optionally be equipped with a locking function for a permanent connection.
Technical Details Bachmann USB Triple Charger with Power Supply
- Max. Power: 140W
- Ports: 3x USB-C (PD/PPS)
- Front: USB-C port 1 and 3

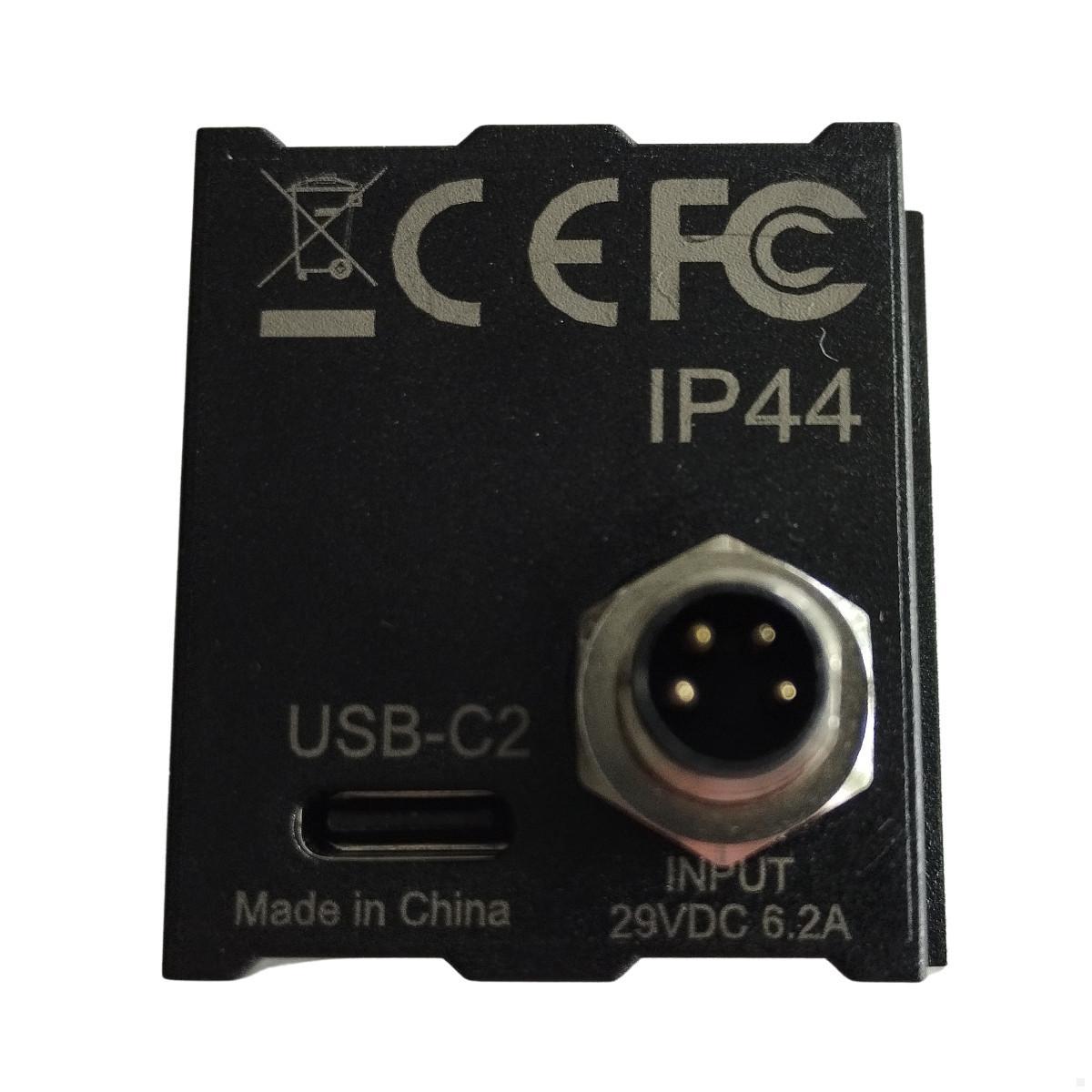

- Rear: USB-C port 2

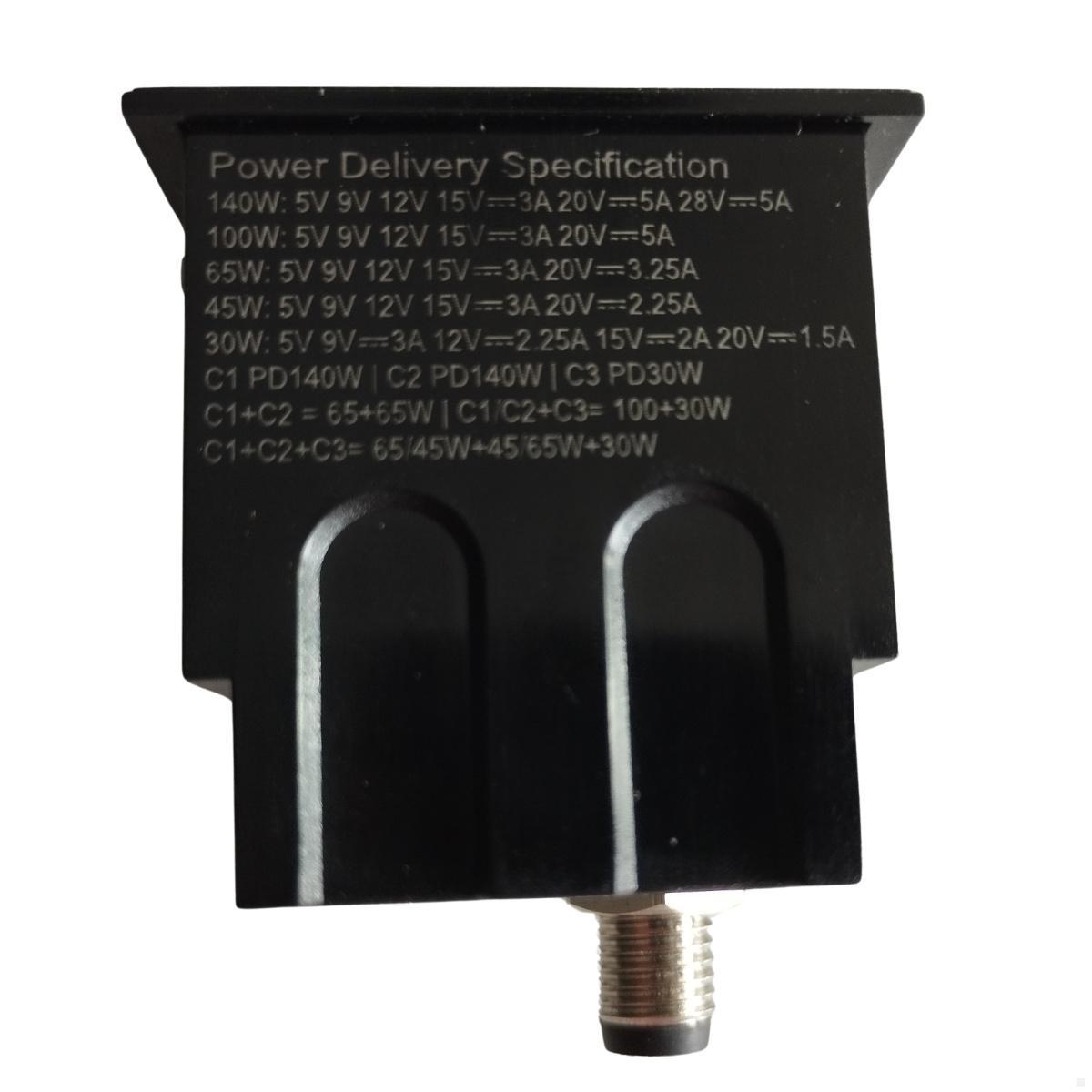

- Power values:
- USB-C 1 & 2: up to 140 W (5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A, 28 V/5 A)
- USB-C 3: up to 30 W (5 V/3 A, 9 V/3 A, 12 V/2.5 A, 15 V/2 A, 20 V/1.5 A)
- Intelligent load sharing for multiple connections
- Efficiency: >88% at all load ranges
- Integrated safety features: Protection against short circuit (OCP), overheating (OTP) and overvoltage (OVP)
- IP44 protection against dust and splash water
- Optional locking function for permanent connection
- Scope of delivery:
- 1 x USB-C Charger 140W

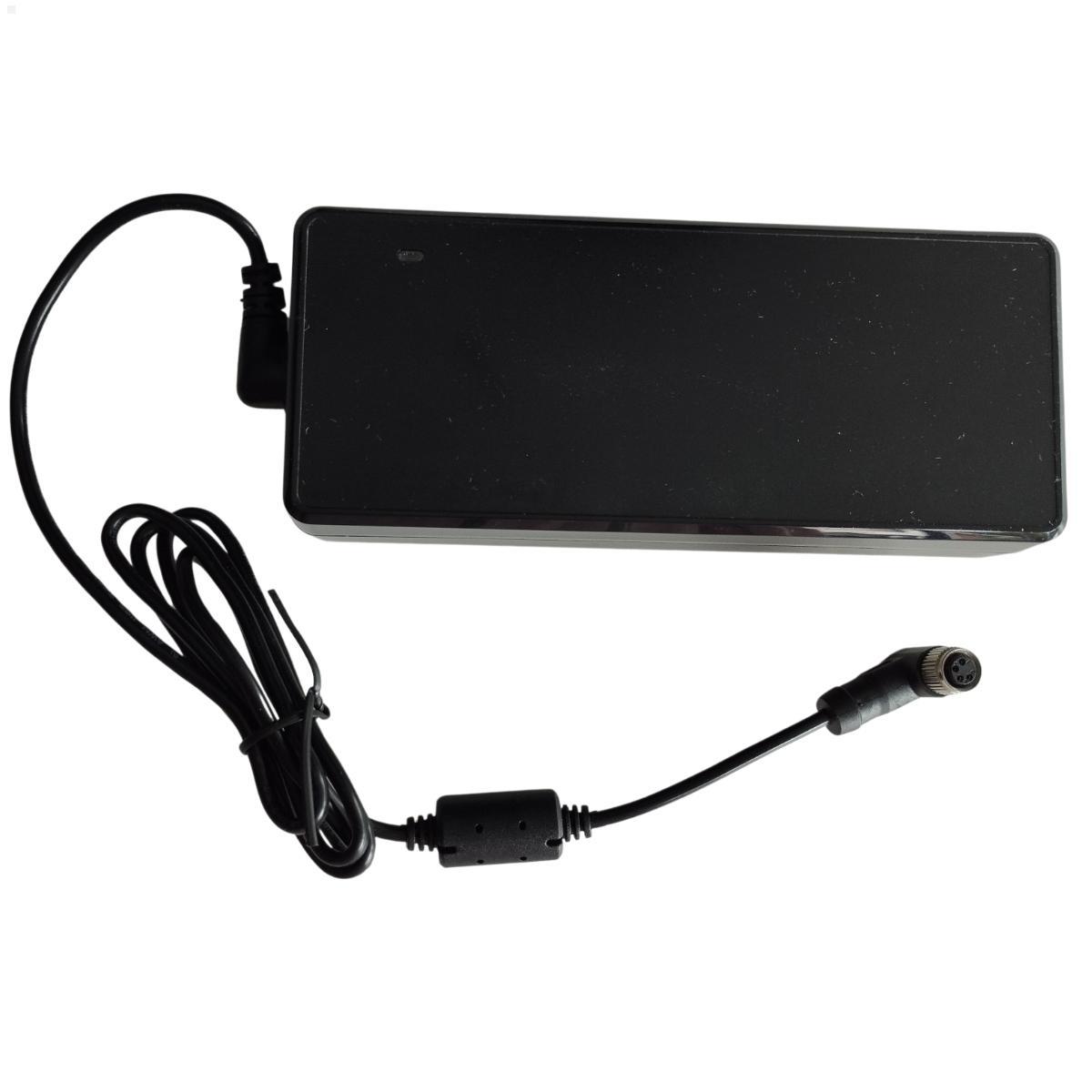

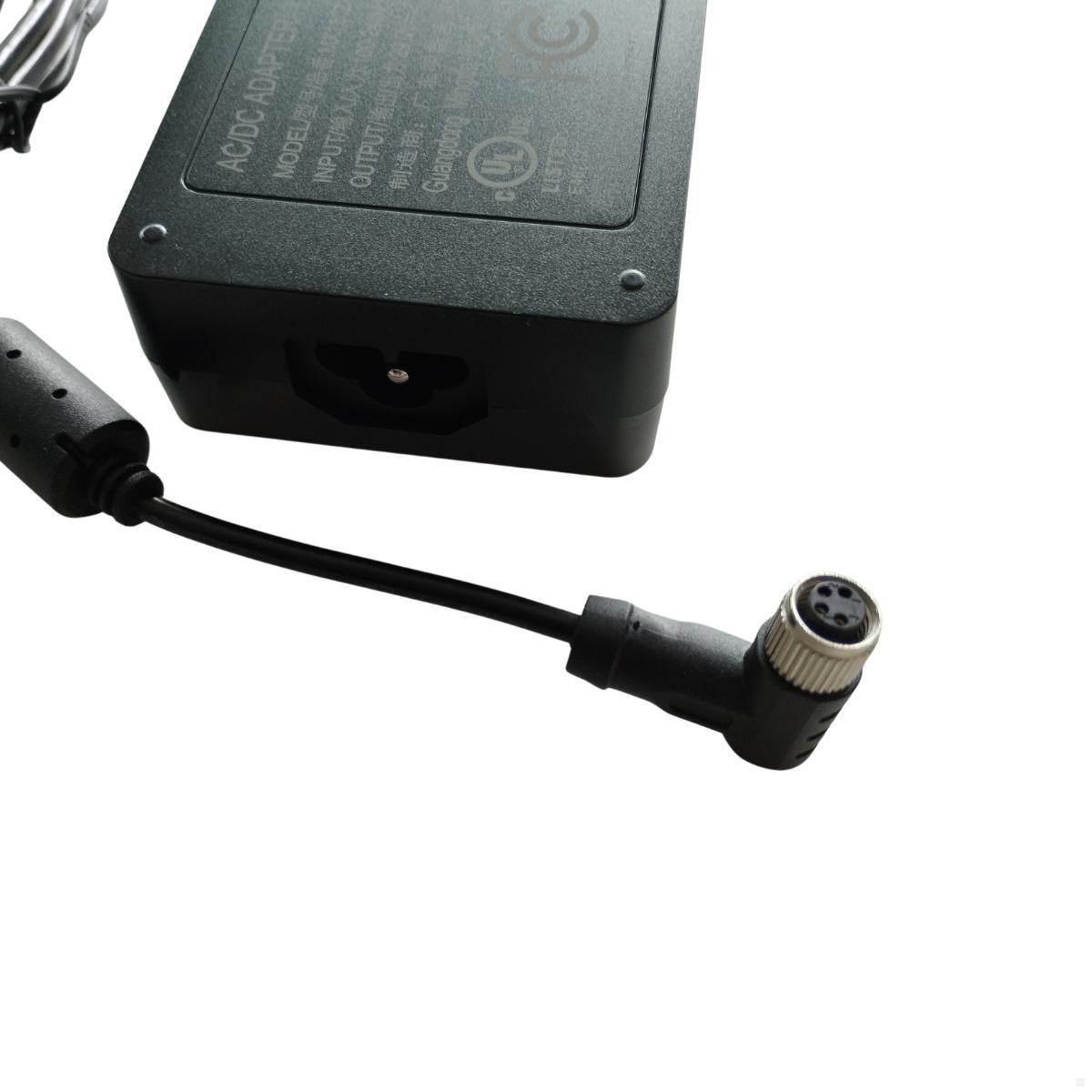

- 1 x Power adapter 180W AC

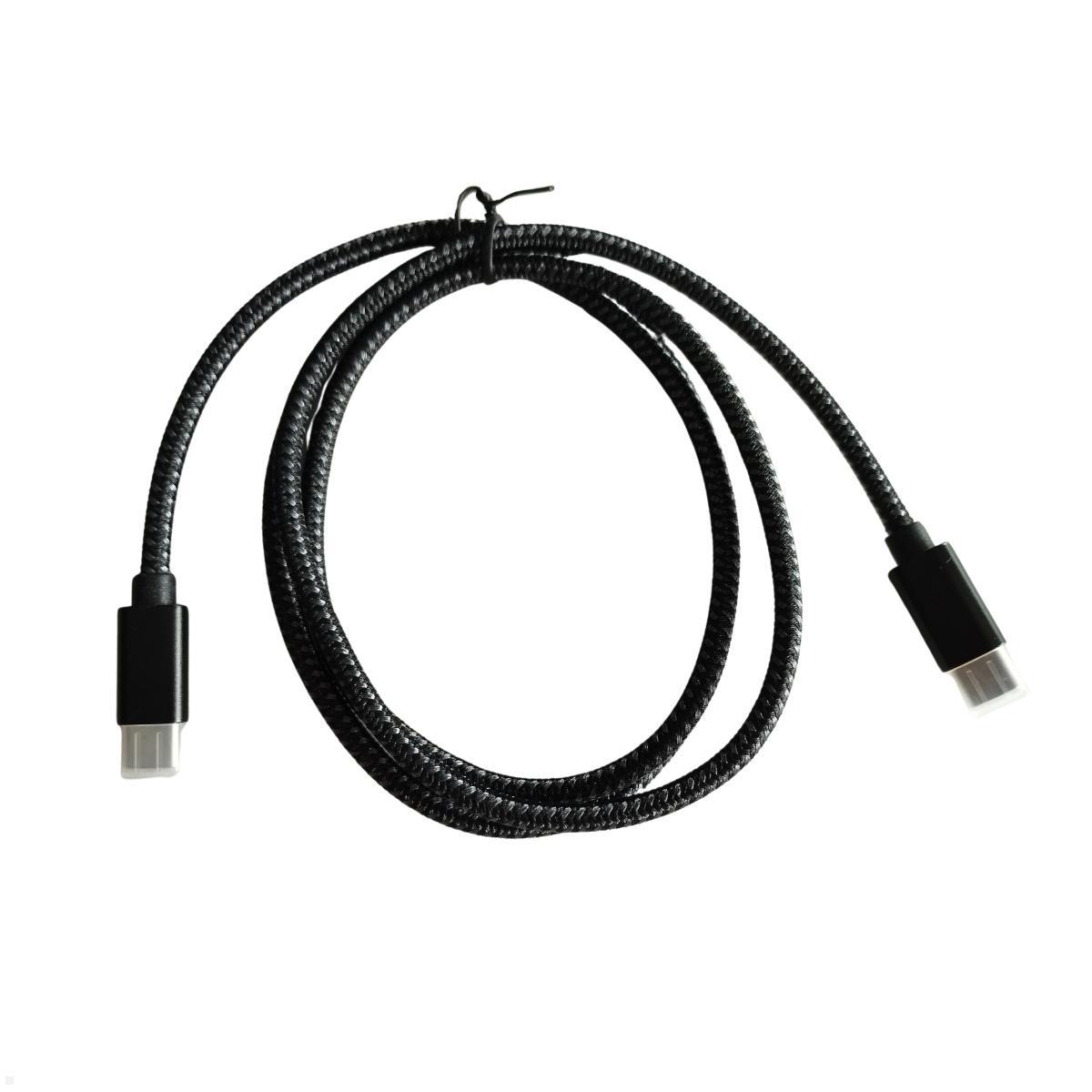

- 1 x USB-C connection cable (1.0 m)

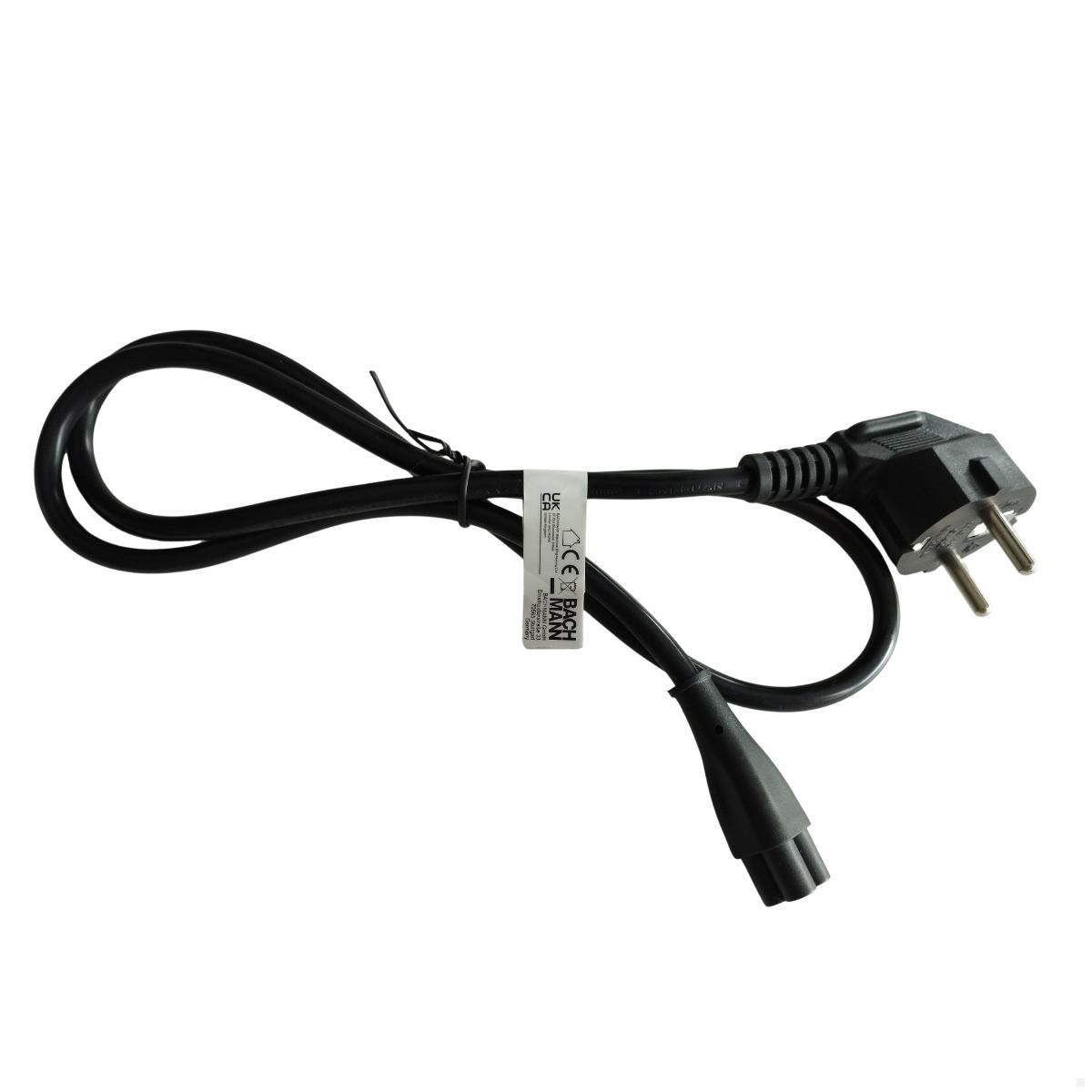

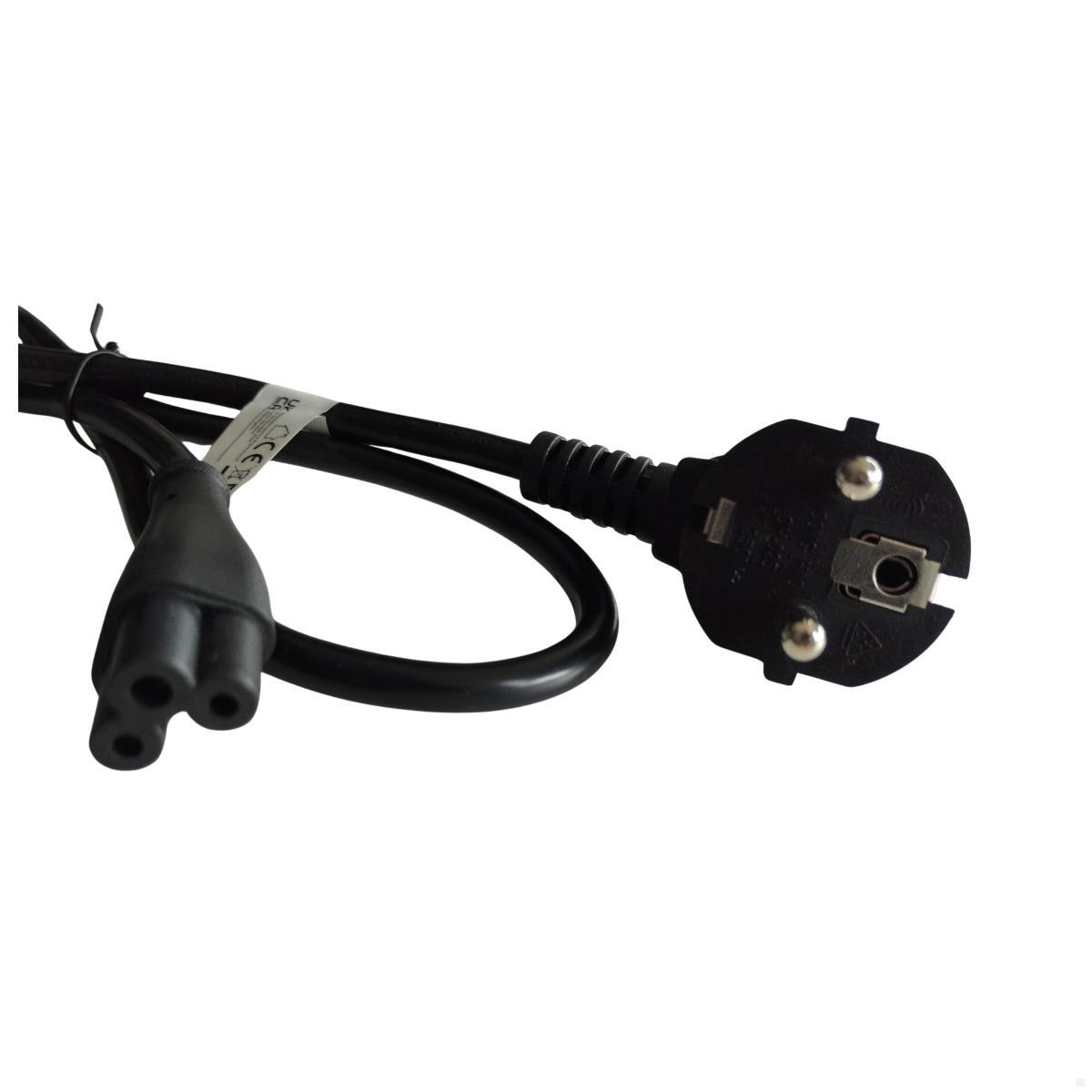

- 1 x Connection cable CEE7/7 to IEC C5 (1.0 m)
- 2 x Hex socket screws
Compatibility
Approved for installation in the following Bachmann series:
CONI, CONI DUO, CONFERENCE, CYCLE DESK, DESK 1, DESK 2, DUE, KAPSA, PIX, POWER FRAME, STEP ALU, TOP FRAME, UNIVERSAL, VENID
Area of application:
Ideal for conference rooms, office workstations, home offices, or anywhere where maximum charging performance and flexibility are required.
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
Bachmann Custom Module USB C/C/C 140W - maximum charging power for modern work environments
The Bachmann Custom Module USB C/C/C 140W is the perfect solution for anyone seeking maximum charging power and cutting-edge technology in a compact format. With three powerful USB-C ports, two with up to 140 watts and one with up to 30 watts, this module is ideal for simultaneously charging high-performance laptops, tablets, smartphones, and other USB-C-enabled devices. The integrated GaN (gallium nitride) technology ensures maximum energy efficiency, lower heat generation, and a significantly more compact design than conventional chargers. This means the module remains reliable and space-saving even at high power levels.
Fast charging with Power Delivery and PPS technology
Thanks to Power Delivery (PD) and Programmable Power Supply (PPS), the Bachmann USB-C module offers a manufacturer-independent fast charging technology that not only reduces charging times by up to 40 percent but also extends battery life. Intelligent current adjustment ensures that each connected device receives exactly the power it needs – Whether it's a notebook with a 140W charging requirement or a smartphone with fast charging. This technology offers a significant advantage, especially in professional environments where devices must be ready for use at all times.
High security and robust construction
The Bachmann Custom Module USB C/C/C 140W features several integrated safety features, including protection against short circuits (OCP), overheating (OTP), and overvoltage (OVP). Combined with the IP44 protection rating, the module is optimally protected against dust and splash water, making it ideal for use in demanding environments. The robust workmanship and high-quality materials ensure a long service life and reliable performance – Whether in the conference room, at the desk, or in the home office.
Perfectly integrated into Bachmann installation systems

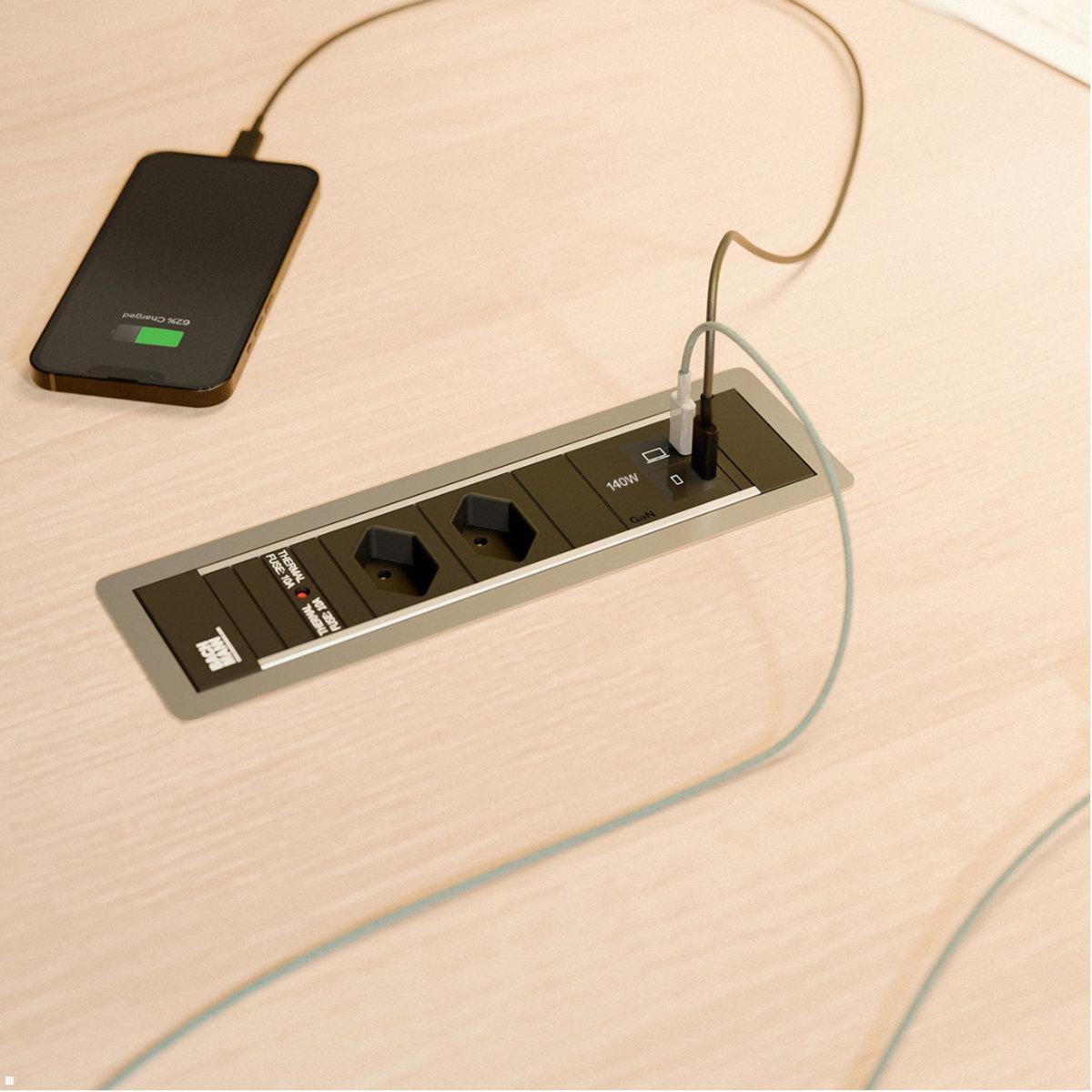

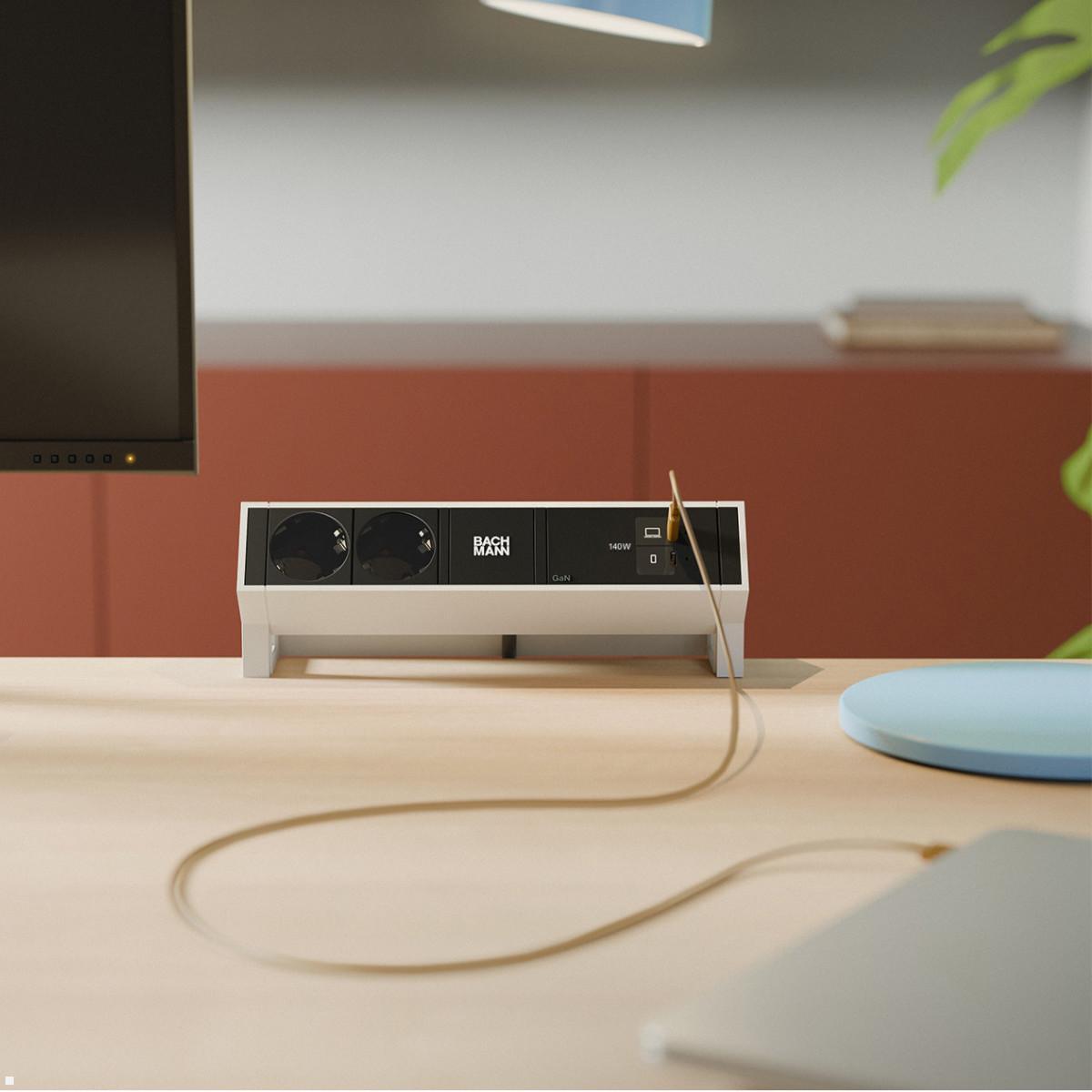

This charging module is specifically approved for installation in a variety of Bachmann series, including CONI, CONI DUO, CONFERENCE, CYCLE DESK, DESK 1, DESK 2, DUE, KAPSA, PIX, POWER FRAME, STEP ALU, TOP FRAME, UNIVERSAL, and VENID. This allows the charging function to be seamlessly integrated into existing furniture and workstation solutions without disrupting the design. In modern offices or conference areas, this integration enables a tidy, cable-free power supply directly where it is needed.
With its compact dimensions of 159 x 66 x 35 mm and elegant black surface (similar to RAL 9005), the Bachmann Custom Module USB C/C/C 140W blends discreetly into any environment. The included connection and connection cables, as well as the powerful 180W power supply, ensure that the module is ready for immediate use.
The Bachmann Custom Module USB C/C/C 140W is not only a powerful USB-C charger, but also a future-proof investment in efficient energy management in the workplace. It combines state-of-the-art charging technology, the highest safety standards, and flexible application options – ideal for companies, conference rooms, educational institutions, or demanding home office setups where reliability and speed are crucial.
