Bachmann DESK 1, 2x socket, 1 USB C Charger 60W (902.0813)

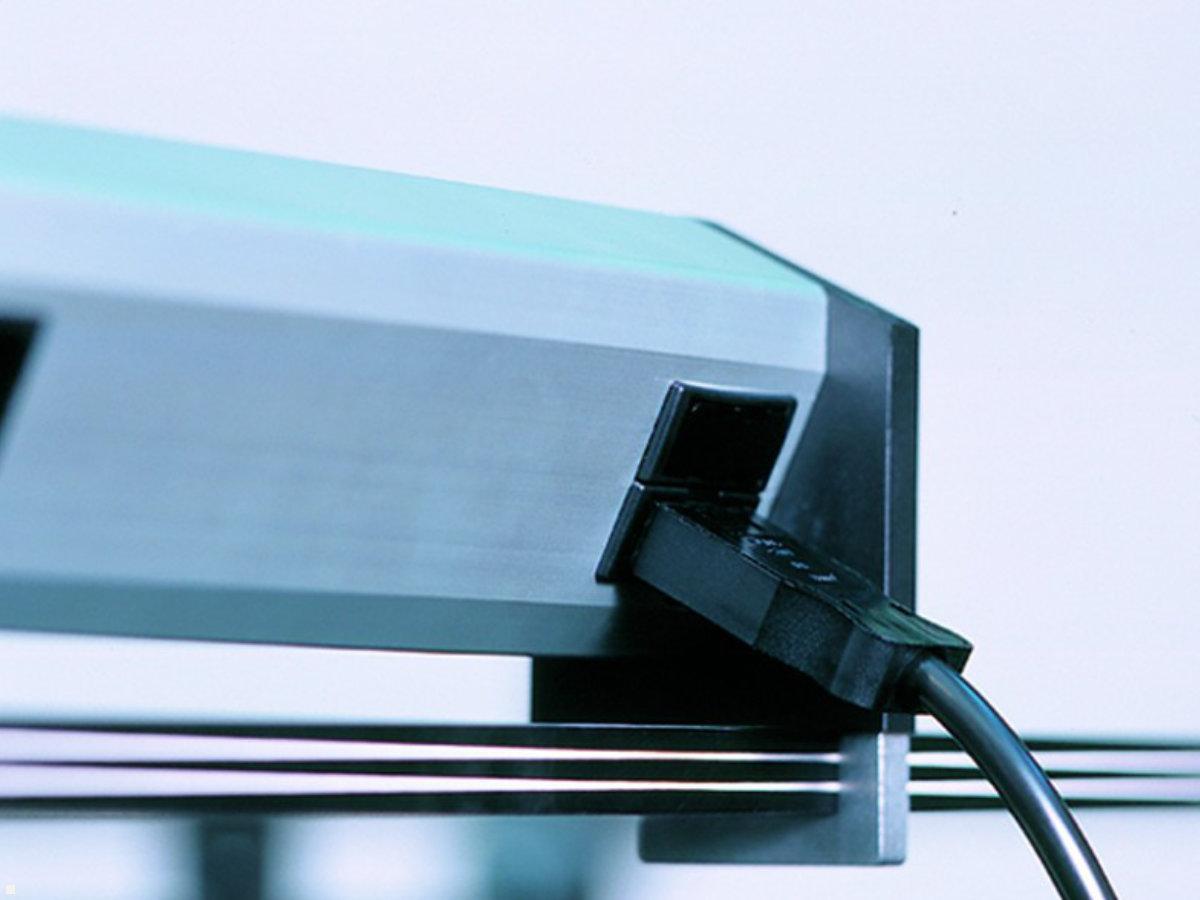

The desk connection panel Bachmann DESK 1 with 2x socket and 1x USB C Charger is quickly and easily attached to the edge of the desk with a bracket set (not included).
Desktop socket with power connection and USB-C

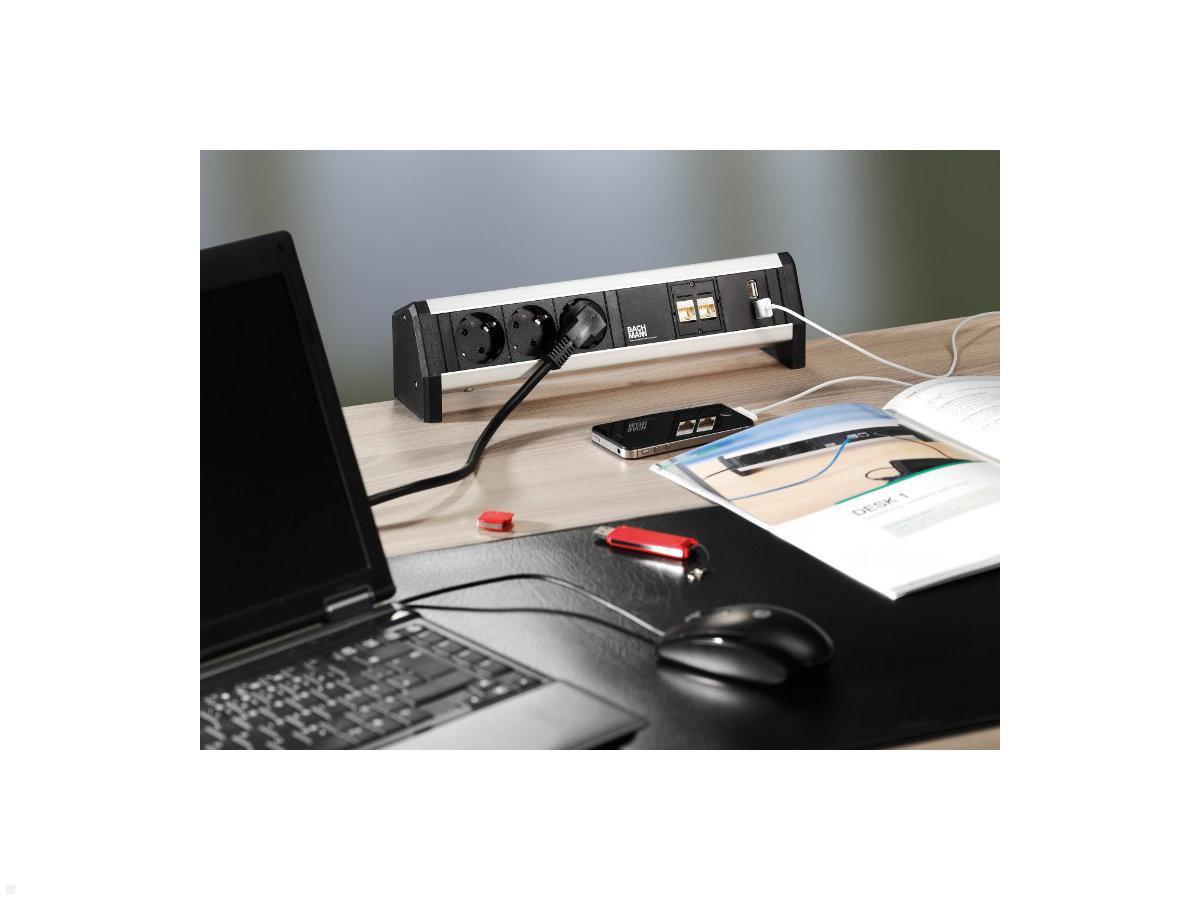

The DESK 1 desk connection panel is easily mounted to the edge of the desk without damage using a bracket set (accessory). The preconfigured power strip with two safety sockets and a USB C 60W charger allows easy access to power for various devices (smartphones, tablets, laptops). In the back of the Desktop socket with power connection and USB-C, power input and power output contact connections for power supply or forwarding are available. These are touch-safe and have a locking mechanism in accordance with regulations, which can be unlocked if required. The ideal overall solution for office workstations is the combination of Bachmann DESK 1 and Bachmann STEP power strip. The Bachmann STEP power strip underneath the tabletop supplies power to permanently installed devices such as PCs, monitors, printers, etc. The Bachmann STEP power strip is screwed on under the table top or positioned in a channel under the table.
With the integrated Wieland plug system, several power strips can be connected in series (cascading) in accordance with the standards.
Key features Bachmann DESK 1 (902.0813)
- Anodized aluminum profile

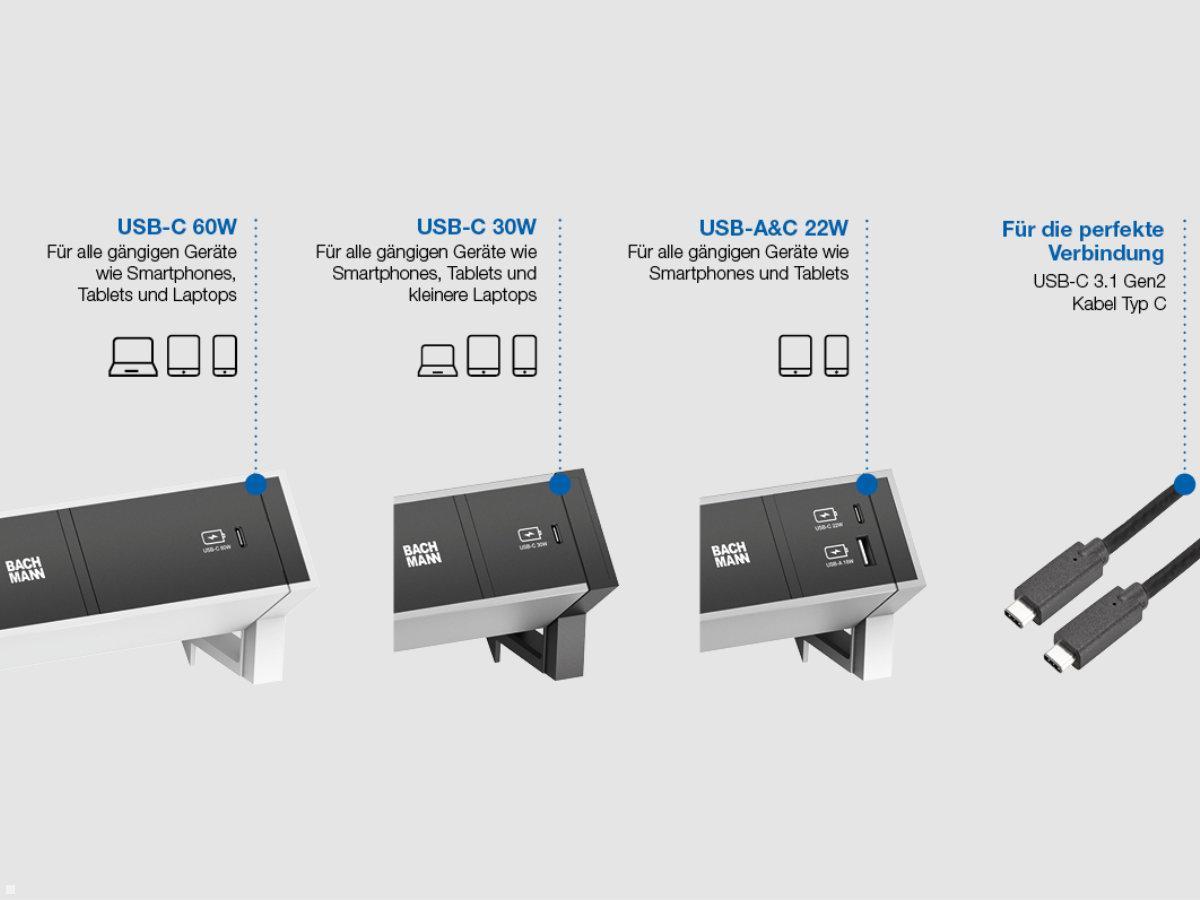

- 1x USB C Charger 60W
- 2x black sockets with earthing contact, turned 35

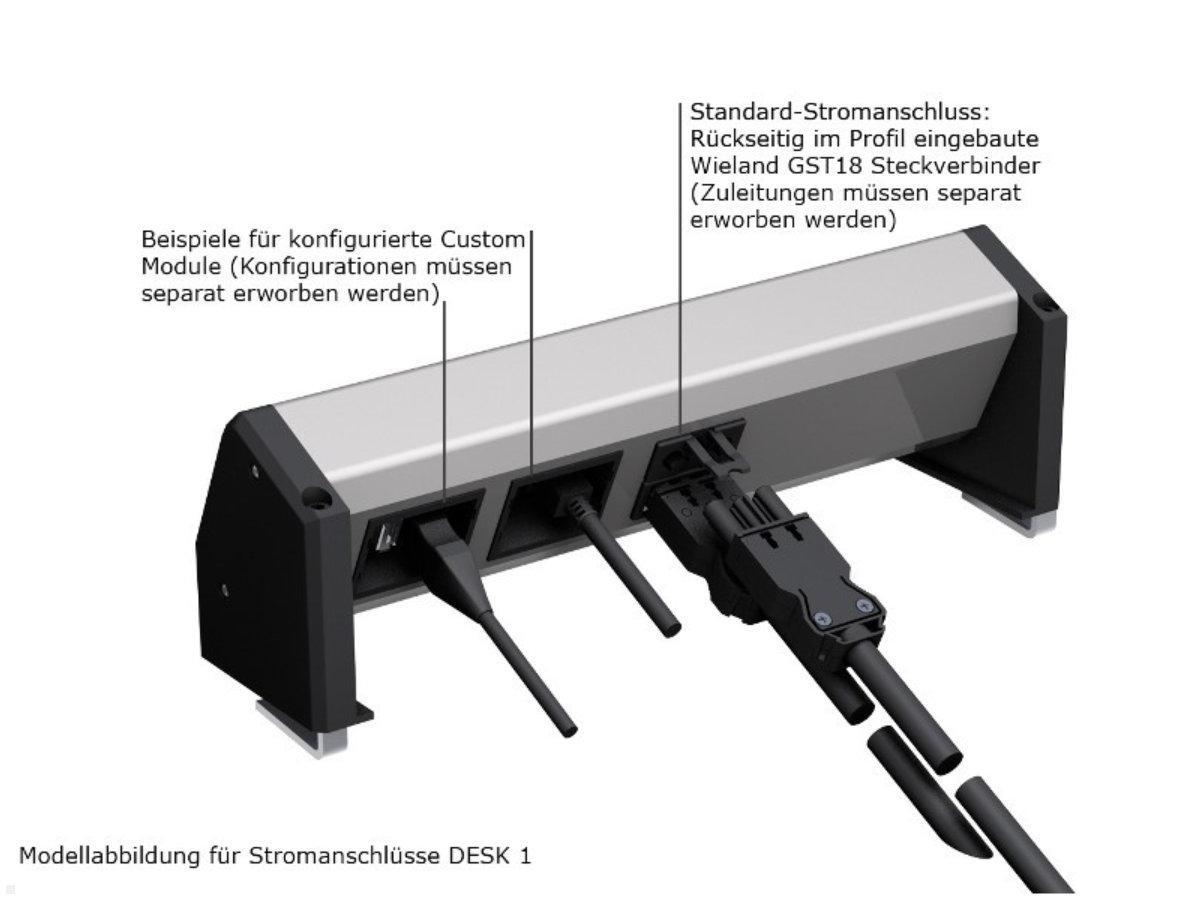

- Power input: GST18i3 connector
- Current output: GST18i3 socket

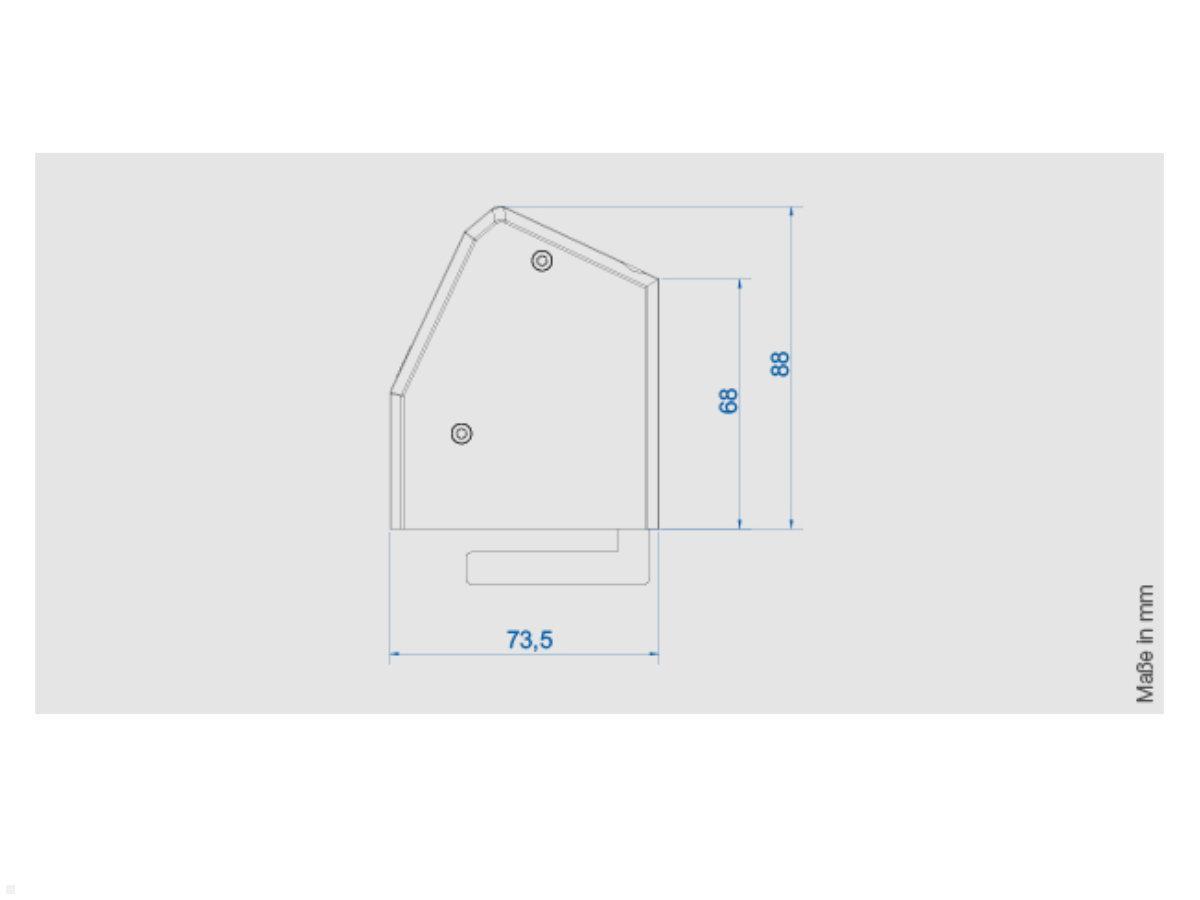

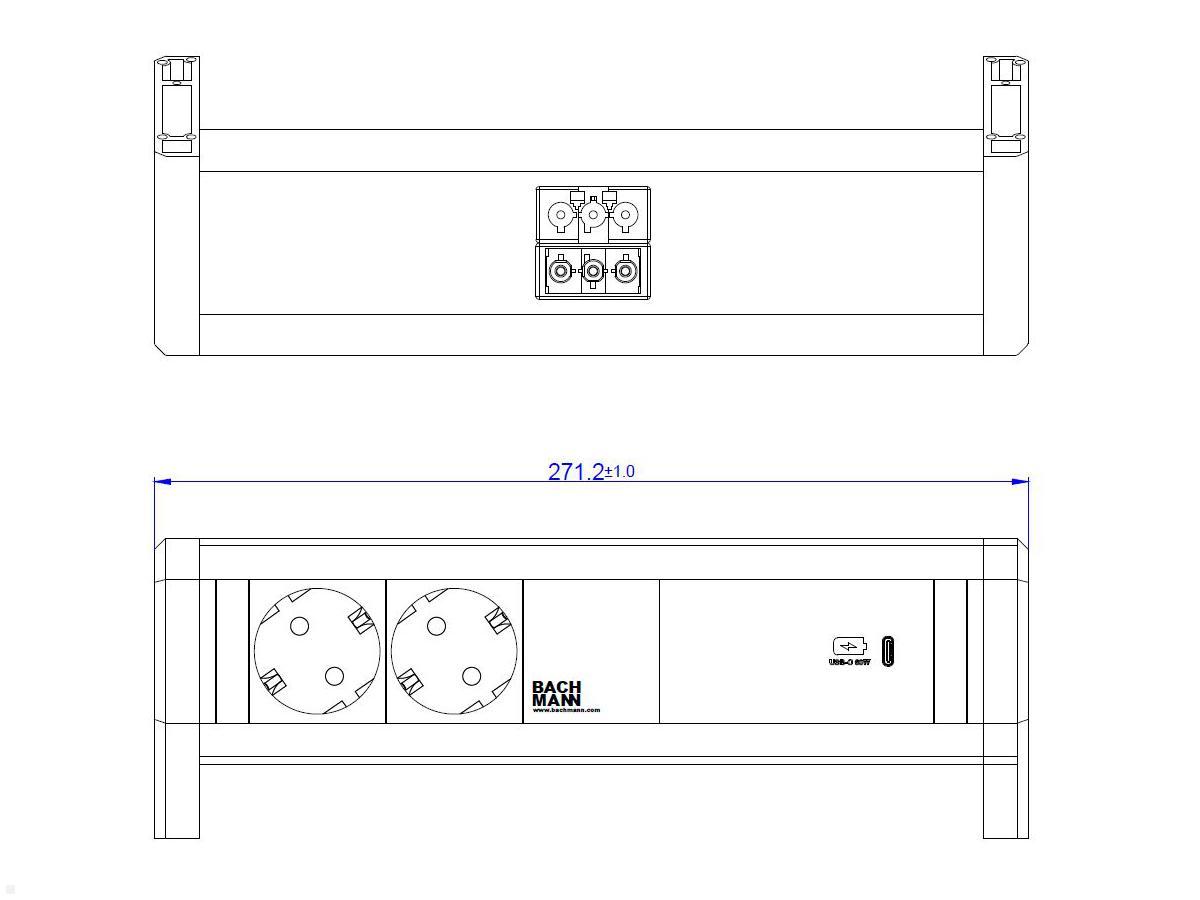

- Dimensions (LxWxH): approx. 281 x 74 x 93 mm
- GST18 leads must be purchased separately
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | - |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Silver/Black |
| USB-Charger: | USB C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
