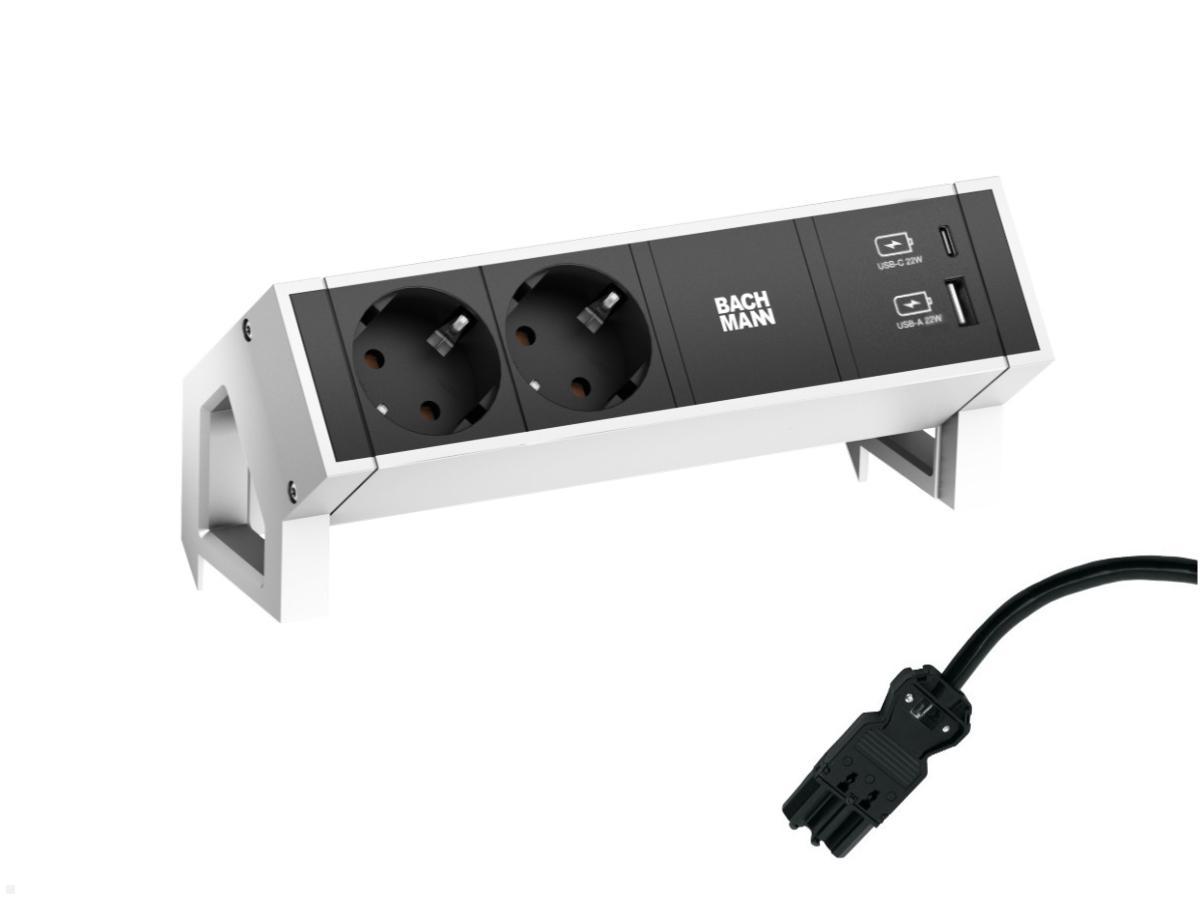

Bachmann DESK 2, 2x socket, 1 USB-C / 1 USB-A Charger (902.932), white
The Bachmann DESK 2 desk connection panel with 2x socket and 1x USB C Charger / 1x USB A Charger with 22W can quickly and easily be attached to the table using the supplied bracket set or an optionally available adhesive base.
2x sockets with USB-C / USB-A charger
The Bachmann powerstrip, consisting of 2x sockets with USB-C / USB-A Charger, can easily be mounted on the desk with the bracket set (an adhesive base is available as an option). The preconfigured desk connection panel with two earthed power sockets and a USB C 22W Charger provides easy access to power connections for various devices (smartphones, tablets or laptops). The clear and simple design of the Bachmann DESK 2 has already won it the Red Dot Design Award and the IF Product Design Award.
Key features Bachmann DESK 2 socketstrip (902.932)
- 1x USB-C / USB-A Charger 22W
- 2x black power socket outlet with earthing contact, rotated 35°
- Supply cable: 0.2m H05VV-F3G1.5 mm² black with GST18i3 plug

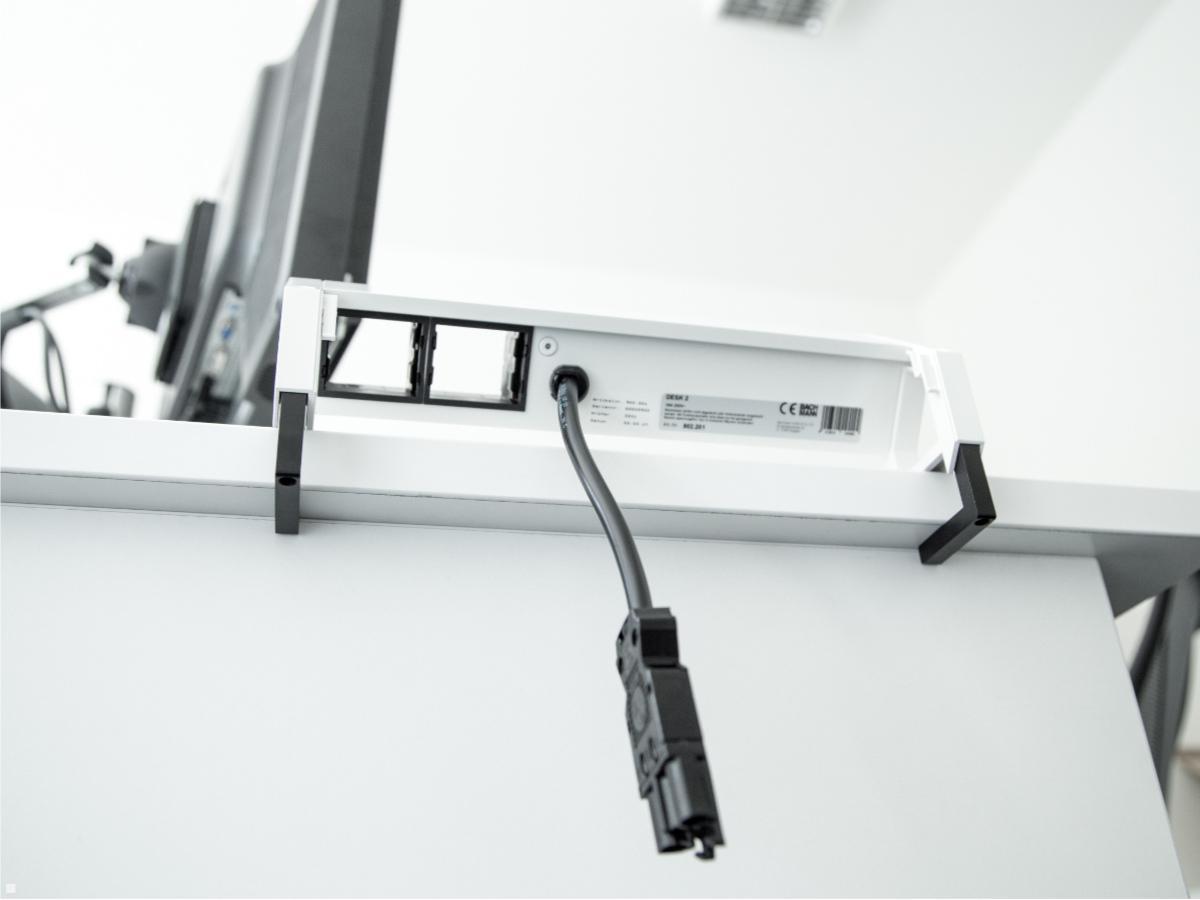

- Including mounting bracket set
- Construction: table top thickness 10 - 40 mm
- Finish: white

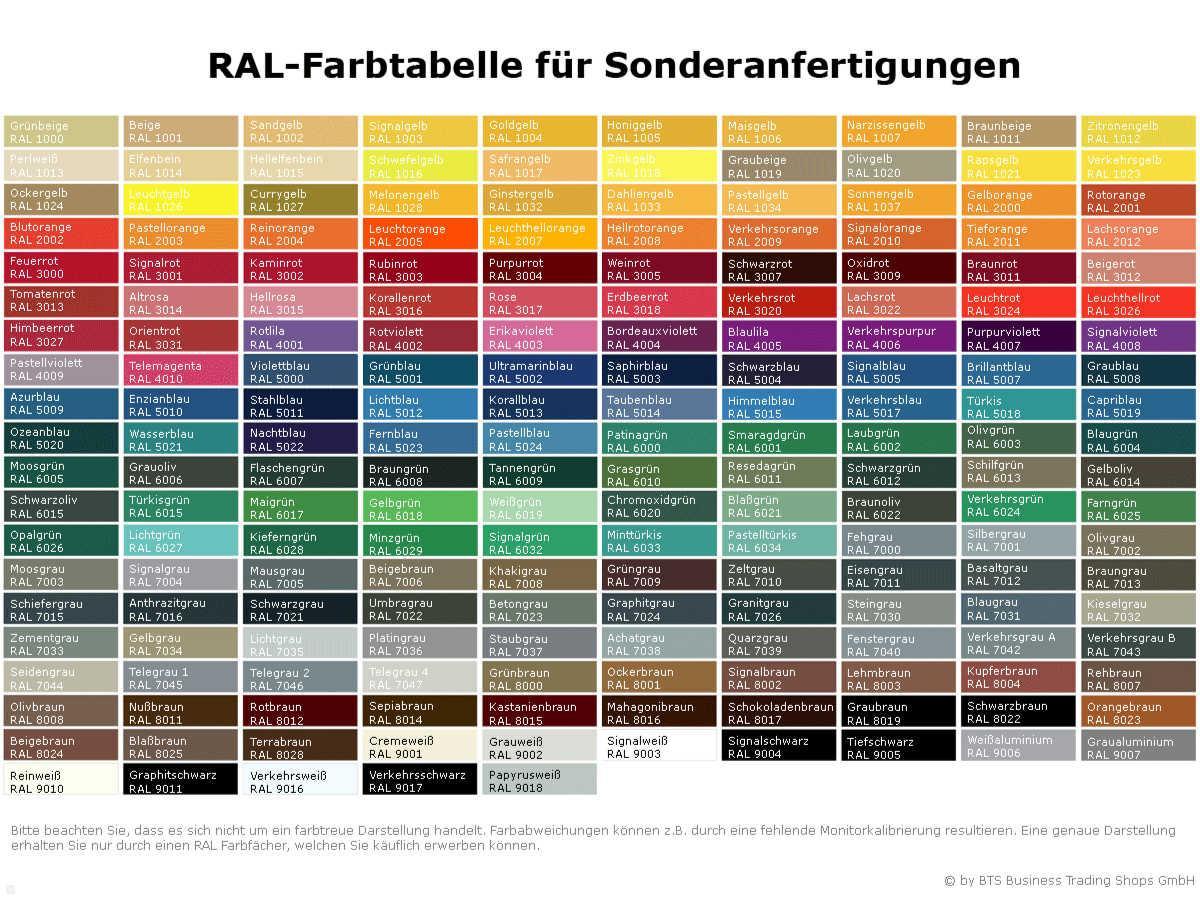

- Available in 200 RAL colours / finishes on request
Advantages Bachmann DESK 2 with USB-C charging station
- High end USB-C charging technology
- Fast charging via PD & QC
- Integrated current limitation
- Overtemperature protection
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

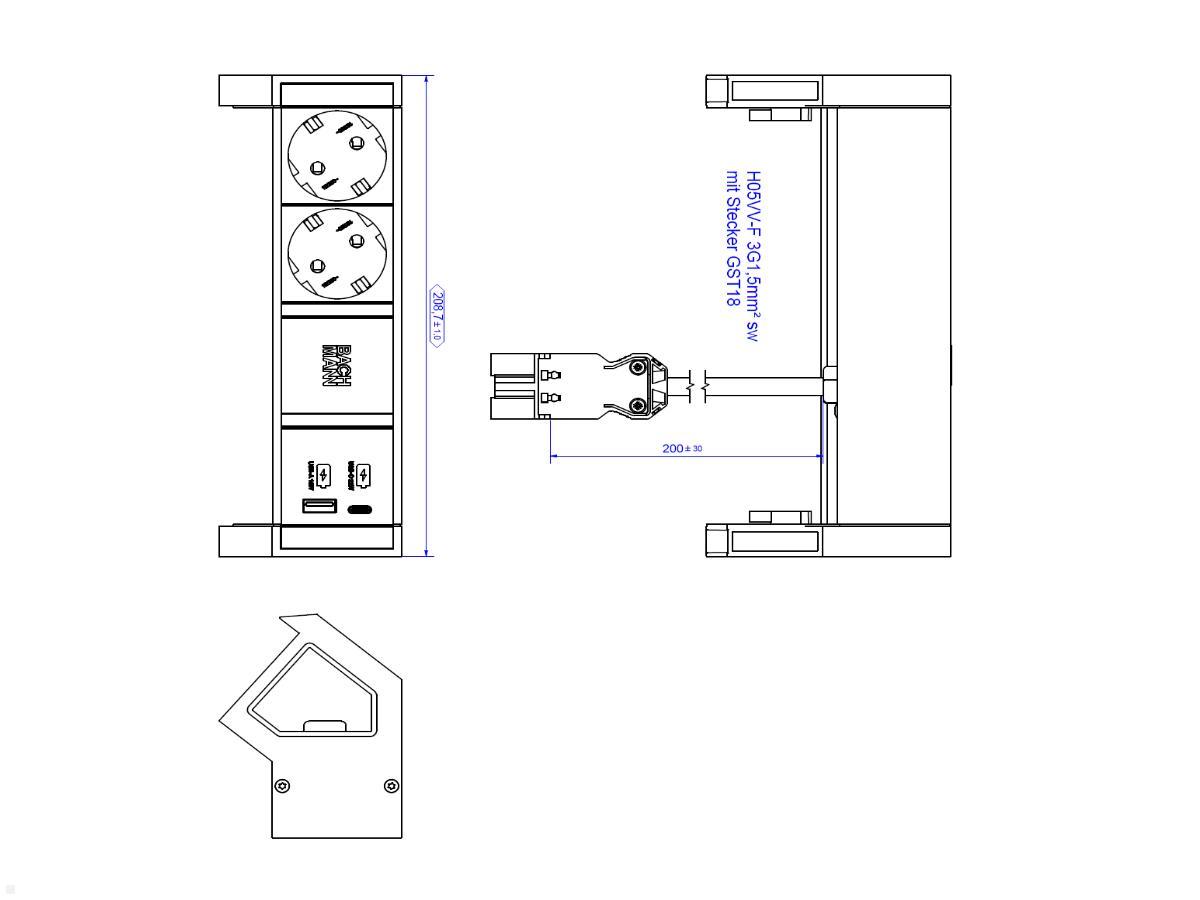

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Weiß |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
