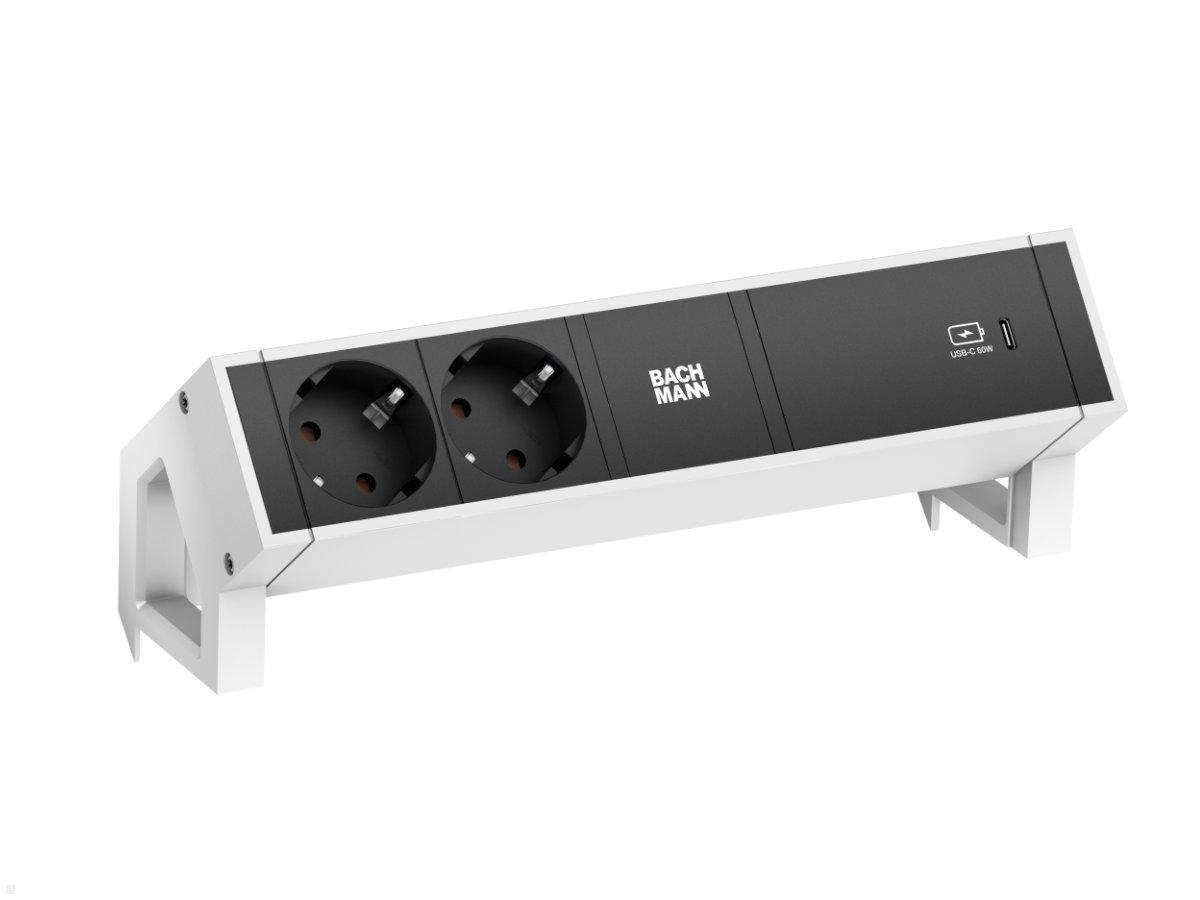

Bachmann DESK 2, 2x socket, 1 USB-C Charger 60 W (902.934) white
The Bachmann DESK 2 desk connection panel contains 2 sockets and a USB-C charger with 60W and can be easily attached to the desk using the supplied mounting brackets (or optionally with an adhesive base).
Table sockets 2x CEE 7/3 and USB-C Charger

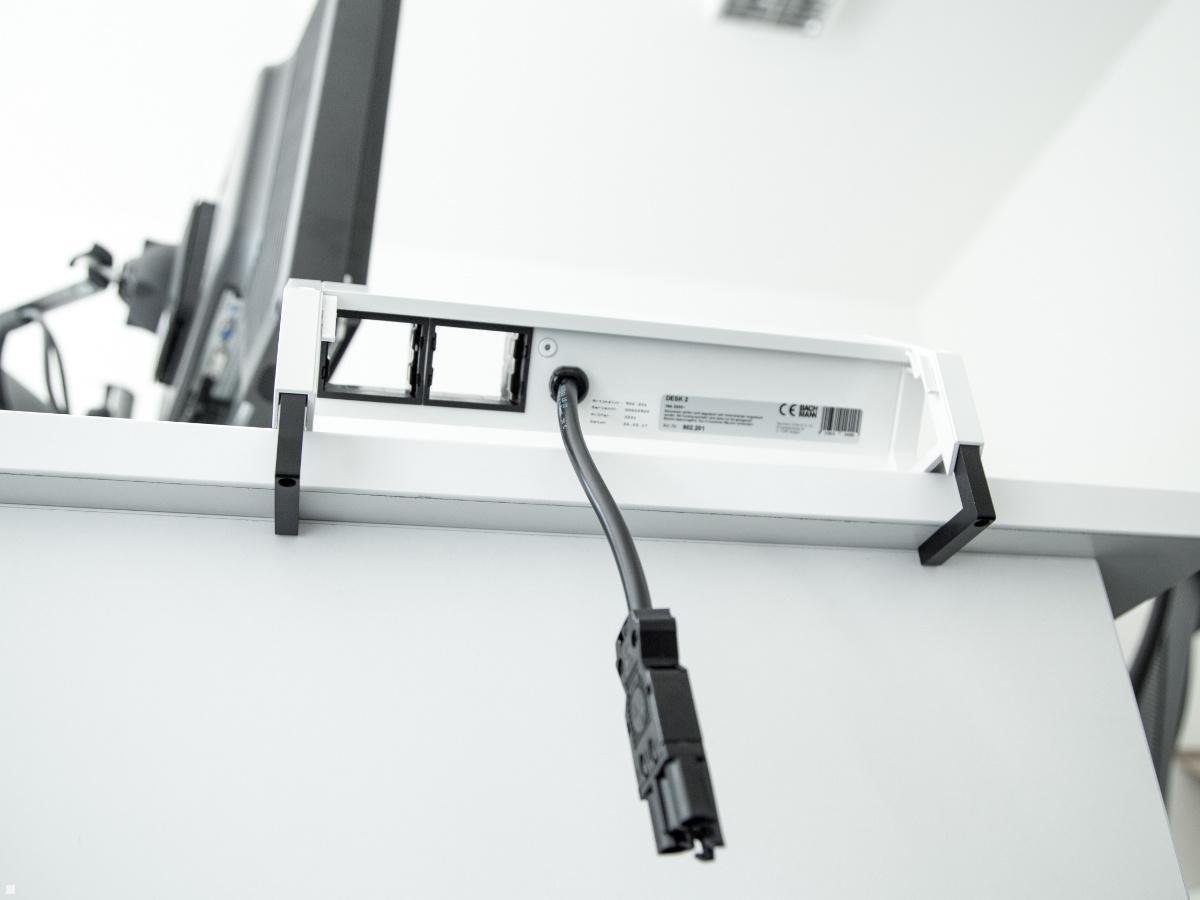

The DESK 2 desk connection panel is quickly and easily mounted to the edge of the desk without damage using the bracket set (an adhesive base is optionally available). The preconfigured socket strip with two protective contact sockets and a USB C 60W charger allows easy access to power connections for various devices of the latest design (smartphones, tablets, laptops). The clear and simple design of this Table sockets 2x CEE 7/3 and USB-C Charger has already earned the DESK 2 the red dot design award and the IF Product Design Award. High-quality and durable materials make this power strip stand out. If several DESK 2 desk connection panels are to be mounted next to each other, a distribution block (e.g.: 375.102, 375.105, etc) facilitates the connection and distribution of cables.
Key features DESK 2 (902.934)
- Material profile: aluminium, socket plastic
- Painted in RAL 9010 white

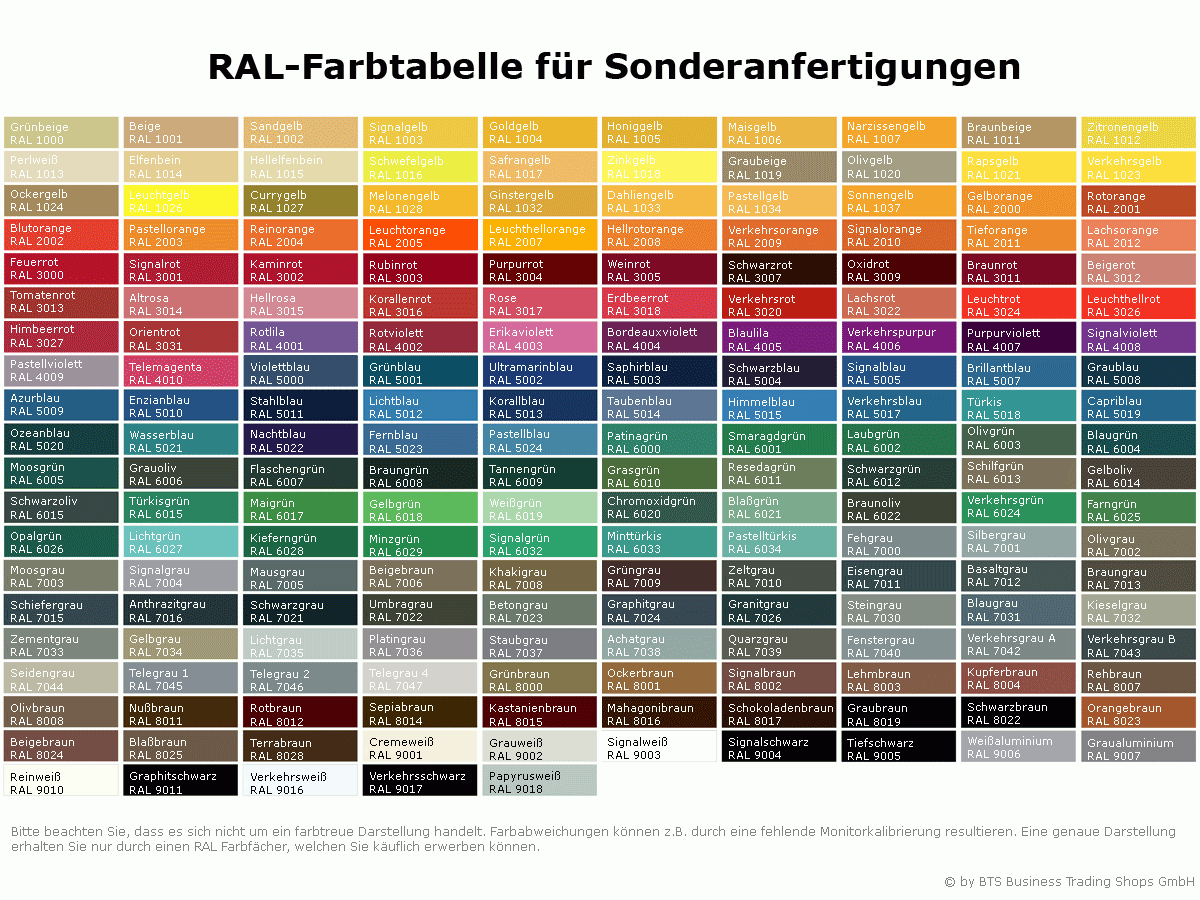

- Available in over 200 RAL colours on request
- 1x USB-C Charger 60W
- 2x black socket outlets with earthing contact, rotated 35°

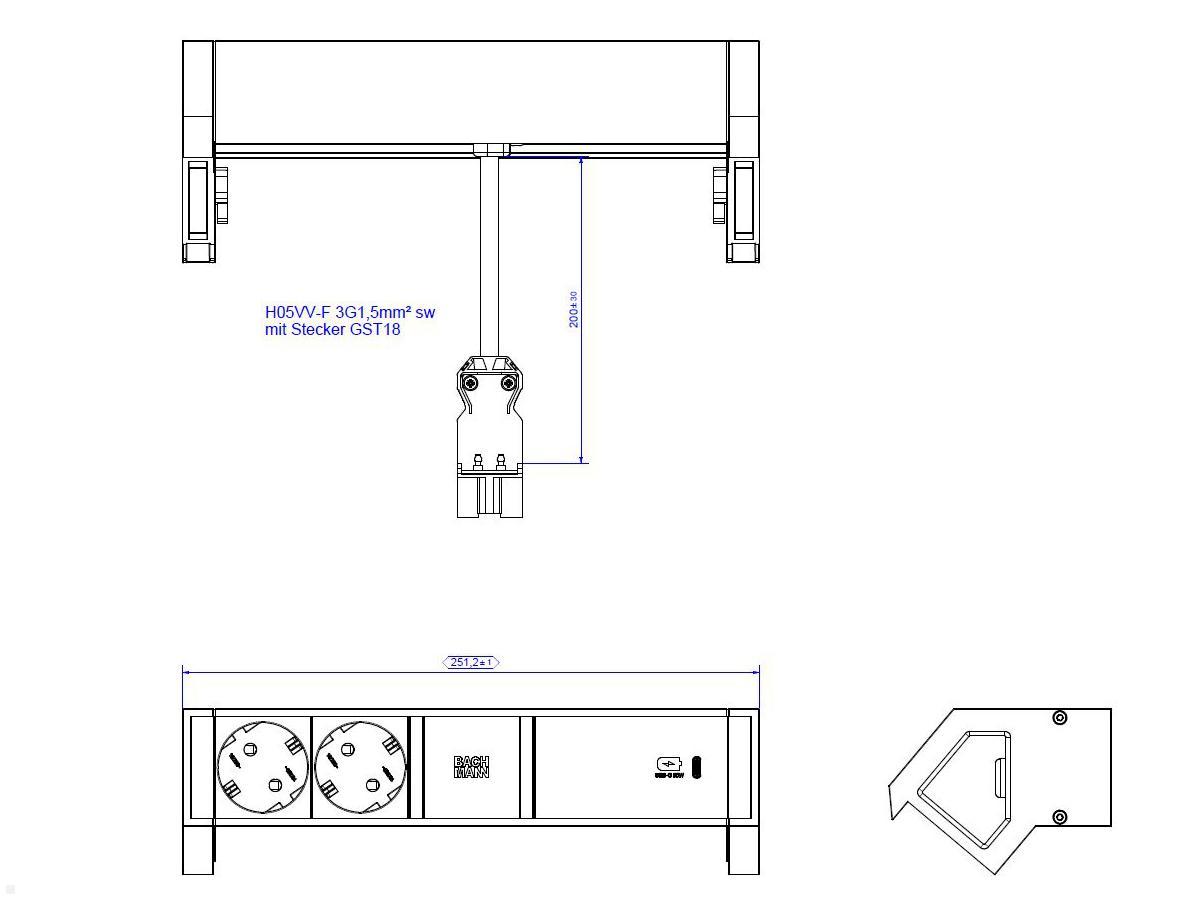

- Supply cable: 0.2m H05VV-F3G1.5mm² black with GST18i3 plug
- Incl. mounting bracket set
- Construction: table top thickness 10 - 40 mm
- Dimensions (LxWxH): approx. 251 x 74 x 93 mm
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 161 kb] |
|---|---|
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 115 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | white/black |
| USB-Charger: | USB C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
