Bachmann HOOK Indoor 5-way power strip with switch, 5m supply cable (500.100)
5-way socket strip with hooks

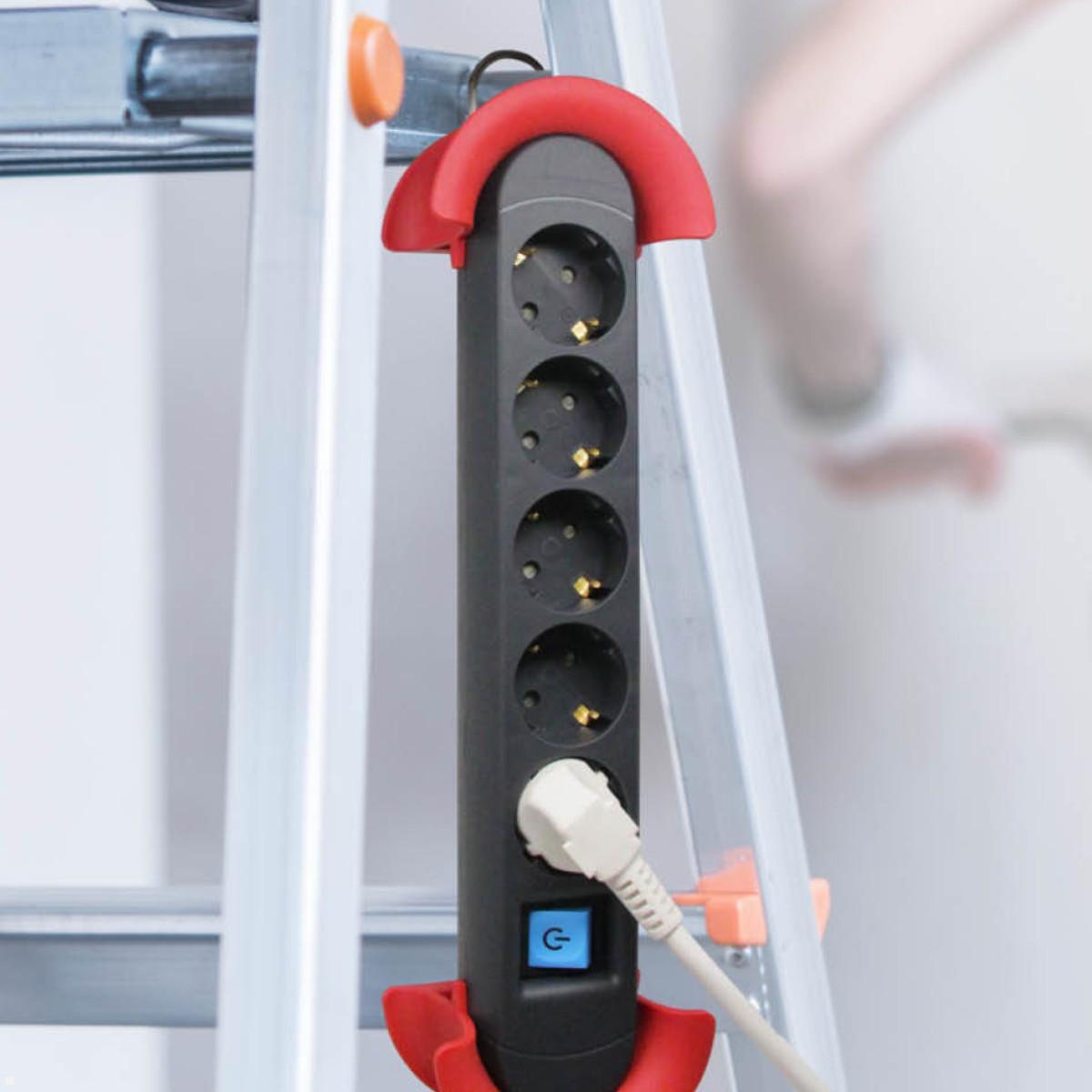

The 5-way socket strip with hooks from Bachmann offers a lot of flexibility in the workshop, garage or hobby room. Thanks to the two integrated hooks, the Bachmann HOOK Indoor can be hung without tools, for example, on ladders, walls or cords. A spontaneous change of the working environment is thus easy to manage at any time. The 5m long supply cable can be wound up at the round end caps with the help of the Velcro strap provided, so that the multiple socket can be stored in the tool box to save space when not in use. Safety at work is ensured by the green illuminated on/off switch and the five socket housings.
Key features Bachmann HOOK Indoor multiple socket outlet with switch (500.100)
- 5x socket outlets (black) with earthing contact, 2-pole, 35° rotated
- 16 A / 250 V
- Protection type: IP20 (Protected against solid foreign bodies with diameter > 12.5 mm)
- Supply cable: 5m H05VV-F 3G 1,5 mm² with protective contact angle plug (black)
- On/Off switch, green illuminated

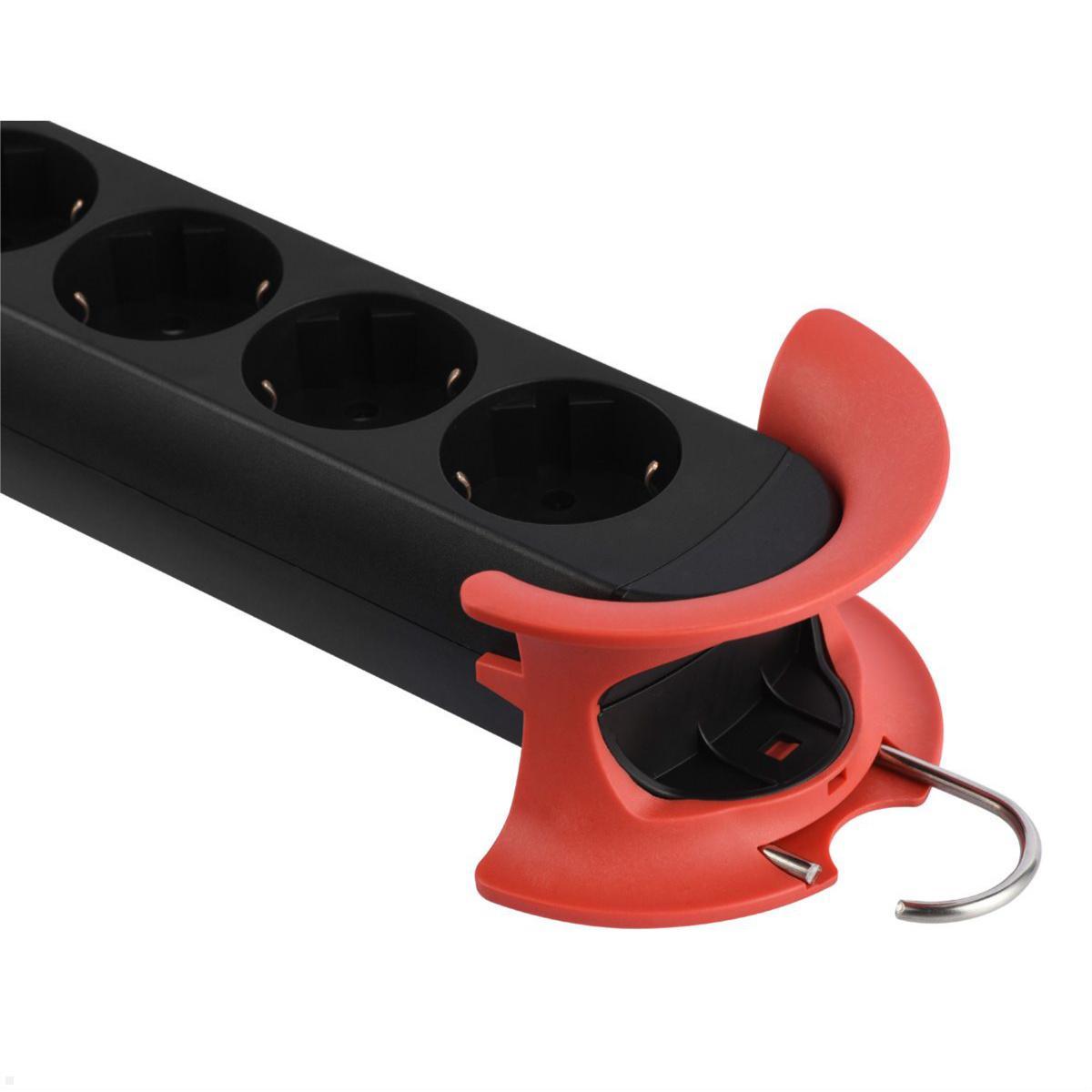

- 2x integrated pull-out hooks for indoor suspension

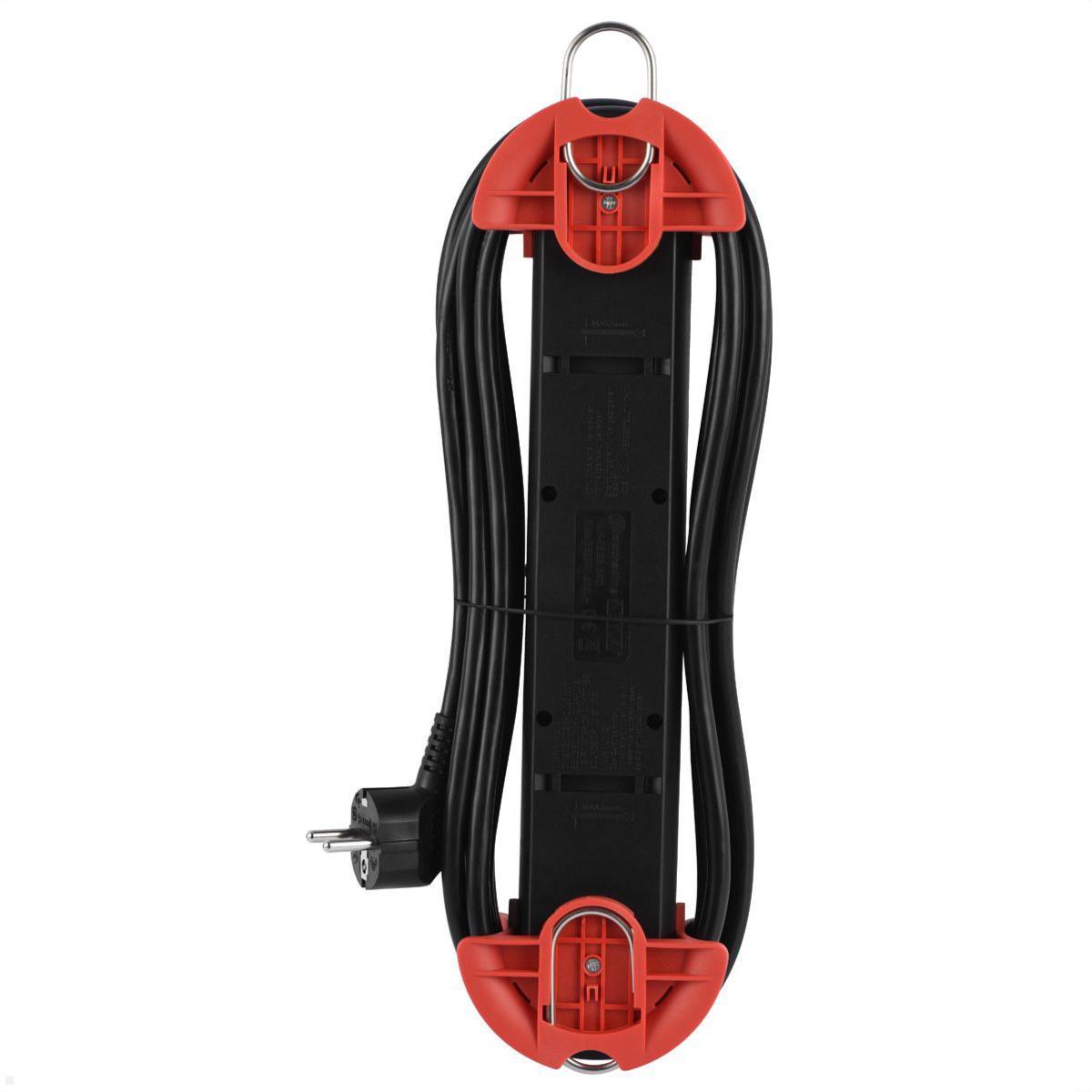

- Round end caps with cable coilers (red)

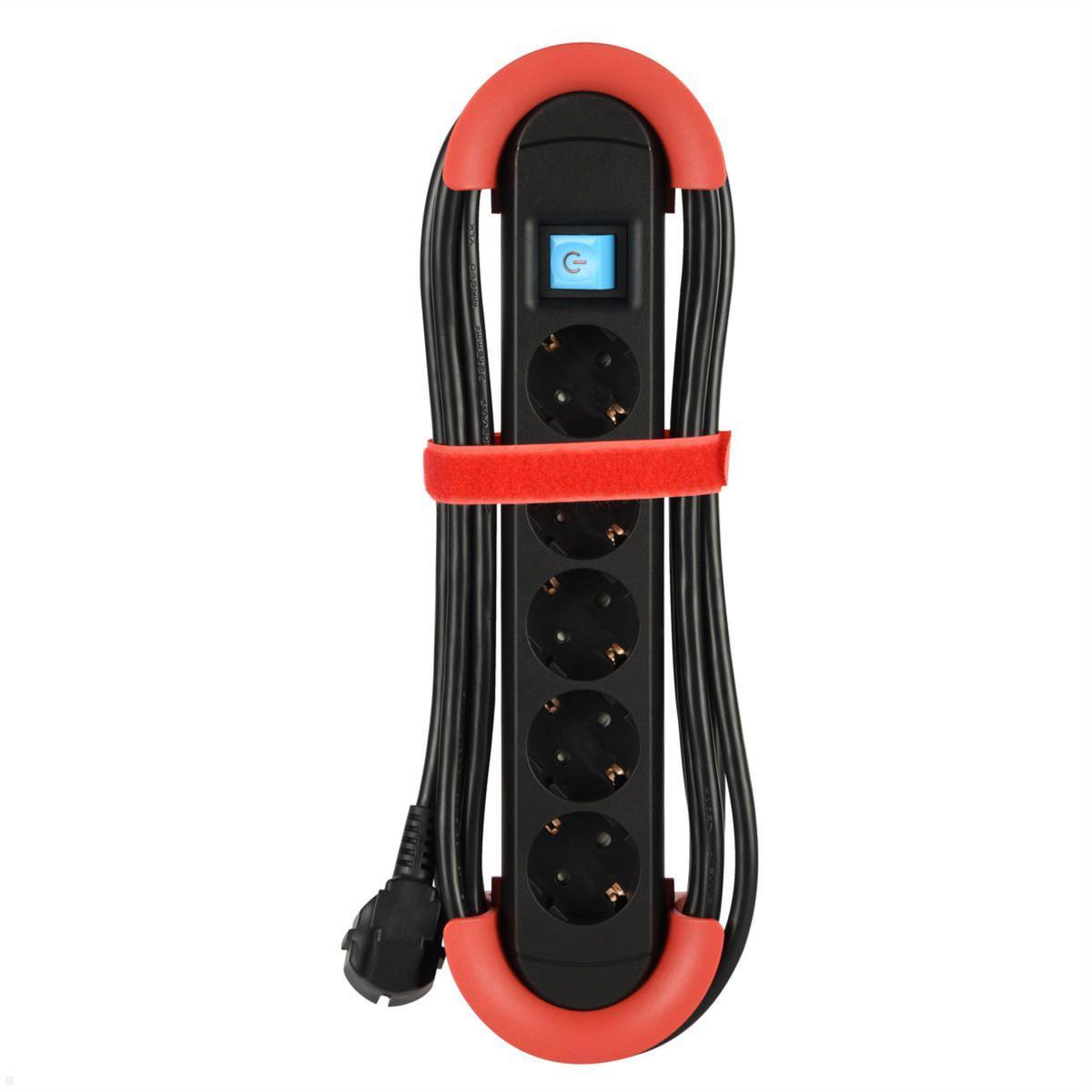

- Velcro strap for cable management
- Dimensions (WxHxD): 360 x 110 x 70 mm
- Weight: 0,92 kg
- Finish: black / red
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | Power strip with 5m supply cable |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 5 |
| color: | Black/Red |
| Land: | Germany |
| screw-on: | No |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
