Bachmann KAPSA S 1x socket 1x USB charger A/C (927.701)
Built-in socket outlet with USB-A/C

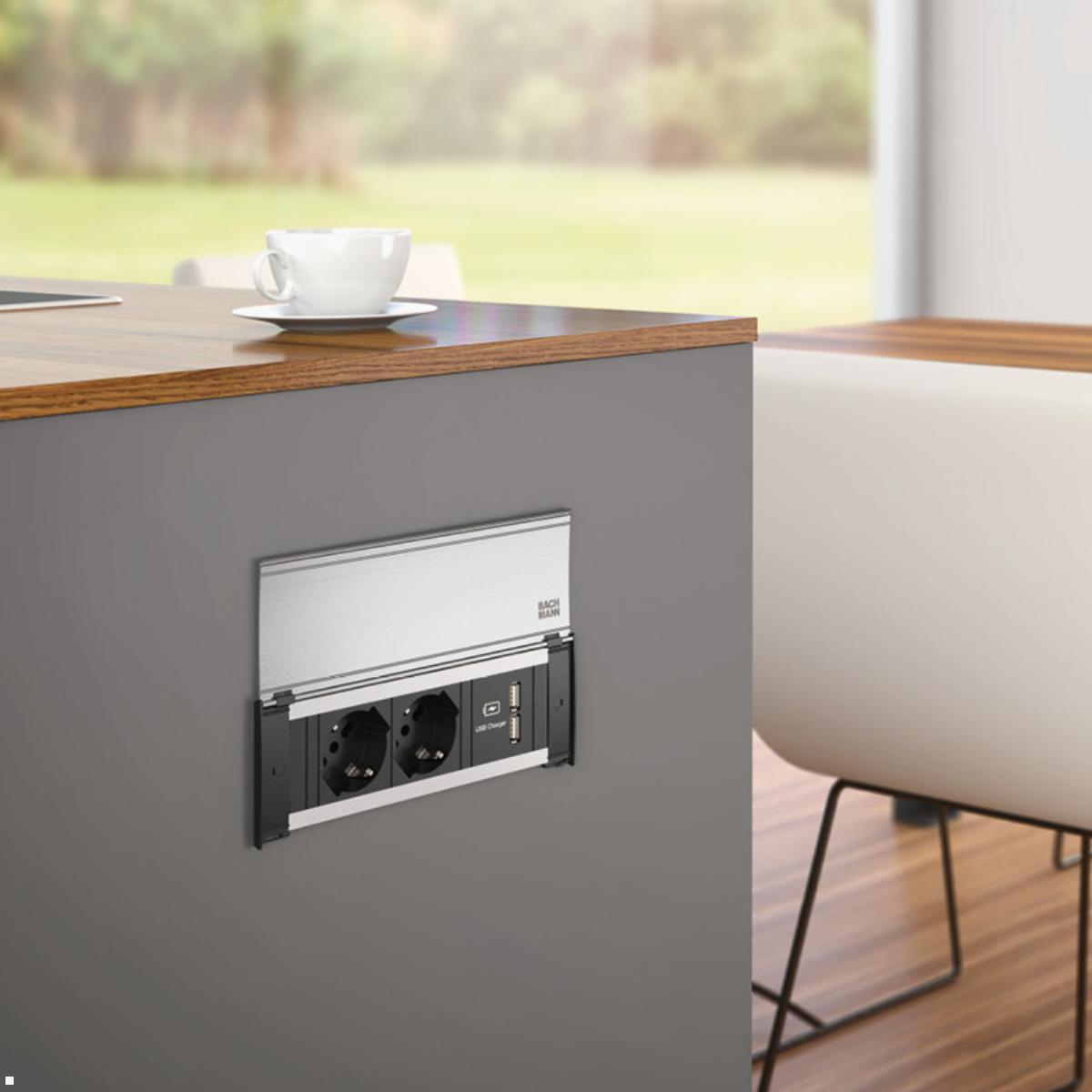

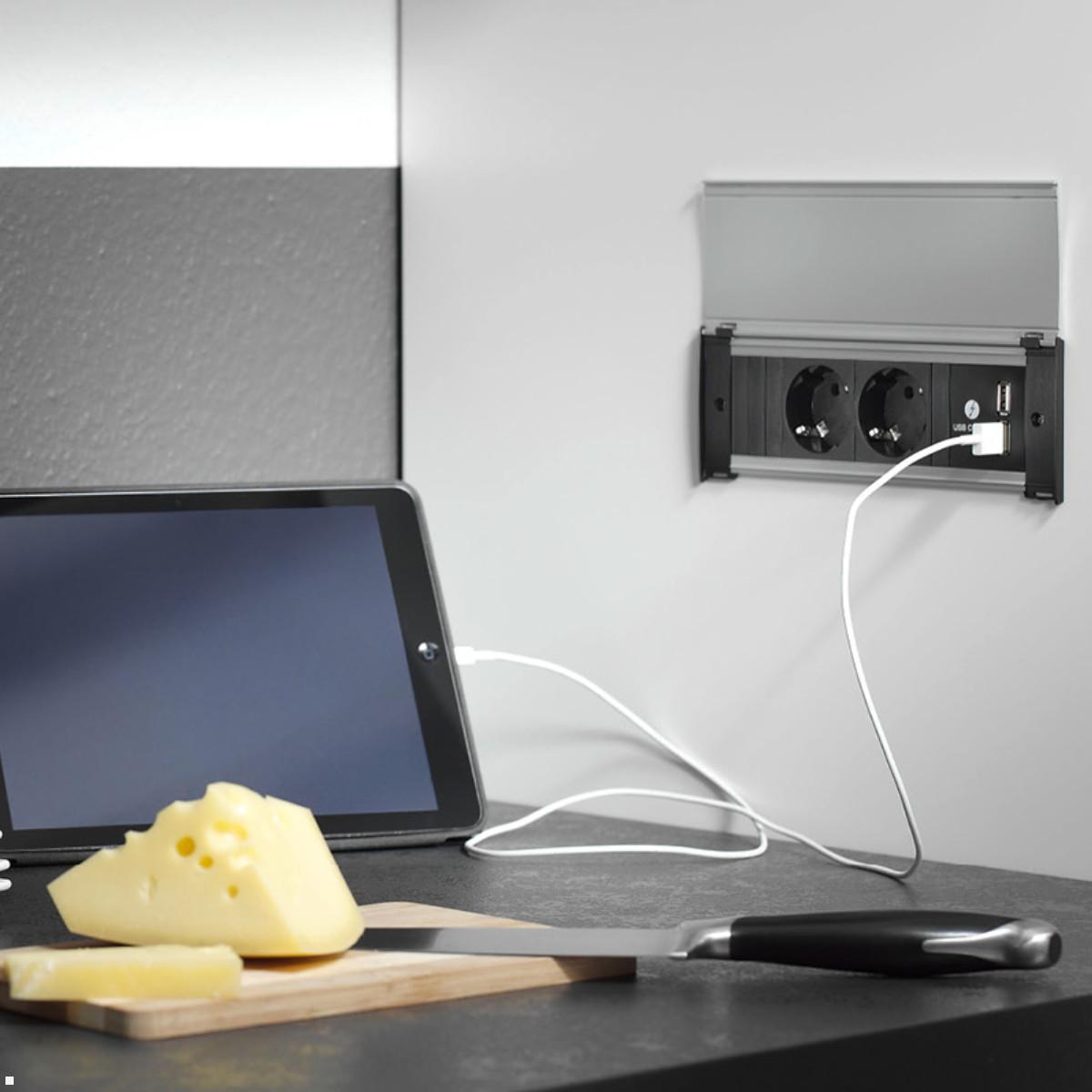

The KAPSA S built-in socket outlet with USB-A/C (927.701) from Bachmann is designed to equip office desks, conference rooms or kitchen counters and features classic minimalist shapes. The table connection panel has a protective contact socket with increased contact protection as well as a USB double charger with USB-A and USB-C connection, which can be used for charging smartphones, tablets and other devices. Due to the installation from the top as well as a low installation depth of only 45 mm, the power strip can be easily and, if necessary, subsequently integrated into various surfaces. The optional hinged and replaceable cover offers protection against external influences such as splash water and dust and is available in different colors.
Technische Details Bachmann KAPSA S with socket and USB A/C charger (927.701)
- Built-in socket outlet for kitchens, offices and other applications
- 1x protective contact socket outlet with increased contact protection, 35° rotated
- 1x USB charger with USB-A and USB-C (22 W)
- Supply cable: 0.2 m H05VV-F 3G1.5mm² with Wieland GST18i3 plug
- Low installation depth (approx. 45 mm)
- Protection class: IP20
- Material (housing): aluminum
- Color: black
- Optionally available: Hinged and replaceable cover
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

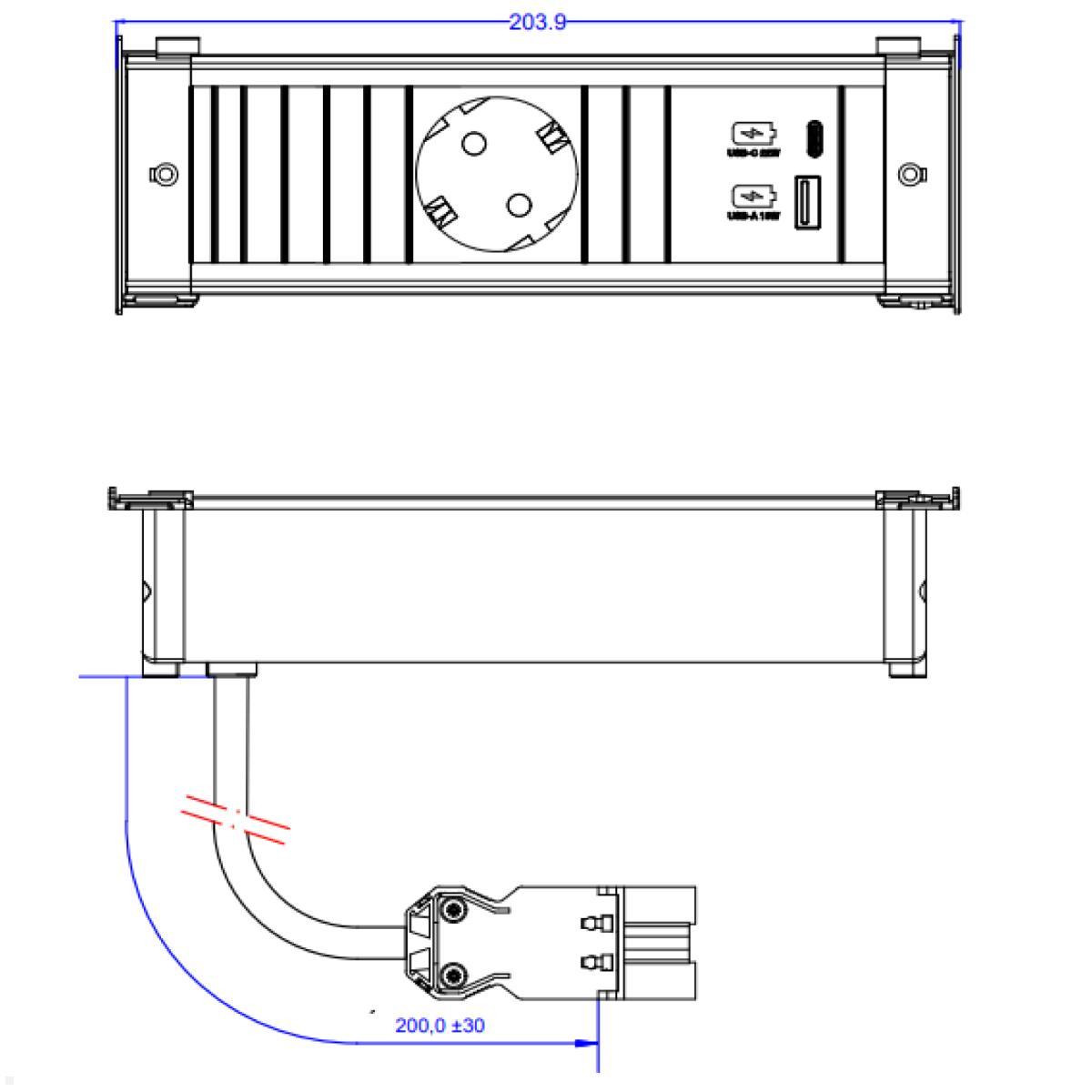

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 70 x 50 x 200 |
| Scope of delivery: | 1x KAPSA built-in socket | 1x supply cable 0.2m |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
