Bachmann KAPSA XXS 1x socket (927.400) with power supply
A low installation depth of approx. 45 mm and a solid design characterise Bachmann KAPSA 1x socket XXS (927.400) with power supply and confirm the well-worn saying: less is more.
Bachmann KAPSA 1x socket XXS (927.400) with 2 meters power supply

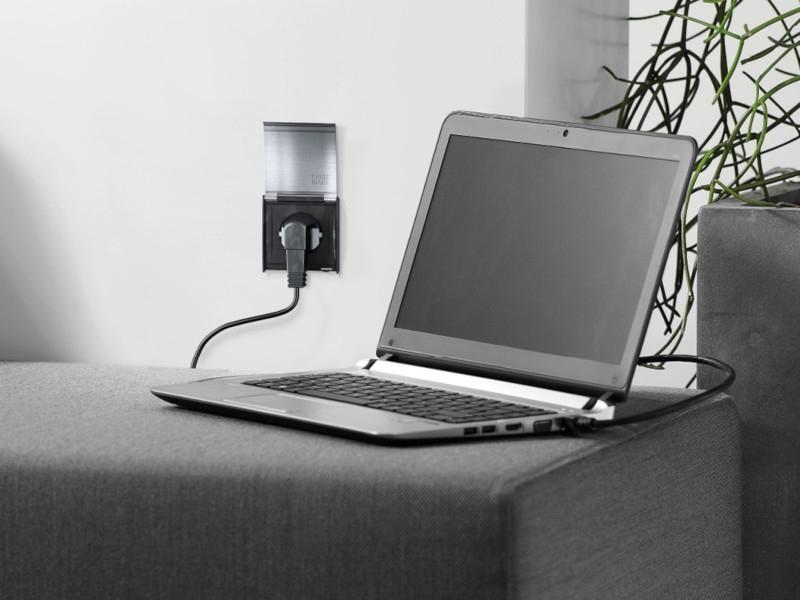

KAPSA's XXS classical, reduced lines make it a power strip that is both design-orientated and space-saving – designed for the kitchen, office and many other areas.
KAPSA power socket
Installation from above guarantees simple mounting – also optionally available as a retroitted solution. A low installation depth of approx. 45 mm and a solid design characterise Bachmann KAPSA (927.400) and confirm the well-worn saying: less is more.
Key features Bachmann KAPSA 1x socket XXS (927.400) with 2 meters power supply
- 1x socket
- Socket orientation: 90°
- Power input: 2.0 m cable with ferrule and mounting plug
- Length: approx. 68 mm
- Low installation depth (about 45 mm)
- Anodised aluminum profile
- Optional: Easy to replace cover in several versions
- Simple, even retrofitting from above
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 382 kb] |
|---|---|

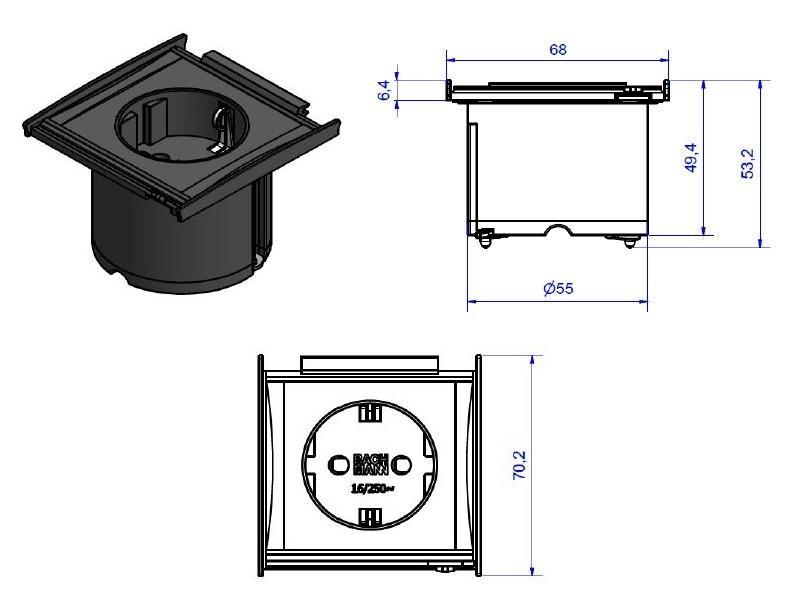

| Technical drawing: | [pdf, 132 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 290 kb] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 125 x 125 x 117 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
