Bachmann Keystone CAT6a RJ45 module patch cable 3m female/male (918.033)
CAT6a Keystone module
The CAT6a keystone module (918.033) can be inserted by simply snapping it into a custom module frame and can thus be integrated into almost any configurable Bachmann power strip with a corresponding receptacle. The CAT6a socket has a bandwidth of 10 Gbit/s and is suitable for establishing a network connection via standard Ethernet / LAN cable. Ideal locations are office workstations, conference rooms, exhibition halls, hotels or private desks. The module is equipped with a RJ45 jack at the front and a 3.0 meter patch cable with RJ45 plug at the back.
Key features Bachmann CAT6a keystone module with 3m patch cable (918.033)
- Suitable for Bachmann custom modules with keystone receptacle (917.000 / 917.001 / 917.061 / 917.062)
- Front: RJ45 CAT6a socket
- Rear: patch cable AWG27/7 with RJ45 plug, 3m
- Data transmission rate: 10 Gbit/s
- Halogen free
- Material: Plastic
- Color: Silver / Black
| Product sheet: |  [pdf] |
|---|---|

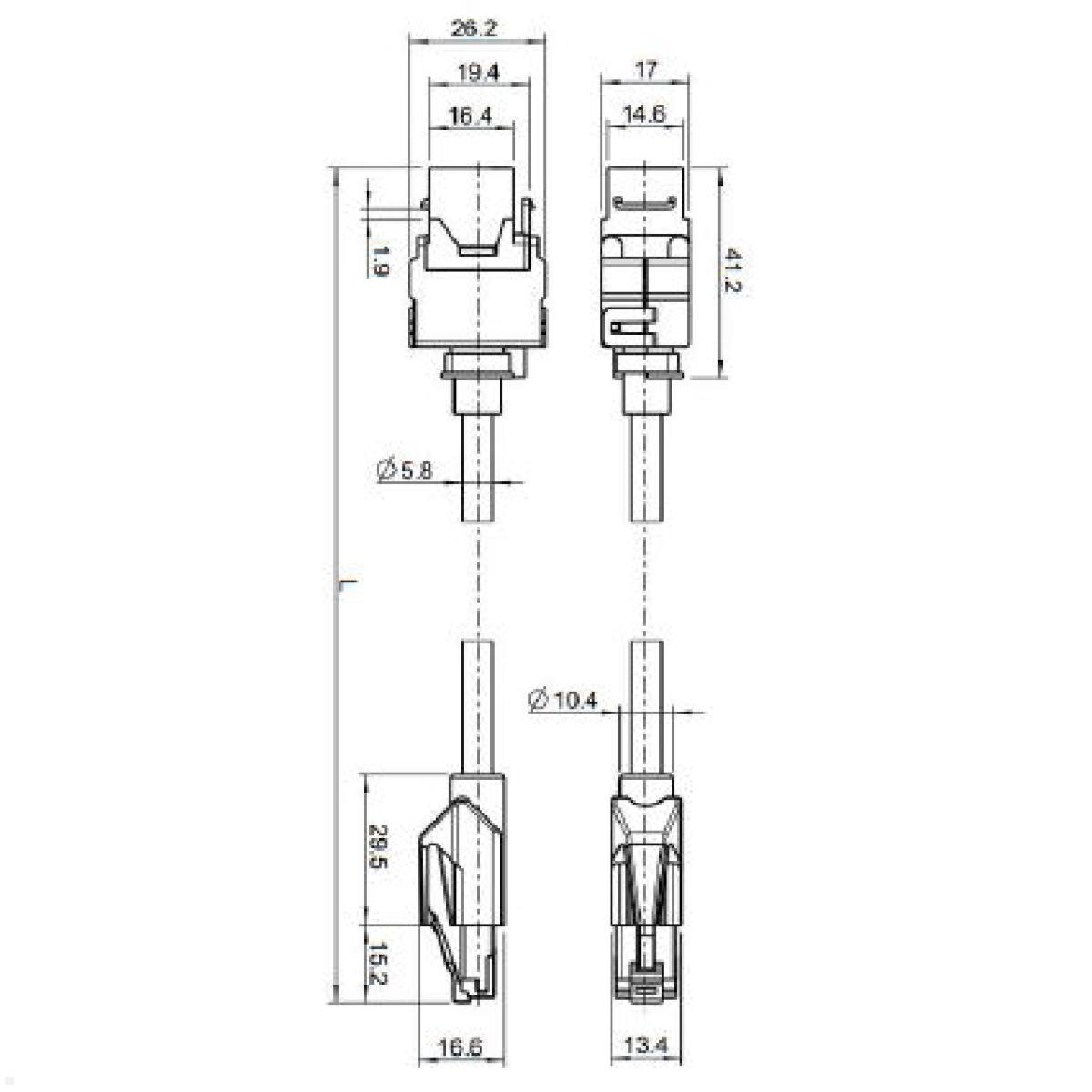

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann custom module / power strip |
| Packaging dimensions (LxWxH in mm): | 210 x 230 x 50 |
| Scope of delivery: | 1x Keystone module with patch cable 918.033 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Silver/Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
