Bachmann Keystone module Cat6 module RJ45 coupling (918.032)
CAT6 Keystone Coupling
The CAT6a Keystone module (918.032) is a fully shielded 90° Coupling and can be easily snapped into a custom module frame and thus integrated into almost any configurable Bachmann socket unit with a 90 degree lateral outlet. The CAT6 socket has a bandwidth of 10 Gbit/s and is suitable for establishing a network connection using a standard Ethernet / LAN cable. Ideal locations are office workplaces, conference rooms, exhibition halls, hotels or private desks. This keystone has two installation forms in one coupling, for installation in module or keystone applications. This custom module is only compatible with power strips with a lateral 90° Outlet.
Key features Bachmann CAT6 (918.032)
- Suitable for Bachmann custom modules with keystone mount with lateral outlet
- Front: RJ45 module (keystone attachment)
- Rear: RJ45 keystone (E-Dat suspension)
- Cable feed: 90°
- Data transfer rate: 10 Gbit/s
- Rated current: max. 1A
- Rated voltage: max. 50 V DC

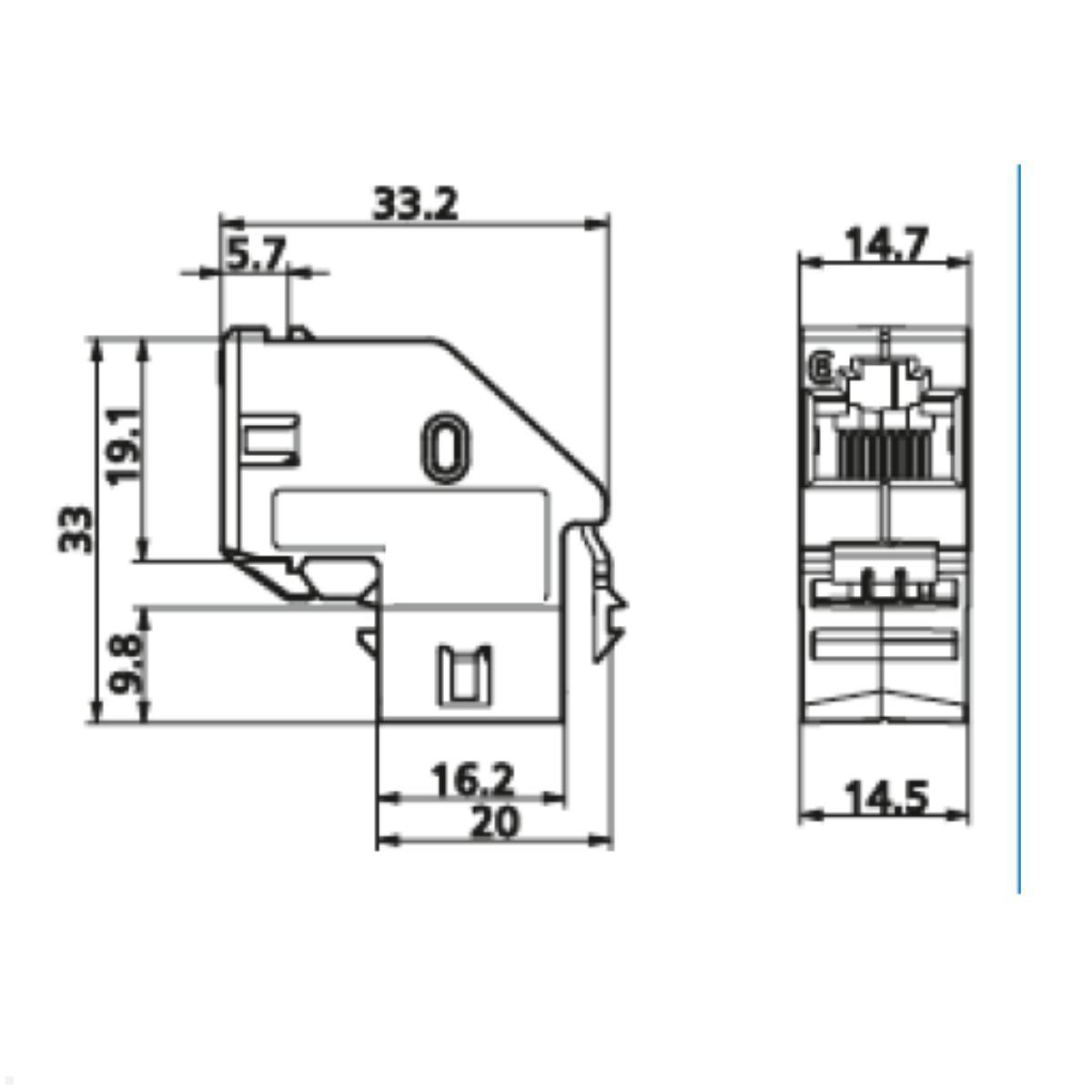

- Dimensions: 33.2 x 14.7 x 33 mm
- Colour: Gray
- Including 2 Torx screws
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann custom module / socket unit |
| Packaging dimensions (LxWxH in mm): | 30 x 30 x 10 |
| Scope of delivery: | 1x Keystone Module |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Grey |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
