Bachmann MINI PIX built-in socket with a keystone (942.000)
The Bachmann MINI PIX (942.000) is particularly flexible thanks to the Keystone recording. The tabletop connection panel can be equipped with components from the Bachmann Keystone range.
Bachmann MINI PIX 1x Custom Modul 942.000 in black
Bachmann MINI PIX is a real highlight not only for offices with Clean Desk concept! The small installation solution provides connections in a discreet manner. The built-in solution is particularly suitable for offices, at home or in lounges to unobtrusive to lead media or data connections on the table and cable can easily plug in because of the compact installation dimension.
Table fitting socket
MINI PIX is particularly flexible thanks to the Keystone recording. The versatile components for media or data connections from the Bachmann Keystone range can simply be inserted into the MINI PIX before installation. The installation itself is child's play because the MINI PIX can be easily inserted into any 28 mm borehole.

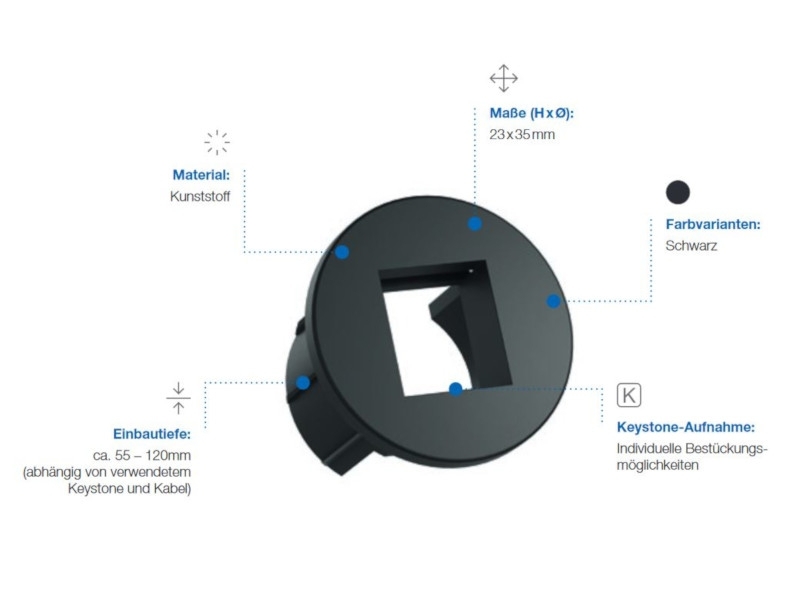

Key features Bachmann Bachmann mini socket for desktop mounting
- Minimalist design
- Dimensions (HxØ): 23x35 mm
- Installation depth: approx. 55-120 mm (depending on keystone module)
- Individual assembly with Keystone module
- Material: Plastic
- Finish: Black
- Easy installation
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 89 kb] |
|---|---|
| RoHS / REACH: | [pdf, 110 kb] |
| 3D CAD Modell: |  [dwg] |
| Installation manual: | [pdf, 382 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
