Bachmann PIX HOLDER DOUBLE power outlet for furniture with 1x CEE7/3, 1x CM, 2m supply cable (BM0020102)
Rahmen
Keystone
Your set selection:
Highlights
- 1x CEE7/3 and 1x custom module
- 2.0 m supply cable with mounting plug
- Individually configurable module
- Metal bracket 926.502 required separately
- Dimensions: 148 x 59 x 78 mm

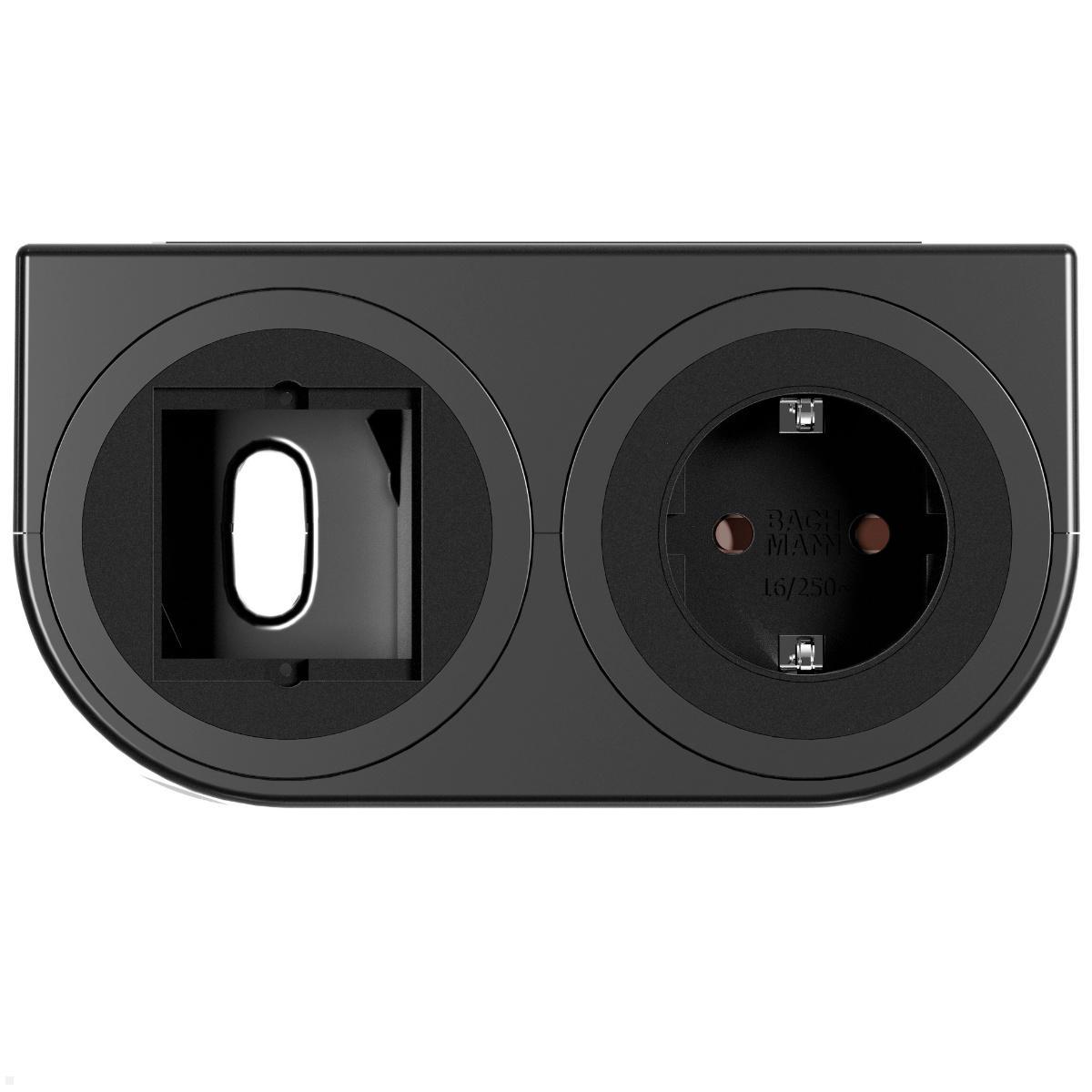

2-gang socket unit with CEE7/3 and custom module
The Bachmann PIX HOLDER DOUBLE furniture socket with 1x CEE7/3, 1x CM, 2 m supply cable (BM0020102) combines a CEE7/3 protective-earth socket with enhanced touch protection and a custom module in a compact 2-gang plastic housing. The custom module allows individual configuration with additional connector types.

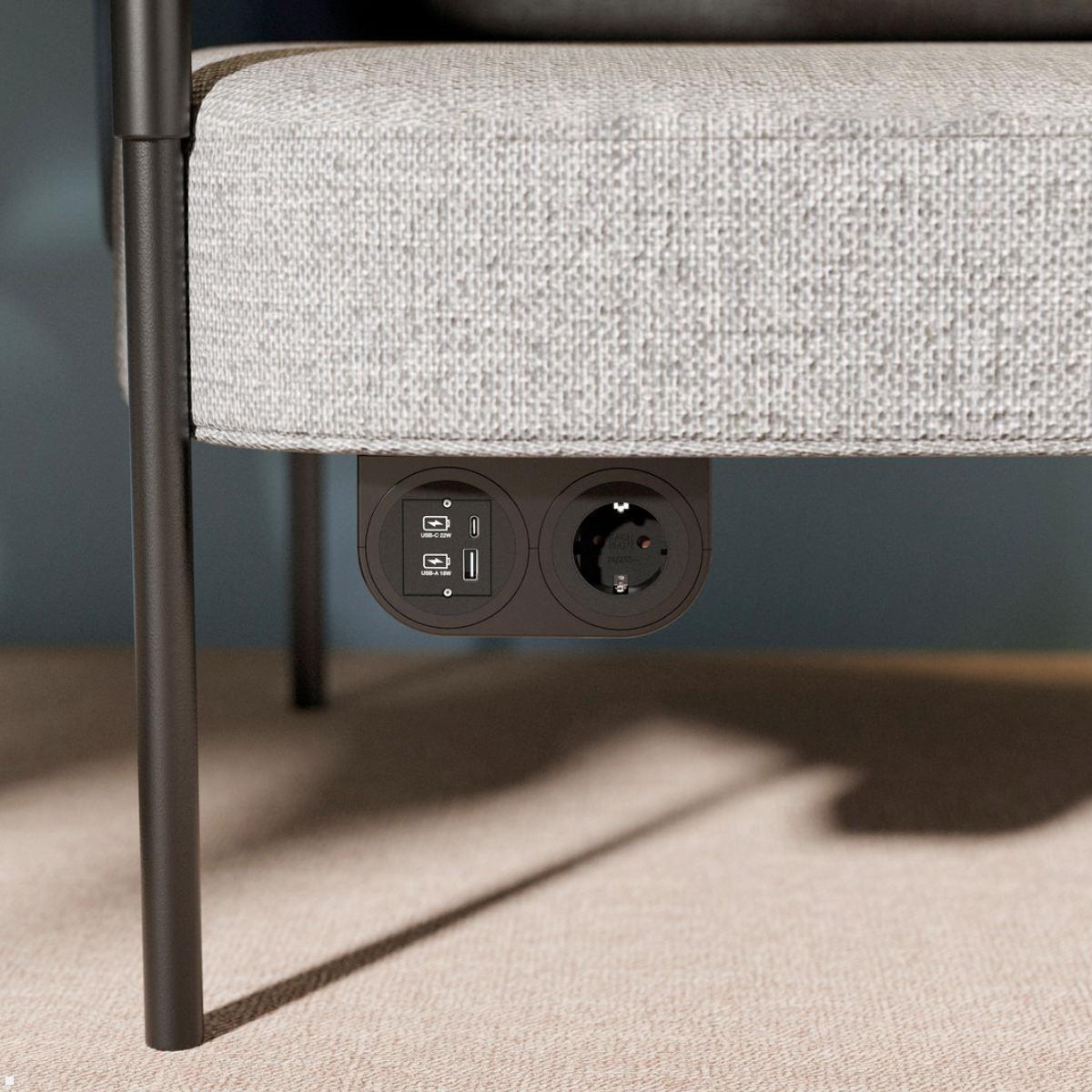

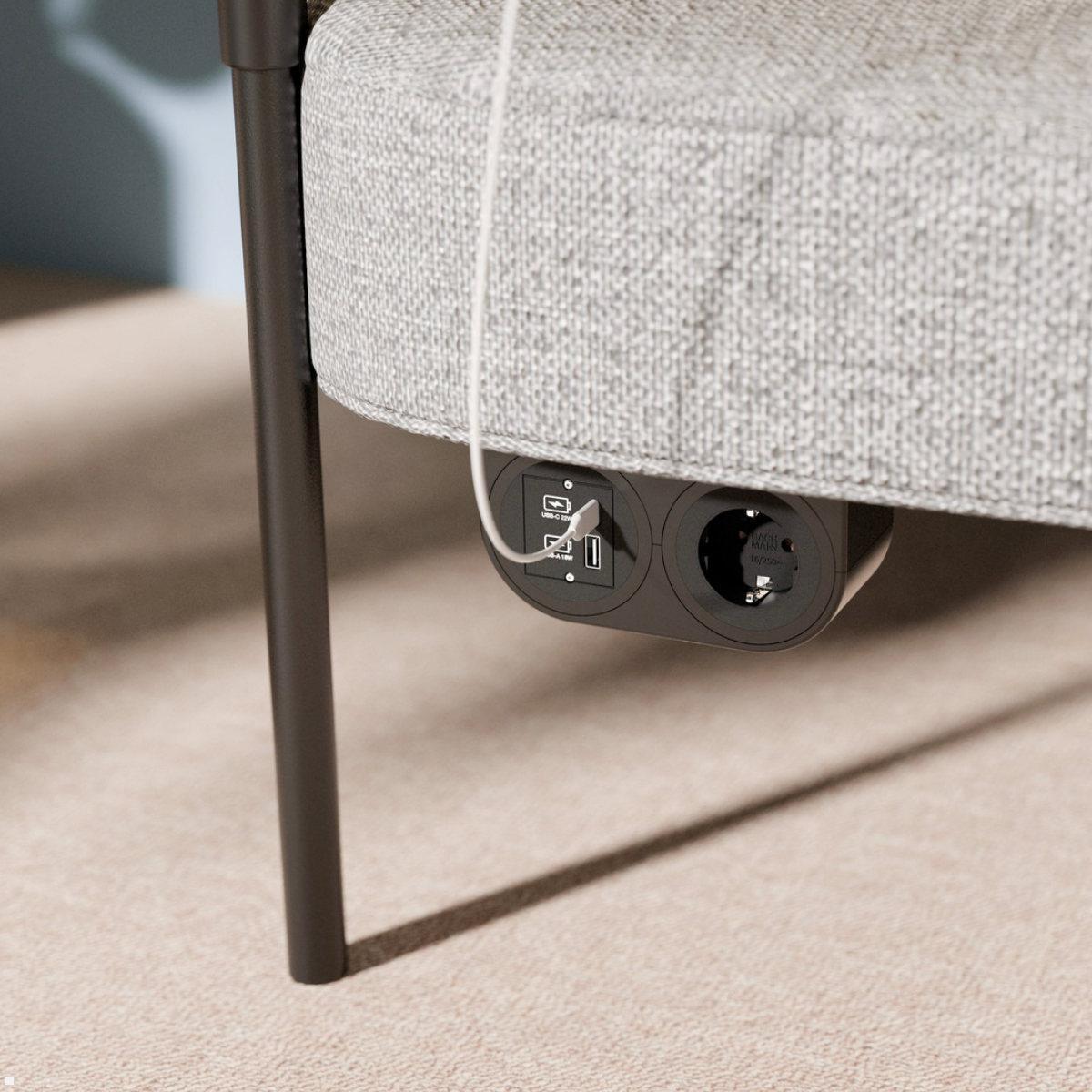

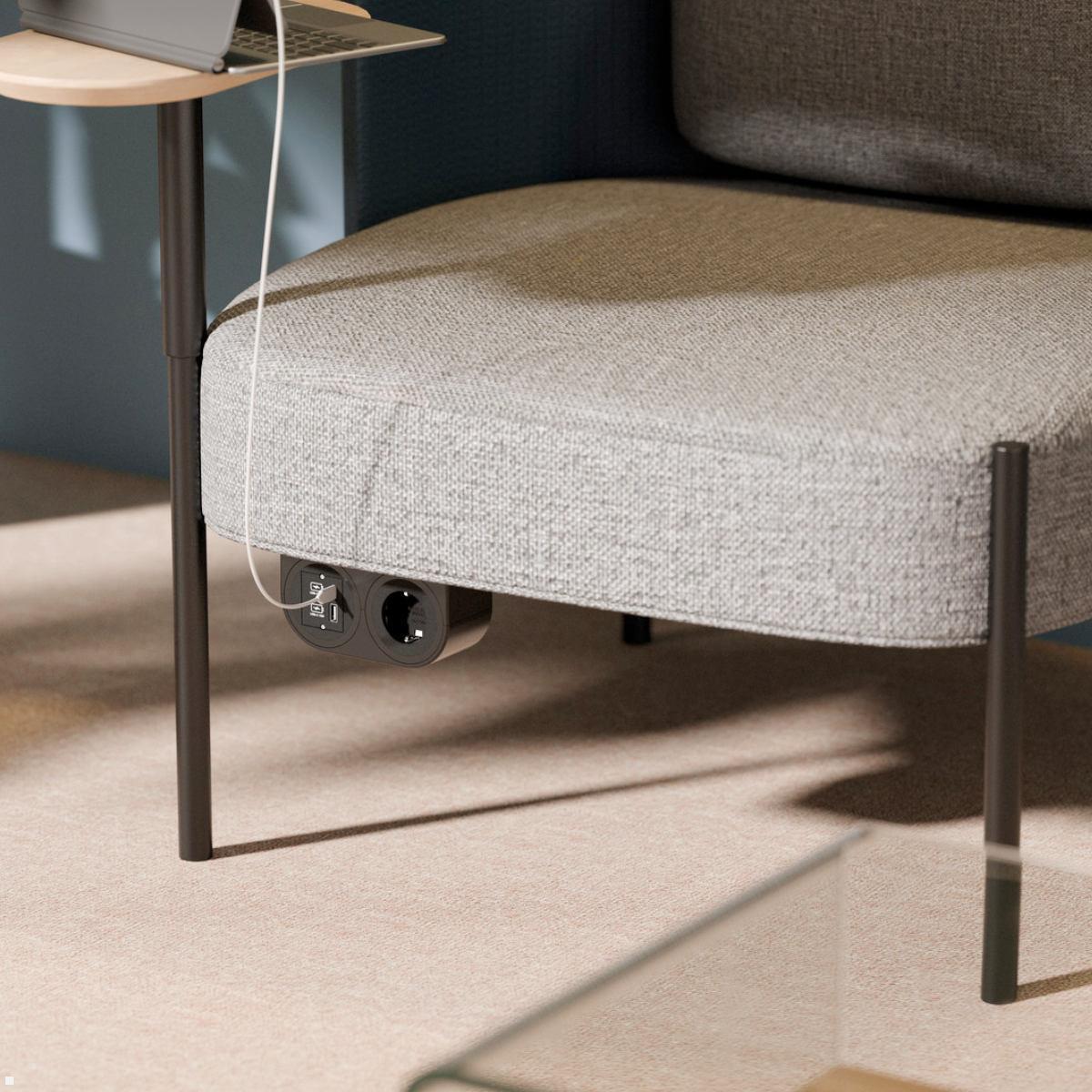

Power input is via a 2.0 m cable with ferrules and an included installation plug for direct connection to a wall socket. For mounting under furniture the separately available PIX HOLDER metal bracket 2-gang (926.502) is required. The furniture socket is ideal for lounge areas, waiting zones, hotels and residential use.
Technical details Bachmann PIX HOLDER DOUBLE socket module
- Connection: 1x protective-earth socket CEE7/3 + 1x custom module
- Enhanced touch protection
- Power input: 2.0 m cable with ferrules and included installation plug
- Housing material: Plastic
- Color: Black with trim ring similar to RAL9005
- For mounting, the PIX HOLDER metal bracket 2-gang 926.502 is required (sold separately)
- Dimensions (L×W×H): 148 x 59 x 78 mm
| Product sheet: |  [pdf] |
|---|---|

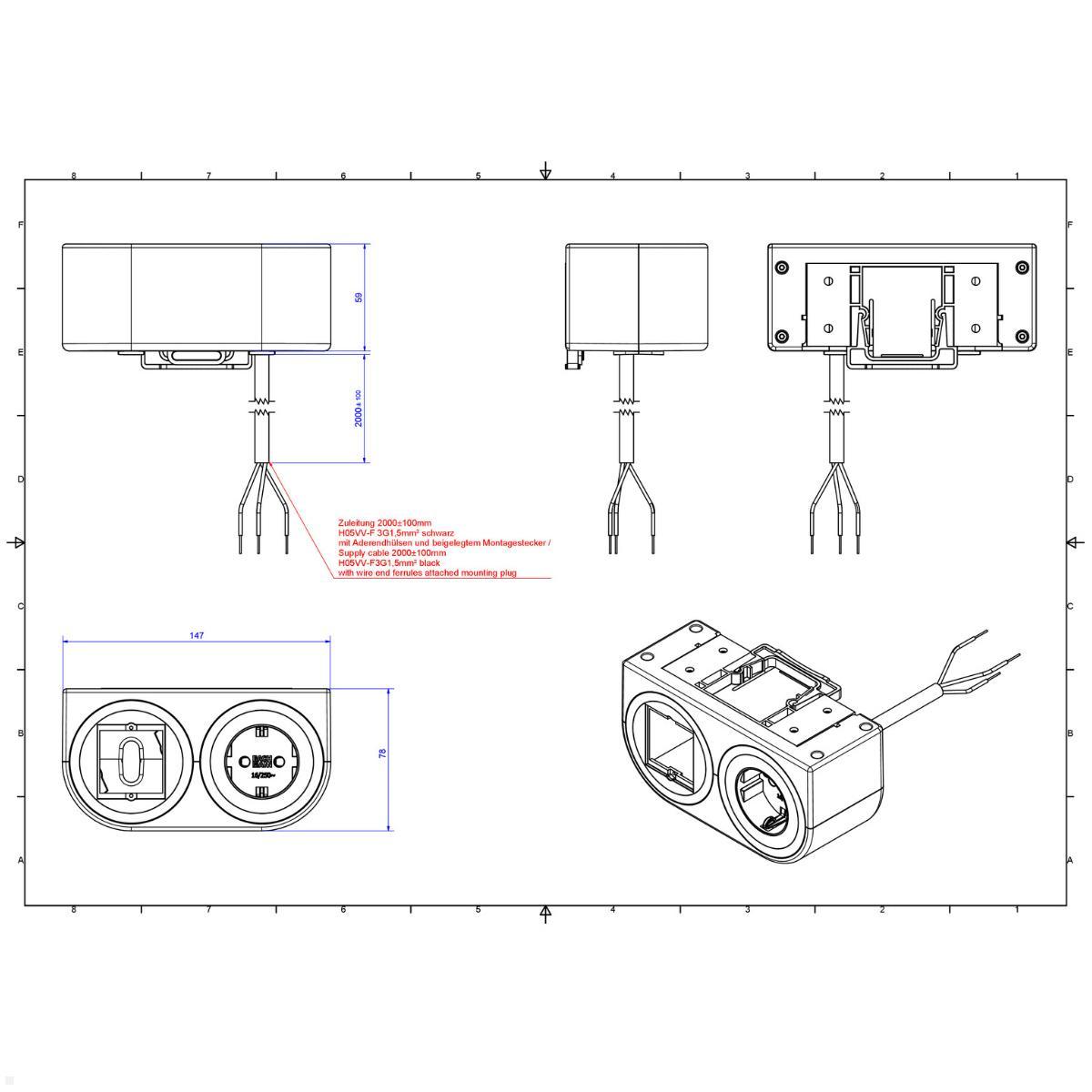

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | 51102585 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| color: | Black |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX HOLDER DOUBLE socket for furniture?
A two-outlet unit with one CEE7/3 protective-contact socket and a Custom Module in a compact plastic housing.
-
Which sockets does it include?
It has 1x CEE7/3 protective-contact socket and 1x Custom Module, with increased touch protection.
-
How long is the power cable?
Power input via a 2.0 m lead with ferrules and the included mounting plug for direct connection to a wall outlet.
-
How is it mounted?
For mounting on the underside of furniture, the separately available PIX HOLDER two-way metal bracket (926.502) is required.
-
What are the dimensions?
Dimensions (L×W×H): 148 × 59 × 78 mm.
-
What material and color is the housing?
Plastic housing, black with a ring similar to RAL9005.
-
What areas is it suitable for?
Suitable for lounge areas, waiting zones, hotels and living areas.
-
Who is the manufacturer and what is the product code?
Manufacturer: Bachmann; product code BM0020102.
What is the PIX HOLDER DOUBLE with CEE7/3 and Custom Module suitable for?
The Bachmann PIX HOLDER DOUBLE socket unit BM0020102 combines a CEE7/3 protective contact socket with a flexibly configurable Custom Module in a 2-gang housing. The furniture socket CEE7/3 Module 2m - Bachmann PIX HOLDER is therefore the right choice for a wide range of application scenarios. The power input via a 2.0 m cable with ferrules and installation plug allows direct connection to a wall socket. To attach it to furniture, the separately available PIX HOLDER metal bracket 2-gang (926.502) is required.
What configuration options does the Custom Module offer?
Bachmann’s Custom Module system is based on a standardized slot that can accept different inserts. Depending on needs, USB charging modules, data ports or additional sockets can be installed. This allows the 2-gang socket unit to be precisely adapted to the on-site requirements. In lounge areas and waiting zones, the combination of a fixed socket and a variable module offers maximum flexibility for different user needs.
What are the advantages of the 2 m supply cable?
The 2.0 m cable with ferrules and included installation plug enables quick installation without an electrician. The direct connection to an existing wall socket makes this version particularly suitable for private residential use and anywhere there is no electrical infrastructure in the furniture. The compact dimensions of 148 x 59 x 78 mm ensure a discreet integration into the furniture design despite the 2-gang configuration.
