Bachmann PIX HOLDER DOUBLE socket for furniture with 1x CEE7/3, 1x CM, 1x USB A/C, 2m supply cable (BM0020100)
Highlights
- 1x CEE7/3, 1x custom module, 1x USB A/C
- 22 W fast charging
- 2.0 m supply cable and 0.2 m GST18
- Metal bracket 926.502 required separately
- Dimensions: 148 x 59 x 78 mm
2-gang furniture socket with USB A/C charger and outlet
The Bachmann PIX HOLDER DOUBLE furniture socket for furniture with 1x CEE7/3, 1x CM, 1x USB A/C, 2m supply cable (BM0020100) combines a Schuko socket CEE7/3 with enhanced touch protection, a custom module and a USB A/C charger with 22 W fast charging in a compact 2-gang plastic housing. Smartphones and tablets can be charged directly at the furniture without an additional power adapter.
Power input is via a 2.0 m cable with ferrules and the included assembly plug as well as a 0.2 m installation connector. For mounting to the underside of the furniture the separately available PIX HOLDER metal bracket 2-gang (926.502) is required. Together they form an elegant furniture socket for lounge areas, hotels, co-working spaces and living areas.
Technical details Bachmann PIX HOLDER DOUBLE USB A/C 22W

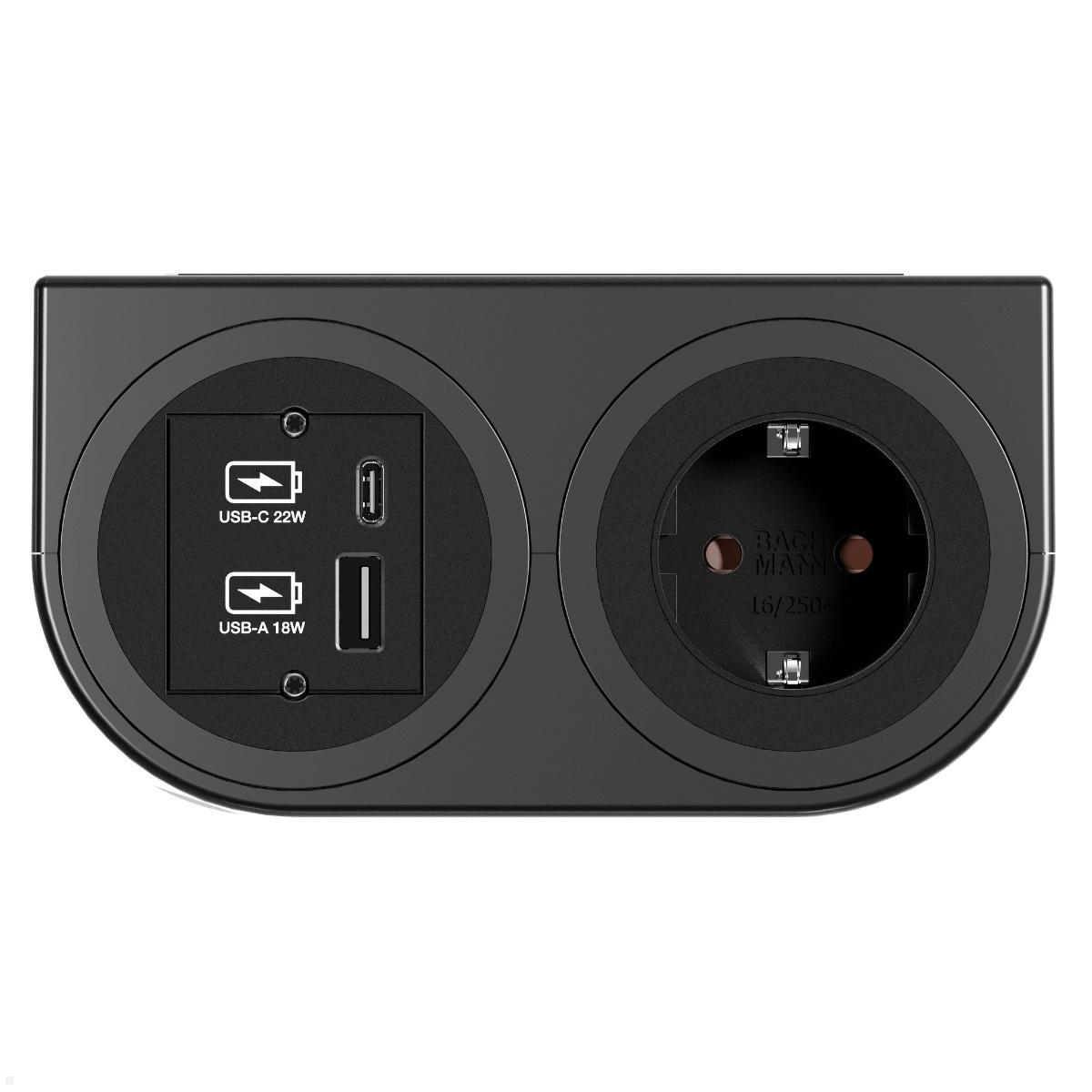

- Connection: 1x Schuko socket CEE7/3 + 1x custom module + 1x USB A/C charger 22 W
- Enhanced touch protection
- Power input: 2.0 m cable with ferrules and assembly plug + 0.2 m installation connector GST18
- Housing material: plastic
- Color: black with trim ring similar to RAL9005
- For mounting the PIX HOLDER metal bracket 2-gang 926.502 is required (sold separately)
- Dimensions (L×W×H): 148 x 59 x 78 mm
| Product sheet: |  [pdf] |
|---|---|

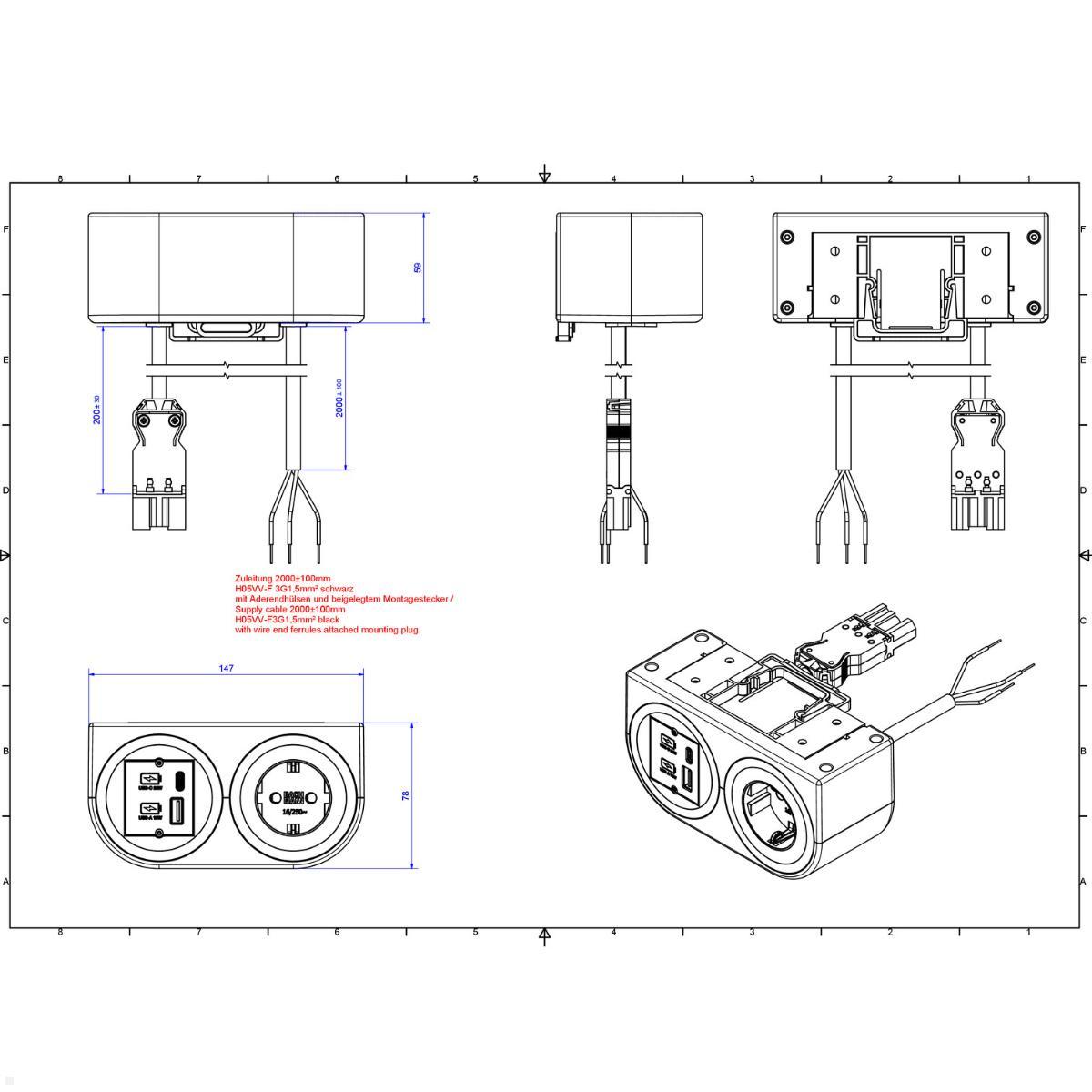

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | 51102585 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| color: | Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX HOLDER DOUBLE?
A two-gang furniture socket with a CEE7/3 socket, a Custom Module and a USB A/C charger (22 W fast charging) in a compact two-gang plastic housing.
-
What connectors does the socket provide?
1x protective contact outlet CEE7/3, 1x Custom Module, 1x USB A/C Charger 22 W.
-
What power inputs does it have?
Power input: 2.0 m lead with ferrules and mounting plug plus 0.2 m installation connector GST18.
-
What mounting is required?
To mount on the underside of furniture, the separate PIX HOLDER metal two-gang bracket (926.502) is required.
-
What are the dimensions?
Dimensions (L×W×H): 148 × 59 × 78 mm.
-
What is the housing made of and color?
Housing is plastic; color black with a ring similar to RAL9005.
-
What applications is it suitable for?
It forms an elegant furniture socket for lounge areas, hotels, coworking spaces and the living area.
What does the Bachmann PIX HOLDER DOUBLE with USB A/C Charger and socket offer?
The Bachmann PIX HOLDER DOUBLE socket unit BM0020100 is the most comprehensive variant of the PIX HOLDER series and combines three connection options in a compact 2-gang housing. The protective-earth socket CEE7/3 with enhanced touch protection provides a classic power connection, while the USB A/C charger with 22 W fast charging enables quick charging of smartphones and tablets. The custom module additionally allows individual connection options. The USB A/C 22W 2m furniture socket - Bachmann PIX HOLDER is therefore the suitable choice for a variety of application scenarios. For mounting to furniture, the separately available PIX HOLDER metal bracket 2-gang (926.502) is required.
What connection options does the 2-gang socket unit offer?
The DOUBLE variant offers the greatest flexibility with three different connections. The protective-earth socket supplies laptops and other devices with 230 V mains power. The USB A/C charger charges mobile devices with up to 22 W fast charging without requiring a separate power adapter. The custom module can be fitted with additional connector types as needed. The dual power input via a 2.0 m cable and 0.2 m installation connector offers maximum flexibility during installation.
Which application areas is the DOUBLE variant suitable for?

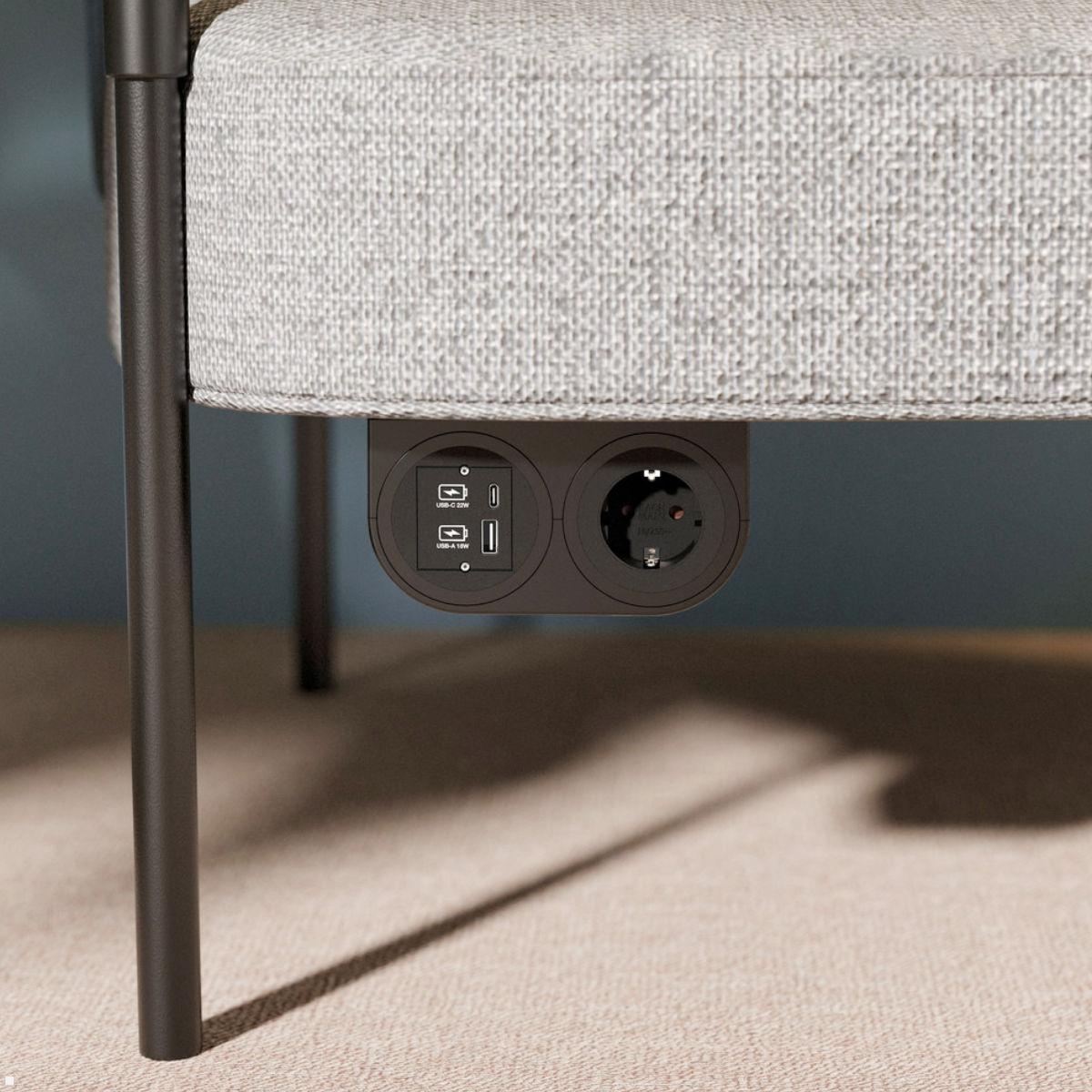

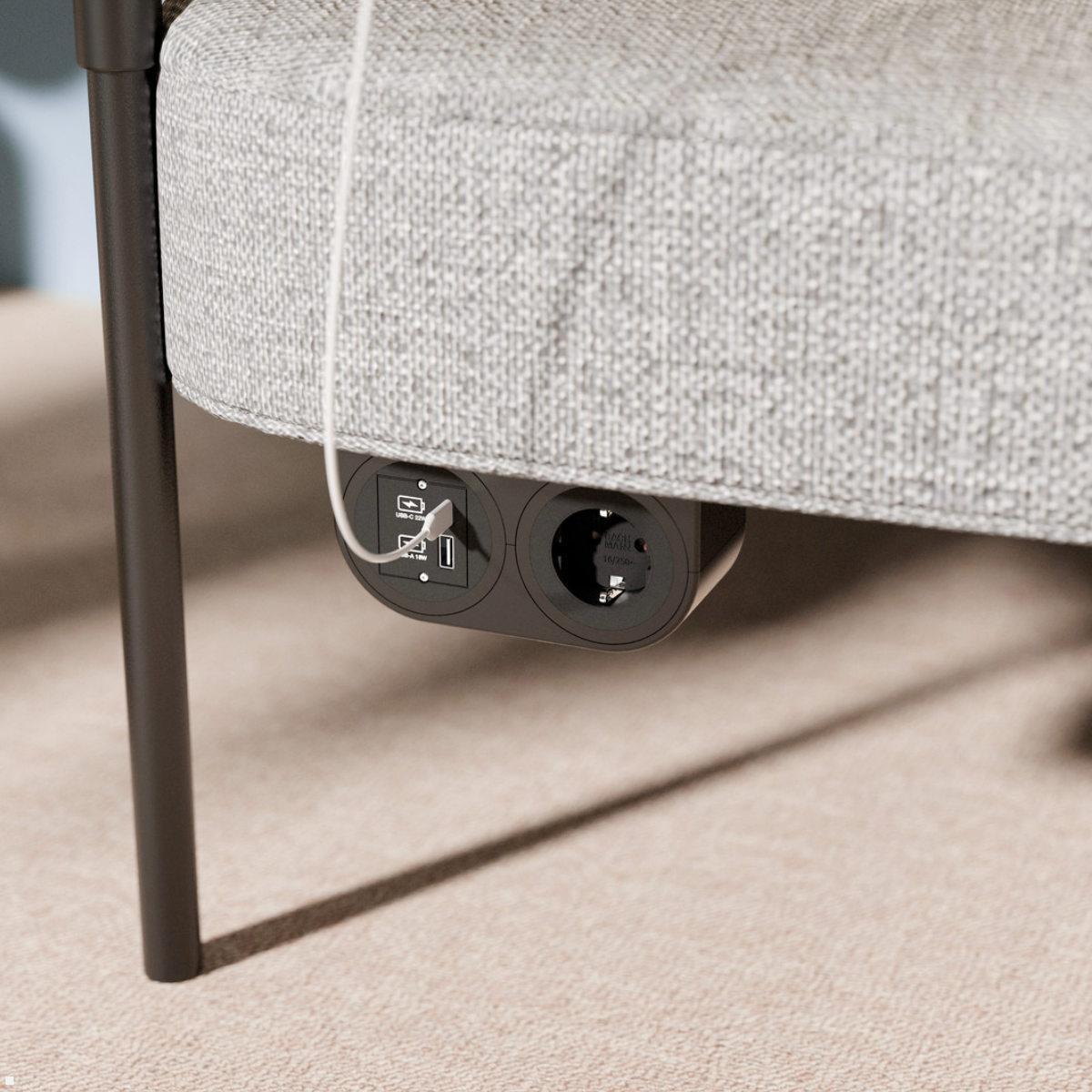

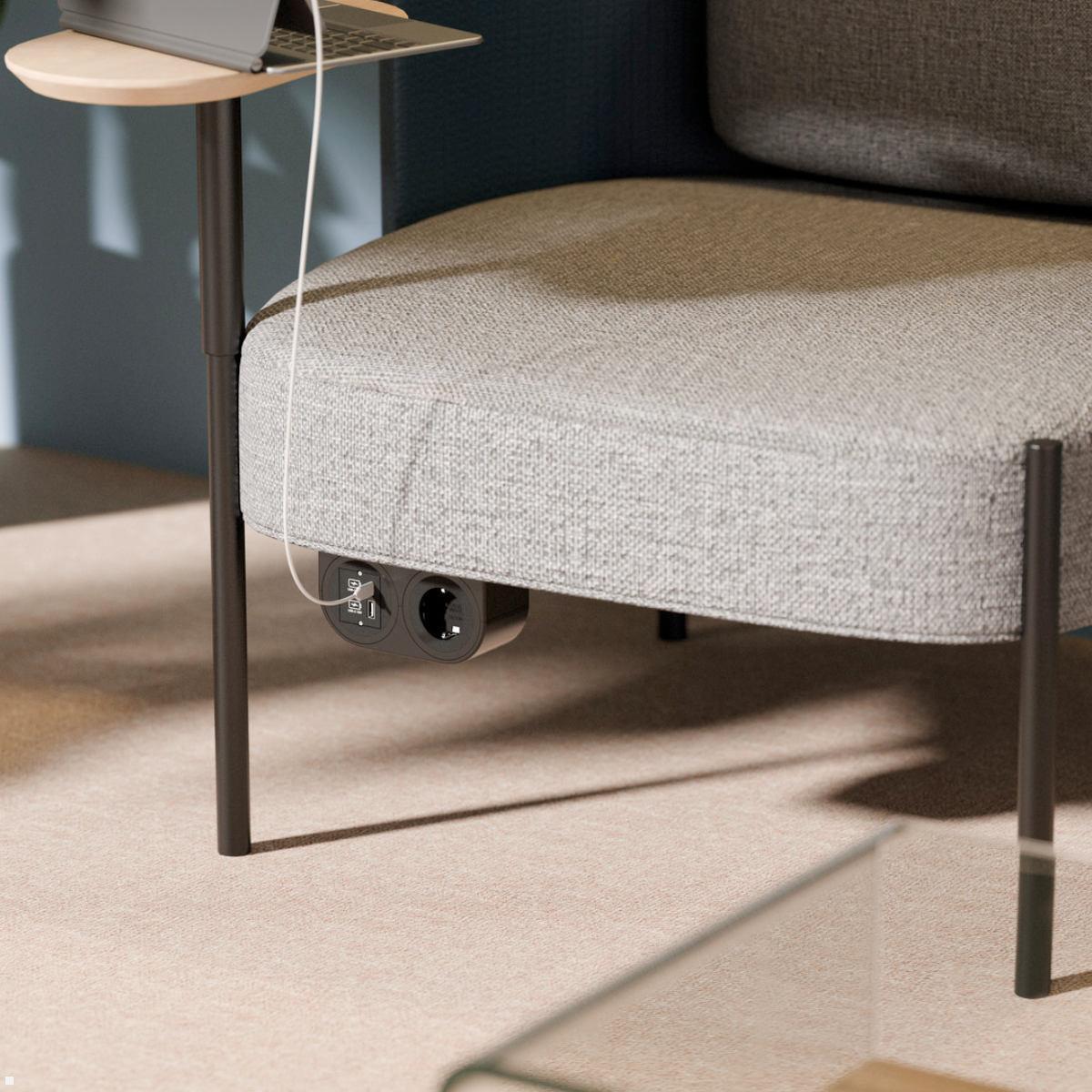

The 2-gang furniture socket is particularly suitable for places with high power demand at seating areas. In airport lounges and hotel lobbies, guests can simultaneously connect a laptop and charge a smartphone. In co-working spaces and libraries, the versatile connections offer maximum convenience. Also in residential settings, the DOUBLE unit together with the metal bracket turns sofas and armchairs into full-fledged charging stations. The compact dimensions of 148 x 59 x 78 mm ensure a discreet integration despite the 2-gang design.
