Bachmann PIX HOLDER DOUBLE socket for furniture with 1x CEE7/3, 1x CM, 1x USB A/C, 0,2m GST18 (BM0020104)
Highlights
- 1x CEE7/3, 1x custom module, 1x USB A/C
- 22 W fast charging
- 0.2 m GST18 installation connector
- Metal bracket 926.502 required separately
- Dimensions: 148 x 59 x 78 mm
2-gang socket unit with USB A/C Charger and GST18 connection

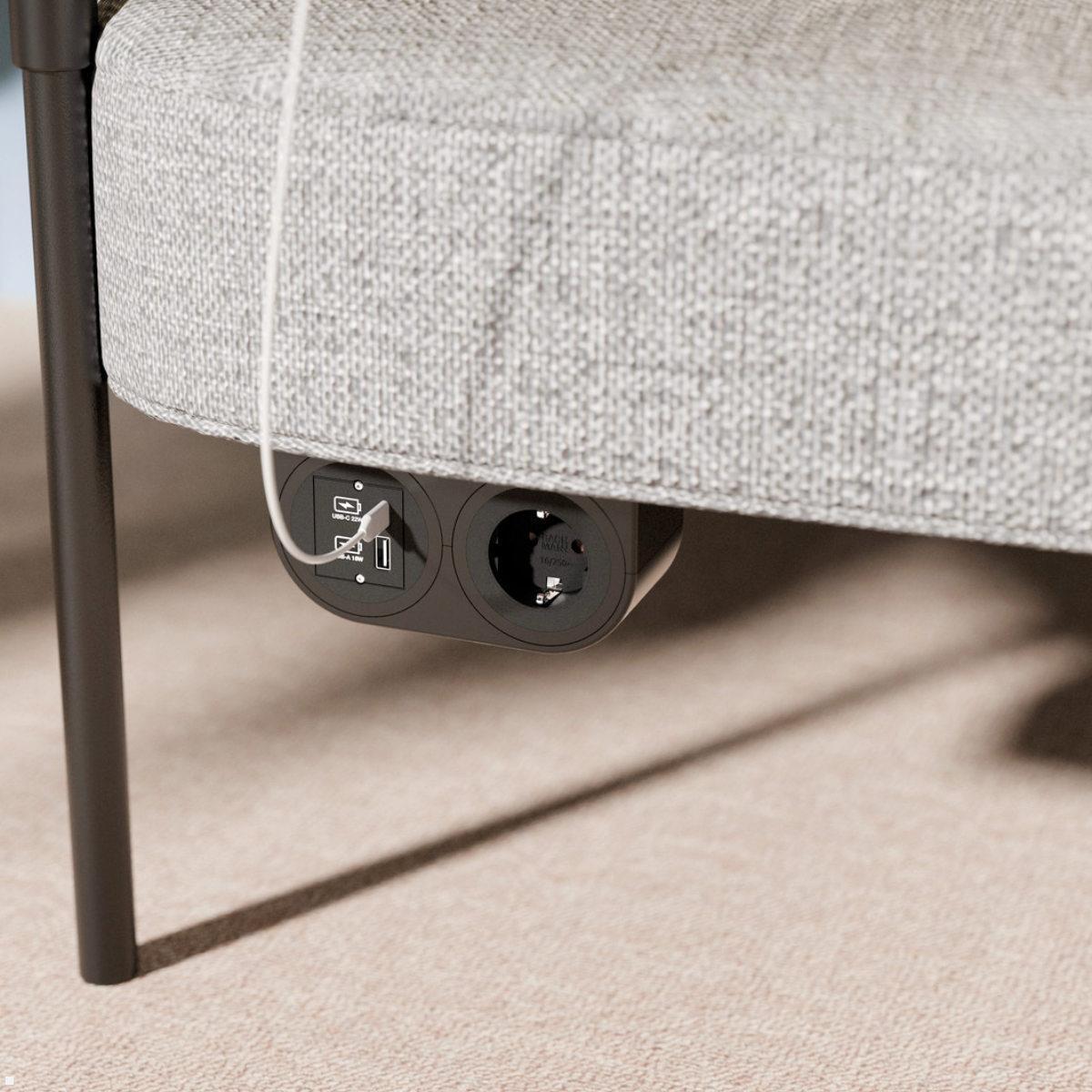

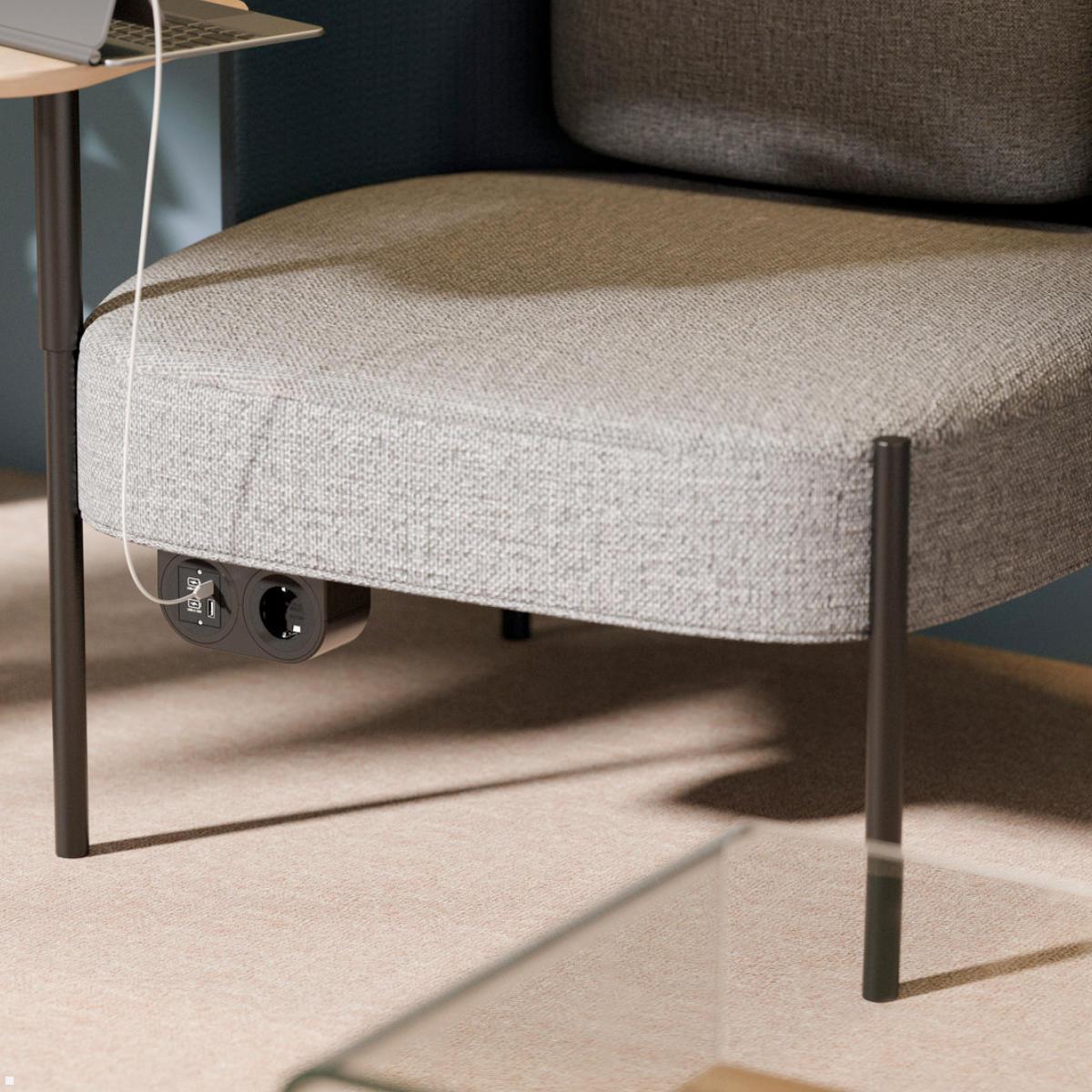

The Bachmann PIX HOLDER DOUBLE socket for furniture with 1x CEE7/3, 1x CM, 1x USB A/C, 0.2 m GST18 (BM0020104) combines a CEE7/3 protective-earth socket with enhanced touch protection, a custom module and a USB A/C charger with 22 W fast charging in a compact 2-gang plastic housing. Mobile devices can be charged directly at the furniture without an additional power adapter.

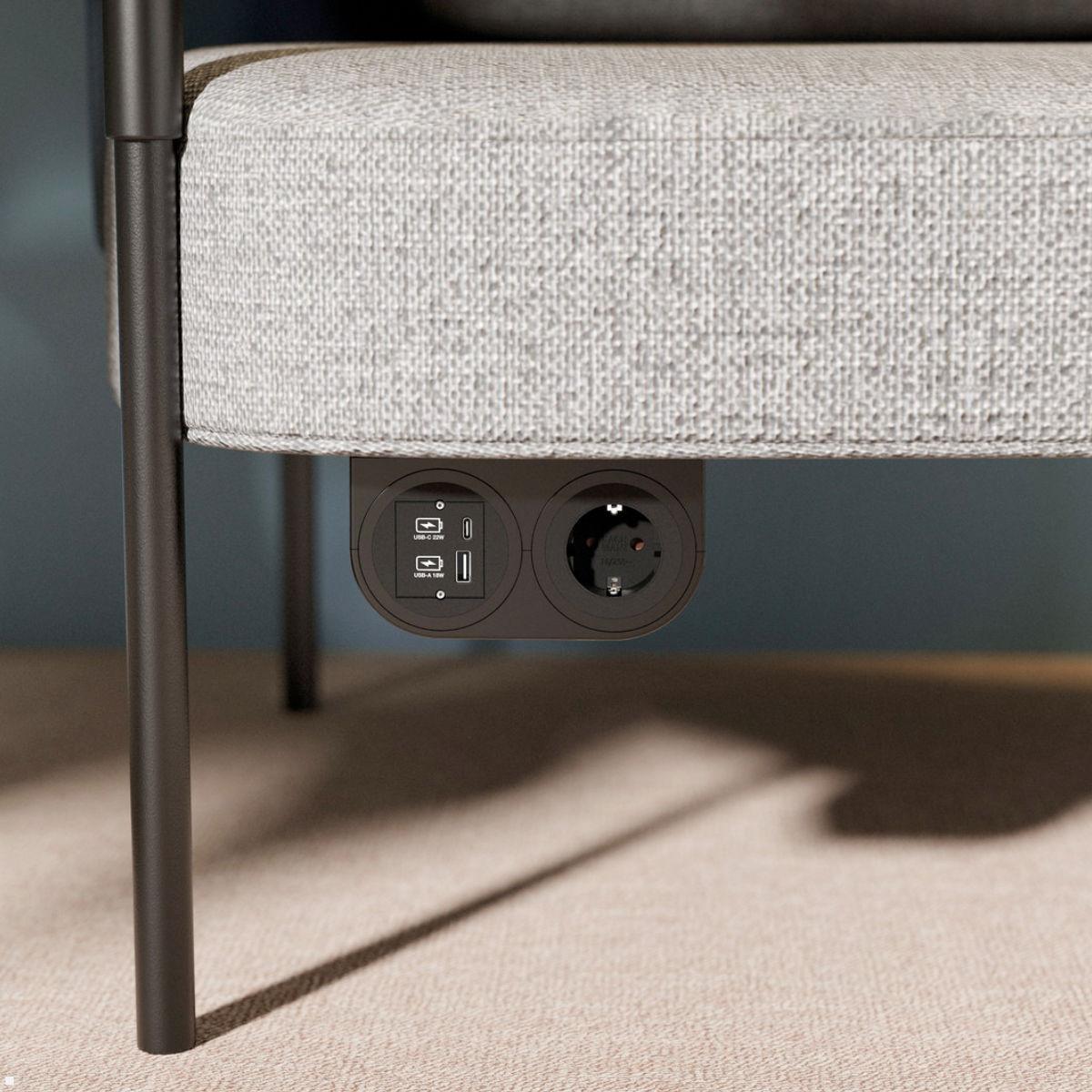

The power input is via a 0.2 m GST18 installation connector for professional wiring inside the furniture. To attach it to the underside of the furniture the separately available PIX HOLDER metal bracket 2-gang (926.502) is required. The furniture socket is ideal for lounge areas, hotels, co-working spaces and residential use.
Technical details Bachmann PIX HOLDER DOUBLE USB A/C Charger GST18

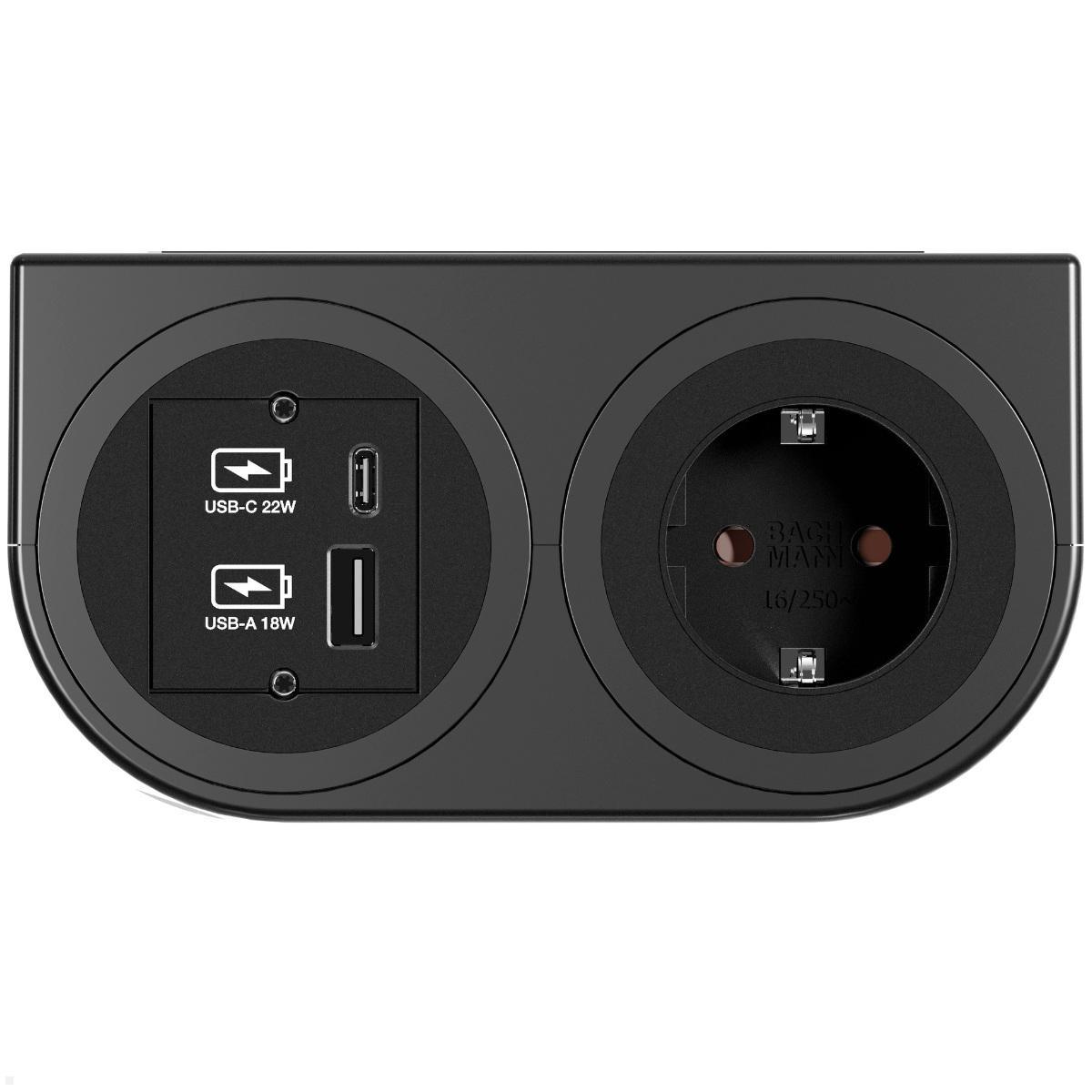

- Connection: 1x protective-earth socket CEE7/3 + 1x custom module + 1x USB A/C charger 22 W
- Enhanced touch protection
- Power input: 0.2 m with GST18 installation connector
- Housing material: plastic
- Color: black with trim ring similar to RAL9005
- For mounting the PIX HOLDER metal bracket 2-gang 926.502 is required (sold separately)
- Dimensions (L×W×H): 148 x 59 x 78 mm
| Product sheet: |  [pdf] |
|---|---|

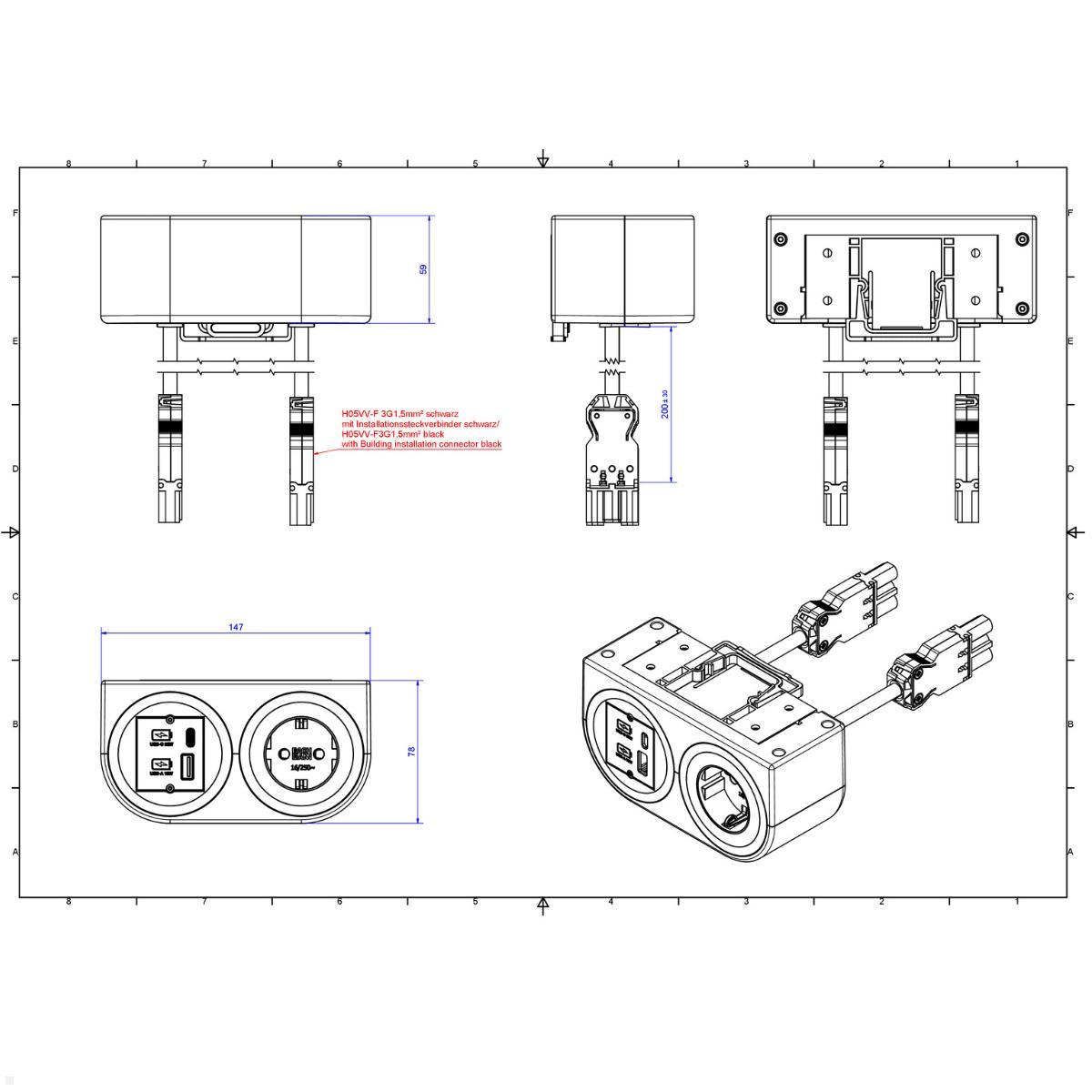

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Accessories: | 51102585 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 Outlet |
| color: | Black |
| USB-Charger: | USB A/C |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann PIX HOLDER DOUBLE socket for furniture?
A 2-gang socket unit with USB A/C Charger and GST18 connection in a compact plastic housing. It combines a CEE7/3 protective socket, a Custom Modul, and a USB A/C Charger with 22 W fast charging.
-
What connections does it provide?
Connections: 1x CEE7/3 protective contact socket, 1x Custom Modul, and 1x USB A/C Charger (22 W). It also features increased touch protection.
-
How is it powered?
Power input is via a 0.2 m GST18 installation connector for professional wiring inside the furniture.
-
How do you mount it?
To mount to the underside of furniture, the separate PIX HOLDER metal bracket 2-way (926.502) is required.
-
Where is it suitable to install?
Ideal for lounge areas, hotels, co-working spaces and the living area.
-
What are the dimensions?
Dimensions (L×W×H): 148 × 59 × 78 mm.
-
What color is the housing?
Housing color is black with a ring similar to RAL9005.
-
What is the model number?
BM0020104
What does the PIX HOLDER DOUBLE with USB A/C Charger and GST18 offer?
The Bachmann PIX HOLDER DOUBLE socket unit BM0020104 is the professional variant of the 2-gang furniture socket with USB charging function. It combines a protective earth socket CEE7/3, a custom module and a USB A/C charger with 22 W fast charging. The USB A/C 22W Charger 0.2 m GST18 - Bachmann PIX HOLDER is thus the suitable choice for a variety of application scenarios. The 0.2 m GST18 installation connector enables professional wiring inside the furniture. The separately available two-way metal holder (926.502) is required for mounting.
How does this variant differ from the BM0020100?
Both socket units offer the same equipment with CEE7/3 socket, custom module and USB A/C charger 22 W. The difference lies in the power input. While the BM0020100 is connected directly to a wall socket via a 2.0 m cable, the BM0020104 relies on a 0.2 m GST18 installation connector for fixed installation. This variant is aimed at furniture manufacturers and professional installers who equip furniture with internal electrical infrastructure.
For which installation concepts is the GST18 connector suitable?
The GST18 installation connector is a proven standard for professional furniture electrification. It enables connection to floor boxes, cable ducts and other permanently installed power sources. In hotels, airport lounges and conference rooms seating furniture is often supplied via such systems. The compact dimensions of 148 x 59 x 78 mm and the robust plastic housing in black with a trim ring similar to RAL9005 ensure a discreet and durable integration.
