Bachmann Power Frame Cover 6-way, white (915.524)
Highlights
- Elegant cover for 6-way table connection module
- Compatible with Bachmann power strips
- High-quality aluminum flap with dust protection
- Access to power and data connections from both sides
- Flush-mounted installation for modern workspaces
Power Frame Cover – Cover for 4-way table connection panel
The POWER FRAME COVER series stands for high-quality and design-oriented solutions for power and data integration in the desk. Whether in the office, conference room or home office – this table connection panel provides a clean and elegant integration of connections directly into the work surface. The system is specially designed for integration with Bachmann power strips and enables a precise and professional flush-mounted solution. The stylish aluminum cover protects power and data connections from dust and dirt while providing a tidy appearance. If needed, the lid can be easily opened – for comfortable access to all connections, even from both sides. This makes the solution ideal for modern and flexible workspace concepts.
Compact built-in solution with high-quality aluminum cover (915.524)
The model impresses with its compact design and a clear, modern aesthetic. The white frame (RAL 9010) combined with the painted aluminum flap harmonizes with sophisticated work environments. By integrating directly into the desk, a flush, space-saving solution for power and data connections in the desk is achieved. In combination with suitable power strips, a functional and visually high-quality system is created that perfectly integrates into modern office and conference environments. At the same time, the cover provides protection and a reduced, high-quality look.
Technical details table connection panel POWER FRAME COVER
- Design piece made of anodized aluminum

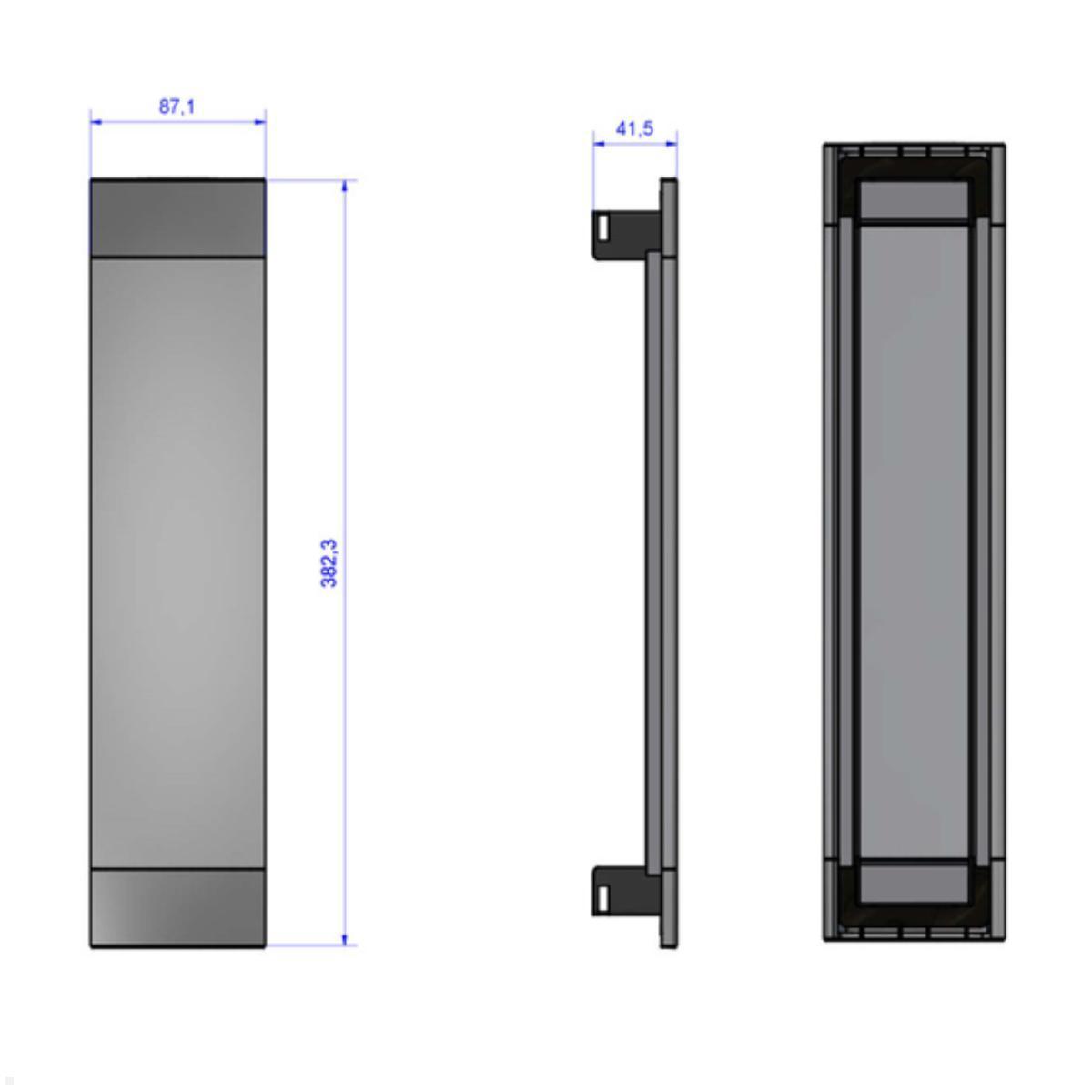

- Dimensions (W×H×D): 383 x 88 x 42 mm
- with aluminum flap
- For adhesive mounting into the desk
- For conference and office desks
- Power and data access from every seat
- Dust protection
- Versatile combination options with power and data/audio/video modules
WARNING: In combination with the Bachmann POWER FRAME COVER, only socket units with flush-closing custom modules may be used!
Does your Bachmann Power Frame Cover 6-way fit?
We are happy to check whether your Bachmann product is suitable for your application. To do so, simply send us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the Bachmann power strip fits completely, and if not, we will contact you.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Suitable for: | Bachmann Power Frame mounting frame 6-way |
| Packaging dimensions (LxWxH in mm): | 515 x 90 x 100 |
| Scope of delivery: | 1x POWER FRAME Cover | 1x assembly instructions |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| color: | Weiß |
| Land: | Germany |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann Power Frame Cover 6-way?
A compact mounting solution with an anodised aluminium cover for clean power and data integration in a desk; designed to work with Bachmann sockets and features a lid that can be opened from both sides for convenient access.
-
What materials is it made from?
It is a design piece made of anodised aluminium; the white frame (RAL 9010) combines with a painted aluminium lid for a modern look.
-
What are the dimensions?
Dimensions (W x H x D) are 383 x 88 x 42 mm.
-
Where can I use it?
Suitable for conference and desk tables and blends into office and conference environments.
-
How does it protect and access connections?
The cover protects power and data connections from dust and dirt and provides a tidy appearance; the lid opens easily from either side for access to all connections.
-
What modules are compatible?
Versatile combinations with socket outlets and data, audio and video modules.
-
Attention: compatibility with modules?
WARNING: In combination with the Bachmann POWER FRAME COVER, only socket units with flush-ending Custom Modules can be used.
-
How do I check if my Bachmann Power Frame Cover 6-way fits?
We can check for you; at the end of the order please provide the manufacturer and model number in the comment field, and we will confirm whether the Bachmann socket strip fits completely.
Zubehör
Why is the Power Frame Cover the ideal solution for larger desk connection panels?
The Power Frame Cover is the optimal addition for a 6-way desk connection panel and offers an elegant solution for power and data integration in the desk. In modern work environments such as offices, conference rooms or home offices, a tidy and functional design plays a central role. Exposed power strips and visible connections quickly appear unstructured – the Power Frame Cover provides a high-quality and well-thought-out solution. The sturdy aluminium cover protects power and data connections from dust and dirt while also providing a clear, reduced appearance. In the closed position the connections discreetly disappear into the desk, while they are quickly and comfortably accessible when needed. Particularly practical is access from both sides – ideal for meeting tables and shared workspaces.
How does integration with Bachmann power strips work?
The system is specially designed for combination with Bachmann power strips and enables a precise integration into the desk surface. This results in a professional and durable built-in solution that is convincing both technically and aesthetically. In conjunction with suitable power, data or multimedia modules, a versatile system for power supply and data connections in the desk is created. Flush-mounted installation saves space and ensures a tidy work surface. At the same time all connections remain readily accessible at any time. This combination of functionality and design makes the Power Frame Cover an ideal solution for modern workplace concepts.
What advantages does the high-quality aluminium cover offer in everyday use?
The elegant aluminium flap impresses with its high-quality workmanship and durable quality. It reliably protects the integrated power strips and at the same time provides a modern, design-oriented look. This protection is particularly important in high-traffic areas such as conference rooms. The white frame (RAL 9010) blends harmoniously into different interior styles and underlines the clear lines of modern furniture. This creates a consistent design concept that optimally combines functionality and aesthetics.
For which application areas is the Power Frame Cover suitable?
The Power Frame Cover for 6-way desk connection panels is ideally suited for larger workstations, conference tables or team working areas with multiple users. Wherever many connections are required, this solution provides order, overview and a professional integration. By being built directly into the desk surface, a space-saving and stable installation is achieved. In combination with compatible power strips, the Power Frame Cover becomes a well-thought-out complete system for modern working environments.
Note: In combination with the Power Frame Cover, only socket units with flush-closing custom modules can be used. We will gladly check the compatibility of your desired solution for you.
