Bachmann STEP ALU 2-way socket 1x switch FI current (906.18822)
Bachmann STEP ALU 1x switch 2x socket outlet 1x FI 30mA with GST18 (906.18822) is a modular socket unit with FI circuit breaker. Individual modules can be plugged together or combined as desired with a connecting cable. Successor to 906.150.
Multiple socket strip with switch
The Bachmann STEP ALU (906.18822) double socket strip with switch and integrated Residual current circuit breakers (RCD) is equipped with Wieland GST18 for the power supply as standard and can therefore be fed in with different cable inputs. The multiple socket is equipped with 2 safety sockets 35° turned. STEP power strips can be used in a variety of ways, for example for mounting under tabletops, in cable ducts and partitions. Various attachments are available for this. The Bachmann STEP system is ideal for flexible energy and data supply at workplaces, in double floors, in partition wall systems and many other connection applications. The modularity of the STEP ALU socket units offers almost limitless possibilities.
Key features socket strip with GST18
- Length approx. 358 mm
- Width 52 mm
- Aluminium profile black, sockets black
- 2x protective contact sockets with child protection, black, around 35° rotated
- Switch switches sockets and power output
- FI circuit breaker16A, 2-pole
- Response current: 30mA
- Response time: 30mS
- Power input: GST18i3 plug, black
- Power output: GST18i3 socket, black
- Incl. Plug latching
- Successor to 906.150

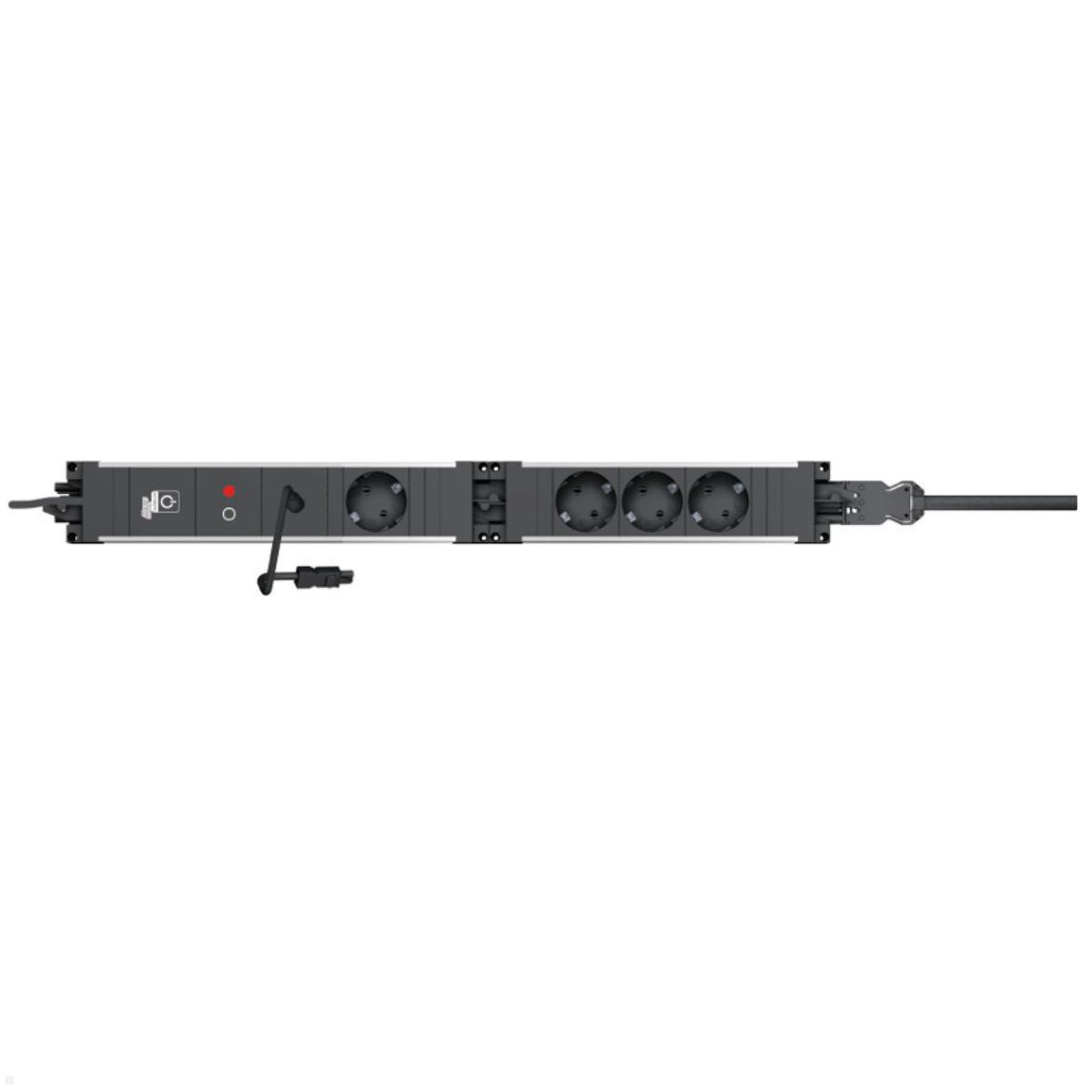

Many mounting options

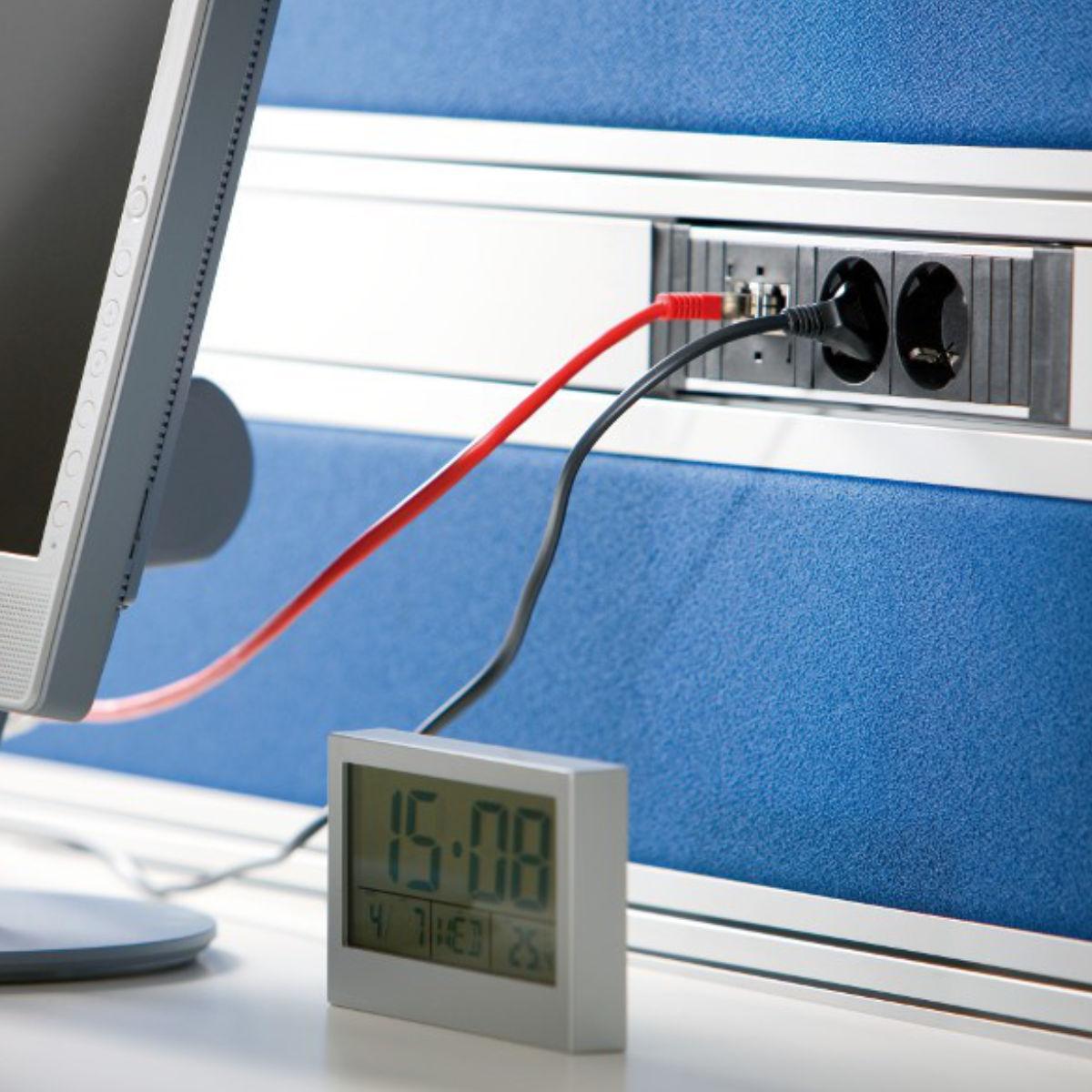

Bachmann STEP power strips are versatile. For example for mounting under tabletops, in cable ducts and partitions. Various fastening options are available for assembly for the different applications.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

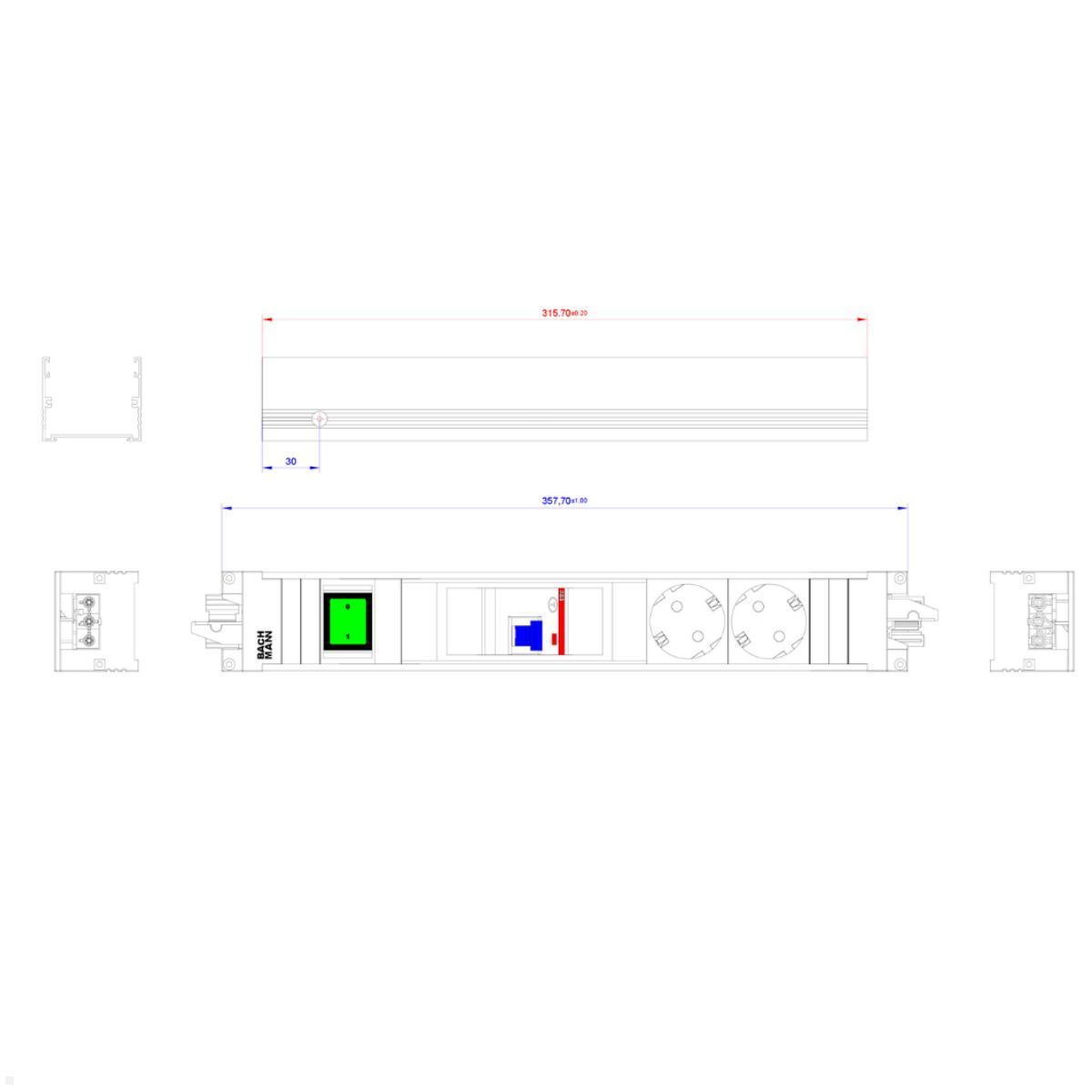

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 906.150 |
| Packaging dimensions (LxWxH in mm): | 380x60x50 |
| Scope of delivery: | 1 x Bachmann power strip |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| FI switch: | Yes |
| Number of sockets: | 2 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
