Bachmann STEP ALU 3-way socket red GST18 (906.306)
The Bachmann STEP ALU 3-way power strip (906.306) in red is equipped with GST18. The STEP is e.g. suitable for installation in cable ducts, partition walls or under table tops. Successor to 336.067.
Multiple power strip
The Bachmann Step Alu triple power strip (906.306) is a power strip with an aluminum housing. It has three safety sockets. The sockets are inclined by 35 degrees, which makes it easier to connect bulky plug-in power supplies. The socket strip has a GST18 plug as the power input and a GST18 socket as the power output. The increased protection against accidental contact minimizes the risk of electric shock. The power strip is suitable for use in offices, workplaces, living rooms, kitchens or any other environment where reliable power distribution is required. Can be mounted on T-slot profiles and stand profiles from different suppliers.
Technical details 3-way power strip
- 3-way power strip, 35°; rotated

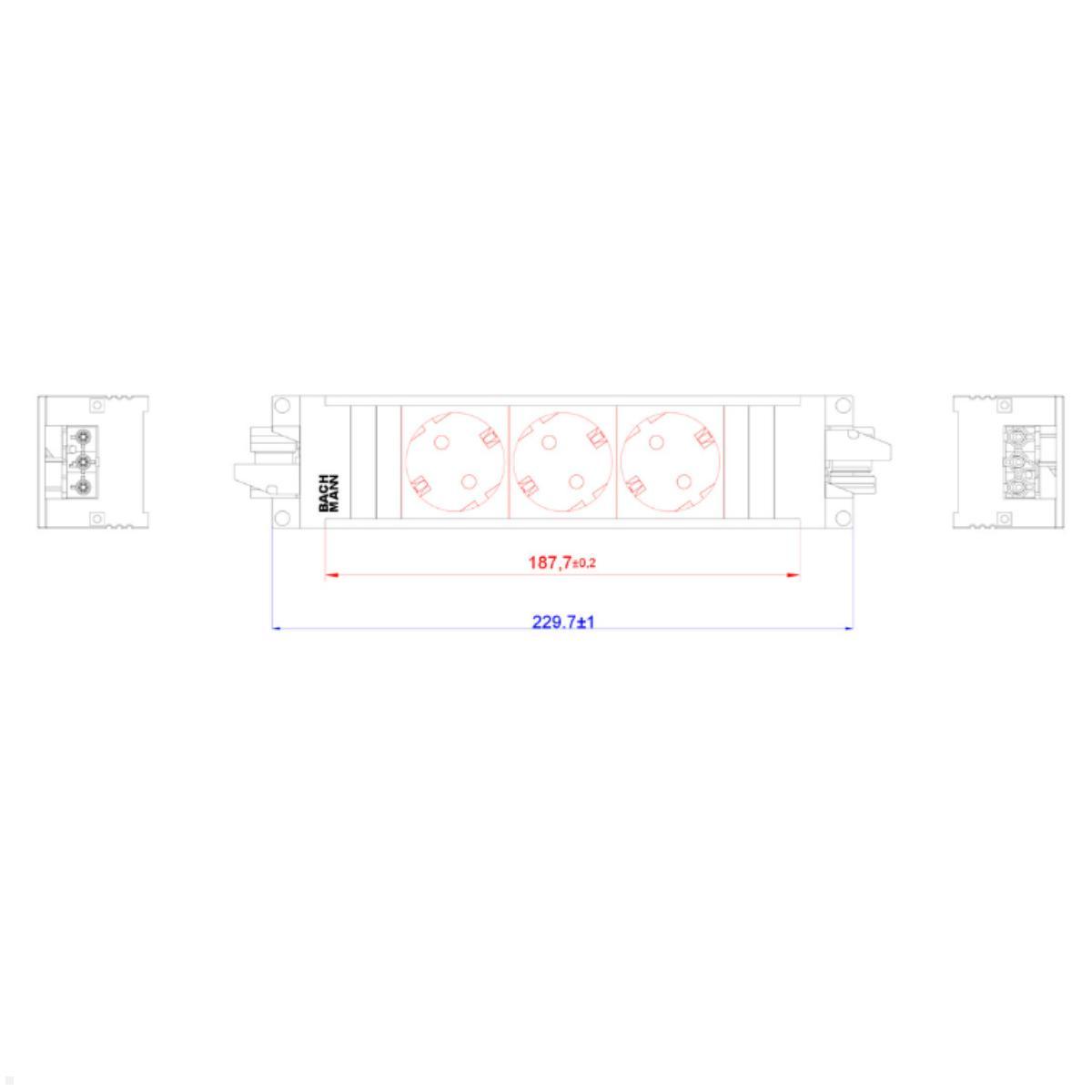

- Length approx. 230mm
- Width 52mm
- Max. 16A / 230V~ / 3,680W
- IP20 protection (protection against contact, dust, water)
- Aluminium profile silver, sockets red

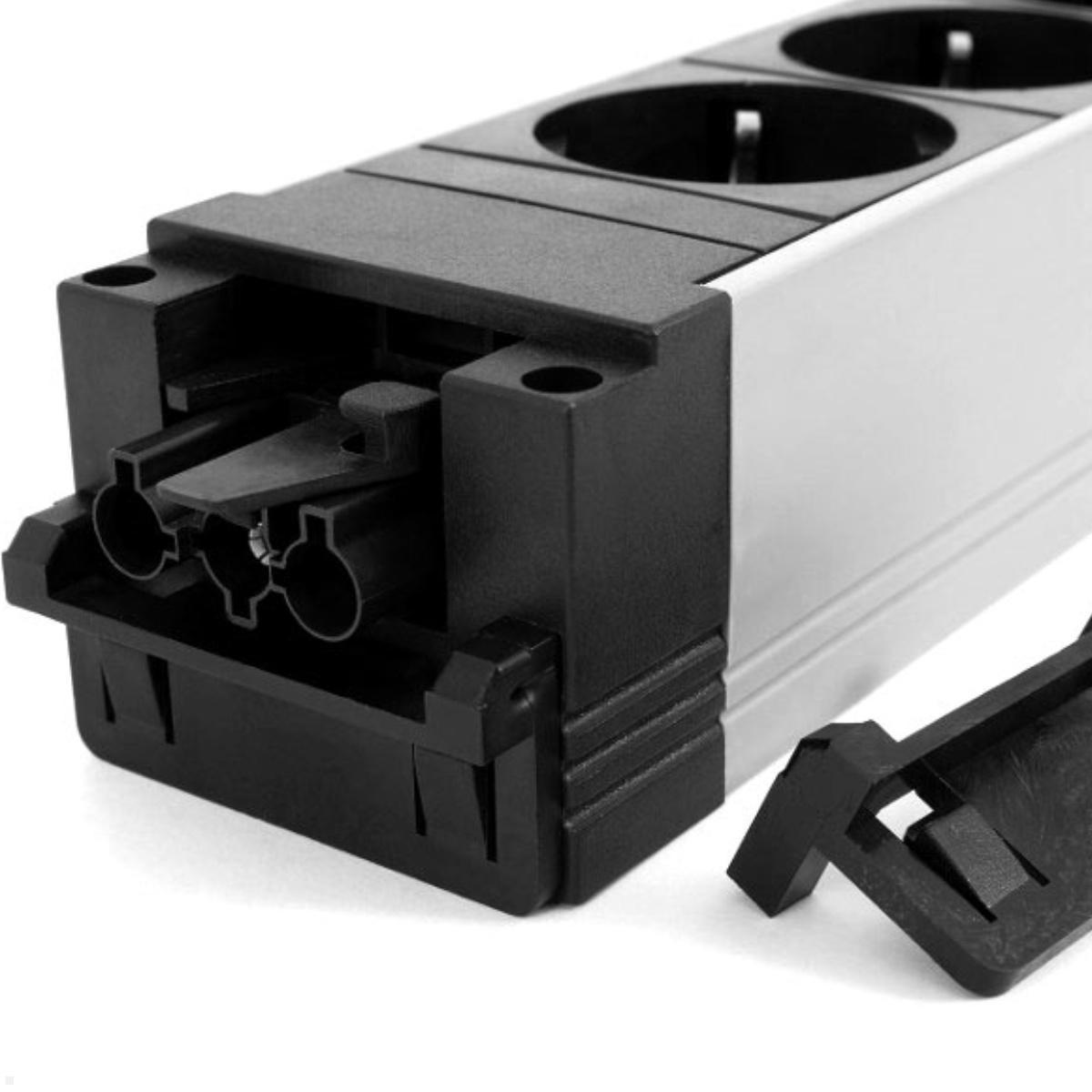

- Power input: GST18i3 plug black< /li>
- Power output: GST18i3 socket, black
- Sockets: red
- Profile: grey
- Material: aluminium
- Incl. Plug latching
- Successor to 336.067

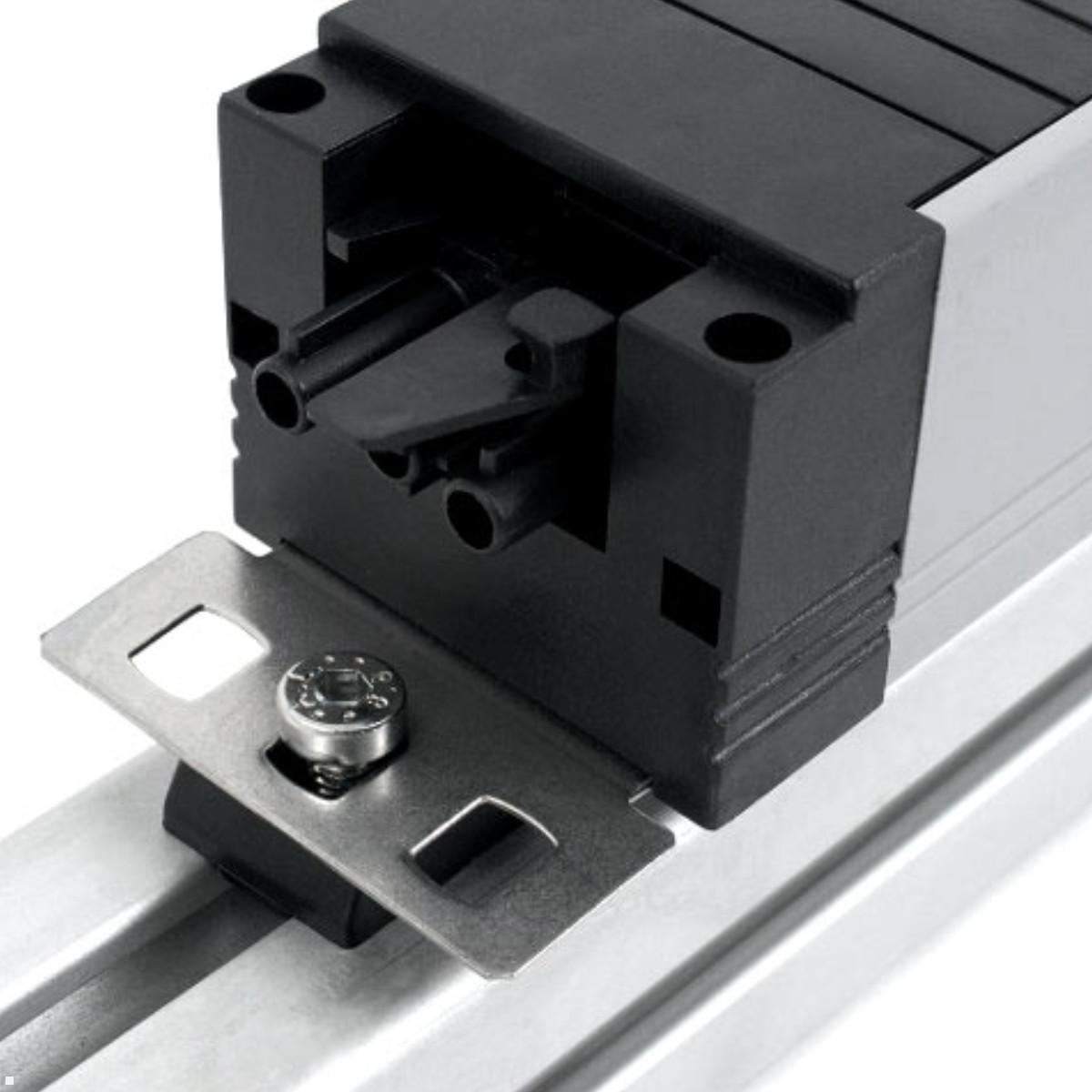

Many mounting options
Bachmann STEP power strips are versatile. For example for mounting under tabletops, in cable ducts and partitions. Various fastening options are available for assembly for the different applications.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Old model no.: | 336.067 |
| Packaging dimensions (LxWxH in mm): | 240 x 60 x 50 |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 3 |
| color: | Red |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
