Bachmann Twist 1S 2P 2x Power Socket (931.021), chrome finish
Bachmann TWIST 1S 2P 2x Power Socket (931.021) is a power strip in chrome matt for office, lounge and kitchen areas. With its compact design and low installation depth, it is easily integrated in desks or kitchen worktops.
Bachmann Twist 1S 2P 2x Power Socket (931.021)

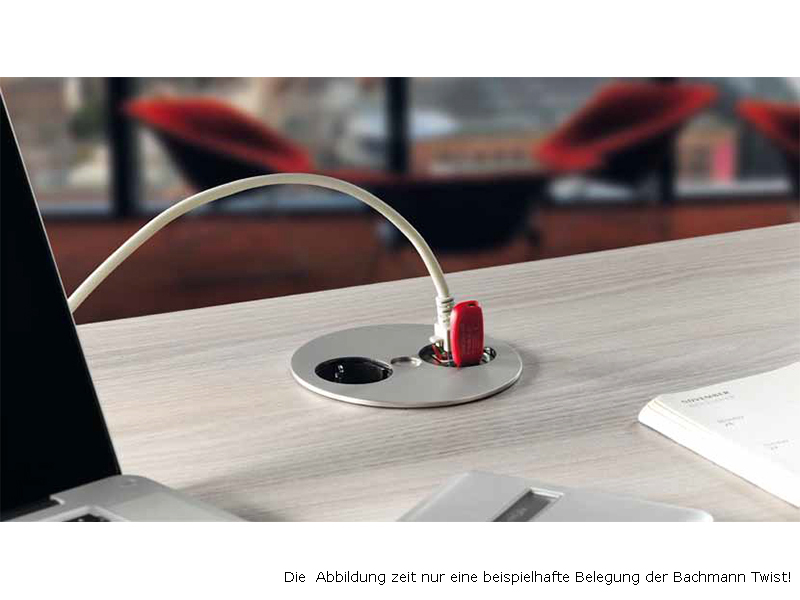

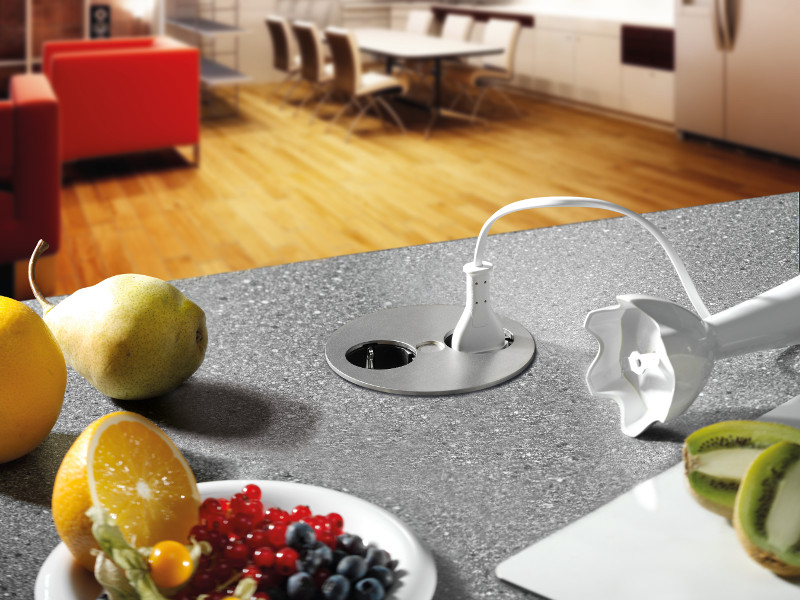

Bachmann TWIST 931.021 is a power strip for office, lounge and kitchen areas. With its compact design and low installation depth, it is easily integrated in desks or kitchen worktops. Because the power cable is routed close to the housing, the installation depth is only around 40 mm, so the unit can be easily installed above a drawer.

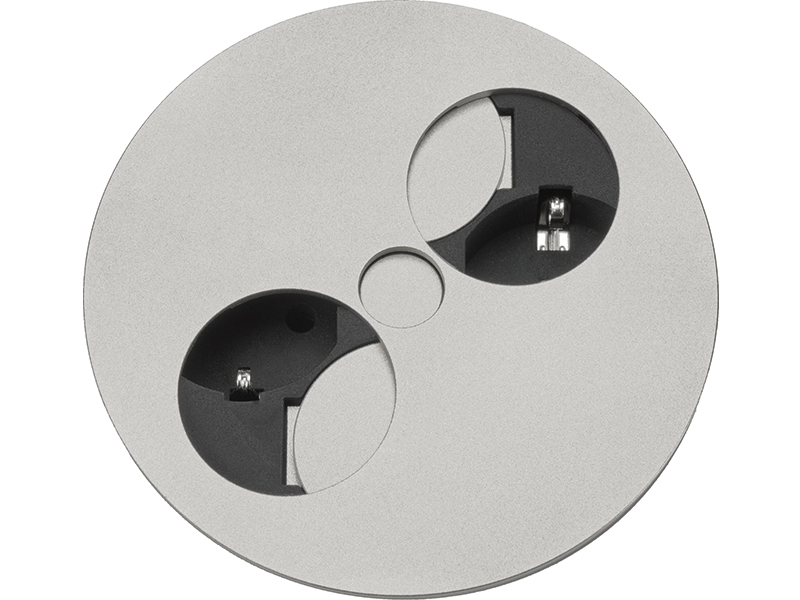

With a chrome look finish, the Bachmann TWIST blends easily into both modern and organic interiors. After use, simply rotate the cover and the socket outlets disappear underneath it. The Bachmann TWIST won the Red Dot Product Design Award 2012.
Advantages:
- Very low installation depth (approx. 40 mm)
- Compact design (H x diameter: approx. 42.5 x 115 mm)
- Space-saving cable routing
- Quick and easy to install
- Finish: matt chrome
- Red Dot Product Design Award Winner 2012
Key Features:

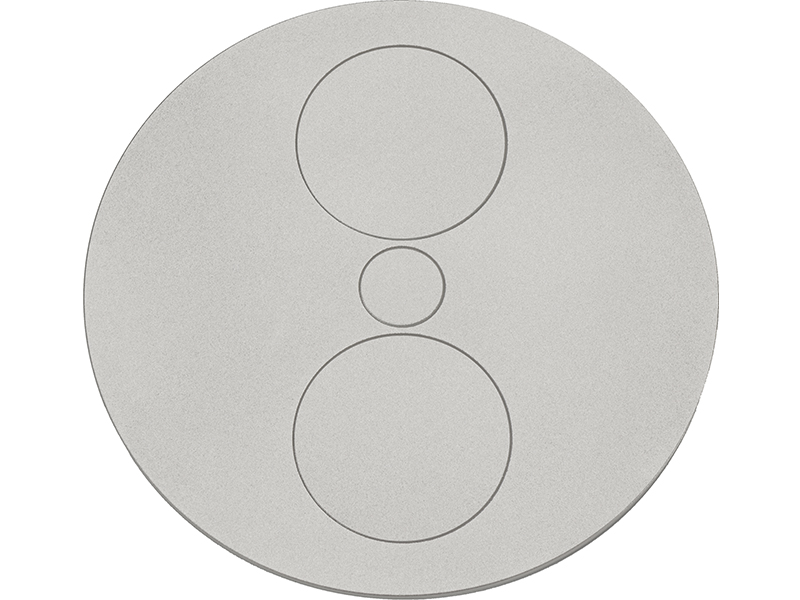

- Metallic matt chrome look cover disc

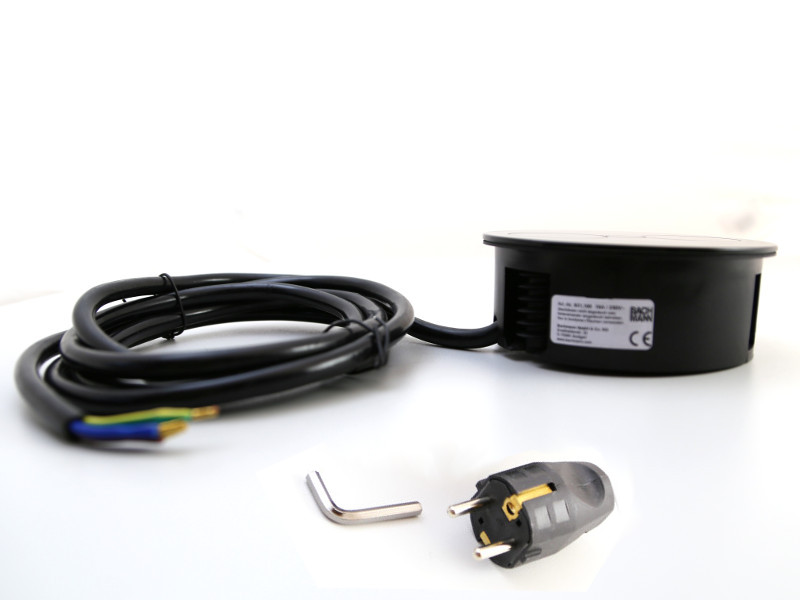

- power input: 2,0 m line with wire feruless and enclosed grounding-type plug

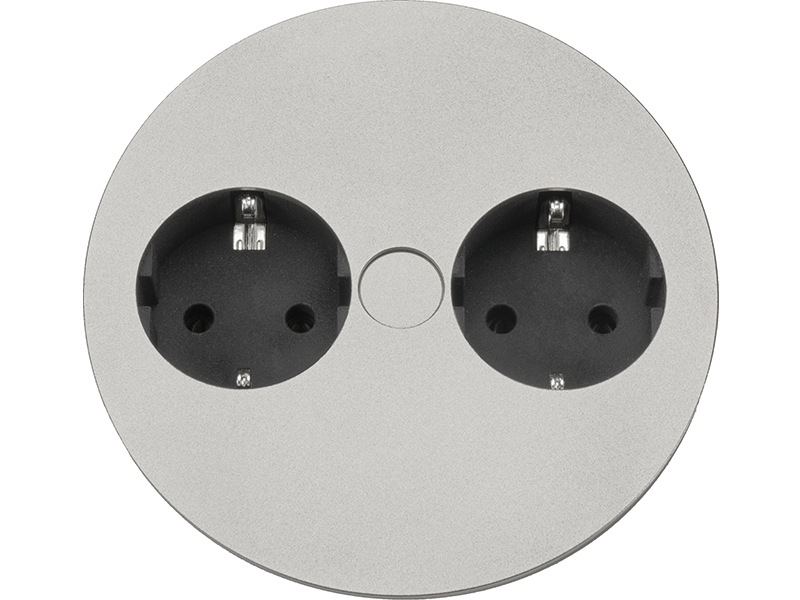

- 2 x power socket with earthing contact, child-proof, black
- Installation diameter 105 mm, installation depth 40 mm
- for desk or table top thicknesses of 20 mm to 40 mm
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 365 kb] |
|---|---|

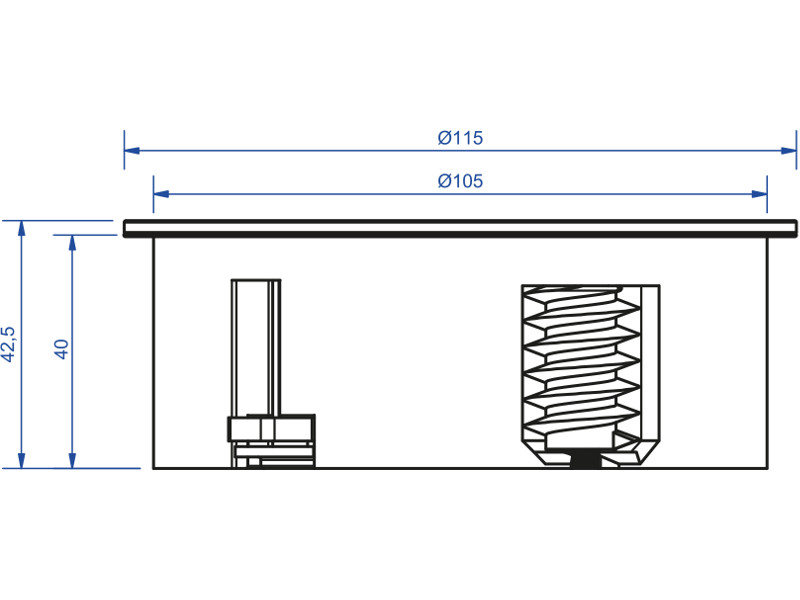

| Technical drawing: | [pdf, 68 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 250 kb] |
| Warning/safety instructions: | [pdf] |
| Accessories: | Gerätezuleitung GST |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Chrome matt |
| Form: | rund |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
