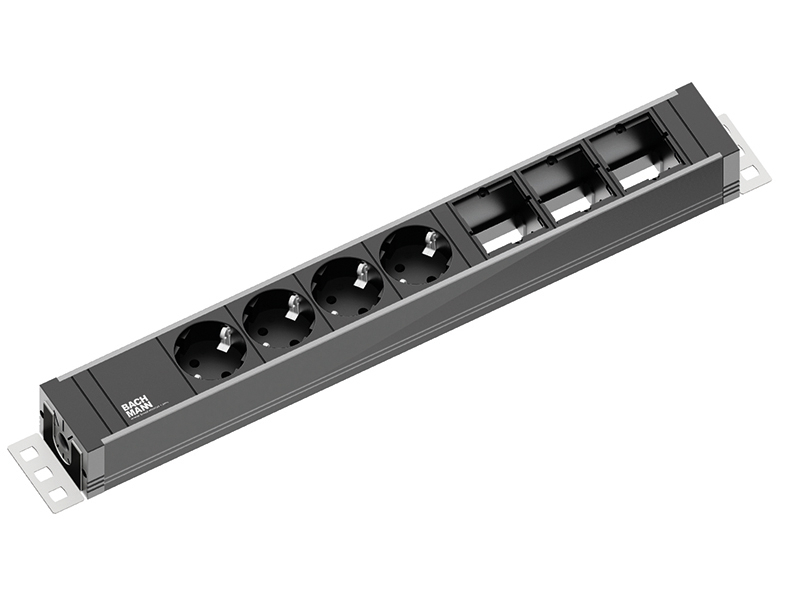

Bachmann UNIVERSAL power strip 4x socket 3x custom module (922.0071)
The Bachmann UNIVERSAL power strip 4x socket 3x custom module (922.0071) is a complete unit for electricity, data and media connections to work and conference tables.
Bachmann UNIVERSAL power strip 4x socket 3x custom module 922.0071
Bachmann UNIVERSAL ensures free access to power, media and data supplies on the table. And it grants thanks to minimal installation depth absolute legroom under the table, even when near edges installation. Different standard surface finishes ensure the necessary design freedom.
The configuration of data connections (see custom modules) can be freely selected at the table terminal box UNIVERSAL (see custom modules). In addition, any time there is the possibility of replacing the respective power strip quickly and without tools. Integrated functionality and flexibility not just for today - but also for all future developments.
Key features Bachmann UNIVERSAL power strip 4x socket 3x custom module 922-0071
- Length: 7 pcs
- 4x socket outlet with earthing contact, shuttered, black, set at 35°
- 3x custom module empty
- Power input: 3.0 m H05VV-F3G 1,5mm² with angled plug 90°
- Incl. mounting bracket
Advantages Bachmann UNIVERSAL power strip
- Complete unit for power, data and media connections on desks and conference tables
- Includes 3.0 m power connection cable
- Outstanding flexibility through use of Bachmann custom modules
- Attachment in various positions / at various angles using metal retaining brackets
- Ideally suited to use in table ducts

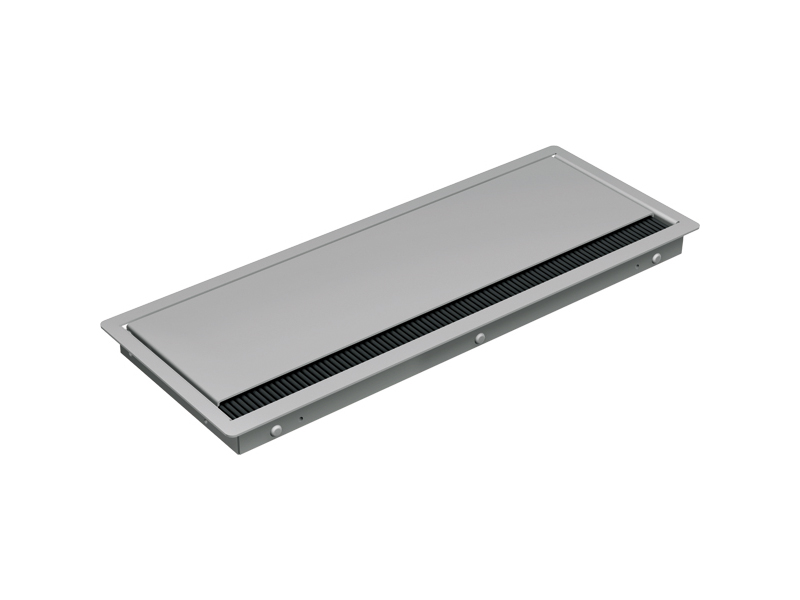

Bachmann CONI COVER and Bachmann UNIVERSAL socket - The functional combination. Bachmann CONI COVER provides a refined approach to accessing separate power supply units or standard cable installation systems under the tabletop.
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 58 kb] |
|---|---|
| Technical drawing: | [pdf, 226 kb] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 4 |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
