Comount Dual USB-C built-in charger 2x 18W with open cable ends
Highlights
- 2x USB-C with 18 watts each
- Fast charging technology PD 3.0 / QC 4.0
- Compact 27 mm installation diameter
- Input voltage 12-24V DC
- Open cable ends, 150 mm

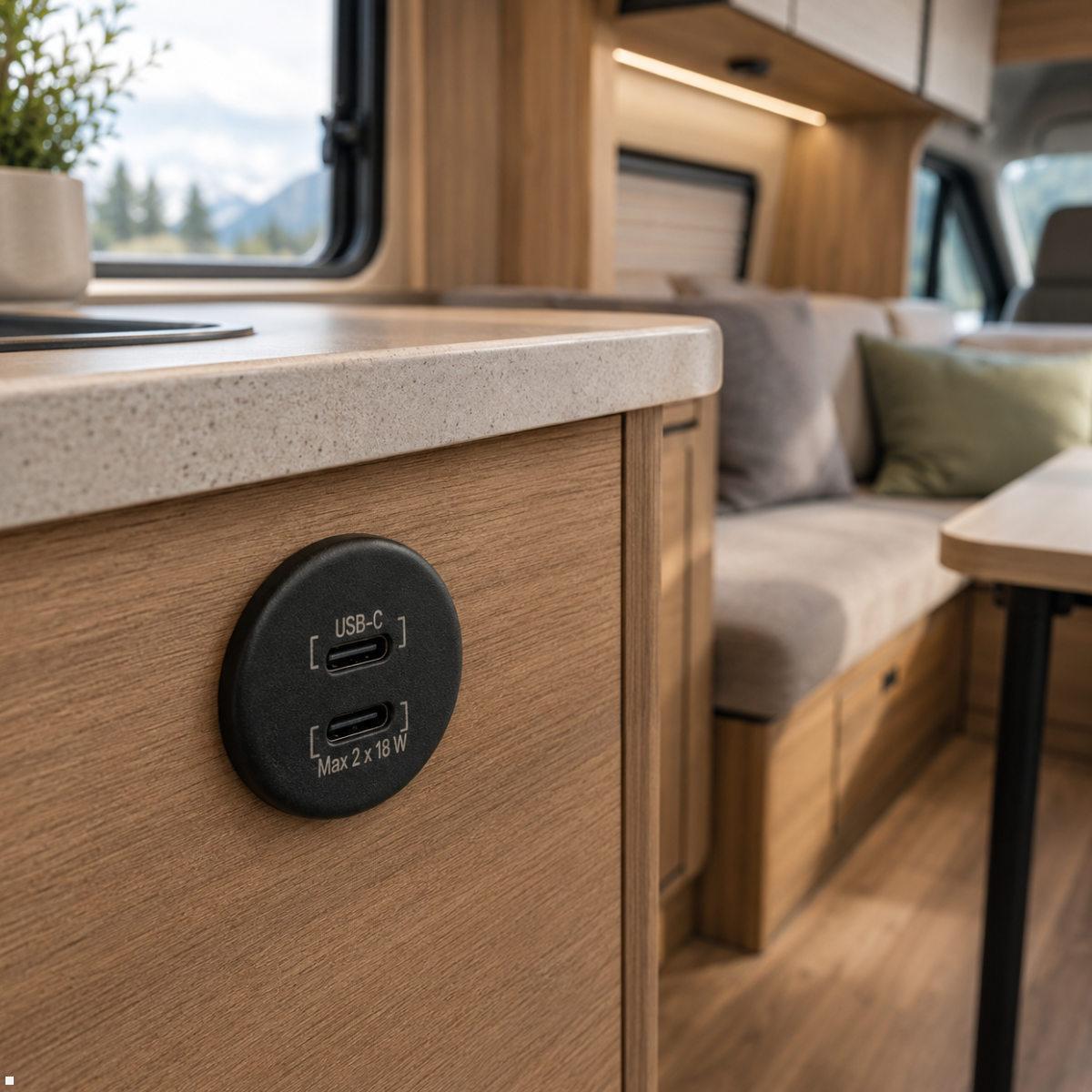

Dual USB-C built-in charger for caravan, motorhome and boat
The Comount Dual USB-C built-in charger 2x 18W with open cable ends (560009) offers two USB-C ports for simultaneously fast charging of two devices. As the future unified standard for charging sockets, the universal charger can be quickly installed in motorhomes, caravans or boats. The Dual USB-C charger charges all mobile devices such as smartphones, tablets, digital cameras, headphones or portable speakers and is up to 50% faster than conventional chargers with USB-A ports.
With a compact installation diameter of only 27 mm, the Comount Dual USB-C built-in charger 560009 is compatible with the switch systems from Berker and Inprojal. Rounded edges and integrated protection mechanisms against short circuits, overvoltage and high temperatures ensure maximum safety. The built-in charger in anthracite is ideally suited for use in motorhomes, caravans, boats and wherever two devices need to be charged simultaneously via a compact USB-C charging station.
Technical details Comount Dual USB-C built-in charger 2x 18W (560009)
- 2x USB-C port for simultaneous charging
- Output power: 2x 18 watts
- Fast charging technologies: PD 3.0, QC 4.0, QC 3.0, QC 2.0, FCP, DCP, BC 1.2, AFC, SCP, PE 1.1, SFCP
- Total power: 5V/3A (15W), 9V/2A (18W), 12V/3A (36W)
- Input voltage: 12-24V DC
- Stand-by current: ≤ 2 mA
- Dimensions: front diameter 36 mm / installation 27 mm / depth 44.5 mm
- Weight: 27 g
- Operating temperature: -20° to +70° C
- Suitable for panel thicknesses up to 17 mm
- Compatible with switch systems from Berker and Inprojal
- Open cable ends, cable length 150 mm
- Service life: approx. 10,000 plug/unplug cycles
- Standards: CE, UKCA, RoHS, REACH, ECE-R10 Type Approval
- Color: Anthracite
- Scope of delivery:
- 1x Dual USB-C built-in charger with open cable ends
| Scope of delivery: | 1x Dual USB-C built-in charger with open cable ends |
|---|---|
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Anthrazit |
| USB-Charger: | USB C/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Comount Dual USB-C In-Wall Charger 2x18W?
A compact built-in charger with two USB-C ports for simultaneous fast charging; designed for use in caravans, motorhomes and boats, with a front diameter of 36 mm and installation diameter of 27 mm.
-
Which devices can be charged?
It charges all mobile devices such as smartphones, tablets, digital cameras, headphones or portable speakers.
-
What power and fast charging tech does it have?
Output is 2x 18W (36W total). Supports fast charging technologies including PD 3.0, QC 4.0, QC 3.0, QC 2.0, FCP, DCP, BC 1.2, AFC, SCP, PE 1.1 and SFCP.
-
What input voltage is required?
Input voltage: 12-24V DC.
-
What protection features are integrated?
Integrated protections against short circuits, overvoltage and high temperatures for maximum safety.
-
What are the dimensions and colour?
Colour: Anthracite. Front diameter 36 mm; installation diameter 27 mm; depth 44.5 mm; weight 27 g.
-
Which switch programs is it compatible with?
Compatible with Berker and Inprojal switch programs.
-
What is included in the package?
1x Dual USB-C built-in charger with open cable ends.
Why install a dual USB-C built-in charger in a motorhome or boat?
When multiple people want to charge their mobile devices at the same time, a single USB port quickly reaches its limits. A dual USB-C built-in charger with two charging ports solves this problem and allows two smartphones, tablets or other devices to be charged simultaneously. With an output power of 18 watts per port, the Comount Dual Charger provides sufficient power for fast charging. Compared to USB-A chargers, smartphones can be charged up to 50 percent faster, which is particularly advantageous on the go. The compact mounting diameter of only 27 mm allows seamless integration into existing switch systems from Berker and Inprojal. The input voltage of 12 to 24 volts makes the charger universal for use in motorhomes, caravans, boats and commercial vehicles.
Which devices can be charged with the dual USB-C charger?
The Comount Dual USB-C built-in charger is a universal charger compatible with all common smartphones, tablets, laptops, digital cameras, wireless headphones and portable speakers. Support for numerous fast-charging technologies such as PD 3.0, QC 4.0, QC 3.0, FCP and other protocols ensures that each device is automatically supplied with the optimal charging power. The two independent USB-C ports allow different devices to be charged simultaneously without loss of performance. With a service life of around 10,000 insertion/removal cycles per port, the built-in charger is designed for intensive continuous use.
How is the Comount dual USB-C built-in charger installed?
Installation of the Comount Dual USB-C built-in charger is straightforward and quick. The open cable ends with a length of 150 mm provide maximum flexibility for wiring. The charger is suitable for wall thicknesses up to 17 mm and fits standard mounting openings. Integrated protection mechanisms against short circuits, overvoltage and overheating ensure safe operation. The operating temperature range from minus 20 to plus 70 degrees Celsius enables reliable charging even under extreme climatic conditions. Comount products are manufactured to the highest quality standards; the production sites are certified to the automotive standard IATF 16949 and meet the enhanced EMC requirements according to ECE-R10 Type Approval.
