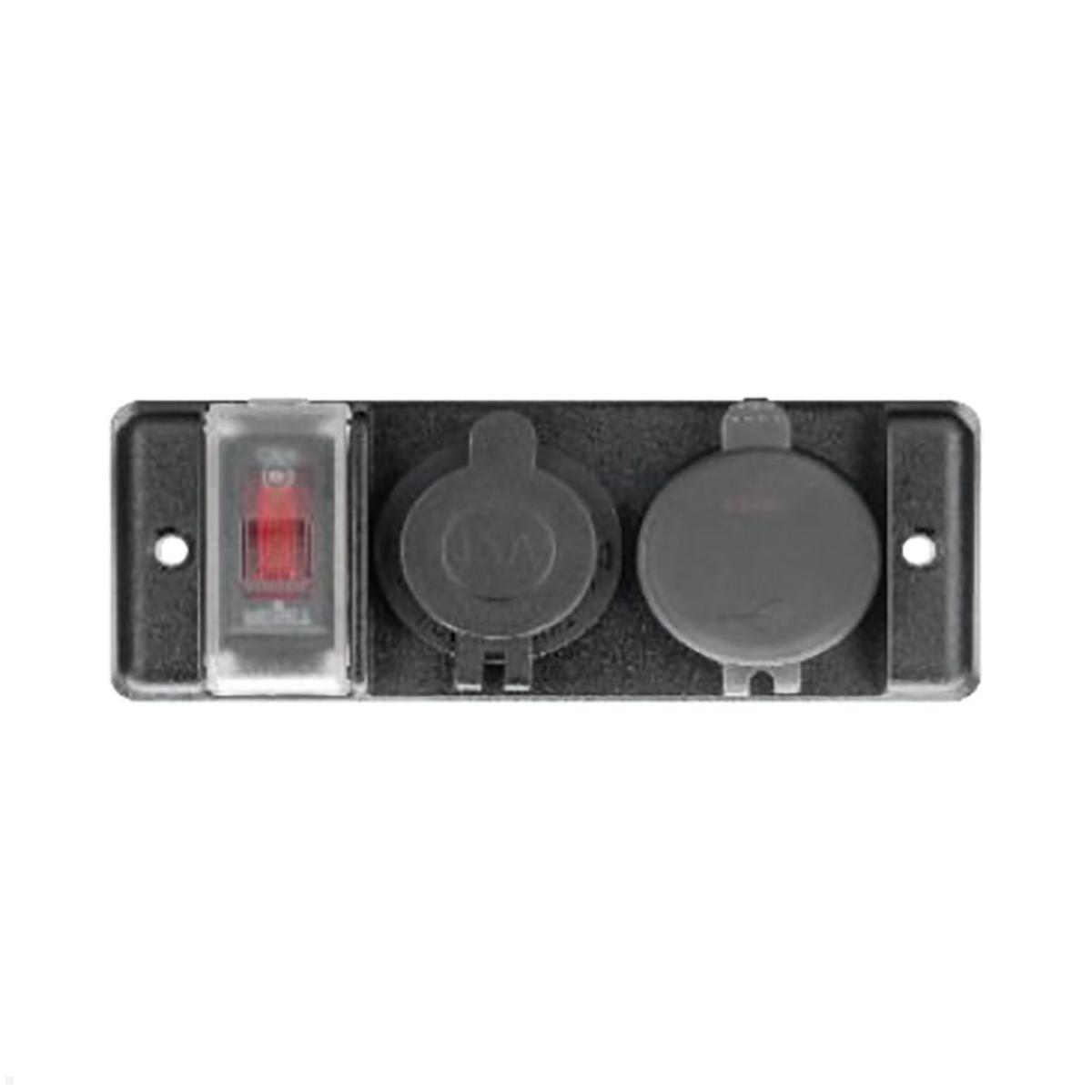

Comount Switch Panel with USB-A/C built-in charger, LED, open cable ends
Highlights
- USB-A/C and 12-V socket
- Quick Charge and Power Delivery
- LED onboard voltage indicator
- Illuminated on/off switch
- Dust and moisture protection

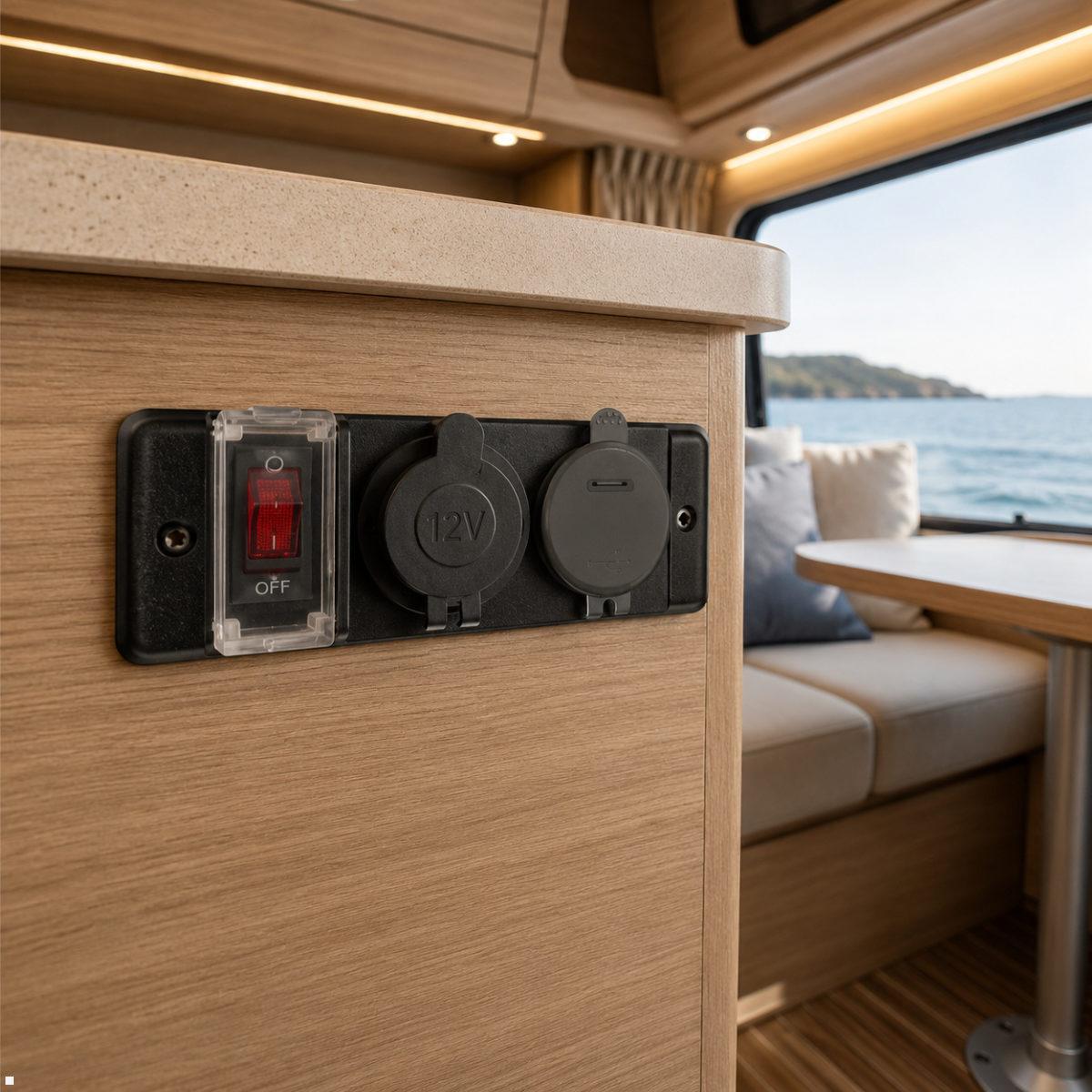

USB built-in charger with switch panel for caravan, motorhome and boat
The Comount switch panel with USB-A/C built-in charger, LED, open cable ends (560005) combines various charging and power connections in a compact format. The combination of USB-A and USB-C built-in chargers as well as a 12 V socket powers almost all devices on the go in a caravan, motorhome or boat. Thanks to Quick Charge and Power Delivery, common smartphones are charged at high speed. An integrated 7-segment LED display provides an overview of the current onboard voltage while charging.
The switch panel from Comount is equipped with an illuminated on/off switch and can be installed almost anywhere thanks to two mounting holes in the front panel. Covers reliably protect the connections from dust and moisture. The USB built-in charger is supplied with a 200 mm cable; the remaining parts are equipped with flat connectors. The Comount switch panel is ideal for use in motorhomes, caravans, boats and anywhere a reliable 12 V power supply is required.
Technical details Comount switch panel USB-A/C built-in charger (560005)
- USB-A and USB-C port plus 12 V socket
- Quick Charge and Power Delivery for high-speed charging
- 7-segment LED display for onboard voltage
- Illuminated on/off switch
- Covers for protection against dust and moisture
- 2 mounting holes in the front panel
- USB built-in charger with 200 mm cable
- Remaining parts with flat connectors
- Protection against short circuits, overvoltage and high temperatures
- Input voltage: 12-24V DC
- Color: Black
- Scope of delivery:
- 1x switch panel with USB-A/C built-in charger and LED
- Installation material
| Scope of delivery: | 1x Switch Panel with USB-A/C built-in charger and LED, Installation material |
|---|---|
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
| USB-Charger: | USB A/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is included in the package?
Includes a switch panel with USB-A and USB-C built-in charger and LED, plus a 12V socket. Installation materials are included, and protective covers guard against dust and moisture. The USB charger comes with a 200 mm cable.
-
What connections does it provide?
USB-A and USB-C ports plus a 12V socket. Quick Charge and Power Delivery enable high-speed charging. A 7-segment LED shows the onboard voltage.
-
What voltage range does it support and what protections does it have?
Input voltage 12–24 V DC. Protection against short circuits, overvoltage and high temperatures.
-
What is it suitable for?
Suitable for caravans, motorhomes and boats, and anywhere a reliable 12V power supply is needed.
-
What features does it have?
Illuminated on/off switch; dust and moisture-protective covers guard the connections.
-
How is the USB charger wired?
The USB charger comes with a 200 mm cable; remaining parts use flat connectors.
-
Who makes it and what is the model?
Manufacturer: Comount; model: Switch Panel with USB-A/C built-in charger (560005).
-
What is included in the delivery?
1x Switch Panel with USB-A/C built-in charger and LED; installation materials.
Why is a switch panel with a USB charger indispensable in a motorhome?
Anyone travelling with a motorhome, caravan or boat knows the problem: multiple devices need to be charged at the same time, but the available outlets are often not sufficient. A switch panel with an integrated USB built-in charger solves this problem elegantly. The combination of a USB-A port, USB-C port and 12 V socket in a compact housing offers maximum flexibility with minimal space requirements. While the USB-C port charges modern smartphones and tablets at high speed thanks to Power Delivery, the 12 V socket simultaneously provides power for additional devices. The illuminated on/off switch allows convenient control and prevents unnecessary power consumption while parked. The integrated LED board voltage indicator ensures that the battery voltage is always in view and can be recharged in time.
How is the Comount switch panel installed?
Installation of the Comount switch panel is exceptionally simple. Two mounting holes in the front plate allow secure attachment to almost any surface. The USB built-in charger is connected via a 200 mm long cable, while the remaining components use practical flat connectors. This significantly reduces installation effort and makes installation easy even for less experienced users. The input voltage of 12 to 24 volts makes the panel compatible with the on-board networks of motorhomes, caravans, boats and commercial vehicles. Covers on the connectors reliably protect against dust and moisture, which is particularly advantageous in maritime environments and dusty conditions.
Which safety standards does the Comount switch panel meet?
Comount products are manufactured to the highest quality standards that are standard in the automotive, industry, caravanning and e-mobility sectors. Production sites are certified to the automotive standard IATF 16949 and all products comply with the relevant DIN and VDA standards. In addition, the increased EMC requirements according to ECE-R10 Type Approval are met. Integrated protection mechanisms against short circuits, overvoltage and overheating ensure safe operation under all conditions. The rounded edges of the housing additionally minimize the risk of injury when used in confined vehicle cabins. Quick Charge and Power Delivery provide intelligent charging management that charges the battery gently yet quickly.
