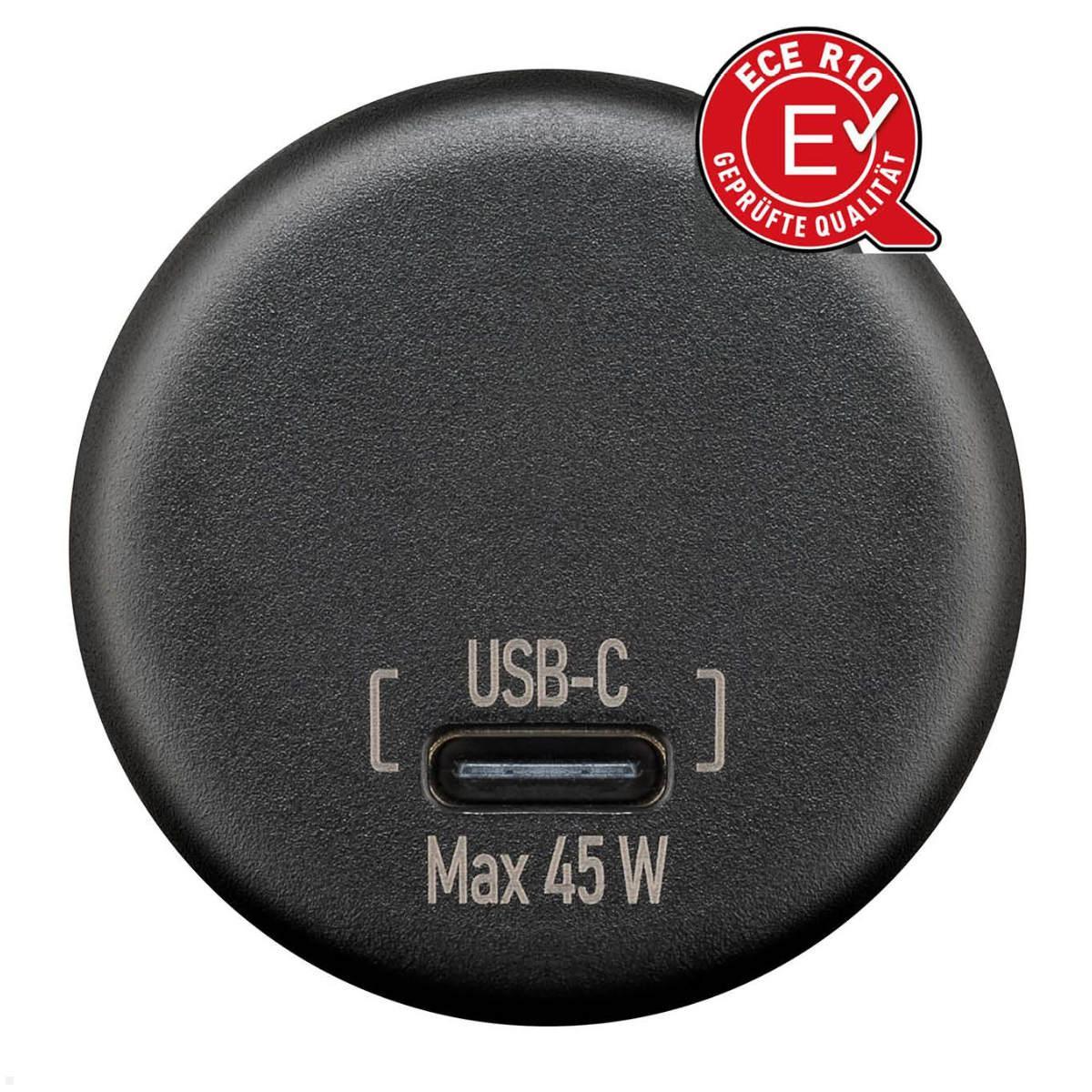

Comount USB-C built-in charger PD 45W with open cable ends
Highlights
- USB-C with Power Delivery 45W
- Fast charging technology PD 3.0 / QC 4.0
- Compact 27 mm mounting diameter
- Input voltage 12-24V DC
- Open cable ends, 150 mm

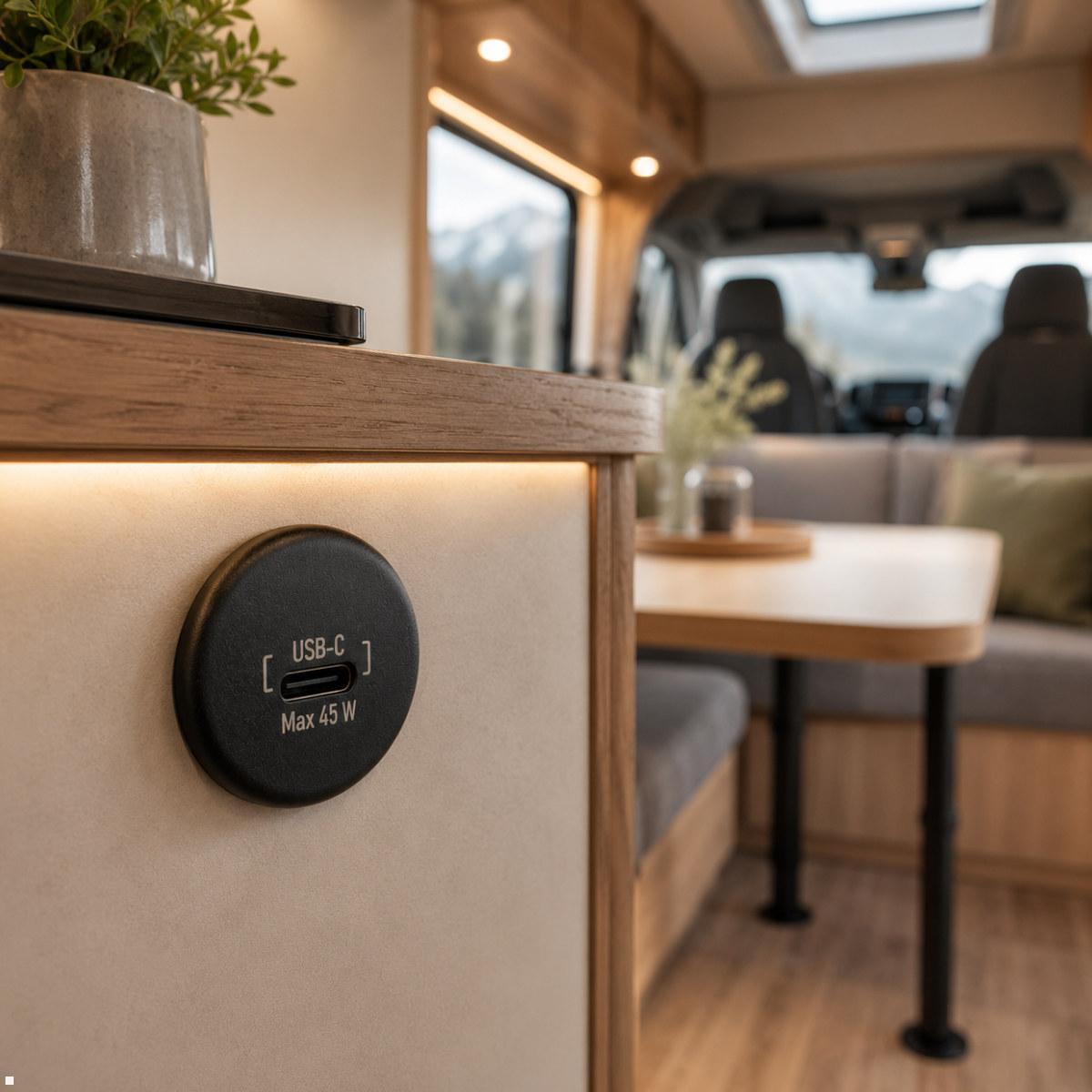

USB-C built-in charger with 45W Power Delivery for motorhome and boat
The Comount USB-C built-in charger PD 45W with open cable ends (560006) provides powerful and fast charging in caravans, boats and motorhomes via USB Power Delivery with up to 45 watts. The USB-C port is the future unified standard for charging sockets and thus the ideal platform for fastest charging of tablets, notebooks and smartphones. With a mounting diameter of only 27 mm, the compact built-in charger is compatible with the switch programs of Berker and Inprojal.
The Comount USB-C built-in charger 560006 charges smartphones up to 30% faster than comparable products and even 50% faster than conventional USB-A chargers. Rounded edges and an integrated protection against short circuits, overvoltage and high temperatures ensure maximum safety. The USB-C charger is ideal for installation in motorhomes, caravans, boats, commercial vehicles and anywhere a powerful USB charging station is needed in the smallest of spaces.
Technical details Comount USB-C built-in charger PD 45W (560006)
- USB-C port with USB Power Delivery up to 45 watts
- Fast charging technologies: PD 3.0, QC 4.0, QC 3.0, QC 2.0, FCP, DCP, BC 1.2, AFC, SCP, PE 1.1, SFCP
- Total output: 5V/3A (15W), 9V/2A (18W), 12V/3A (36W), 15V/3A (45W), 20V/2.25A (45W)
- Input voltage: 12-24V DC
- Standby current: ≤ 2 mA
- Dimensions: front diameter 36 mm / mounting 27 mm / depth 44.5 mm
- Weight: 25 g
- Operating temperature: -20° to +70° C
- Suitable for panel thicknesses up to 17 mm
- Compatible with switch programs from Berker and Inprojal
- Open cable ends, cable length 150 mm
- Service life: approx. 10,000 plug/unplug cycles
- Standards: CE, UKCA, RoHS, REACH, ECE-R10 Type Approval
- Color: Black
- Scope of delivery:
- 1x USB-C built-in charger with open cable ends
| Scope of delivery: | 1x USB-C built-in charger with open cable ends |
|---|---|
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| color: | Black |
| USB-Charger: | USB C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Comount PD 45W USB-C In-Wall Charger with Open Cable Ends?
A 45W USB-C in-wall charger designed for caravans, boats and motorhomes, delivering up to 45W via USB Power Delivery with open cable ends for installation (cable length 150 mm).
-
How fast can it charge devices and how does it compare to USB-A chargers?
It charges smartphones up to 30% faster than similar products and up to 50% faster than conventional USB-A chargers.
-
What voltages and power profiles does it support?
Total power up to 45W; PD 3.0 and various fast-charge protocols: 5V/3A (15W), 9V/2A (18W), 12V/3A (36W), 15V/3A (45W), 20V/2.25A (45W).
-
What input voltage does it require?
Input voltage: 12-24V DC.
-
What are the installation dimensions and wall compatibility?
Front diameter 36 mm, installation diameter 27 mm, depth 44.5 mm; suitable for wall thickness up to 17 mm.
-
Is it compatible with Berker and Inprojal switch programs?
Yes, compatible with Berker and Inprojal switch programs.
-
What safety features does it have?
Rounded edges and protection against short circuits, overvoltage and high temperatures.
-
What standards and approvals does it have?
CE, UKCA, RoHS, REACH, and ECE-R10 Type Approval.
What advantages does a 45-watt USB-C built-in charger offer in the caravan?
Modern mobile devices such as smartphones, tablets and notebooks increasingly require more charging power to recharge their high-performance batteries in a short time. A USB-C built-in charger with 45 watts Power Delivery offers the optimal solution for anyone who does not want to forgo fast charging in their motorhome, caravan or boat. Compared to conventional USB-A chargers, a USB-C charger charges smartphones up to 50 percent faster. That means less waiting time and more flexibility on the go. The compact design with only a 27 mm installation diameter allows integration into existing switch programs from Berker and Inprojal, so no additional space in the vehicle is required. With an input voltage of 12 to 24 volts, the charger is universally usable in all common vehicle electrical systems.
How safe is the Comount USB-C built-in charger when charging?
Safety is Comount's top priority. The USB-C built-in charger features comprehensive protection mechanisms against short circuits, overvoltage and overheating. Rounded edges on the housing minimize the risk of injury when used in confined vehicle cabins. Compatibility with numerous fast-charging technologies such as PD 3.0, QC 4.0, QC 3.0 and other protocols ensures that any connected device is supplied with the optimal charging power. The extremely low standby consumption of a maximum of 2 mA preserves the on-board battery even during longer periods of inactivity. The production sites are certified according to the automotive standard IATF 16949 and the products meet all DIN and VDA standards as well as the increased EMC requirements according to ECE-R10 type approval.
For which vehicles and applications is the USB-C built-in charger suitable?
The Comount USB-C built-in charger 560006 is universally applicable and suitable for motorhomes, caravans, boats, commercial vehicles and stationary applications. The open cable ends with a length of 150 mm allow flexible installation and individual wiring. Whether as a permanently installed charging station in the cockpit, in the kitchen unit of the motorhome or at the helm of a boat, the compact built-in charger fits everywhere. With a lifespan of around 10,000 plug-in and unplug cycles, it is designed for intensive continuous use. The operating temperature from minus 20 to plus 70 degrees Celsius ensures reliable charging even under extreme climatic conditions.
