Dataflex Viewprime monitor desk mount with desk clamp, white
Monitor desk mount
With the Viewprime monitor mount (02.020), Dataflex offers a monitor desk mount that impresses with its flexibility in every respect. The monitor swivel arm is height adjustable by 355 mm and adjustable in depth by 516 mm. With the help of the built-in gas pressure spring, the monitor arm can be easily tilted, swiveled and rotated. The monitor desk mount can be rotated 360° thanks to the pivot function so that you can work in both landscape and portrait format.
The screen can be attached and removed quickly and easily using the VESA quick release system. The swiveling monitor bracket has a load capacity of 1.5 to 9 kg and is suitable for screens with a maximum size of 1034 mm. The integrated cable management ensures a tidy overall appearance at the workplace. The desk holder is attached using the Viewprime table clamp supplied, which can be screwed on quickly and easily and is suitable for a tabletop thickness from 12 to 50 mm.
Dataflex Viewprime screen desk holder (65.110)
- Screen sizes: approx. 19 - 37 inches
- Load capacity: 1.5 to max. 9 kg
- VESA standard: 75x75, 100x100 mm
- Max. height of monitor: 1034 mm
- Dynamic height adjustment by 355 mm

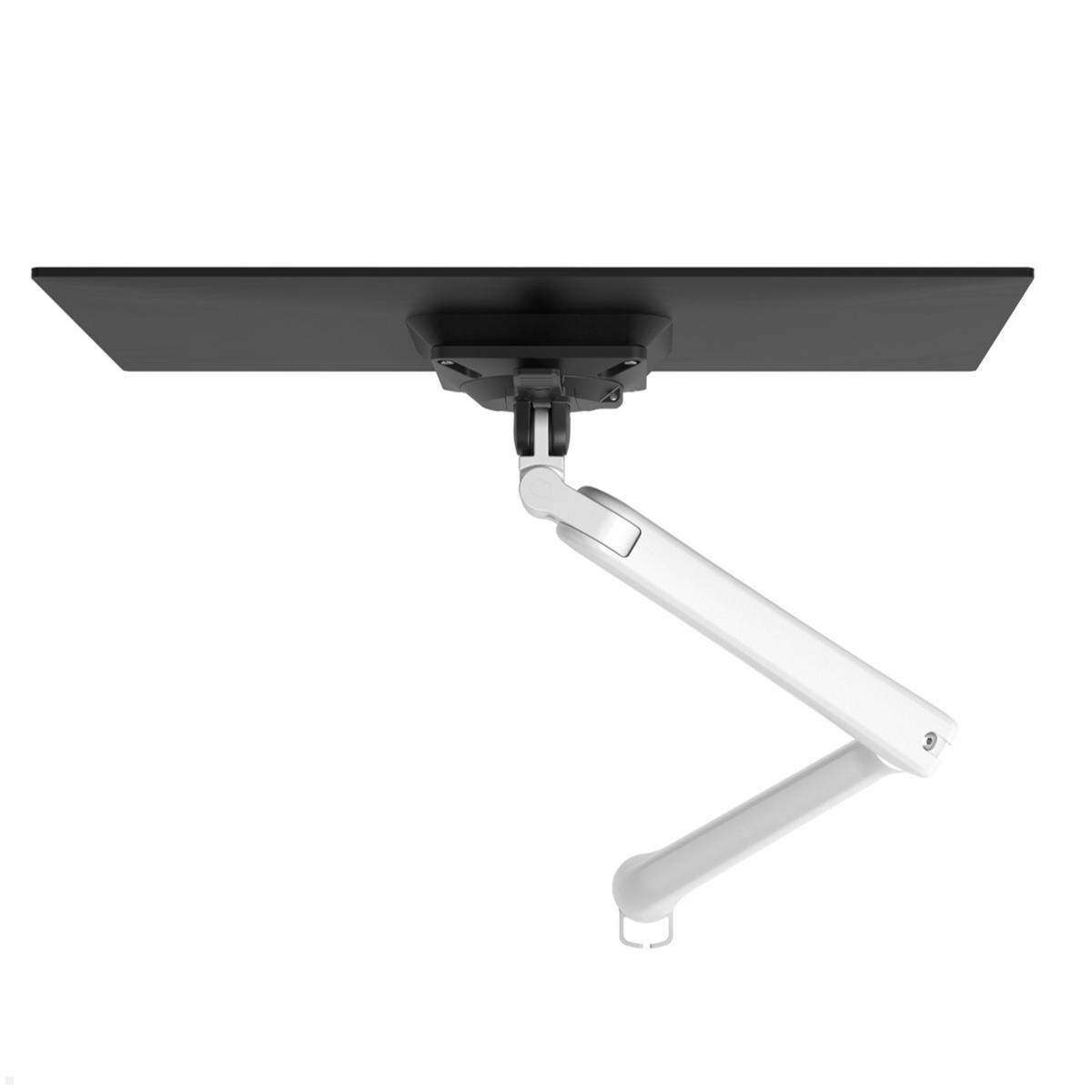

- Independent depth adjustment of 516 mm
- Tension adjustment indicator for precision installation
- Tiltable: +90° / -50°

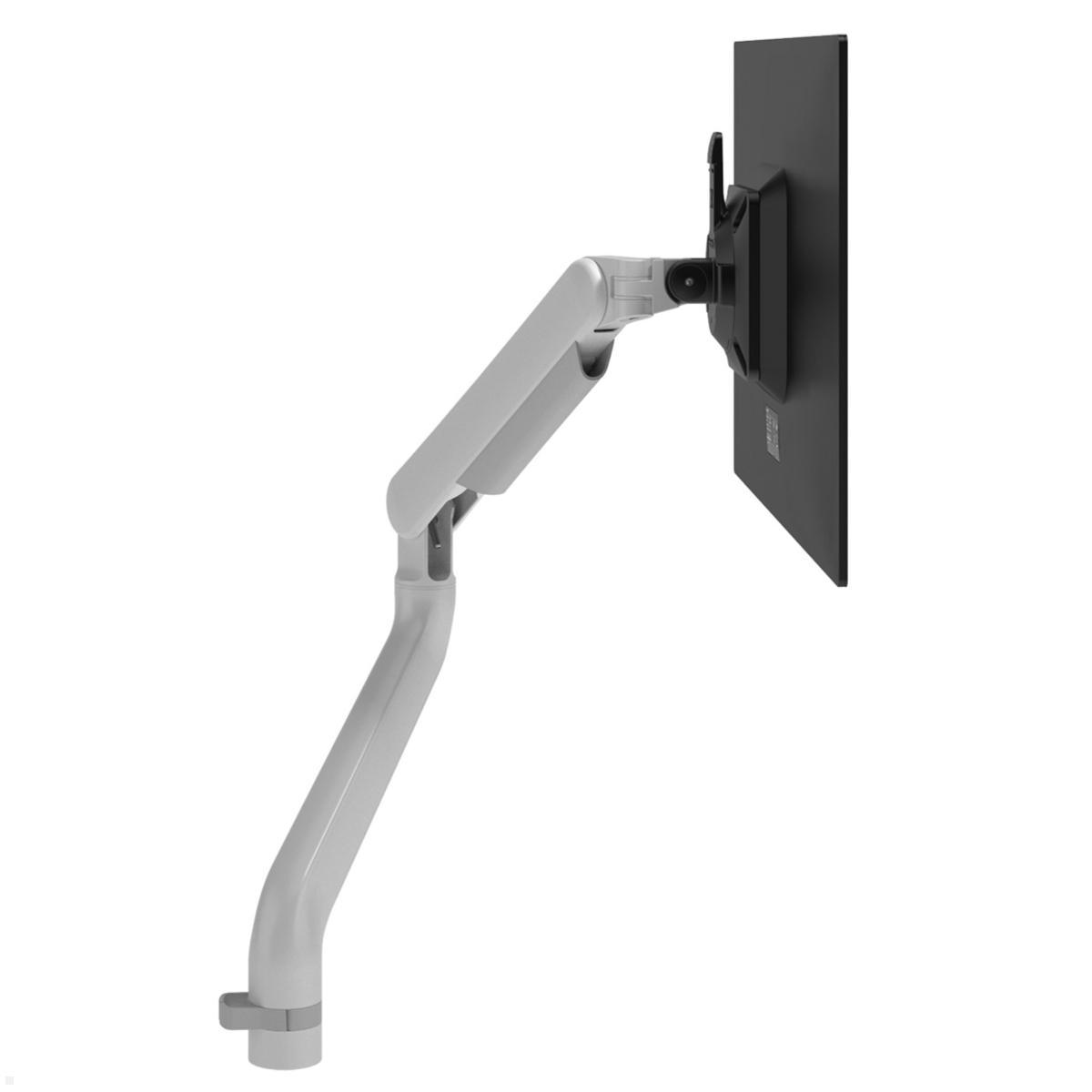

- Swiveling: +90° / -90°
- Rotatable: 360° (Pivot)
- Monitor arms can be swiveled through 360 degrees, limited to 180° adjustable
- With VESA quick release system
- Delivery incl. table clamp
- Optional: Drill screw / through screw fastening
- Integrated cable management
- Warranty: 5 years
- Finish: White

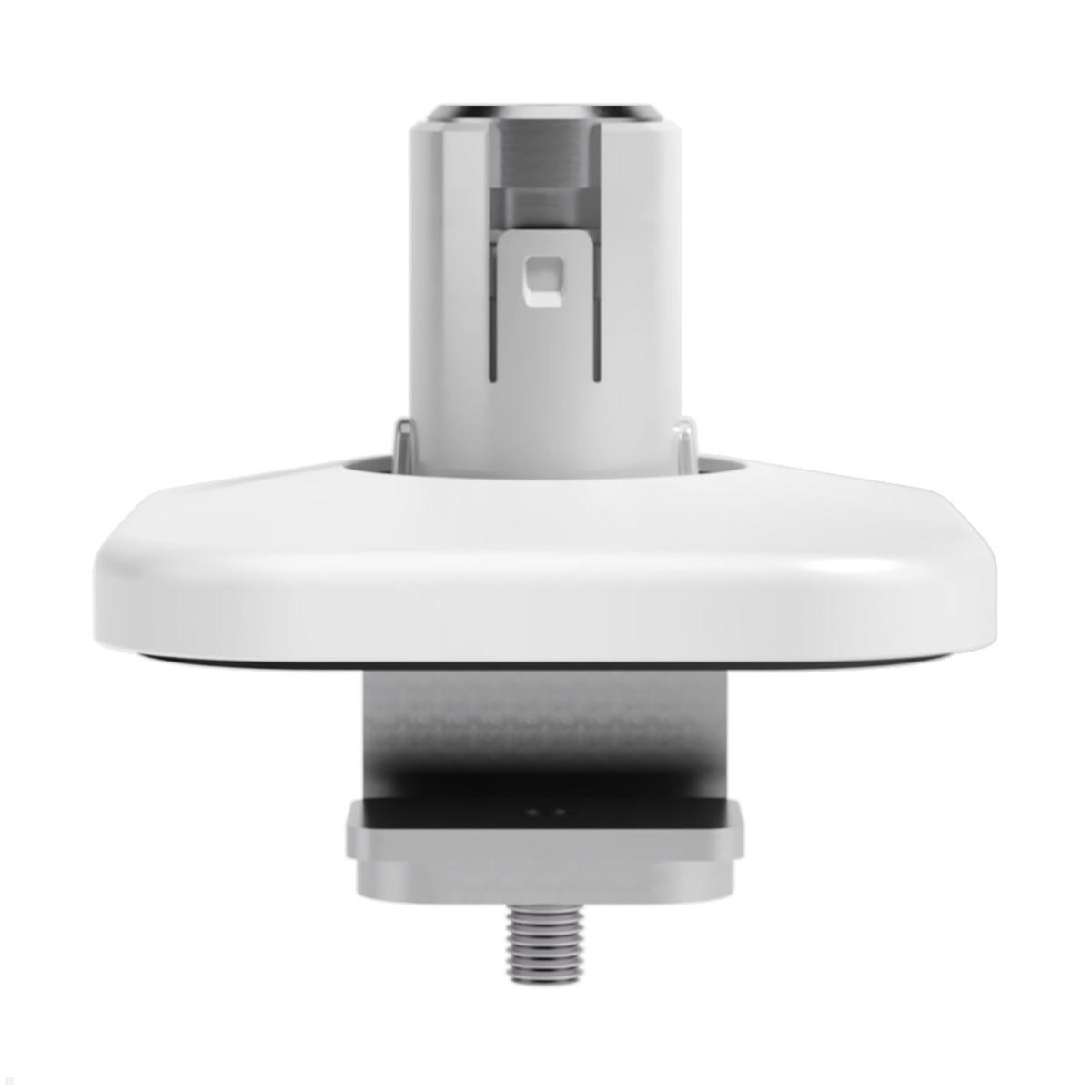

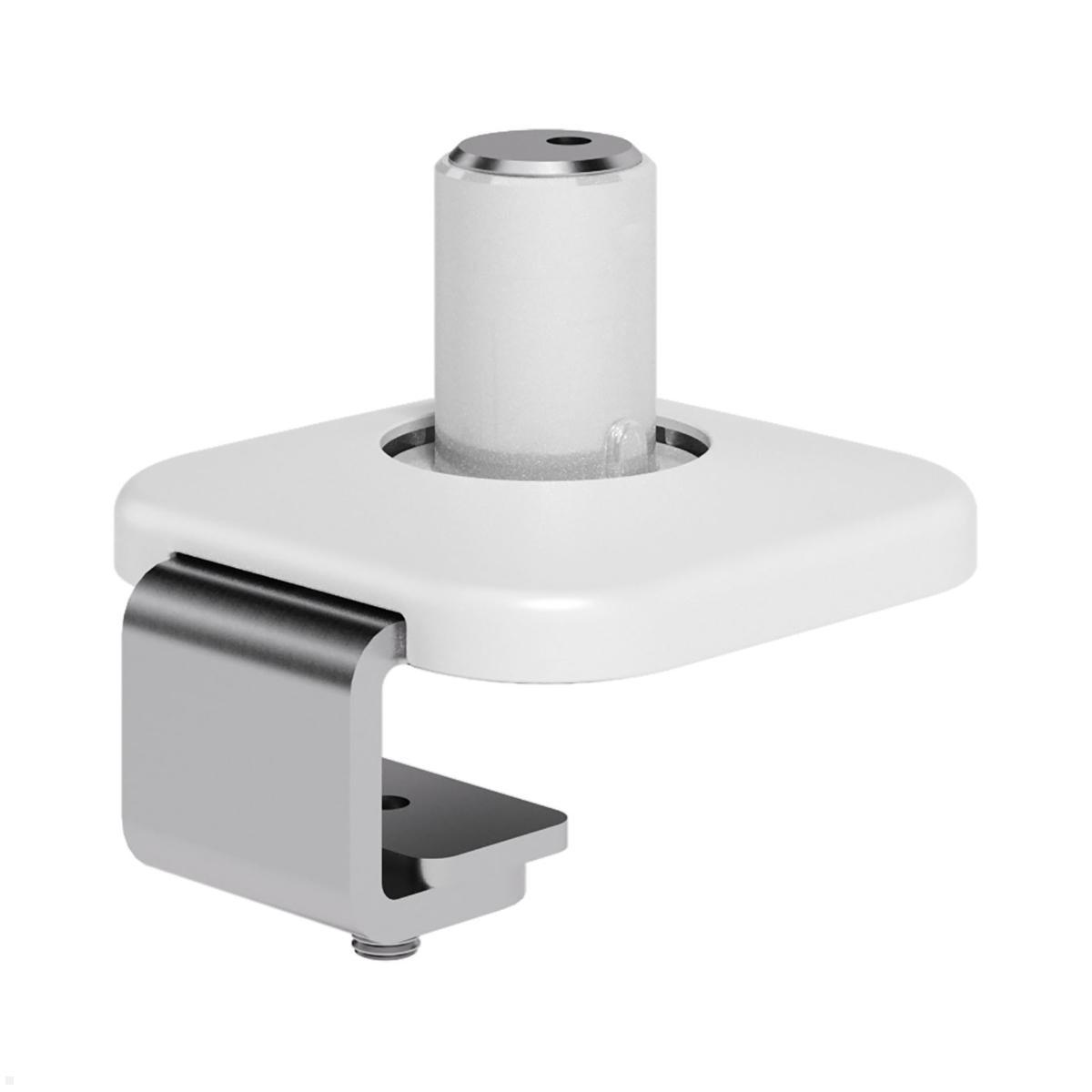

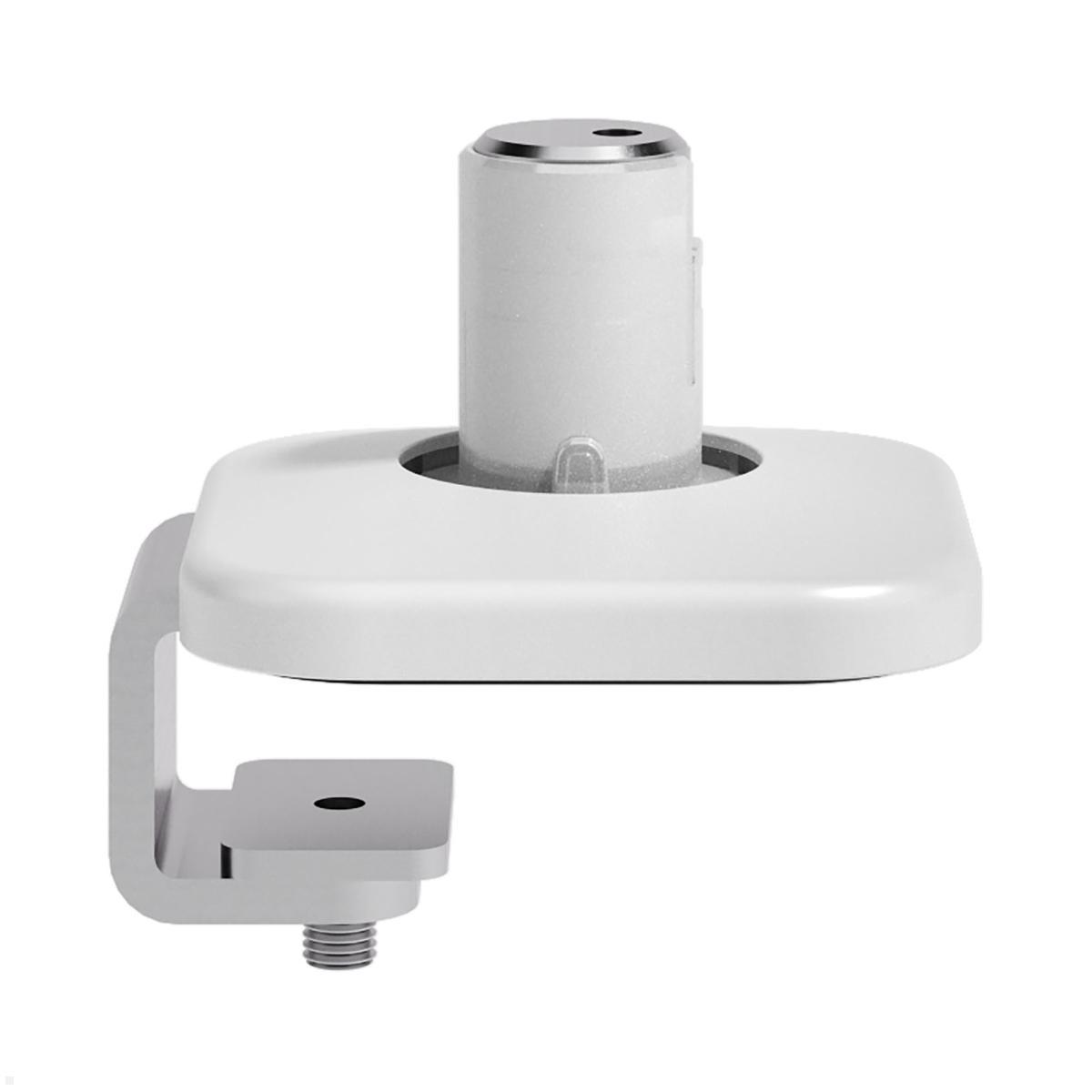

Dataflex Viewprime table clamp (65.910)
- For table mounting of the Dataflex Viewprime monitor bracket
- Suitable for a table top thickness of 12 - 50 mm
- Finish: White
Does your screen or display match the monitor bracket?
We would be happy to check whether your monitor is suitable for this Dataflex Viewprime 02.020 monitor holder. Simply send us your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the monitor or the display fits the monitor bracket and if not, we will contact you.

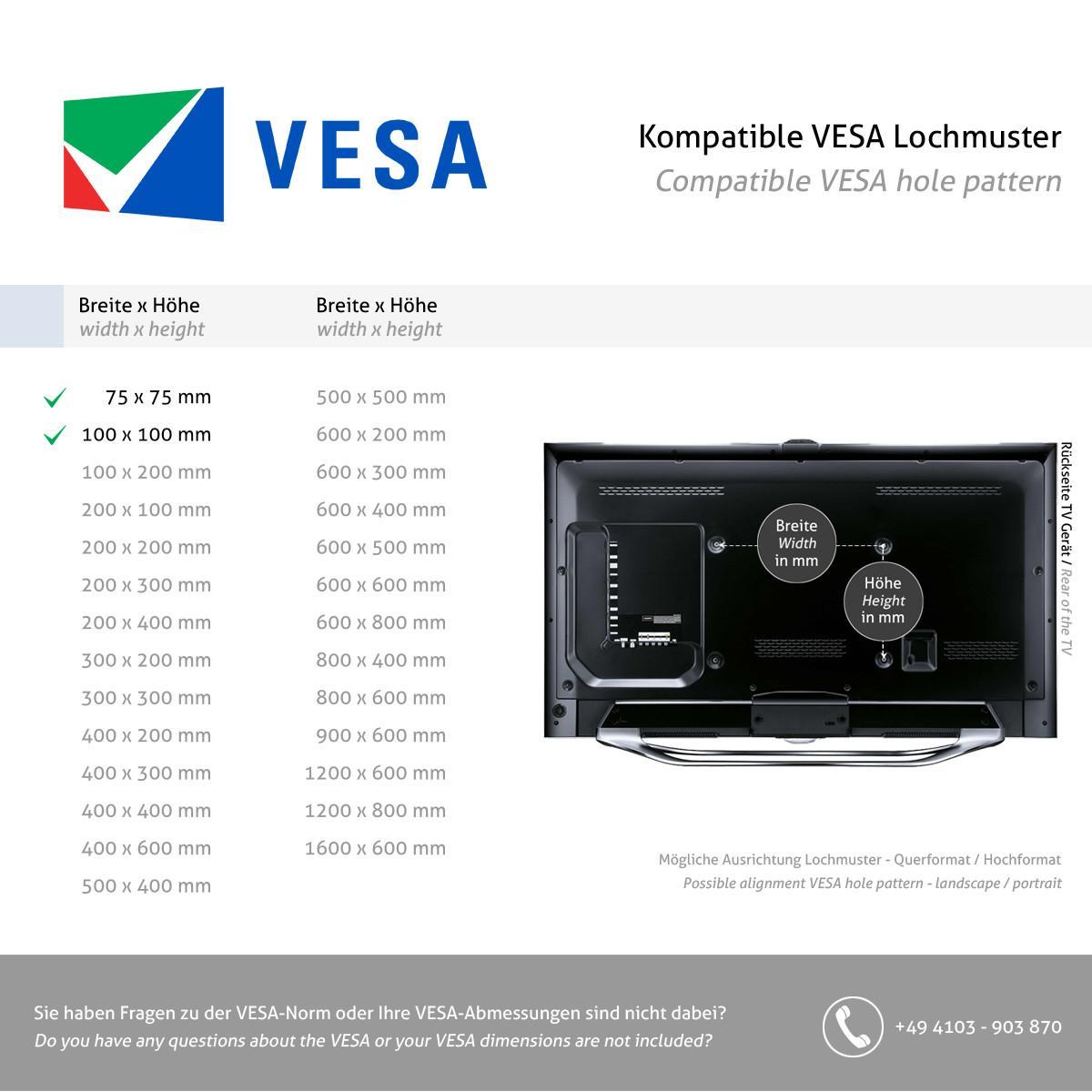

VESA Standard - Find out more about the VESA norm for monitor mounts !
| Product sheet: |  [pdf] |
|---|---|

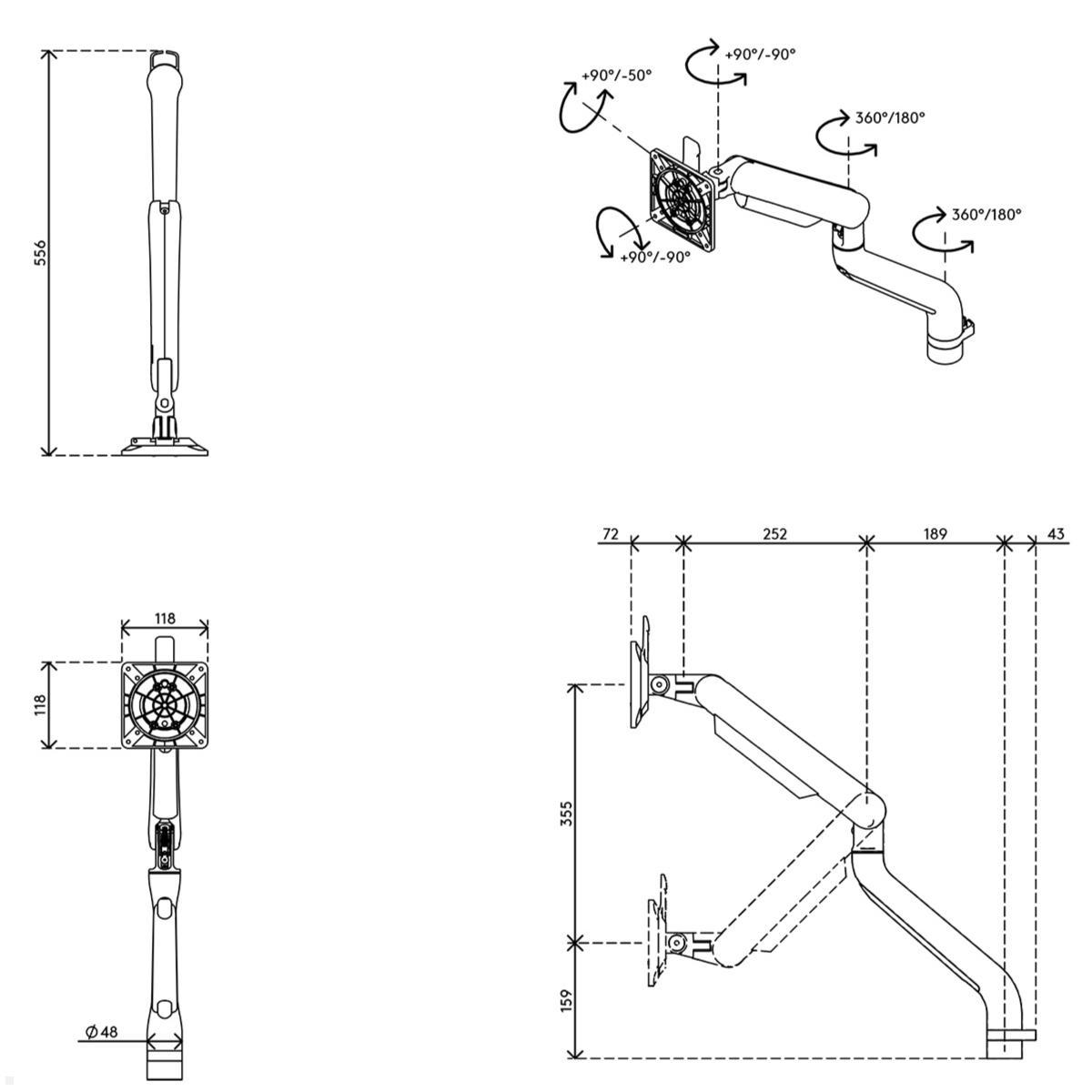

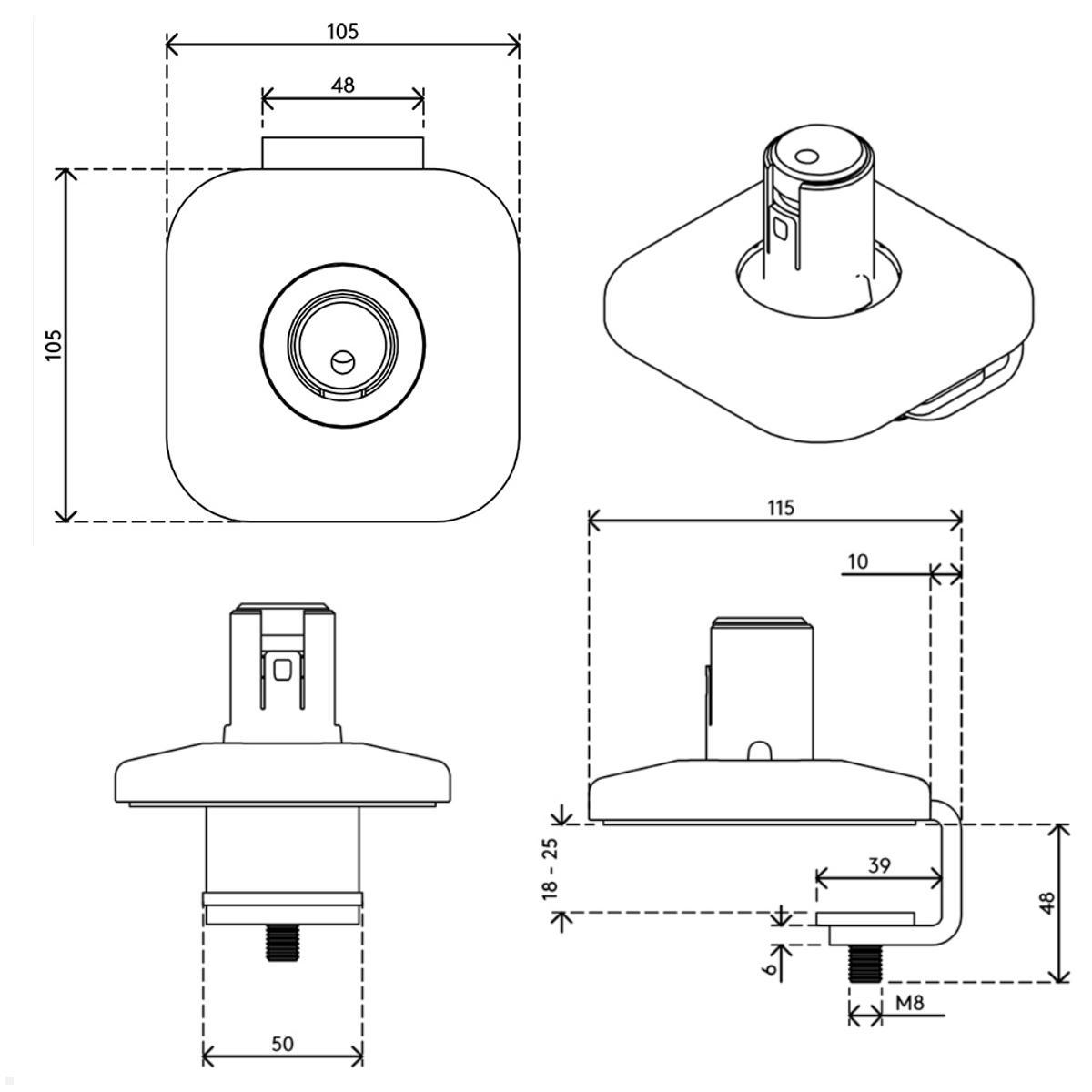

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Minimum weight: | 1,5 |
| Capacity: | 9 kg |
| Tilt: | +90°/-50° |
| Rotate: | 90° |
| Height range (mm): | 355 |
| Pivot: | 90° |
| Swivelling range: | +90°/-90° |
| Length of the swivel arm: | 353 |
| Screen size: | 19 - 37" |
| Thickness of table (mm): | 12 - 50 mm |
| Depth of the bracket: | 391 mm |
| Special features: | Delivery includes desk clamp |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 488 x 318 x 125|185 x 110 x 110 |
| Scope of delivery: | 1x Viewprime monitor mount (65.110), 1x Viewprime desk clamp (65.910) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| color: | Weiß |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Dataflex Viewprime plus monitor desk mount?
A white dataflex Viewprime monitor desk mount that offers flexible height, depth and angle adjustment with a gas spring and a 360° pivot function.
-
Which screen sizes and VESA standards are supported?
Suitable for screens approximately 19–37 inches and supports VESA 75x75 and 100x100 mm.
-
What load capacity and maximum screen dimensions does it support?
The arm supports 1.5 to 9 kg and is suitable for screens up to a maximum size of 1034 mm.
-
What adjustment ranges does the mount offer?
Height is dynamically adjustable by 355 mm, depth by 516 mm, tilt +90°/−50°, swivel ±90° and 360° rotation (pivot).
-
How is the mount attached to the desk?
It is supplied with a Viewprime desk clamp suitable for desk thicknesses of 12–50 mm; an optional through-bolt/bolt-through fixing is available.
-
Is there cable management?
Yes, the mount includes integrated cable management to keep the workspace tidy.
-
What warranty is offered and how can I check monitor compatibility?
A 5-year warranty is provided. You can submit your monitor manufacturer and model in the order comments and compatibility will be checked for you.
