Ergotron LX Pro Monitor Desk Mount with C-Clamp
Highlights
- Ergonomic height adjustment for optimal sitting posture
- Suitable for monitors up to 34 inches and 10 kg
- Flexible rotate, swivel, and tilt functions
- Robust aluminum construction for high durability
- Integrated cable management
Ergotron LX Pro Monitor Arm – Maximum Ergonomics and Flexibility at the Workplace
The Ergotron LX Pro monitor arm is the natural evolution of the proven LX series and offers a perfect combination of ergonomics, stability and modern design. Developed for demanding work environments, it allows flexible positioning of the monitor and promotes healthy posture as well as increased productivity in everyday work.
Thanks to the innovative Constant Force™ technology, the screen can be effortlessly raised, tilted or rotated – for optimal comfort in any task. At the same time, the monitor arm creates more desk space and, thanks to integrated cable management, keeps the workspace tidy.
The robust aluminum construction ensures a long service life and has been tested for up to 10,000 motion cycles, making the LX Pro reliable even with intensive use.
Technical Highlights
- Compatibility: Suitable for monitors up to 34 inches (86.4 cm)
- Load capacity: 1.8 – 10 kg
- VESA standard: 75 x 75 mm & 100 x 100 mm

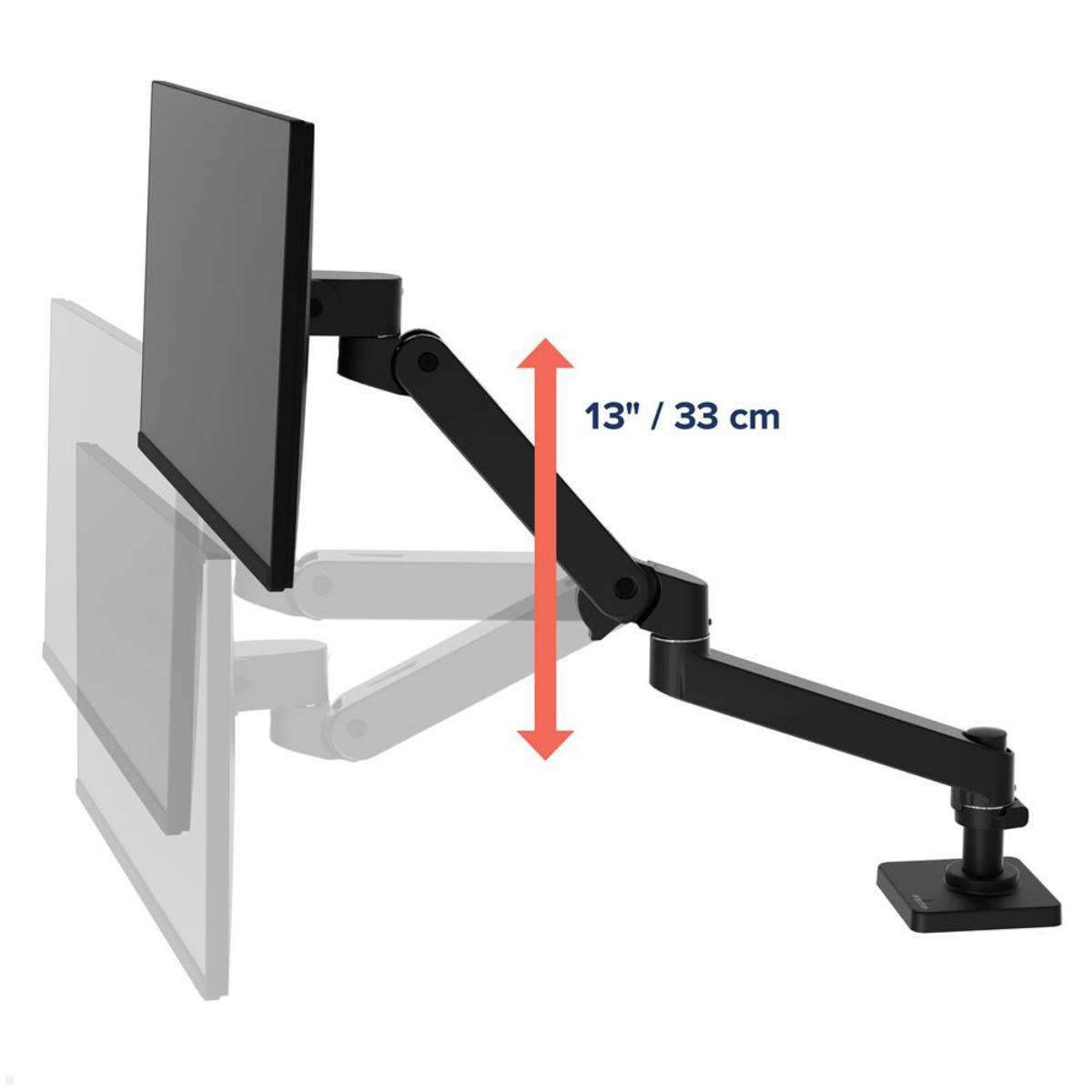

- Height adjustment: Up to approx. 330 mm of travel
- Tilt angle: approx. -15° to +70°
- Swivel range: Up to 360°
- Rotation: 360° (pivot function) for portrait and landscape
- Mounting: Desk clamp or alternative attachment options
- Warranty: Up to 10 years manufacturer warranty
Does your TV, monitor or display fit the VESA mount?
We are happy to check whether your screen is suitable for this Ergotron LX Pro monitor desk mount for two monitors with a tall pole for USM desks. Simply provide your model (manufacturer + model no.) in the comment field at the end of the ordering process. We will then check for you whether the TV, monitor or display fits and, if not, we will contact you.
VESA standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

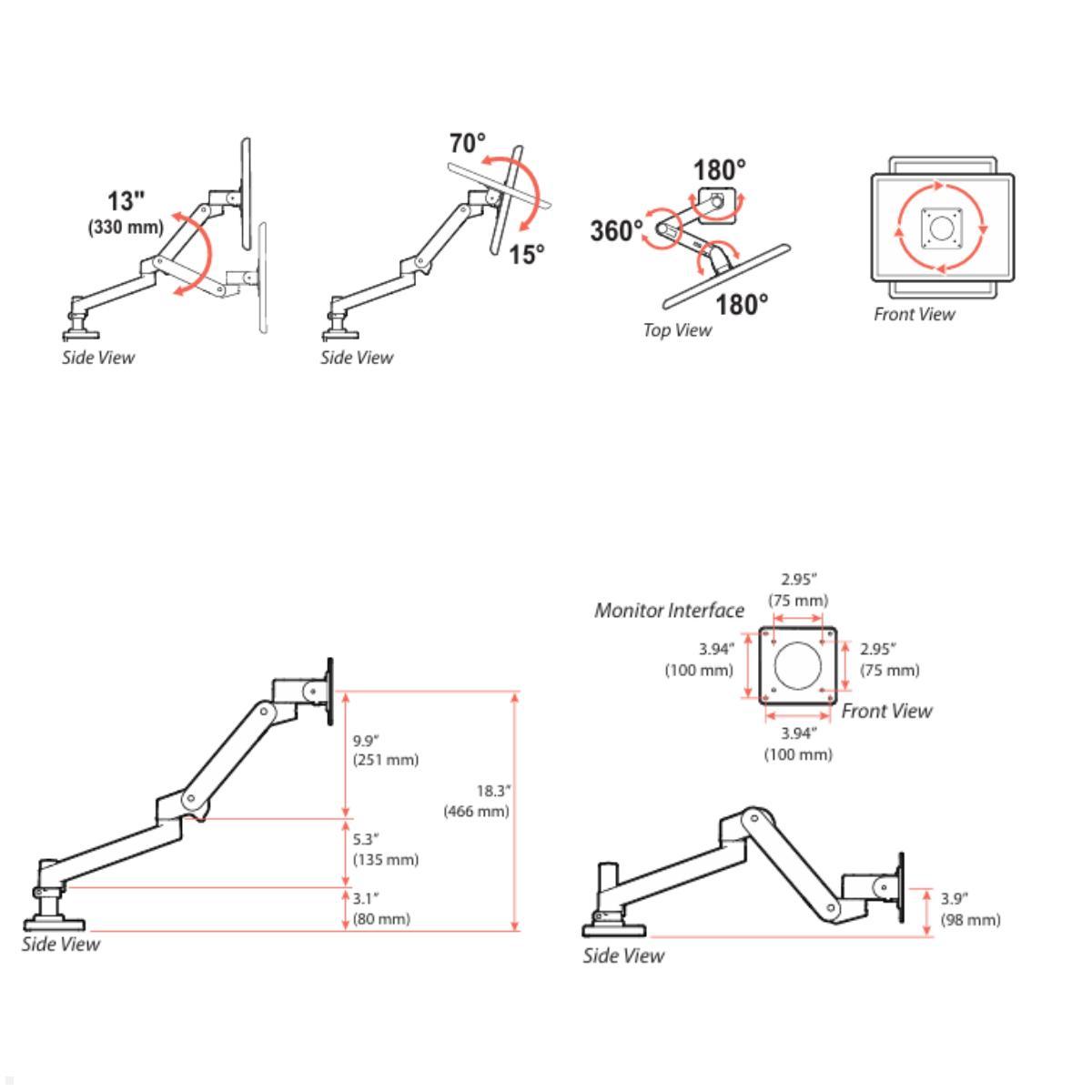

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1,8 kg |
| Capacity: | 10 kg |
| Tilt: | 70°/15° |
| Rotate: | 360° |
| Height range (mm): | 330 |
| Pivot: | 360° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 560 |
| Screen size: | ≤34" |
| Thickness of table (mm): | Tischklemme (12-40 mm) |
| Material: | Aluminium |
| Depth of the bracket: | 656 mm |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 420 x 400 x 170 |
| Scope of delivery: | 1x Ergotron LX Pro Arm | 1x extension | 2-piece desk clamp | column | mounting hardware | assembly instructions |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 34 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
Which monitors are compatible with the Ergotron LX Pro Monitor Arm?
Suitable for monitors up to 34 inches (86.4 cm) with a weight capacity of 1.8–10 kg and VESA 75 x 75 mm or 100 x 100 mm.
-
What movements does the LX Pro offer?
Constant Force technology allows easy lifting, tilting or rotating; tilt range approximately -15° to +70°, swivel up to 360°, and rotation 360° (pivot).
-
What is the height adjustment range?
Height adjustment is up to about 330 mm.
-
How can the monitor arm be mounted?
Mounting options include a desk clamp or alternative mounting methods.
-
What other benefits does the arm provide?
It creates more desk space and includes integrated cable management; the robust aluminium construction offers long-lasting durability and has been tested up to 10,000 movement cycles.
-
What is the warranty on the LX Pro?
Up to 10 years manufacturer's warranty.
-
How do I check if my screen fits?
We can check for you. At the end of checkout, please provide the manufacturer and model in the comments; we will verify and contact you if it doesn’t fit.
What makes the Ergotron LX Pro monitor arm the ideal solution for ergonomic working?
The Ergotron LX Pro monitor arm was specifically designed to make modern workplaces more ergonomic, efficient and comfortable. In times when many people spend several hours a day in front of a screen, correct monitor positioning plays a decisive role for health and productivity. This is exactly where the LX Pro comes in: it allows individual adjustment of the monitor to the user’s needs and thus supports a natural posture.
With the flexible height adjustment, the screen can be positioned precisely at eye level, which can reduce neck and back pain. At the same time, the smooth mechanism ensures the monitor can be realigned at any time without much force. Whether sitting or standing – the monitor arm adapts dynamically to any work situation and creates optimal conditions for focused work.
Which technical features does the Ergotron LX Pro monitor arm offer?
The monitor arm impresses with its thoughtful engineering and high-quality workmanship. It is designed for monitors up to 34 inches and a weight of 1.8 to 10 kg and supports the common VESA standards (75x75 mm and 100x100 mm). This makes it compatible with a wide range of displays – ideal for offices, home offices or professional work environments.
Particularly noteworthy is the enormous freedom of movement: the monitor can be tilted, swiveled and rotated 360 degrees. This flexibility allows use in both portrait and landscape modes and facilitates collaboration within teams, as content can be shared quickly with others. The integrated technology ensures smooth and stable movement without the need for constant readjustment.

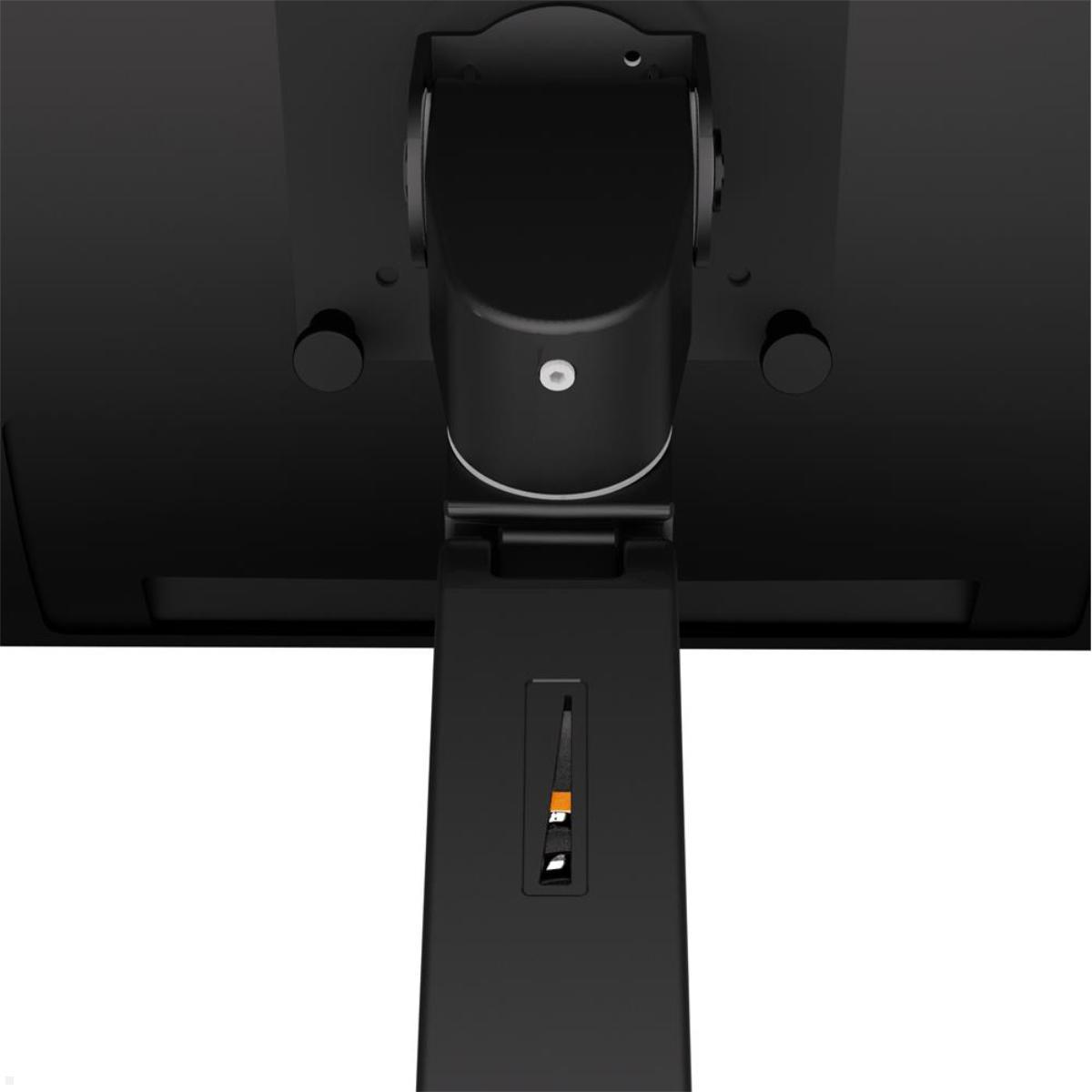

In addition, the LX Pro features integrated cable management that elegantly hides distracting cables inside the arm. The result is a clean, organized workspace without cable clutter.
How does the monitor arm improve the workspace and productivity?
A tidy and ergonomically optimized workspace has a direct impact on performance. The Ergotron LX Pro monitor arm contributes significantly by creating valuable desk space. Since the monitor is no longer on a base stand, there is more room for keyboards, documents or other work materials.
Furthermore, the flexible positioning of the screen promotes a more active way of working. Users can change their posture regularly, which improves circulation and prevents fatigue. This is a decisive advantage, especially during long working days.
Also in multi-user environments or with changing workstations, the monitor arm shows its strengths: it can be adjusted quickly and easily to different users. This makes it ideal for shared-desk concepts or modern offices with flexible working models.
Why is it worth investing in the Ergotron LX Pro monitor arm?
Purchasing a high-quality monitor arm like the Ergotron LX Pro is a sustainable investment in comfort, health and efficiency. The robust aluminum construction ensures long service life and reliable stability – even with intensive use. At the same time, the modern, minimalist design emphasizes the professionalism of any workspace.
Beyond the functional aspects, the LX Pro also impresses with its easy installation and versatile mounting options, such as the desk clamp. This allows the monitor arm to be attached quickly and securely to almost any desk.
Last but not least, an ergonomically optimized workplace increases employee satisfaction and can even reduce sickness-related absences in the long term. Companies thus benefit just as much as individual users from this well-thought-out solution.
