Ergotron LX Pro Monitor Wall Mount swiveling up to 34 inches, Aluminum (45-683-026)
Highlights
- Ergotron LX Pro monitor arm in aluminum for monitors up to 34 inches and 10 kg
- Constant Force™ technology for effortless height adjustment up to 330 mm
- 180° swivel range, 85° tilt and 90° pivot function
- Wall mounting with sturdy mounting hardware
- VESA-compatible: 75x75 and 100x100 mm (MIS-D standard)
Ergotron LX Pro Swiveling Monitor Wall Mount
The Ergotron LX Pro monitor arm in aluminum offers an elegant and functional solution for wall-mounting monitors. Thanks to the patented Constant Force™ technology, the arm enables effortless height adjustment and flexible positioning of the screen. With a load capacity of up to 10 kg it is suitable for monitors up to 34 inches. The integrated cable management ensures a tidy workstation, while the slim design blends harmoniously into any office environment.
The Ergotron LX Pro monitor arm (45-683-026) offers high stability and flexibility for monitors up to 34 inches and 10 kg. The Constant Force™ technology enables effortless height adjustment up to 330 mm and a depth adjustment of up to 62 cm. With a swivel range of 360°, a tilt function of +85° and a rotation function of 180°, the screen can be optimally aligned. Whether in the office, home office or medical facilities – the Ergotron LX Pro monitor wall mount swivel up to 34 inches, aluminum (45-683-026) adapts flexibly to different application areas. The integrated cable management ensures order and a tidy appearance.
Technical Details Monitor Wall Mount
- Weight capacity: 1.8 kg - 10 kg
- Screen size: up to 34 inches

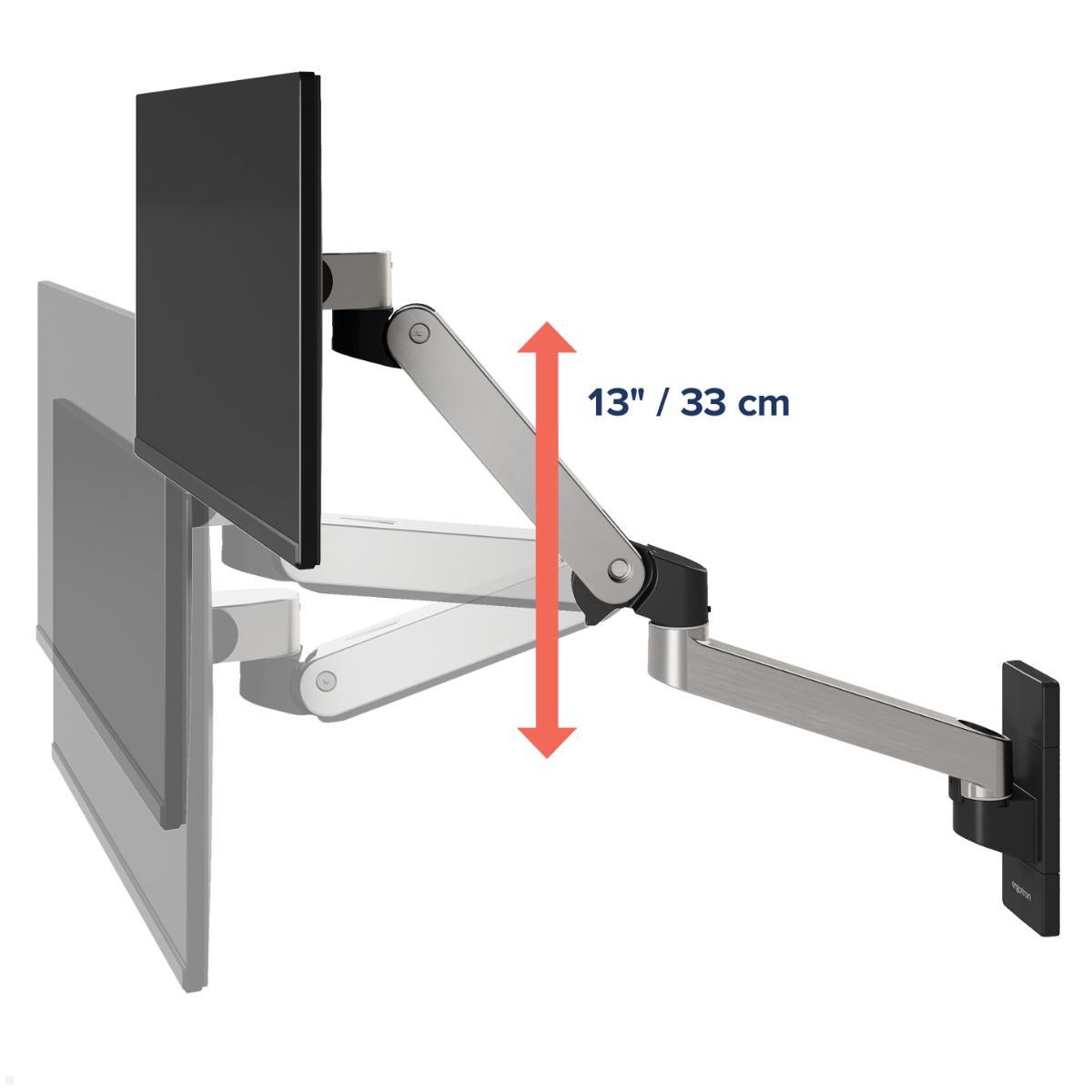

- Height adjustable: 330 mm
- Tilt: 85°
- Swivel: 180°
- Rotate: 90°, pivot function from landscape to portrait
- VESA mounting standard MIS-D: 75x75, 100x100 mm
- Monitor wall mount
- The Ergotron LX does not use a gas spring, but a precise mechanical spring – and that is exactly what makes the monitor mount so durable and reliable.
- Color: Aluminum
Does your TV, monitor or display fit the VESA mount?
We will gladly check if your TV is suitable for this Ergotron LX Pro arm monitor wall mount (45-683-026). To do so, simply provide your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the TV, monitor or display fits and, if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

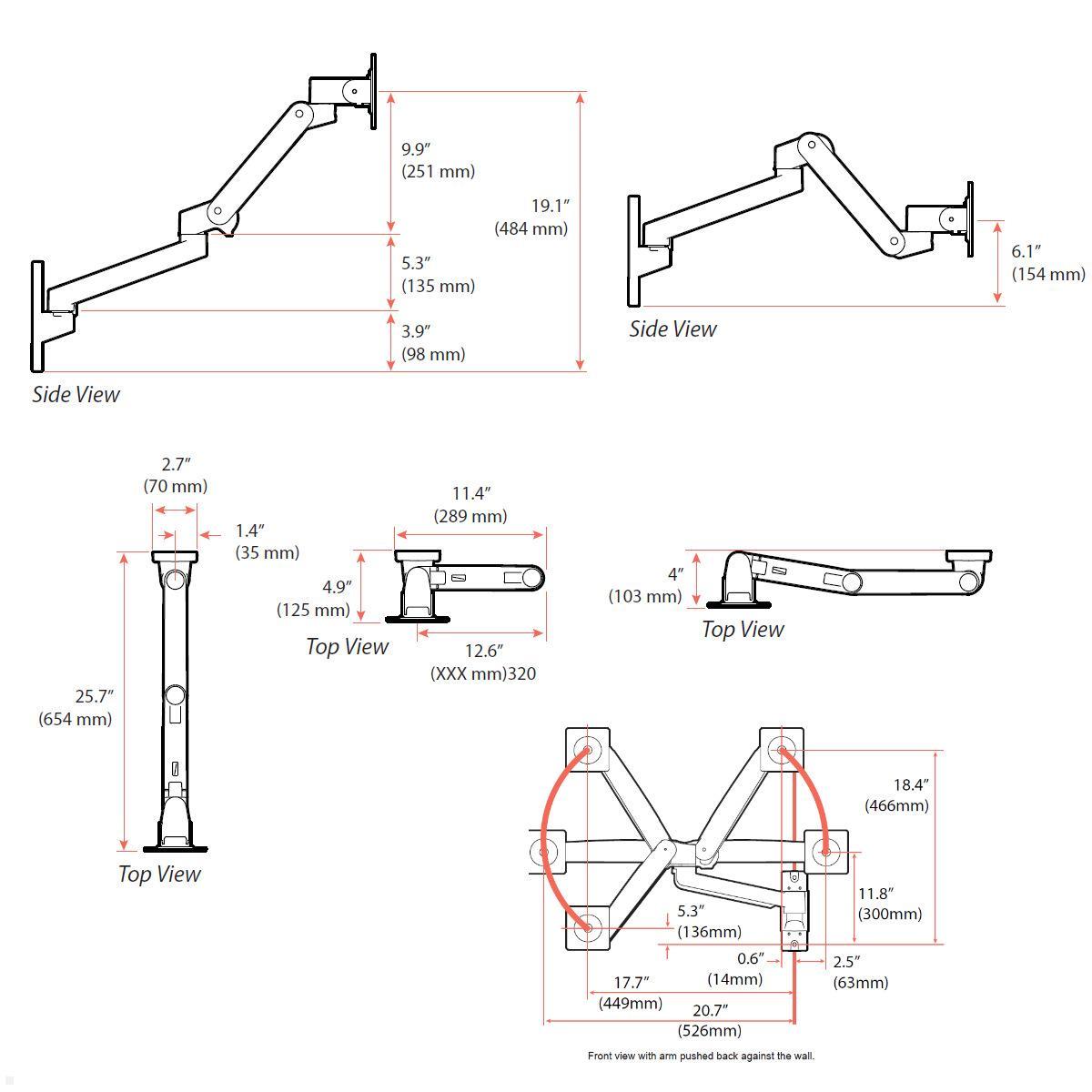

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1,8 kg |
| Capacity: | 10 kg |
| Tilt: | 70°/15° |
| Rotate: | 90Grad (Pivot) |
| Height range (mm): | 330 |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 610 |
| Screen size: | ≤34" |
| Material: | Aluminium |
| Depth of the bracket: | 654 mm |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 535 x 185 x 165 |

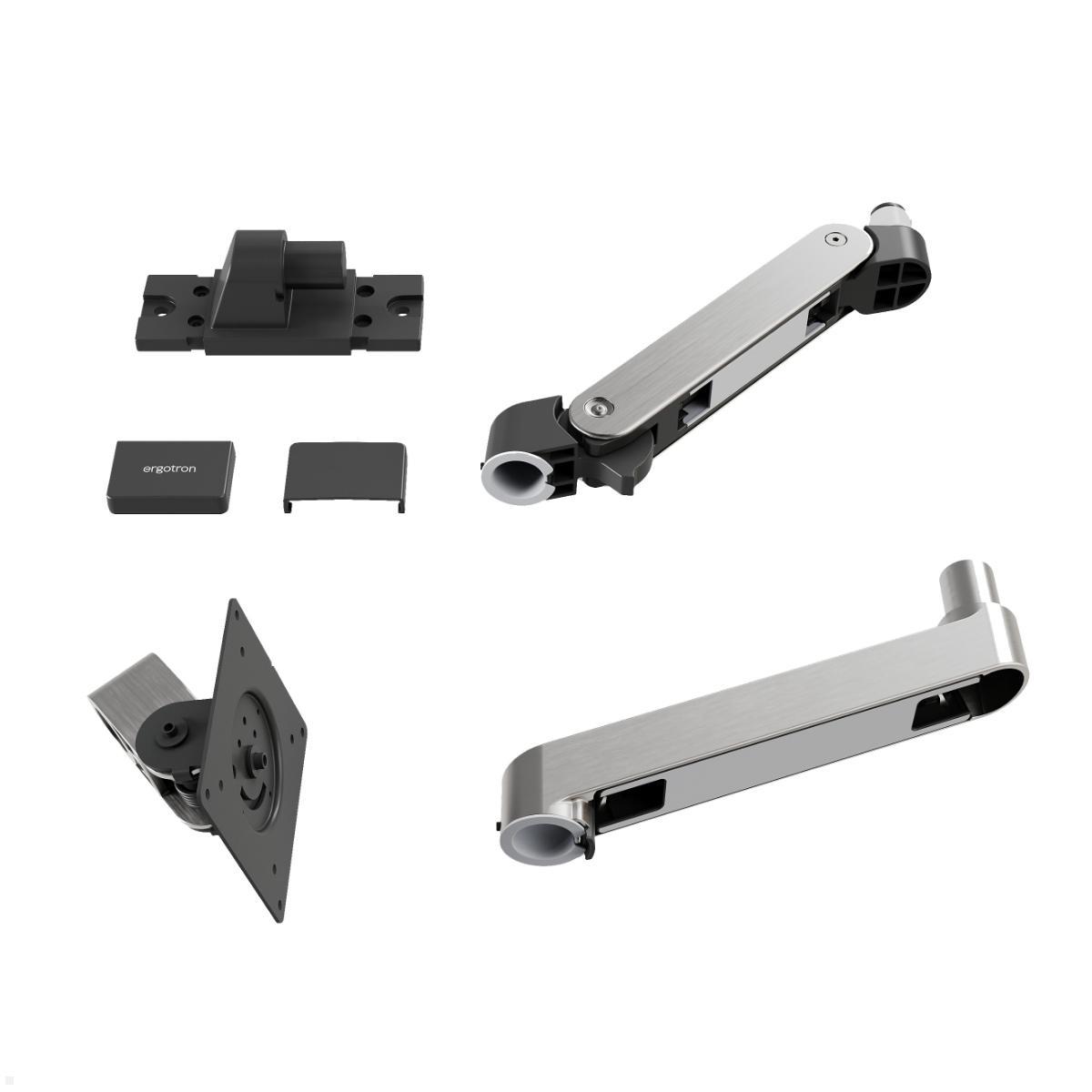

| Scope of delivery: | 1x Ergotron LX Pro Arm Monitor wall mount | mounting hardware | assembly instructions |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 32 inch, 34 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
| Ergotron Serie: | Ergotron LX Pro |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
Why is the Ergotron LX Pro Monitor Wall Mount the optimal solution for your workspace?
A professional wall mount creates valuable desk space and enables ergonomic screen positioning. The Ergotron LX Pro Monitor Wall Mount, swivelable up to 34 inches, aluminum (45-683-026) combines stability, flexibility and attractive design in a well-thought-out construction. Thanks to the proven Constant Force technology, the monitor can be adjusted in height steplessly without requiring additional force. The mechanical spring ensures durable and reliable operation, which is clearly superior to conventional gas springs. With a swivel range of 180 degrees, a tilt of up to 85 degrees and a pivot function for switching between landscape and portrait, the LX Pro offers maximum freedom of movement on the wall. The aluminum finish blends subtly into modern office environments. Monitors up to 34 inches in size and weighing up to 10 kg are held securely, while the integrated cable management keeps the workspace tidy.
What advantages does wall mounting offer compared to a desk mount?

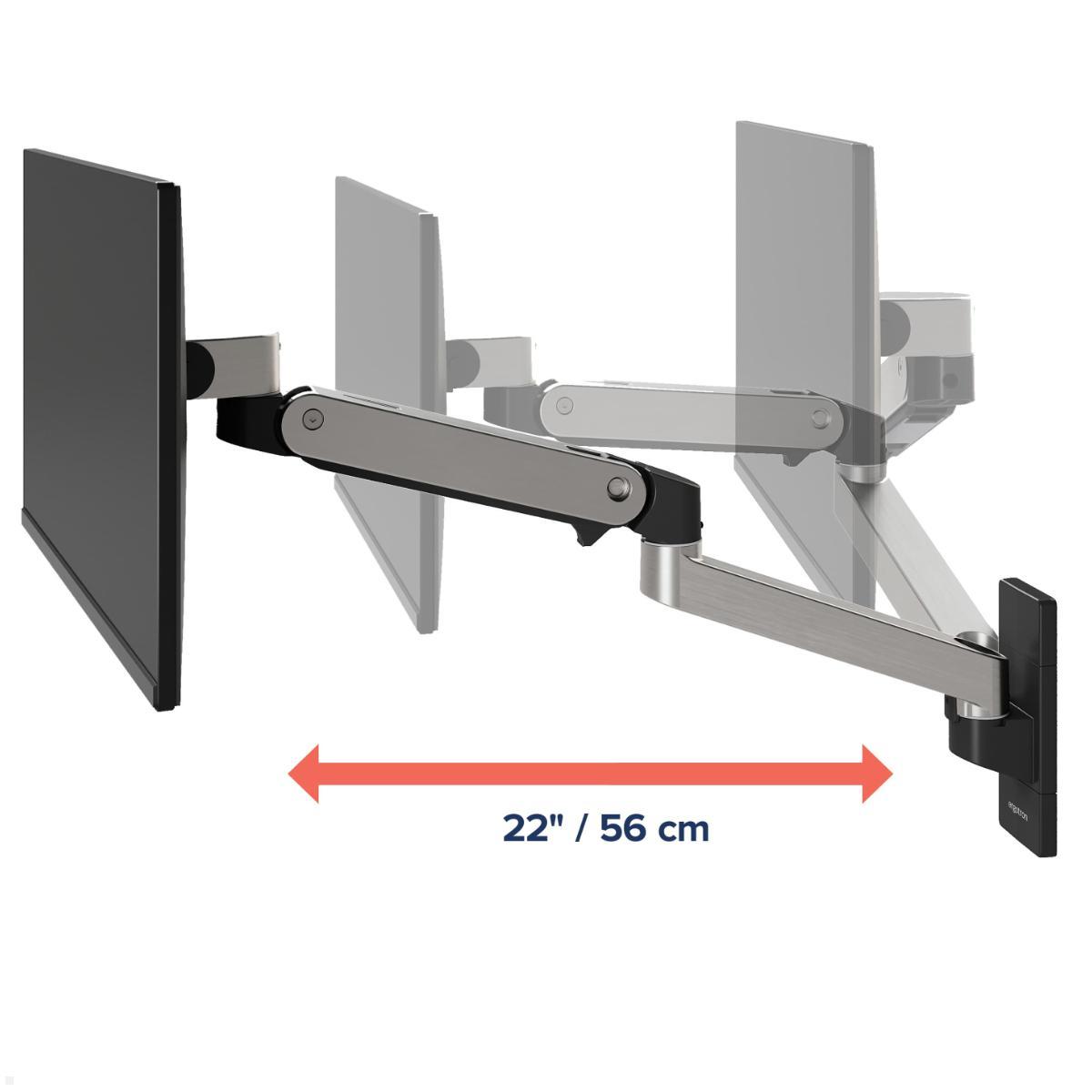

The wall mounting of the Ergotron LX Pro offers decisive advantages over a classic desk mount. The entire desk remains free of mounts and clamps, creating significantly more workspace. At the same time, the monitor arm sits securely and vibration-free on the wall, even when the swivel arm is fully extended. The arm offers a reach of 610 mm in depth and a height adjustment of 330 mm, allowing the screen to be positioned precisely as desired. Wall mounting is particularly suitable for workspaces with limited space or when the desk does not allow a clamp. VESA compatibility with the 75x75 and 100x100 mm standards ensures that a wide range of monitors from different manufacturers can be easily attached. The supplied mounting hardware enables secure installation on load-bearing walls.
For which applications is the Ergotron LX Pro wall swivel arm particularly suitable?
The Ergotron LX Pro swivel arm in aluminum is versatile and suitable for both professional office use and the home office. In companies, it creates ergonomic workstations that help prevent back and neck complaints by allowing the monitor to be set to the optimal eye level. Graphic designers and programmers benefit from the pivot function, which enables a quick switch between landscape and portrait. In meeting rooms, at reception desks or in medical facilities, the robust construction with its high load capacity proves its worth. Ergotron's 10-year warranty underscores the product's quality and durability. With the comprehensive delivery contents, which besides the monitor arm also include mounting hardware and an installation manual, setup is quick and uncomplicated. Thanks to the well-thought-out design and high-quality materials, the LX Pro monitor arm is an investment that pays off for many years and noticeably improves work comfort.
