Ergotron LX Pro Accessory Monitor Mount Conversion Kit
Highlights
- Conversion kit for LX Pro arms
- 360° rotation, 180° swivel
- Tilt 85° (70°/15°)
- Load capacity 1.8 – 10 kg
- VESA MIS-D 100x100 & 75x75 mm
Ergotron LX Pro Monitor Mount Conversion Kit – Flexible Conversion
The Ergotron LX Pro accessory monitor mount conversion kit is a conversion kit from Ergotron's modular LX Pro system. With this conversion kit, a keyboard arm or dual-direct arm can be quickly and easily converted to hold a single monitor instead. The pivot joint can only be attached to the LX Pro arm – direct attachment to the LX Pro extension or the base post is not possible. The Ergotron LX Pro accessory monitor mount conversion kit also enables a fast screen change: multiple joints with monitors can be kept on hand to replace defective screens in the shortest possible time – especially important in critical operations where every second counts. With a weight capacity of 1.8 to 10 kg, a tilt of 85° (70° backward, 15° forward), a 180° swivel and a 360° rotation, the kit offers maximum flexibility for various workspace requirements. Compatible with VESA FDMI MIS-D, 100x100 mm and 75x75 mm. Important: LX Pro components are not compatible with the older LX or other product lines.
The scope of delivery includes the pivot joint and the required mounting hardware. The conversion kit is suitable for monitors up to 34 inches, provided the weight capacity is not exceeded. Whether in the office, home office or in professional environments – the Ergotron LX Pro conversion kit is the ideal solution for an adaptable monitor system.

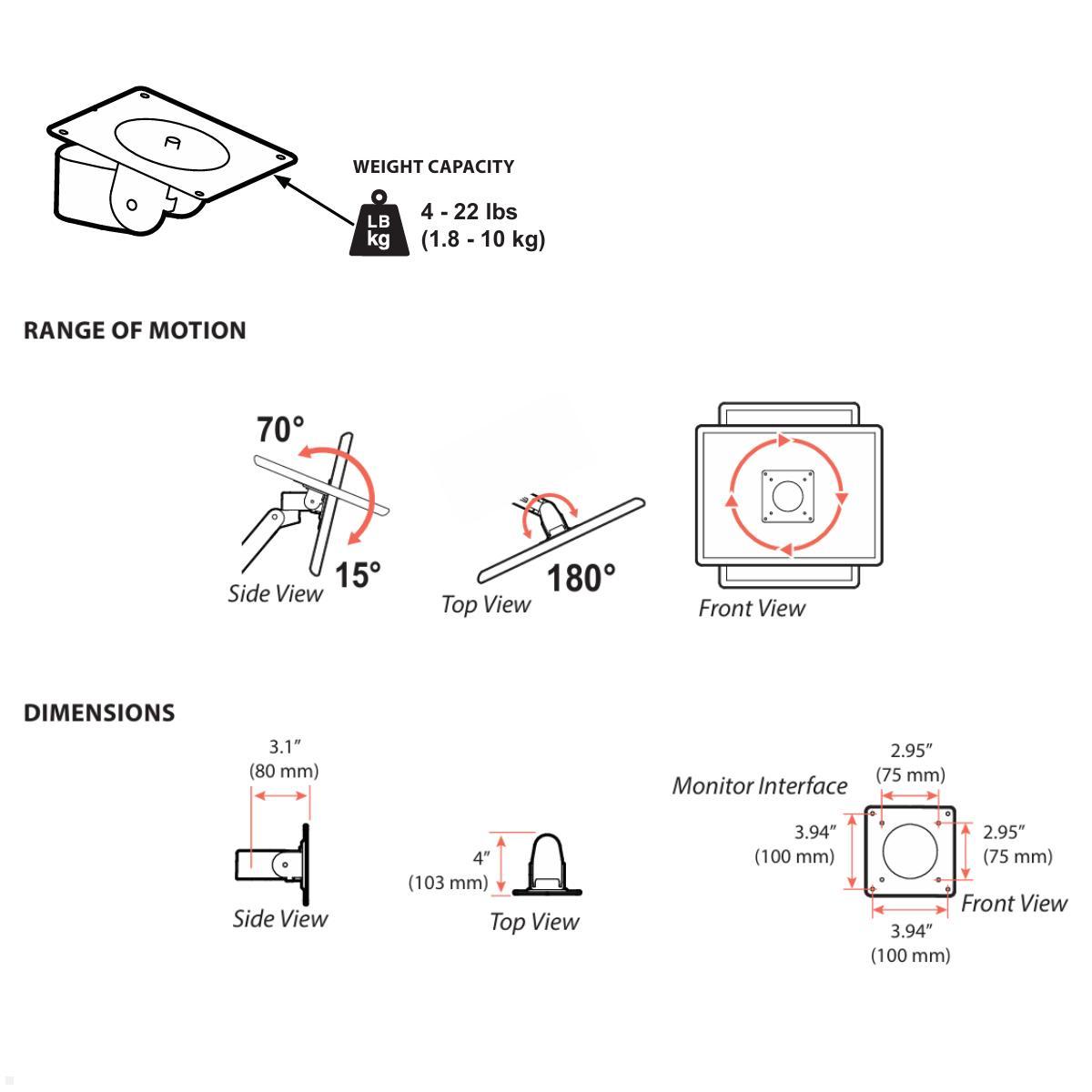

Technical Details Ergotron LX Pro Accessory Monitor Pivot Conversion Kit
- Weight capacity: 1.8 – 10 kg
- LCD size: ≤34"
- Tilt: 85° (70° backward, 15° forward)
- Swivel: 180°
- Rotation: 360°
- VESA: MIS-D, 100x100 mm & 75x75 mm
- Product weight: 0.6 kg
- Shipping weight: 1.0 kg
- Warranty: 10 years
| Technical drawing: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Warning/safety instructions: | https://www.monitorhalterung.de/pdf/de/ergotron/ergotron-lx-pro-zubehoer-monitorhalter-umbausatz-mounting.pdf |
| Minimum weight: | 1,8 kg |
| Capacity: | 10 kg |
| Tilt: | 85° (70°/15°) |
| Rotate: | 360° |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Screen size: | ≤34" |
| Material: | Aluminium |
| Special features: | Zubehör für LX Pro Serie |
| VESA Standard: | VESA 75x75|VESA 100x100 |
| Suitable for: | Ergotron LX Pro |
| Scope of delivery: | 1x Ergotron LX Pro swivel joint, mounting hardware |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch |
| Mobility: | Drehbar, swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| Ergotron Serie: | Ergotron LX Pro |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Ergotron LX Pro Monitor Holder Conversion Kit?
It is a conversion kit from the modular LX Pro system by Ergotron, enabling converting a keyboard arm or dual direct arm to hold a single monitor.
-
What weight capacity does the kit have?
1.8 to 10 kg.
-
Which VESA standards are supported?
MIS-D, 100x100 mm and 75x75 mm.
-
What are the movement specifications?
Tilt up to 85° (70° backward, 15° forward); swivel 180°; rotation 360°.
-
Is it compatible with older LX Pro components?
LX Pro components are not compatible with older LX or other product lines.
-
What monitor size can it handle?
Suitable for monitors up to 34 inches, provided the weight rating is not exceeded.
-
What is included in the package?
The hinge and the required mounting hardware.
Zubehör
What is the Ergotron LX Pro Accessory Monitor Mount Conversion Kit?
The Ergotron LX Pro Accessory Monitor Mount Conversion Kit is a conversion kit from Ergotron’s modular LX Pro system. It allows you to convert an existing keyboard arm or dual-direct arm so that it holds a single monitor. The included swivel joint can only be attached to the LX Pro arm — direct mounting to the LX Pro extension or the pole is not possible. With a weight capacity of 1.8 to 10 kg, a tilt of 85° (70° backward, 15° forward), 180° swivel and full 360° rotation, the conversion kit offers high flexibility in monitor positioning. Compatible with VESA FDMI MIS-D, 100x100 mm and 75x75 mm for monitors up to 34 inches. The scope of delivery includes the swivel joint and the necessary mounting hardware. Important: LX Pro components are not compatible with the older LX or other product lines — when purchasing, make sure to combine only compatible LX Pro accessories. The robust design is built for years of reliable use and ensures durable performance even under intensive use.
What is the Ergotron LX Pro Monitor Mount Conversion Kit particularly suitable for?
The Ergotron LX Pro conversion kit is especially valuable in environments where displays must be swapped quickly. By keeping several joints with monitors on hand, a defective screen can be replaced in the shortest possible time — crucial in critical workflows where every second counts, such as control rooms, medical facilities, or other time-sensitive work environments. The conversion kit is also suitable for users whose requirements change and who want to adapt their existing LX Pro system without having to buy entirely new components. The kit transforms a keyboard arm or dual-direct arm into a full monitor arm — a cost-efficient solution for a flexible system. With a tilt of 85°, a 180° swivel and 360° rotation, monitors can be positioned precisely into the desired ergonomic position.
For which applications is the Ergotron LX Pro Accessory Monitor Mount Conversion Kit suitable?
The Ergotron LX Pro Accessory Monitor Mount Conversion Kit is suitable for use in offices, home offices, control rooms, medical facilities, or other professional environments where flexibility and reliability are required. With a weight capacity of 1.8 to 10 kg it supports a wide range of monitors up to 34 inches. Thanks to VESA FDMI MIS-D compatibility with 100x100 mm and 75x75 mm hole patterns it is compatible with the most common monitors. Ergotron’s 10-year manufacturer’s warranty and the robust design make the conversion kit a durable and reliable investment in a flexible workstation system — ideal for anyone who wants to further develop their LX Pro system flexibly. Available in Black (98-735-292), White (98-735-290), Aluminum (98-735-026) and Dark Gray (98-735-293)
