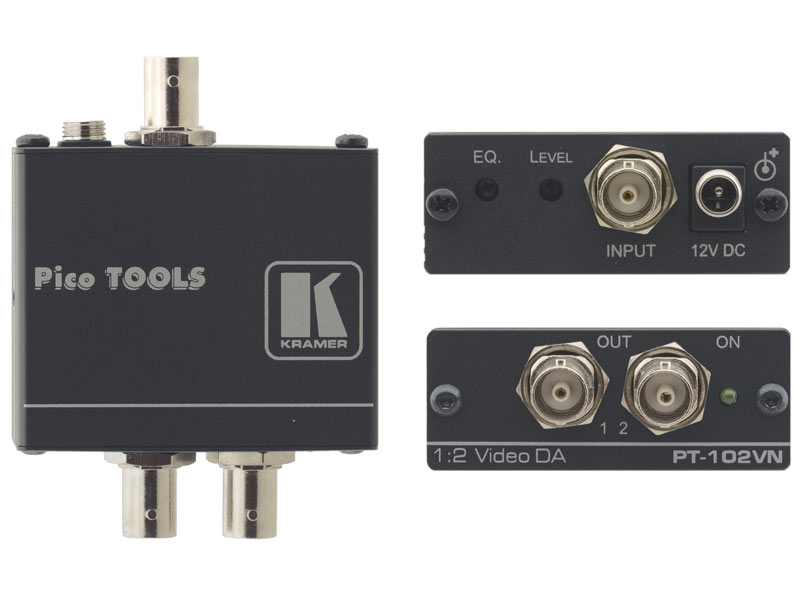

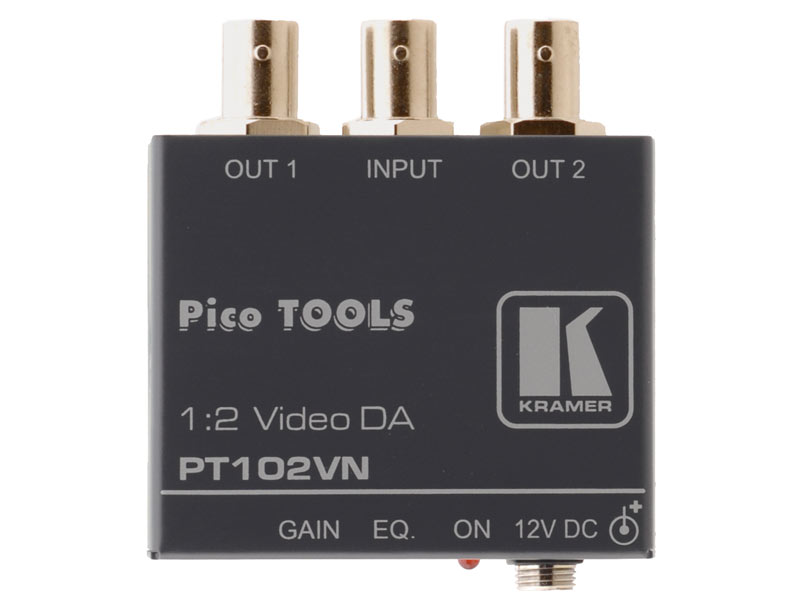

Kramer PT-102VN 1:2 Composite Video Distribution Amplifier
Article number:
53307065
Manufacturer:
Kramer
Manufacturernumber:
PT-102VN
EAN:
7290012307065

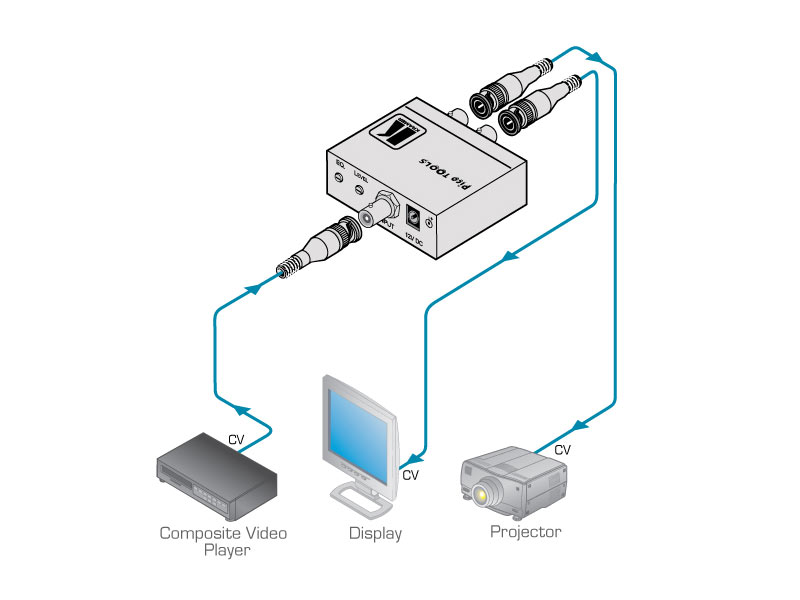

The Kramer PT−102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs.
Kramer PT-102VN 1:2 Composite Video Distribution Amplifier
- High Bandwidth - 430MHz (−3dB).
- Level (Gain) and EQ (Peaking) Controls.
- Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Spezification Kramer PT-102VN 1:2 Composite Video Distribution Amplifier
- INPUTS: 1 composite or SDI video, 1Vpp/75Ω on a BNC connector.
- OUTPUTS: 2 composite or SDI video, 1Vpp/75Ω on BNC connectors.
- MAX. VIDEO OUTPUT: 2Vpp.
- VIDEO BANDWIDTH (-3dB): 430MHz.
- DIFF. GAIN: 0.05%.
- DIFF. PHASE: 0.05Deg.
- K-FACTOR: <0.05%.
- S/N RATIO: 76.1dB.
- CONTROL: Gain: −1.2 to +6dB; EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel.
- POWER SOURCE: 12V DC, 30mA.
- DIMENSIONS: 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H.
- WEIGHT: 0.14kg (0.31lbs) approx.
- ACCESSORIES: Power supply.
- OPTIONS: RK−4PT 19" rack adapter.
| Product sheet: |  [pdf, 61 kb] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Contains installation material: | + |
| Warranty: | 7 years |
| Manufacturer/Importer: | Kramer Germany GmbH, Gladbacher Str. 17, 52525 Heinsberg, info_de@kramerav.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
