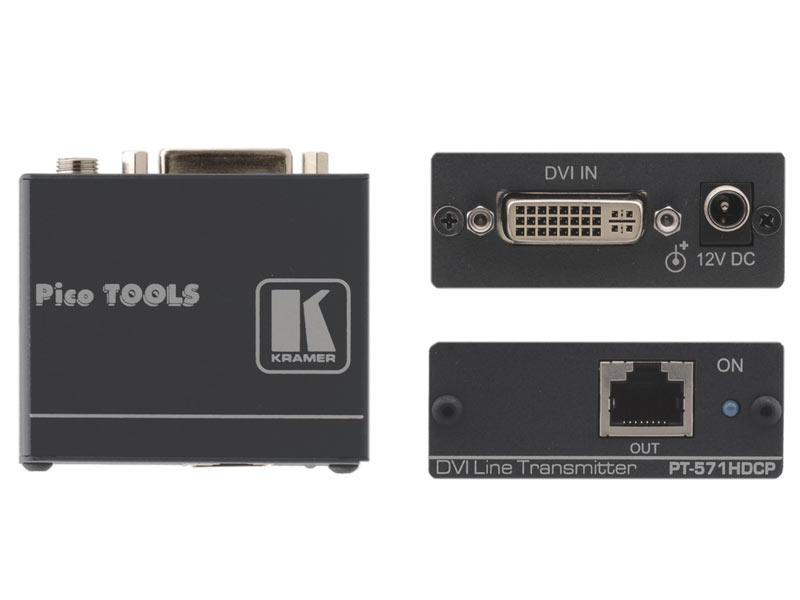

Kramer PT-571HDCP DVI over Twisted Pair Transmitter

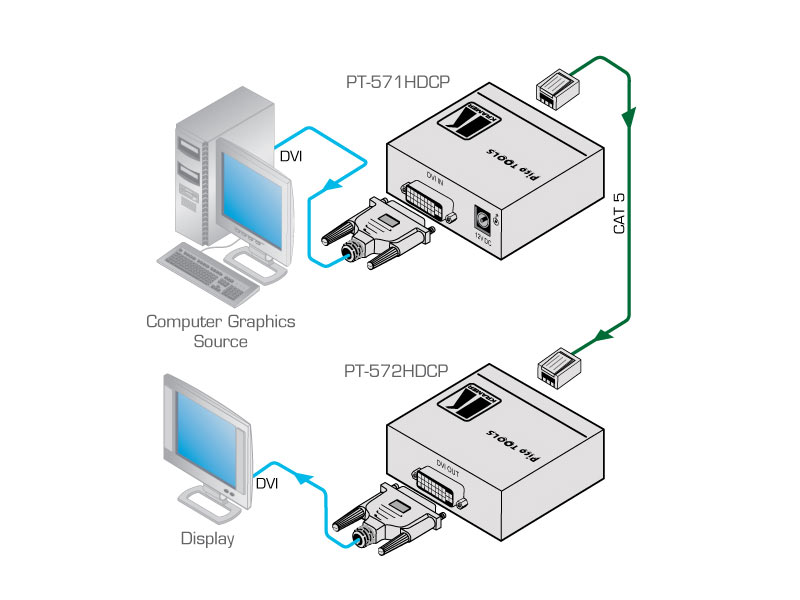

The Kramer PT−571HDCP is a DGKat™ twisted−pair transmitter for DVI signals. The Kramer PT−571HDCP converts the DVI to twisted pair signal and the Kramer PT−572HDCP+ converts the twisted pair signal back to a DVI signal.
Kramer PT-571HDCP DVI over Twisted Pair Transmitter
- Max. Data Rate - Up to 1.65Gbps; WUXGA, 1920x1080p.
- HDTV Compatible.
- HDCP Compliant.
- DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
- System Range - Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded BC−DGKat524 cable. Up to 90m (295ft) at SXGA, or up to 70m (230ft) at UXGA on shielded BC−DGKat623 cable. Up to 100m (330ft) at SXGA, or up to 80m (265ft) at UXGA on shielded BC−DGKat7a23 cable.
- Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- EDID PassThru - Passes EDID signals between the source and display.
- Power Connect™ System - A single connection to the transmitter powers both units when the devices are within 150ft (50m) of each other.
- Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Spezification Kramer PT-571HDCP DVI over Twisted Pair Transmitter
- INPUTS: 1 DVI, 1.2Vpp on a DVI Molex 24−pin female connector.
- OUTPUTS: 1 DGKat twisted pair on an RJ−45 connector.
- BANDWIDTH: Up to 1.65Gbps; WUXGA, 1920x1080p.
- POWER SOURCE: 12V DC, 250mA (transmitter and receiver together).
- DIMENSIONS: 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H.
- WEIGHT: 0.14kg (0.3lbs).
- ACCESSORIES: Power supply, mounting bracket.
- OPTIONS: RK−4PT 19” rack adapter.
| Product sheet: |  [pdf, 78 kb] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf - Englisch] |
| Installation manual: | [pdf, 352 kb] |
| Contains installation material: | + |
| Warranty: | 7 years |
| Manufacturer/Importer: | Kramer Germany GmbH, Gladbacher Str. 17, 52525 Heinsberg, info_de@kramerav.com |
| color: | Others |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
12 December 2025 08:03
Kundenservice auf hohem Niveau – kann ich weiterempfehlen
Verarbeitungsqualität überzeugt – sieht edel aus. Funktioniert einwandfrei, klare Empfehlung.
Questions & Answers
-
What is the Kramer PT-571HDCP Twisted Pair Transmitter for DVI used for?
The PT-571HDCP Twisted Pair Transmitter is a DVI Twisted Pair transmitter that embeds TMDS and control/communication signals into twisted-pair signals using DGKat™ technology. It supports up to 1.65 GBit/s and is HDTV-compatible and HDCP-compliant. For optimum performance, Kramer DGKat™ cables are recommended; the range depends on the cable type (BC-DGKat524 up to 90 m SXGA / 30 m UXGA; BC-DGKat623 up to 90 m SXGA / 70 m UXGA; BC-DGKat723 up to 100 m SXGA / 80 m UXGA).
-
What is the maximum data rate supported?
1.65 GBit/s.
-
Which cables should be used for optimal reach?
Use Kramer BC-DGKat524, BC-DGKat623, or BC-DGKat723 cables.
-
What are the ranges for different resolutions and cables?
Range depends on resolution, graphics card, and display: BC-DGKat524 up to 90 m SXGA / 30 m UXGA; BC-DGKat623 up to 90 m SXGA / 70 m UXGA; BC-DGKat723 up to 100 m SXGA / 80 m UXGA.
-
What is EDID-through capability?
EDID-through enables the EDID and HDCP communication between source and display.
-
How is power supplied?
Power Connect System: power for the PT-571HDCP and PT-572HDCP+ is supplied either via the transmitter's or the receiver's mains connection.
-
Is there a compact form and how many devices can be rack-mounted?
There is an ultra-compact Pico TOOL™; four devices can be mounted side-by-side in a 19-inch rack on 1U using the optional RK-4PT rack adapter.
-
What connectors does the unit have and what is the bandwidth?
Input: 1x 24-pin DVI socket; Output: 1x CAT output with RJ-45; Bandwidth: 1.65 GBit/s.
