Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCx, single-phase 100-240V 16A, Input Metered/Switched (PX4-23A8C-C8E7A0)
€1,595.79*
delivery time: 1 - 5 working days
Highlights
- 0U vertical PDU, 24 outlets, 3.8 kVA
- Single-phase 100-240V 16A, IEC C20 input
- Billing-grade metering, Class 0.5
- Remote outlet switching, each outlet individually switchable
- Hot-swap controller, up to 8 PDUs can be linked
Single-Phase 0U Rack PDU with 24 Outlets, Remote Outlet Switching and Billing-Grade Energy Metering
The Legrand Raritan iX Rack-PDU 0U with 12x C13 / 12x Cx, single-phase 100-240V 16A, Input Metered/Switched (PX4-23A8C-C8E7A0) is a vertical 0U rack PDU designed for professional use in data centers, server rooms and IT infrastructures with variable input voltages from 100 to 240 V. With 24 outlets — 12x C13 and 12x Cx (combined C13/C19 receptacles) — and a power capacity of 3.8 kVA, it reliably supplies even demanding rack configurations. The mechanical plug lock on all outlets prevents accidental disconnection and increases operational safety. Remote outlet switching enables individual remote power on/off of each outlet — ideal for rebooting crashed devices without physical access to the cabinet.
Thanks to billing-grade energy metering (Class 0.5), the PX4-23A8C-C8E7A0 accurately records all relevant energy values: voltage (V), current (A), active power (kW), apparent power (kVA), energy (kWh) and power factor. The comprehensive power quality monitoring with voltage and current harmonics, distortion power factor, voltage sags and swells, neutral conductor current, inrush current and crest factor provides a complete data basis for energy management. The hot-swappable controller enables maintenance without operational interruption. Via dual Gigabit Ethernet, SNMP v2/v3, Redfish API, MODBUS-TCP and optional Wi‑Fi the PDU is fully remotely manageable. The single-phase iX series is ideal for colocation providers and data center operators who require flexible input voltage with precise energy monitoring and remote switching capabilities for their server rack.
Technical Details single-phase 0U Rack PDU with Remote Outlet Switching
- Input: IEC C20, 100-240V, 16A, 3.8 kVA
- Outlets: 12x C13, 12x Cx (combined C13/C19 receptacles), total 24 outlets
- Form factor: 0U vertical
- Current measurement: input-level and branch circuit breaker
- Measurement accuracy: Class 0.5 (billing-grade)
- Power quality monitoring: voltage and current harmonics, distortion power factor, voltage sags and swells, neutral conductor current, inrush current, crest factor
- Remote Outlet Switching: yes, individually switchable per outlet
- Display: color matrix LCD, auto-flip function
- Controller: hot-swappable, replaceable while in operation
- Network: 2x Gigabit Ethernet (10/100/1000), optional Wi‑Fi (802.11 a/b/g/n)
- Remote Management: HTTP(s), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API
- PDU Linking: up to 8 PDUs linkable
- Cascading: up to 32 PDUs over a single Ethernet port
- Environment sensors: temperature, humidity, airflow, differential pressure, dust/particles, water leak, motion/proximity, vibration, dry contact
- Certifications: UL, CE
- Warranty: 2 years
- Dimensions (W×D×H): 56 × 65 × 1298 mm
- Weight: approx. 3.2 kg
| Product sheet: |  [pdf - Englisch] |
|---|---|

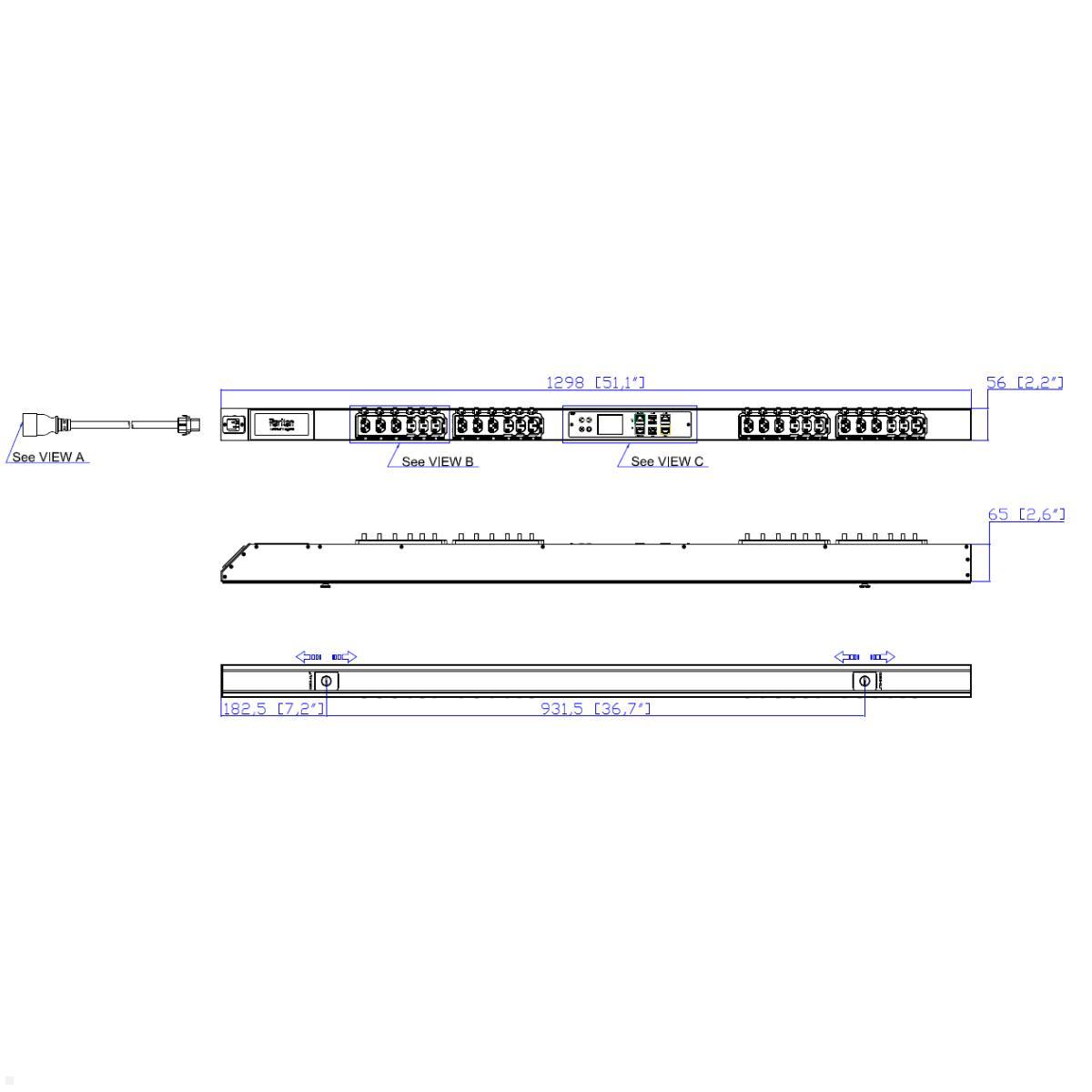

| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1454 x 250 x 123 mm |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Raritan Europe B.V., Jan van Galenstraat 59, 3115 JG Schiedam, The Netherlands, sales.germany@raritan.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| Größe PDU: | Vertikal, 42 HE |
| USB-Charger: | USB A |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
8 August 2026 20:03
Kompetente Produkt | schnell & unkompliziert
Sehr zufrieden, tolles Preis-Leistungs-Verhältnis. Richtig guter Kundenservice!
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU 0U?
A single-phase 0U vertical rack PDU with 24 outlets (12x C13, 12x Cx), 100–240V, 16A, 3.8kVA, offering Remote Outlet Switching and billing-grade energy metering.
-
How many outlets does it have and what types?
It has 24 outlets: 12x C13 and 12x Cx (combined C13/C19 receptacles) in an 0U vertical form factor; input is IEC C20.
-
What metering capabilities does it offer?
Billing-Grade energy metering (Class 0.5) measures voltage, current, real power (kW), apparent power (kVA), energy (kWh) and power factor, plus full power-quality monitoring.
-
How can it be remotely managed?
It supports dual Gigabit Ethernet, optional WLAN, and remote management via HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and Redfish API; PDU linking up to 8 PDUs and cascading up to 32 PDUs.
-
Are there physical safety features?
There is mechanical locking on all outlets to prevent accidental unplugging, and each outlet can be switched remotely per outlet.
-
What environmental sensors are included?
Environment sensors include temperature, humidity, airflow, differential pressure, dust/particles, water leakage, motion/proximity, vibration and dry-contact.
-
What are the warranty and dimensions?
It comes with a 2-year warranty; dimensions are 56 × 65 × 1298 mm and weight is approximately 3.2 kg.
-
Who is this suitable for?
Ideal for colocation providers and data centre operators requiring flexible input voltage, precise energy monitoring and remote switching for server racks.
