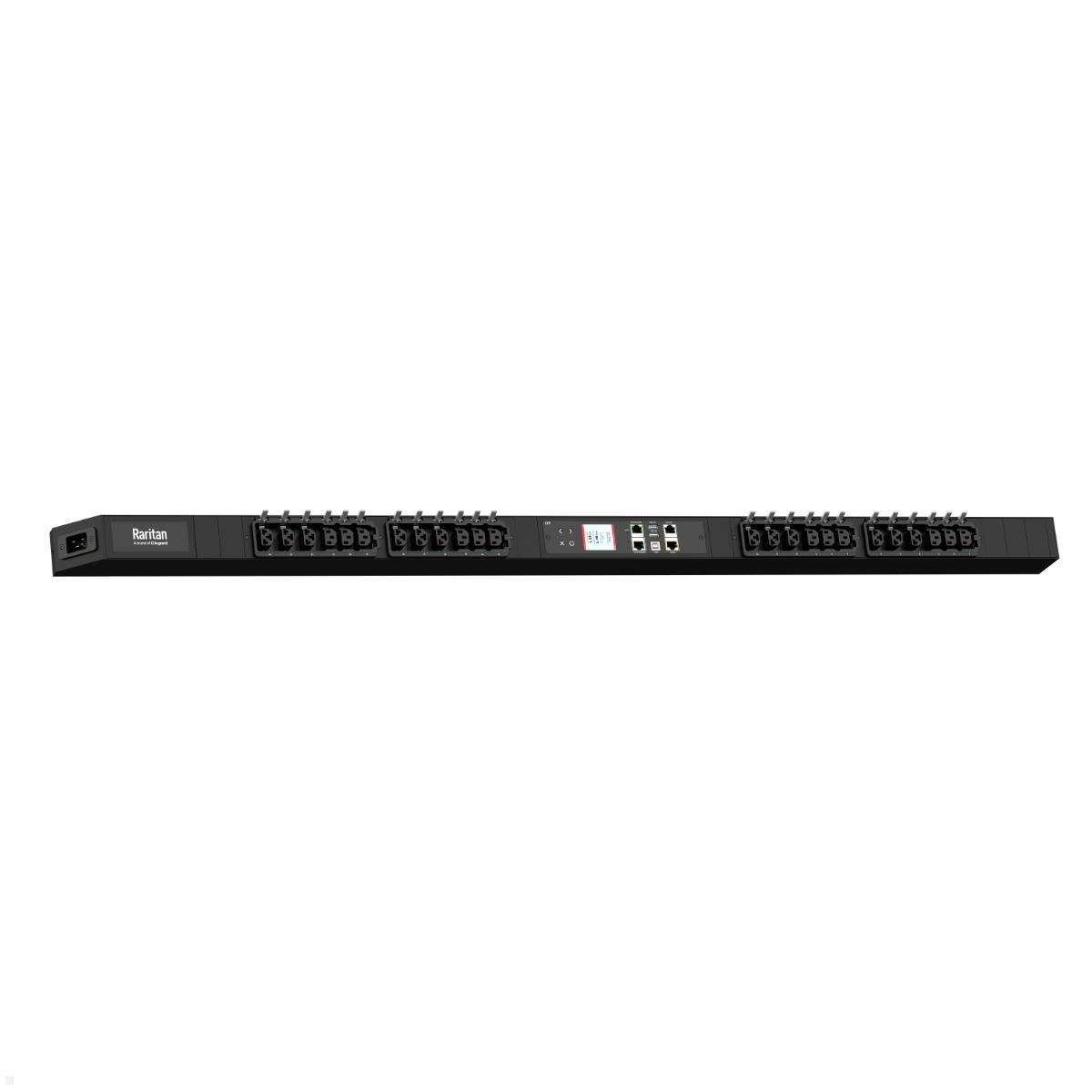

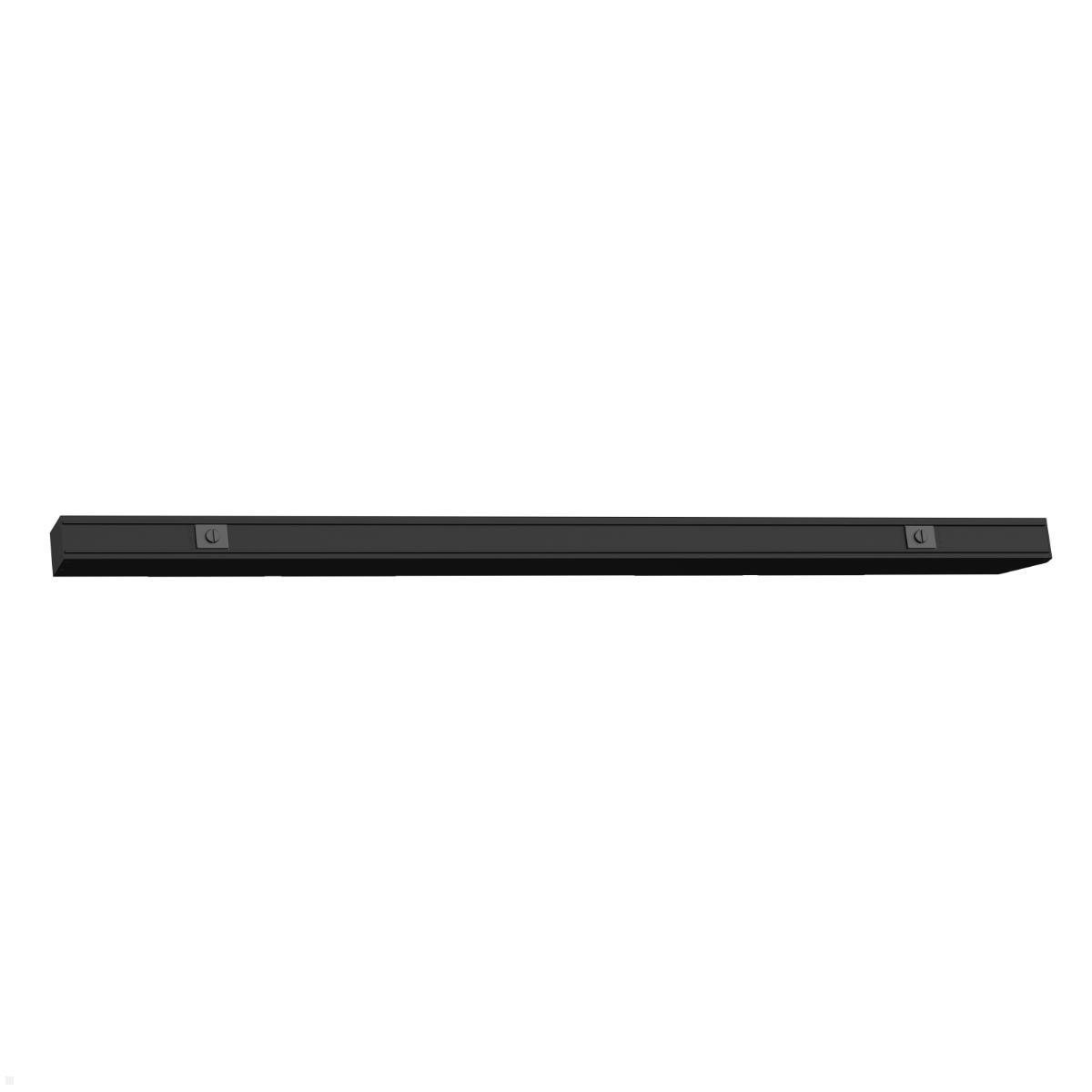

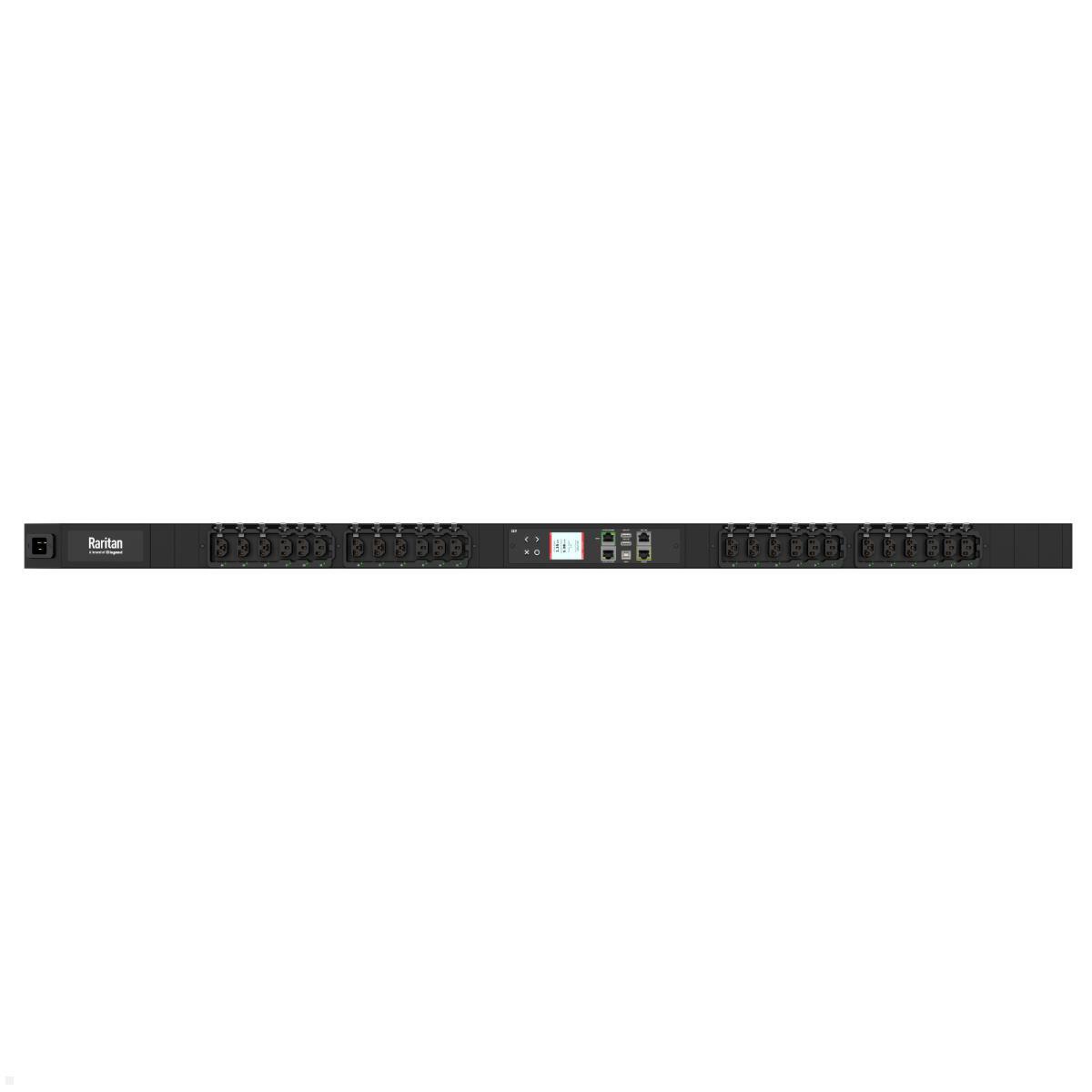

Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCx, single-phase 100-240V 16A, Outlet Metered/Switched (PX4-53A8C-C8E7A0)
Highlights
- 24 outputs: 12x C13, 12x Cx
- Class 0.5 energy measurement per output
- Remote switching of individual outputs
- Hot-swappable controller
- Color LCD display with auto-flip
Intelligent Rack PDU with Outlet Metering and Switching for Data Centers
The Legrand Raritan iX Rack PDU 0U with 12xC13 / 12xCx, single-phase 100-240V 16A, Outlet Metered/Switched (PX4-53A8C-C8E7A0) is a powerful power distribution unit for professional IT infrastructures. With a total of 24 outlets, split into 12x C13 and 12x combined Cx sockets, this intelligent PDU provides precise energy metering class 0.5 per input, per circuit breaker and per outlet. Additionally, the remote switching of individual outlets enables targeted control of connected devices. Power quality monitoring includes voltage and current harmonic distortion, voltage sags and swells, neutral conductor current, inrush current spikes as well as the crest factor.
The hot-swappable controller allows replacement during operation and ensures maximum availability. Via the integrated color LCD display with auto-flip function, voltage, current and power can be read directly on the device. The Rack PDU supports environmental sensors for temperature, humidity, airflow, differential pressure, dust, water leakage, motion, vibration and more. Up to 32 PDUs can be cascaded over a single Ethernet port, up to 8 PDUs can be linked via the link port. Remote management is available via HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP, Redfish API and other protocols. Ideal for use in data centers, server rooms and network cabinets.
Technical Details Legrand Raritan iX Rack PDU PX4-53A8C-C8E7A0
- Input: IEC C20 100-240V Inlet
- Rated voltage: 240V
- Max. input current: 20A
- Rated input current: 16A
- Power capacity: 3.8 kVA
- Outlets: 12x C13, 12x Cx (combined C13/C19)
- Measurement accuracy: Class 0.5
- Measurement per input, circuit breaker and outlet
- Remote switching of outlets: Yes
- Network: Dual 10/100/1000 Base-T Ethernet, optional Wi-Fi (802.11 a/b/g/n)
- Remote management: HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API
- Cascading: up to 32 PDUs via Ethernet, up to 16 PDUs via USB
- Linking: up to 8 PDUs via link port
- Environmental sensors: temperature, humidity, airflow, differential pressure, dust, water leakage, motion, vibration, dry contact
- Display: color matrix LCD with auto-flip
- Controller: hot-swappable

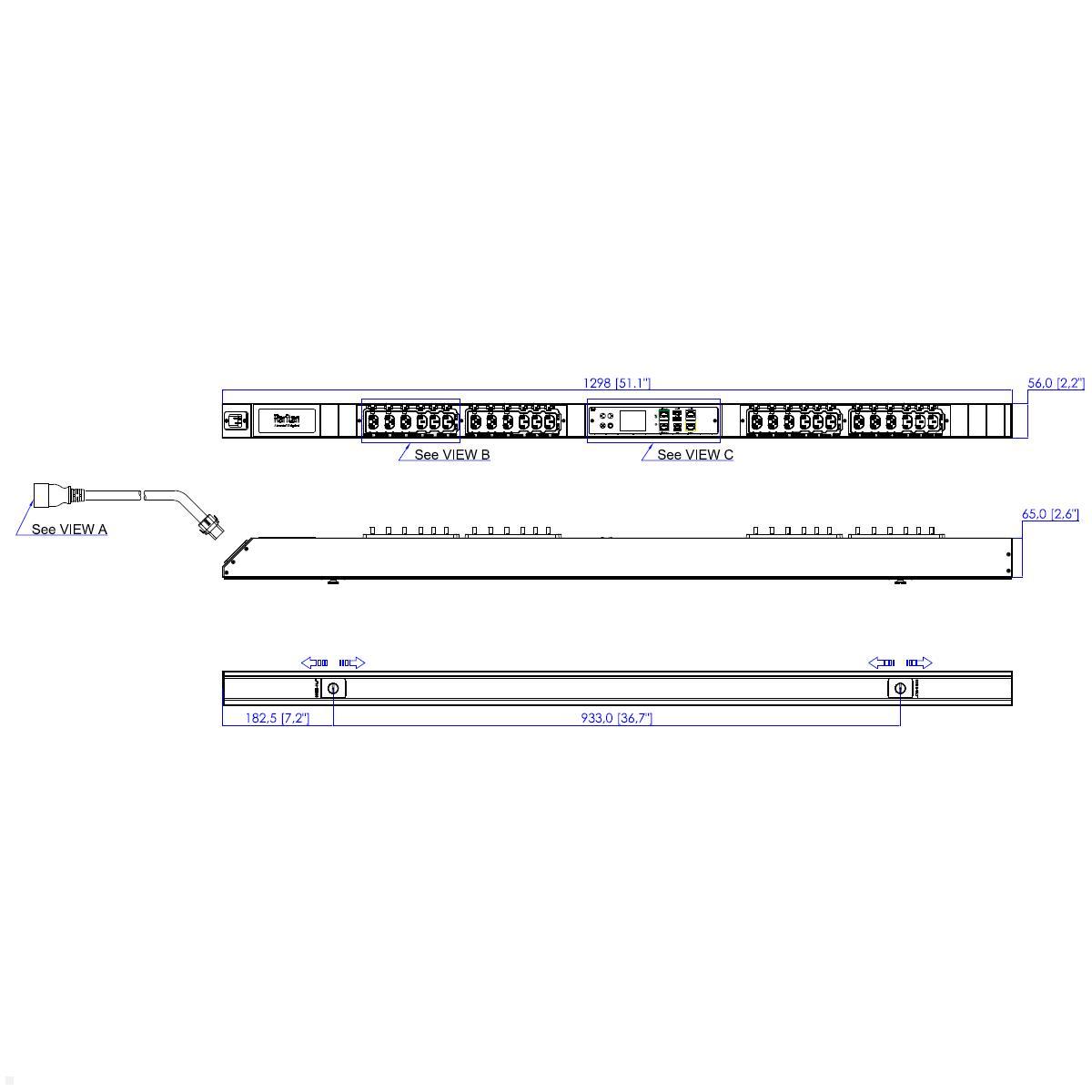

- Dimensions (W x D x H): 56 x 65 x 1298 mm
- Weight: approx. 3.6 kg
- Shipping weight: approx. 5.8 kg
- Shipping dimensions (H x D x W): 1454 x 250 x 123 mm
- Operating temperature: up to 60 °C
- Operating humidity: up to 85 %
- Certifications: UL, CE
- Warranty: 2 years manufacturer's warranty
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1454 x 250 x 123 |
| Scope of delivery: | Legrand Raritan iX Rack-PDU PX4-53A8C-C8E7A0, mounting accessory G4-HOLDER-FOR-ZU, installation manual |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Raritan Europe B.V., Jan van Galenstraat 59, 3115 JG Schiedam, The Netherlands, sales.germany@raritan.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 40 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU 0U?
An intelligent rack-PDU with outlet metering and switching for data centres; it provides 24 outlets (12x C13, 12x Cx) at 1-phase 100-240V 16A and is listed as Outlet Metered/Switched (PX4-53A8C-C8E7A0).
-
What are the key features of the PDU?
Remote switching of individual outlets; power quality monitoring including voltage and current THD, sags and surges, neutral current, inrush, crest factor; hot-swappable controller; colour LCD with auto-rotate; supports environmental sensors; cascades up to 32 PDUs over Ethernet and up to 16 PDUs over USB.
-
How can the PDU be managed remotely and what protocols are supported?
Remote management via HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, JSON-RPC API, MODBUS-TCP, Redfish API and more; dual Ethernet (10/100/1000) and optional WLAN are available.
-
How many PDUs can be cascaded?
Up to 32 PDUs over Ethernet and up to 16 PDUs over USB.
-
What environmental sensors are supported?
Temperature, humidity, airflow, differential pressure, dust, water leakage, motion, vibration, and dry-contact sensors.
-
What are the main electrical specifications?
Input: IEC C20 100-240V Inlet; Nominal voltage 240V; Max input current 20A; Rated input current 16A; Power capacity 3.8 kVA; Outlets: 12x C13, 12x Cx (combined C13/C19); Measurement accuracy: Class 0.5 (per input, MCB and outlet).
-
What are the dimensions and weight?
Dimensions (W x D x H): 56 x 65 x 1298 mm; Weight approx. 3.6 kg; Shipping weight approx. 5.8 kg; Shipping dimensions (H x D x W): 1454 x 250 x 123 mm.
-
Where is this PDU best used?
Ideal for data centres, server rooms, and network cabinets.
What is the Legrand Raritan iX Rack PDU with Outlet Metering and Switching?
The Legrand Raritan iX Rack PDU PX4-53A8C-C8E7A0 is an intelligent power distribution unit in a 0U form factor, specifically designed for use in data centers, server rooms and network cabinets. With 24 outlets, divided into 12x C13 and 12x combined Cx sockets, it reliably supplies numerous IT devices with power. The single-phase 100–240V input with a 16A rated input current and a power capacity of 3.8 kVA is suitable for various deployment scenarios. Class 0.5 energy metering provides billing-grade accuracy and ensures full transparency of power consumption per input feed, per circuit breaker and per outlet. In addition, individual outlets can be switched remotely, enabling targeted control of connected devices.
Which network and management functions does the PDU offer?
Remote management of the Legrand Raritan iX PDU is available via numerous protocols such as HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and Redfish API. This allows the PDU to be seamlessly integrated into existing DCIM systems and network management solutions. The integrated color LCD display with auto-flip function shows voltage, current and power directly on the device. Up to 32 PDUs can be cascaded over a single Ethernet port, significantly simplifying the management of large installations. Additionally, up to 8 PDUs can be linked via the Link port, with the primary PDU receiving redundant power from the first expansion PDU.
Why is the combination of metering and switching particularly valuable?
The combination of precise energy metering and remote switching makes the Legrand Raritan iX Rack PDU a versatile tool for IT administrators. While outlet metering makes the power consumption of each individual outlet transparent, outlet switching enables targeted on/off control of devices remotely. This is particularly useful for remote reboots of unresponsive servers or the controlled shutdown of individual loads. Power quality monitoring also captures harmonic distortion, voltage sags and inrush current peaks. The hot-swappable controller ensures that the control unit can be replaced during operation without interrupting the power supply. With support for environmental sensors such as temperature, humidity and water leak detection, the PDU offers comprehensive monitoring capabilities for business-critical environments.
