Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCx, single-phase 100-240V 16A, Outlet Metered/Switched RCM (PX4-53A8C-C8E7M27A0)
Highlights
- 0U rack PDU, 24 C13/Cx locking outlets
- Single-phase 100-240 V 16 A, up to 3.8 kVA
- Outlet metered/switched + RCM
- RGB LED per outlet, iX9 hot-swap controller
- Tool-less mounting, dual Gigabit LAN
0U Rack PDU with RGB Outlet LEDs, RCM and iX9 Hot-Swap Controller

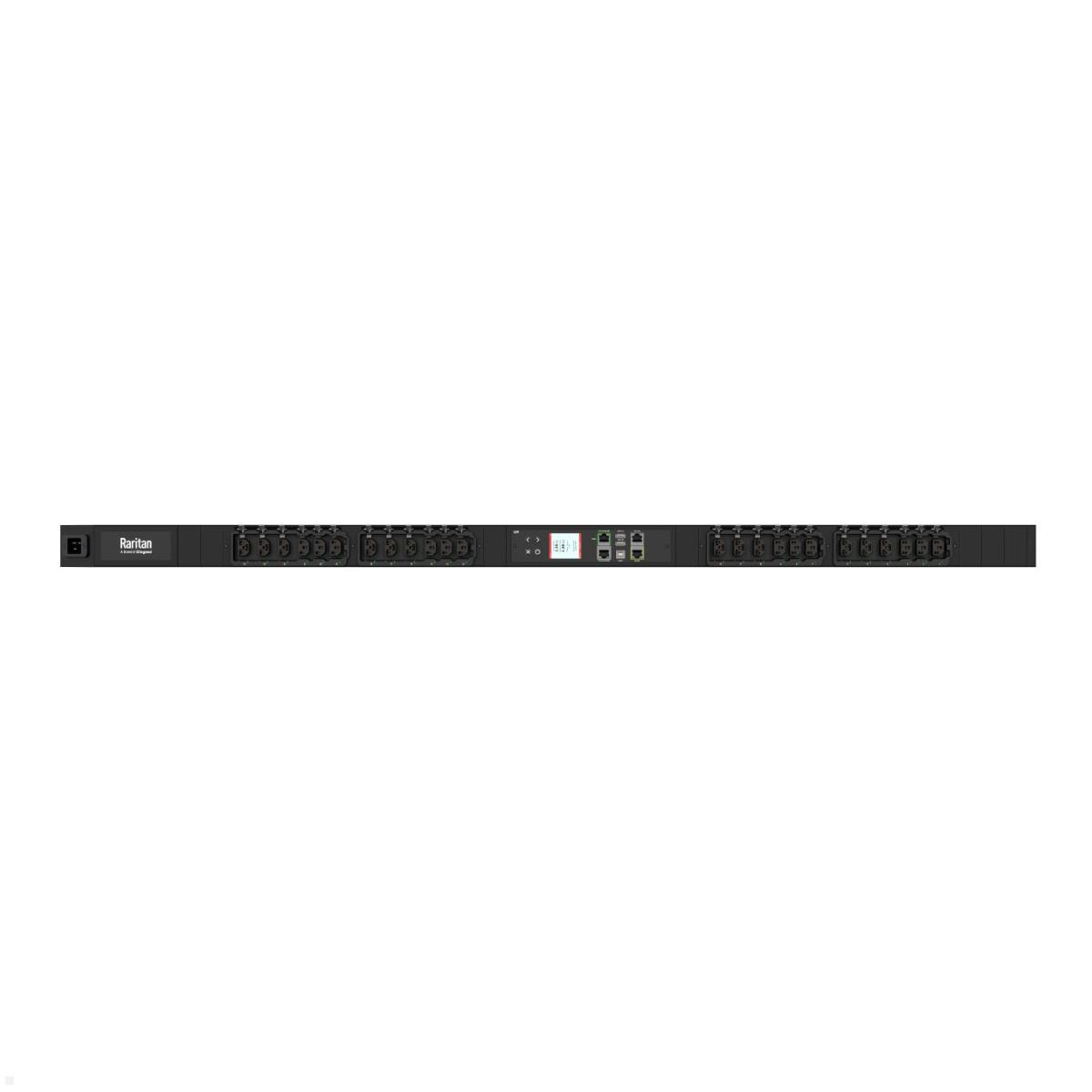

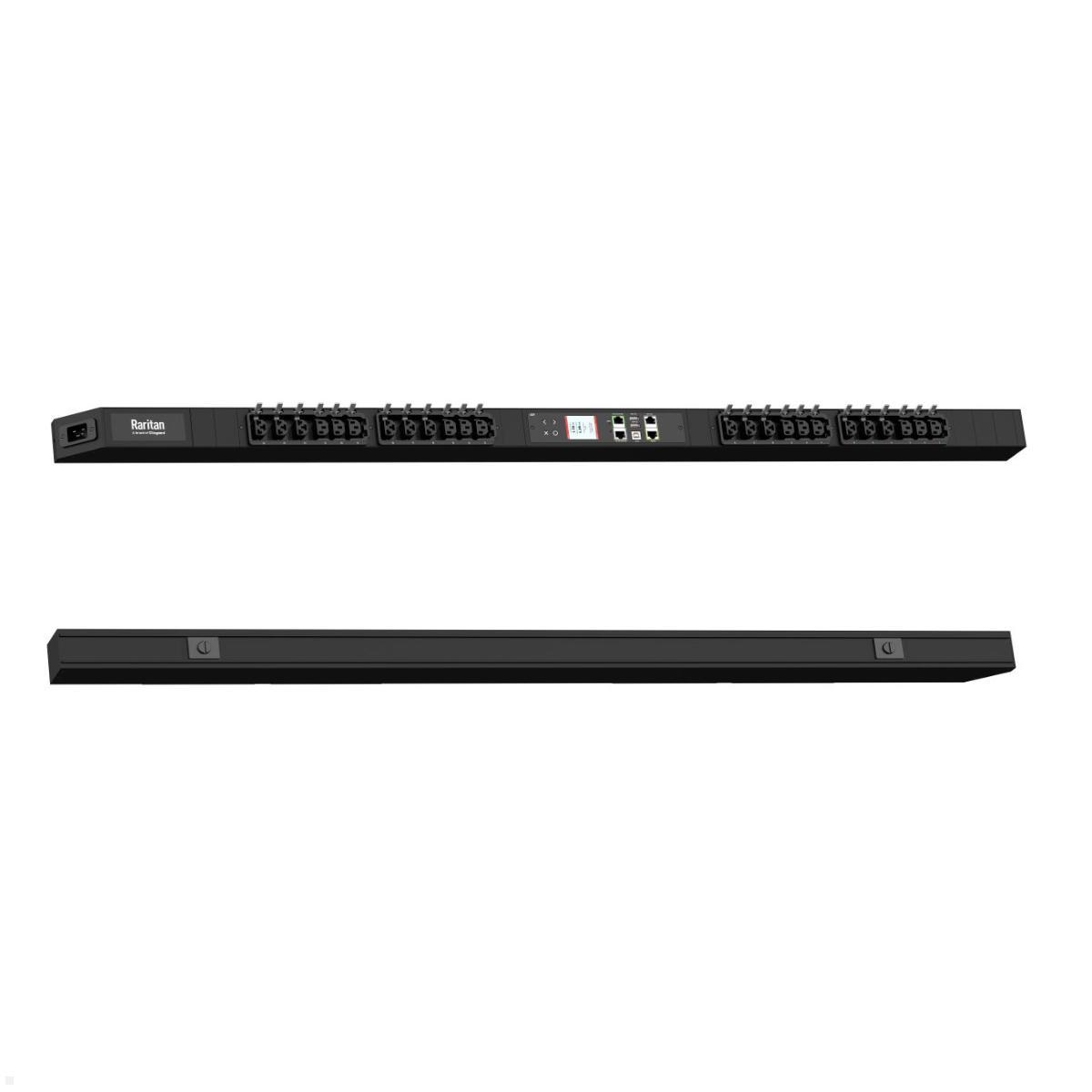

The Legrand Raritan iX Rack-PDU PX4-53A8C-C8E7M27A0 is an advanced vertical 0U PDU with 12x C13 Locking and 12x Cx Locking outlets (24 outlets total). The single-phase input at 100–240V/16A enables worldwide use, with a power capacity of 1.6 kVA (at 100V) up to 3.8 kVA (at 240V). Each outlet is equipped with an RGB LED that color-codes operating status, threshold over- or under-conditions, and service modes — a significant aid for troubleshooting in the rack. The outlet metered/switched monitoring per Class 0.5 records all relevant measurements per input feed, circuit breaker and individual outlet.
The integrated RCM (Residual Current Monitoring) continuously monitors leakage current. The hot-swappable iX9 Controller can be replaced during operation. Tool-less mounting greatly simplifies rack installation. Dual Gigabit Ethernet, optional Wi‑Fi and remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC and Redfish API make the Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCx, single-phase 100–240V 16A, outlet metered/switched RCM (PX4-53A8C-C8E7M27A0) an ideal solution for modern data centers.
Technical Details Legrand Raritan iX Rack-PDU PX4-53A8C-C8E7M27A0
- Form factor: 0U vertical
- Input: without fixed plug (N/A), bottom-front feed
- Rated voltage: 100–240V, single-phase
- Rated current: 16A
- Power capacity: 1.6 kVA (100V) / 3.8 kVA (240V)
- Outlets: 12x C13 Locking (10A) + 12x Cx Locking (16A) = 24 total
- Outlet LEDs: RGB per outlet (status, thresholds, service mode)
- Outlet locking: Yes (SecureLock / P-lock)
- Energy monitoring: Class 0.5, per outlet
- Remote outlet switching: Yes
- RCM (Residual Current Monitoring): Yes

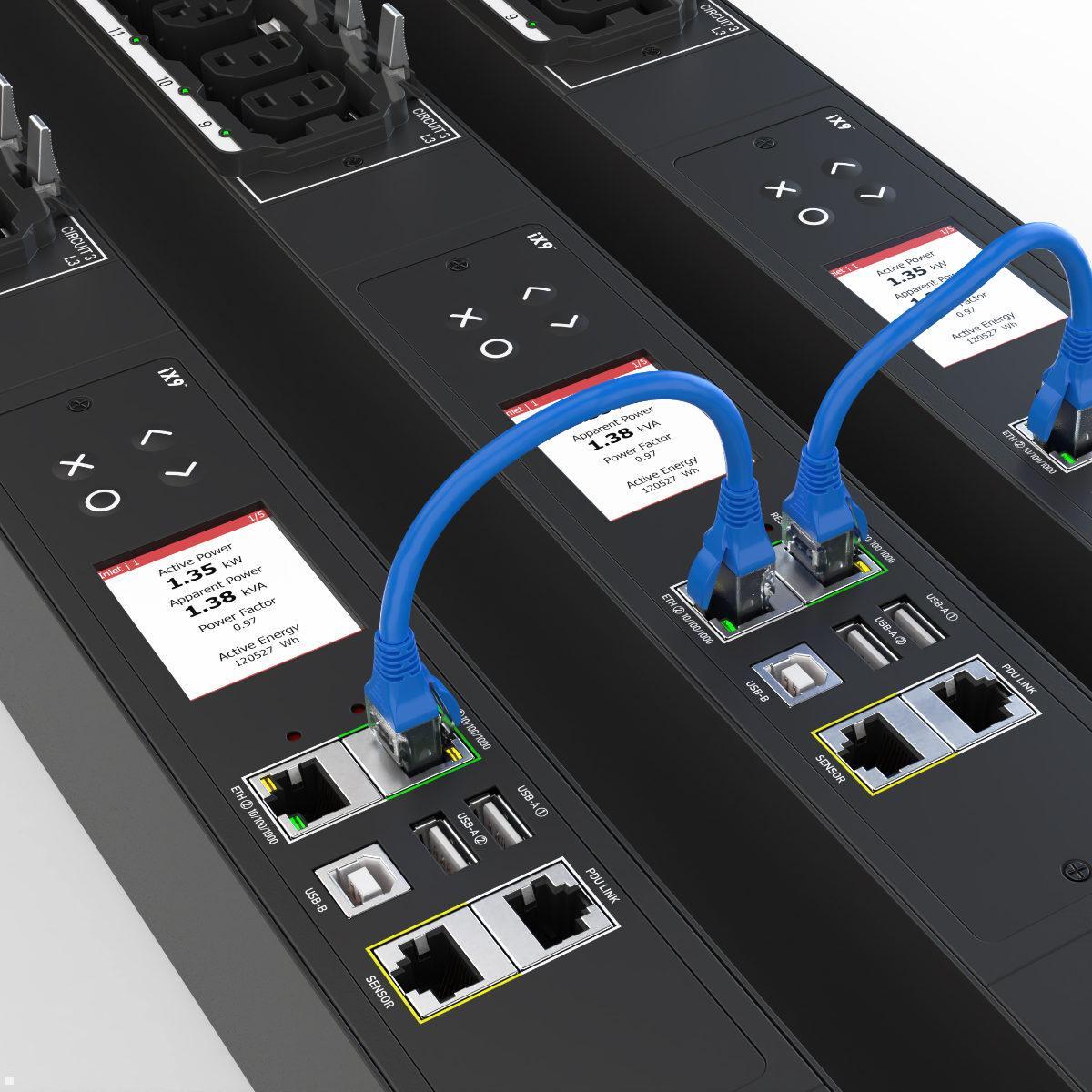

- Controller: iX9, hot-swappable
- Network: 2x Gigabit Ethernet (10/100/1000), optional Wi‑Fi
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP
- Display: Color LCD, auto-flip
- Mounting: Tool-less
- Dimensions (W×D×H): 56 x 65 x 1298 mm
- Certifications: UL, CE, RoHS
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Größe PDU: | Vertikal, 40 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the form factor of the Legrand Raritan iX Rack-PDU 0U?
A 0U vertical rack-PDU with 24 outlets (12x C13 Locking and 12x Cx Locking) and tool-less mounting.
-
What outlets and types are provided?
12x C13 Locking and 12x Cx Locking outlets, 24 in total.
-
What are the electrical specs?
Input is 100–240 V, single-phase; rated current 16 A; power capacity 1.6 kVA at 100 V and 3.8 kVA at 240 V.
-
What monitoring and status features does the PDU offer?
RGB LEDs per outlet indicate status, thresholds and service modes; Outlet Metered/Switched monitoring per feed/breaker/outlet (Class 0.5); RCM differential current monitoring.
-
What about remote management and networking options?
Dual Gigabit Ethernet (10/100/1000), optional WLAN; remote management via HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API and MODBUS-TCP.
-
What installation and hardware features does it have?
Hot-swappable iX9 controller; tool-less mounting; RGB LEDs per outlet; color LCD display with auto-flip; outlet locking SecureLock/P-lock.
-
What certifications and warranty does the product have?
UL, CE, RoHS certifications; 2-year warranty.
