MonLines MLS016 accessory 2-way cable for MLS TV Lift / MSM wall mount
Cable for dry contact switch
The cable for dry contact switch enables an alternative control option for the electric MonLines myTVLift as well as the MonLines mySwing TV wall mount. The connection is made via the RJ45 jack on the respective electric mount, while the three exposed tips can be connected with terminals to a potential-free contact switch. Instead of the standard control via the supplied wireless remote control, the TV lift / wall mount can now be moved by means of a programmable logic controller (PLC), for example. The 2-way cable, in combination with a corresponding controller / switch, allows either an up/down movement (MonLines myTVLift) or a left/right swing movement (MonLines mySwing).
Key features MonLines MLS016 2-way cable
- Accessory for:
- MonLines myTVLift MLS007B / MLS010B / MLS011B / MLS012B
- MonLines mySwing MSM06 / MSM08

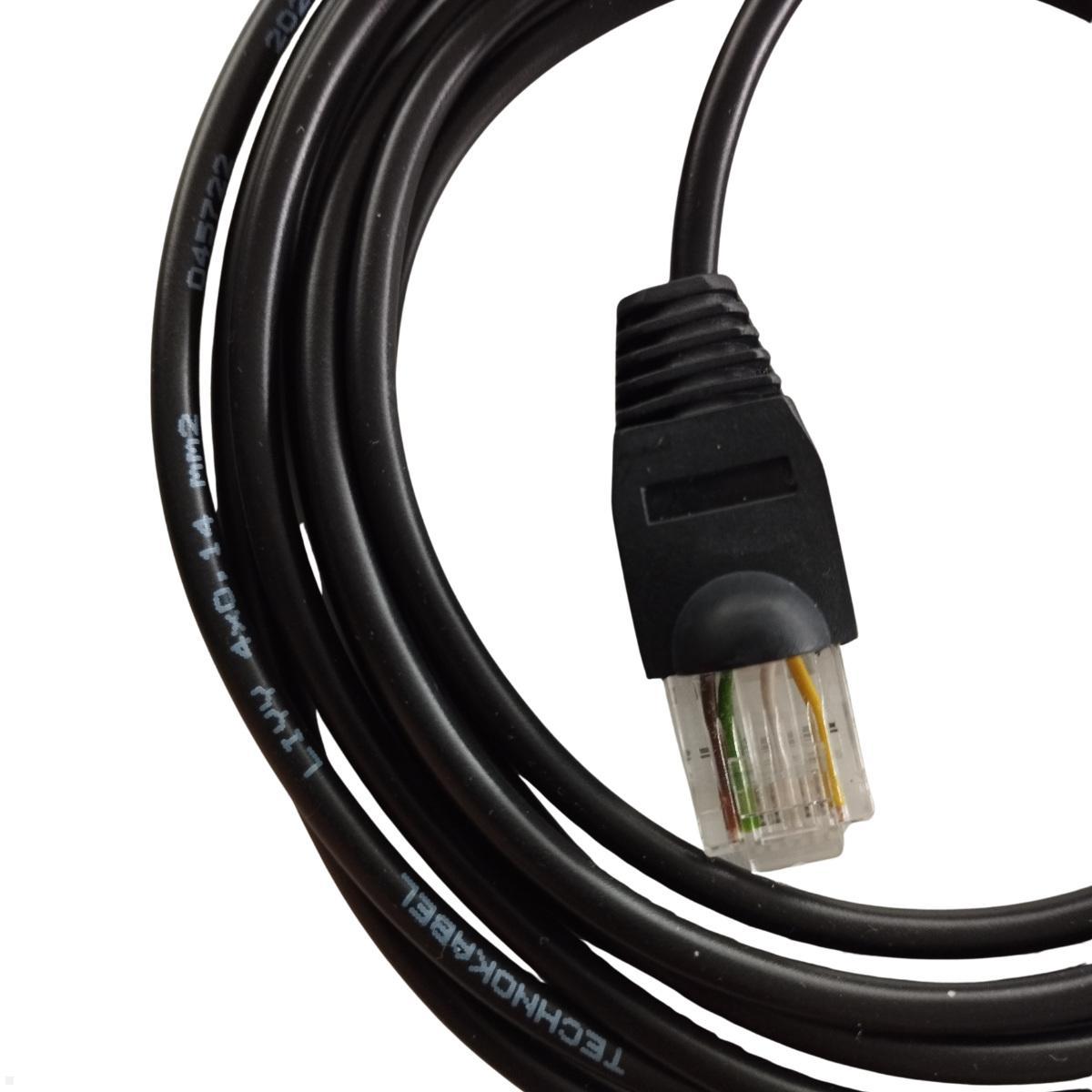

- RJ45 connector for connection to myTVLift / mySwing control unit

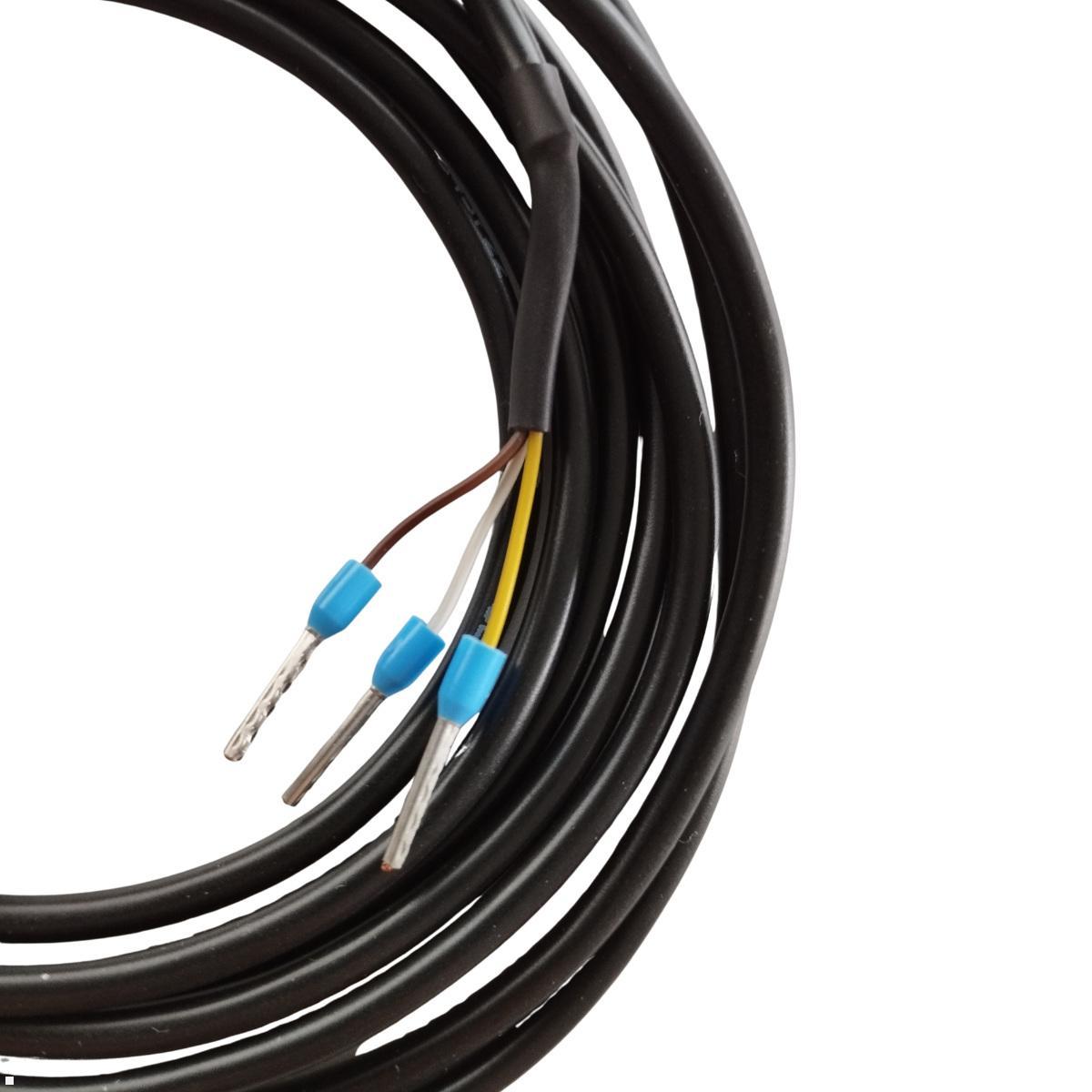

- 3 cable ends with clamps for attachment to a contact switch / controller
- 2-way cable for up/down movement (TV built-in lift) or left/right movement (TV wall mount)
- Cable length: 3 m
- Can only be used in combination with a potential-free contact switch (connection of the switch possible on request)
| Technical drawing: |  [pdf] |
|---|---|
| Suitable for: | MonLines myTVLift MLS007B / MLS010B / MLS011B / MLS012BMonLines mySwing MSM06 / MSM08 |
| Packaging dimensions (LxWxH in mm): | 340 x 260 x 180 |
| Scope of delivery: | MLS016 2-way cable |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| color: | Grey |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the MonLines MLS016?
A smart-home control cable for MonLines TV Lifts and electrical wall mounts that connects compatible units to a smart-home actor or contact switch via potential-free contacts.
-
Which devices does the MLS016 support?
Compatible MonLines TV Lifts and mySwing electrical wall mounts MSM06 and MSM08.
-
How does the MLS016 control a TV lift?
It controls the up and down movement by sending commands to the lift’s control unit.
-
How does the MLS016 control a mySwing wall mount?
It controls the left and right movement of the wall mount.
-
How do I connect the MLS016 to a Smart Home system?

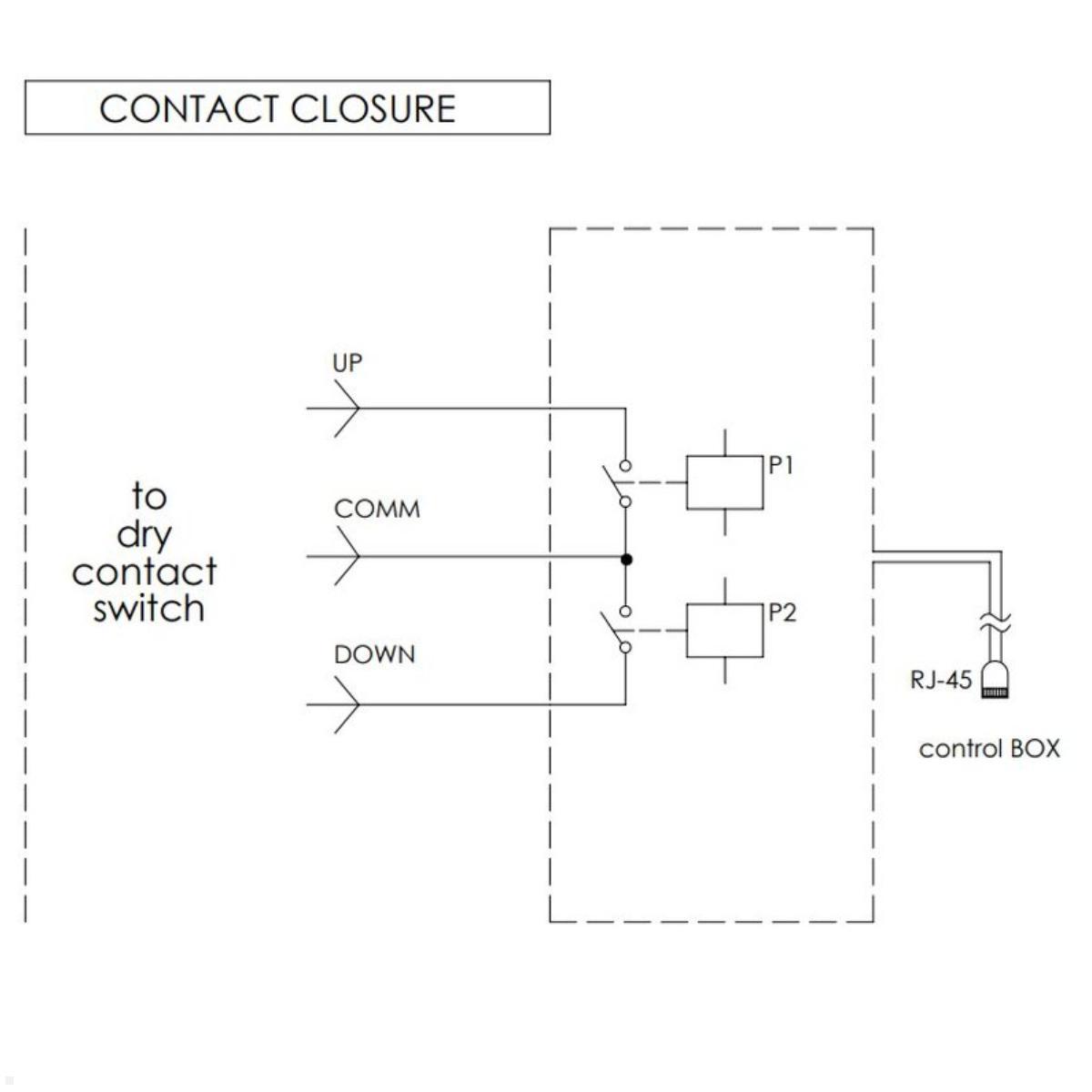

It has an RJ45 plug that connects to the lift’s control unit or wall mount. The three terminal ends connect to a potential-free switch, Smart-Home actor or controller; the actor must provide potential-free contacts.
-
Is Matter available with MLS016?
The MLS016 has no Matter interface itself; Matter integration is possible via a compatible Matter actor with potential-free contacts; check compatibility, wiring and the required switching function before installation.
-
Are there installation or safety notes?
Use only with potential-free contact switches; no external voltage should be applied to the control unit; installation should be performed by an electrical professional; connection of the switch or actor can be arranged on request.
