Novus Clu II monitor arm without mounting, silver/anthracite (990+2109+000)
Befestigung
Zubehör
Your set selection:
Highlights
- 2-part monitor arm with gas spring
- 423 mm reach, swivels 180°
- Load capacity 2-7 kg, up to approx. 34 inches
- VESA 75/100, pivot function
- QuickRelease, integrated cable management

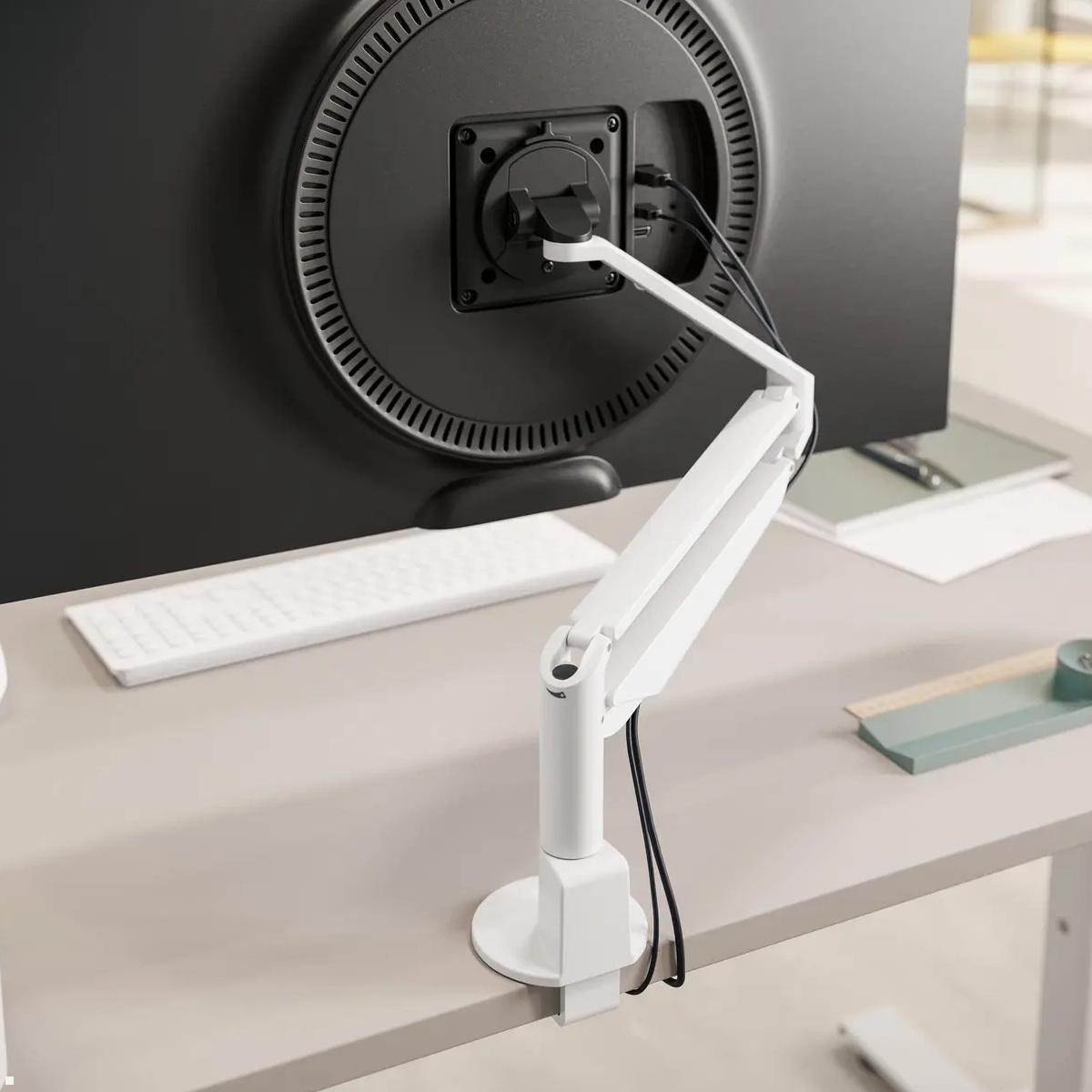

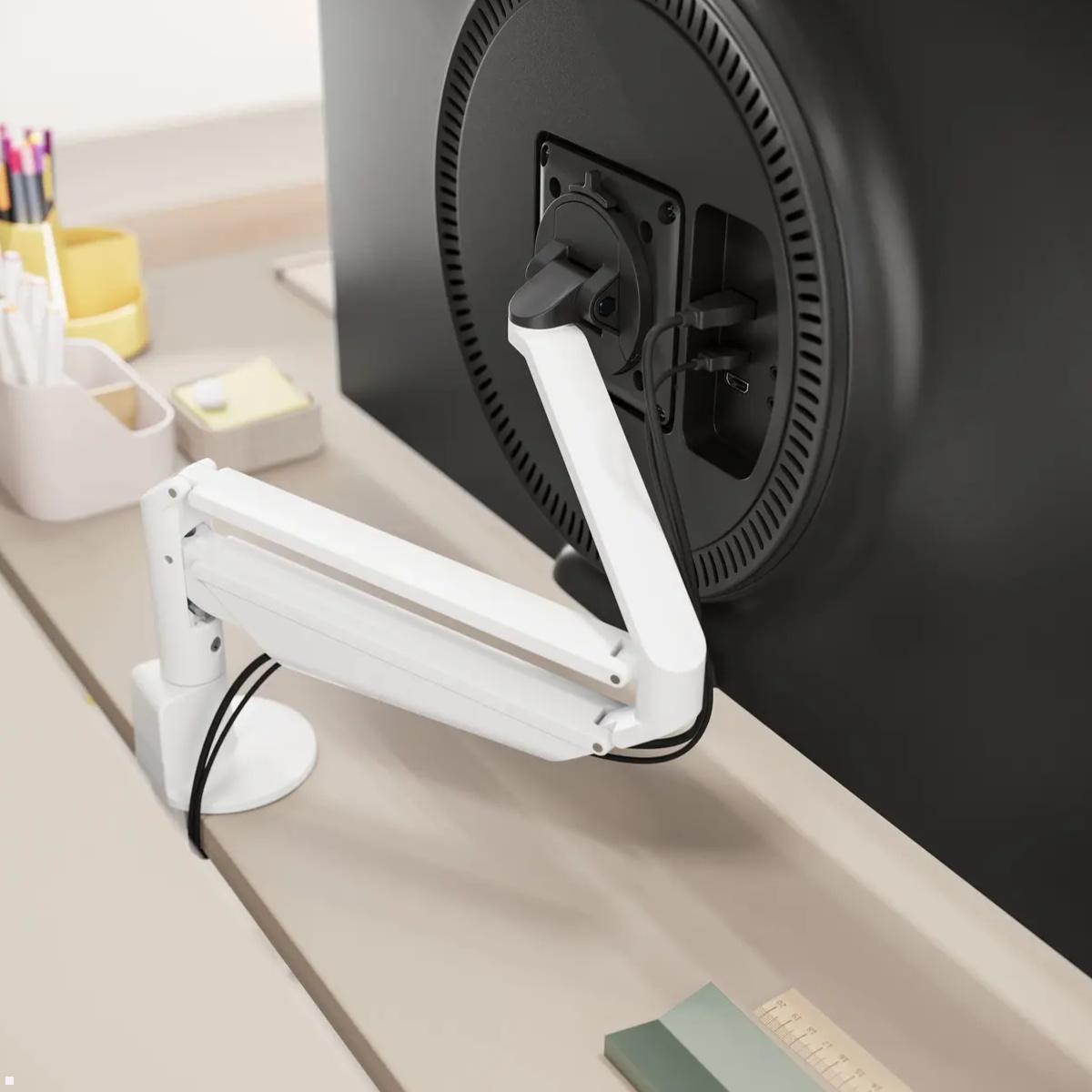

Swivel Monitor Arm with Gas Spring (without Mounting)
The Novus Clu II monitor arm without mounting in silver/anthracite (990+2109+000) is a high-quality two-piece support arm with a gas spring that makes ergonomic and stepless height adjustment of the monitor effortless. With a reach of 423 mm, a swivel range of 180° and a 360° rotation function (with adjustable stop), the screen can be optimally aligned. Thanks to the pivot function, the monitor can be comfortably switched from landscape to portrait. The adjustable friction of the swivel joints and the integrated cable management via cable holders ensure a neat, professional workspace.
The Novus Clu II monitor arm without mounting, silver/anthracite (990+2109+000) supports monitors up to approx. 34 inches (monitor width approx. 820 mm) with a weight of 2–7 kg. Connection is via QuickRelease compatible with the VESA standard 75×75 and 100×100 mm. As a mandatory addition, a suitable Clu mounting is required (sold separately – as a desk clamp, 3-in-1, column adapter or system rail adapter). Novus provides a 5-year warranty for proper use; the product is TÜV Nord certified and carries the quality mark German Engineering. Ideal for use in the office, home office or at receptions.
Technical details Novus Clu II monitor arm without mounting silver
- Mounting type: without mounting (Clu mounting sold separately)
- Reach: 423 mm
- Load capacity: 2–7 kg
- Monitor width: max. approx. 820 mm (up to approx. 34 inches)
- Swivel range: 180°
- Rotatable: 360° with adjustable stop at 180°
- Pivot function: portrait and landscape
- VESA standard: 75×75, 100×100 mm
- Height adjustment: dynamic (gas spring, stepless)
- Cable management: integrated cable holders
- Adjustable friction of the swivel joints

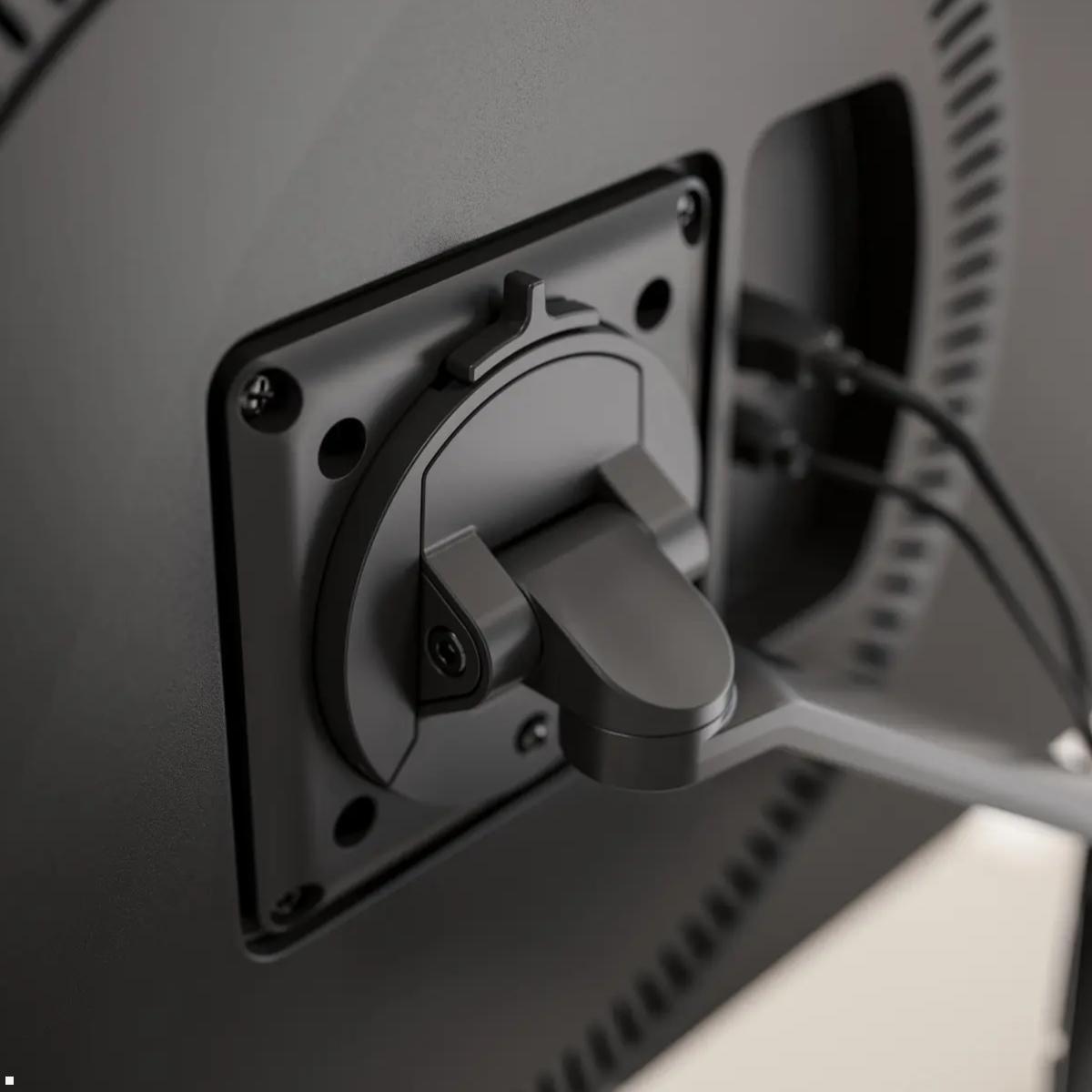

- QuickRelease quick-release
- Color: Silver/Anthracite
- Warranty: 5 years
- Certification: TÜV Nord, German Engineering
| Product sheet: |  [pdf] |
|---|---|

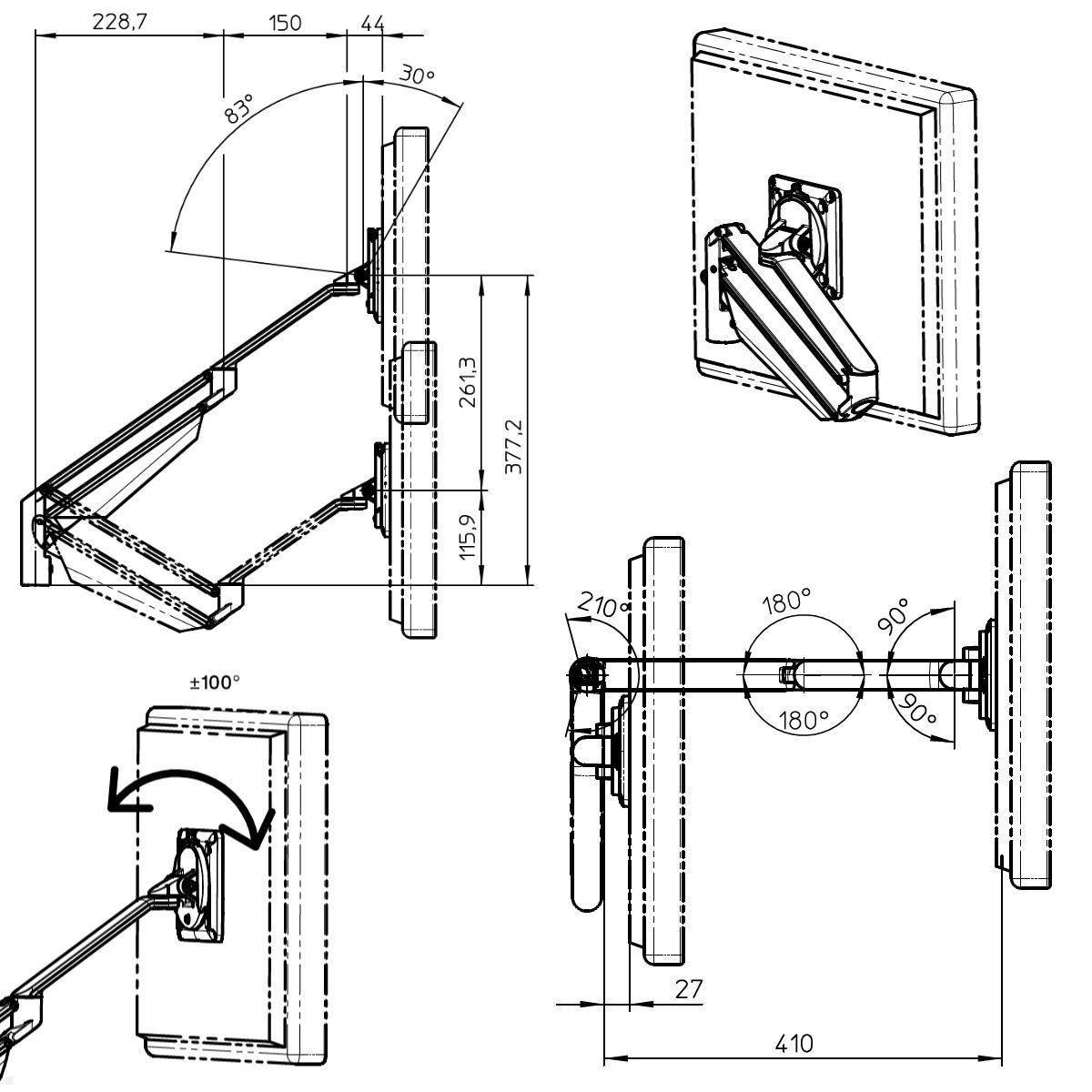

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2 kg |
| Capacity: | 7 kg |
| Tilt: | + |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 433 |
| Screen size: | max. 27" |
| Thickness of table (mm): | 10-50 mm |
| Material: | Aluminium, Kunststoff |
| Old model no.: | 990+2009+000 |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 770 x 185 x 110 |
| Scope of delivery: | 1x Novus Clu II monitor arm | 1x spacer screw set | installation material |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
27 December 2025 21:35
Top zufrieden: qualitativ top
Hervorragende Qualität – absolut begeistert! Besser als gedacht – danke!
What advantages does a monitor arm with a gas spring offer?
A monitor arm with a gas spring enables stepless and nearly effortless height adjustment of the monitor – without tedious tightening or readjusting. The Novus Clu II relies precisely on this technology: the integrated gas spring compensates for the monitor’s weight (2–7 kg) and allows the screen to be moved to the desired height and held there with a light push. This protects the joints and promotes an ergonomic seated posture at the workplace. Those who frequently reposition their monitor – for example when switching between sitting and standing – particularly benefit from this technology. In addition to its functionality, the Clu II also impresses with its slim design in silver/anthracite, which looks good in modern office and home office environments alike.
How is the Novus Clu II monitor arm mounted?
The Novus Clu II monitor arm (sold without a mounting) is used exclusively in combination with a separately available Clu mounting. Various options are available: the 3-in-1 mount (desk clamp, grommet mount, and drilled-hole mount in one), a classic desk clamp, a column adapter for MY and TSS columns, and a system rail adapter for office furniture system rails. This modularity makes the Clu II extremely flexible – the support system can thus be adapted to almost any workstation. The monitor itself is attached via the proven QuickRelease system, which enables quick and tool-free mounting and dismounting of the display.
Which monitors is the Novus Clu II monitor arm suitable for?
The Novus Clu II monitor arm (without mounting) in silver/anthracite is designed for monitors up to approx. 34 inches (monitor width approx. 820 mm) and weighing between 2 and 7 kg. A VESA mounting pattern of 75×75 or 100×100 mm is required – the most widely used standard for flat screens worldwide. Thanks to the integrated pivot function, the monitor can also be rotated from landscape to portrait orientation, which is a real advantage especially for programmers, graphic designers, or anyone who works with long documents. The integrated cable management via cable clips on the arm keeps the desk tidy.
