Novus Clu Plus Slatwall Monitor mount, swiveling, silver (991+3009+001)
Highlights
- For Slatwall mounting, up to 50 inches
- Gas spring, 6–15 kg load capacity
- QuickRelease one-handed operation
- 360° swivel, pivot function
- Suitable for curved screens

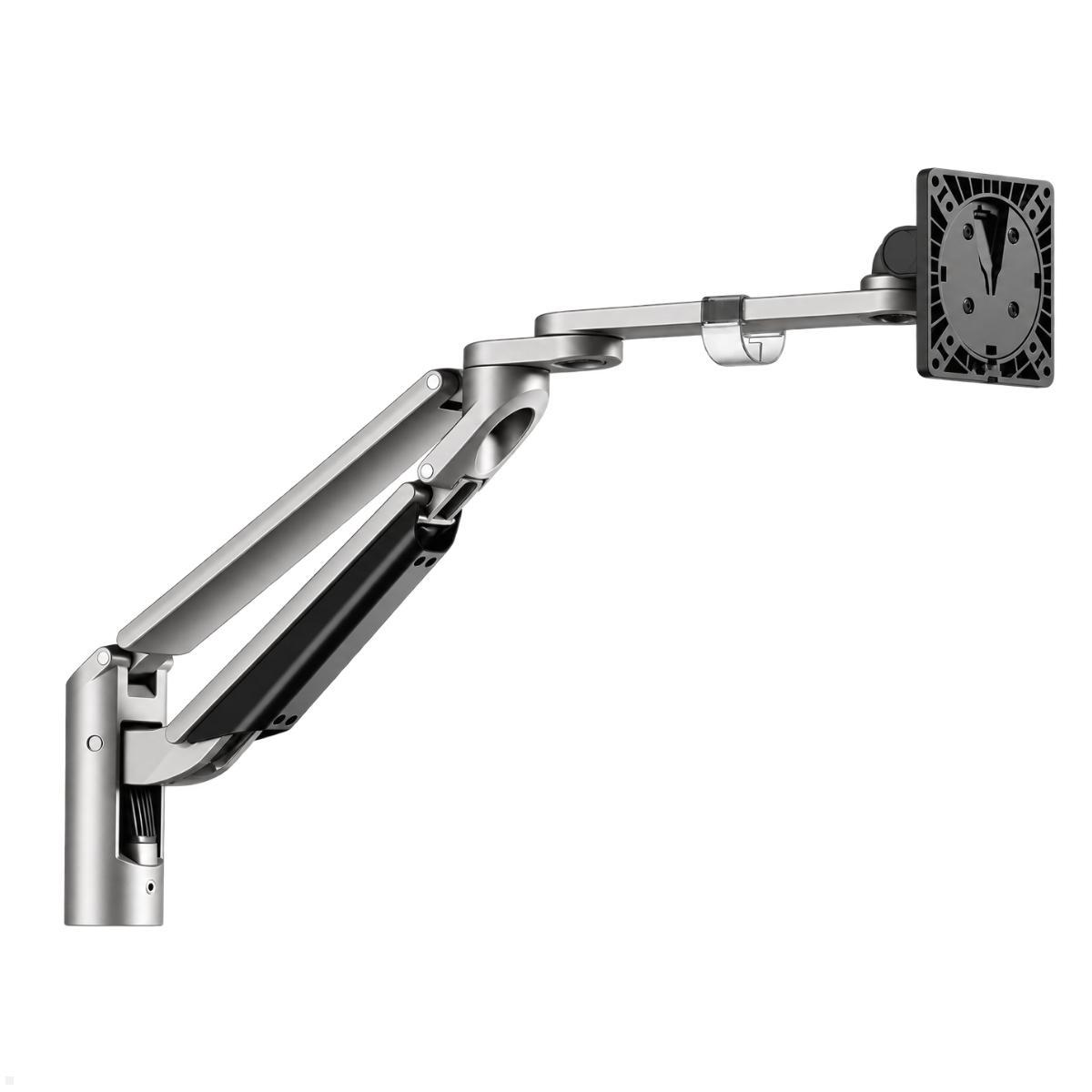

Swiveling Monitor Mount for SlatWall
The Novus Clu Plus SlatWall swiveling monitor mount (991+3009+001) for slatwalls in silver features a delicate and appealing design. It was specially developed for the requirements of modern flat screens and offers an ideal balance between weight and dimensions. Installation is effortless, as the monitor mount can be attached to Novus Slatwalls or organizational walls using the included adapter. This robust, two-part monitor arm impresses with advanced gas spring technology, allowing comfortable and ergonomic adjustment of the monitor. It is particularly well suited for use with large and heavy screens, such as modern curved displays. The practical QuickRelease function with one-handed operation, compliant with the VESA standard 75x75 and 100x100 mm, ensures uncomplicated monitor mounting.
Monitor Mount with Swivel Function
The monitor mount can easily carry screens weighing 6 to 15 kg and up to 50 inches. The swivel joints are individually adjustable to lock the desired position. The monitor arm offers 360° rotation with an adjustable stop at 180°. With a generous reach of 491 mm and a height adjustment range of 300 mm (from the center of the VESA mounting point 150 mm to 452 mm above the tabletop), this mount provides remarkable flexibility. The pivot function allows smooth switching of the monitor from landscape to portrait orientation. Cable management is very tidy thanks to the integrated cable holder. Please note that a Clu Plus mounting bracket is an essential addition to ensure the full functionality of this monitor mount. Installation is extremely quick and simple, ensuring rapid deployment.
Spacer Screw Set
For mounting certain monitor/TV models with recessed VESA screw holes, it is necessary to bridge the depth of the recess using spacers. With the Novus spacer screw set (796+0905+000), the monitor mounts from the Novus CLU series can be fitted to almost all TV devices.
Technical Details Novus Clu Plus C Monitor Arm for Slatwalls (991+3009+001)
- Screen sizes: 19 - 50 inches
- Load capacity: 6 - 15 kg
- Ideally suited for mounting on slatwalls / organizational walls
- Gas spring for comfortable, ergonomic adjustment
- Easy and quick installation of the monitor via QuickRelease (quick release)
- VESA mount: 75x75, 100x100 mm
- Swiveling: 360 degrees with adjustable stop at 180°
- Height adjustable: 150 - 452 mm (center of VESA mount to tabletop)
- Tilt: 70°
- Rotatable: 360° (pivot)
- Integrated cable management
- Reach: 491 mm

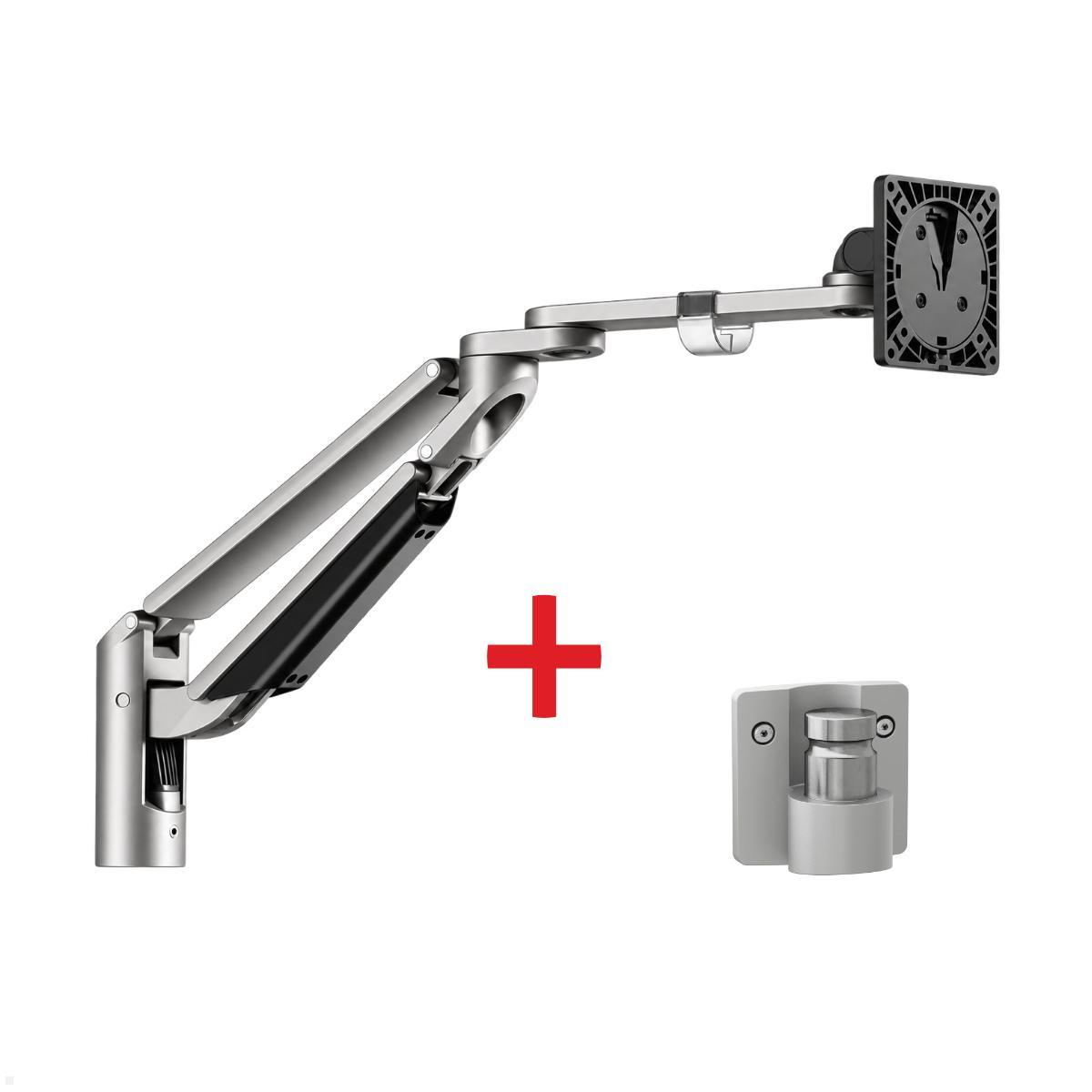

- Included in delivery:
- Spacer screw set (796+0905+000)
- Novus Clu Plus Slatwall monitor mount (991+3109+000)

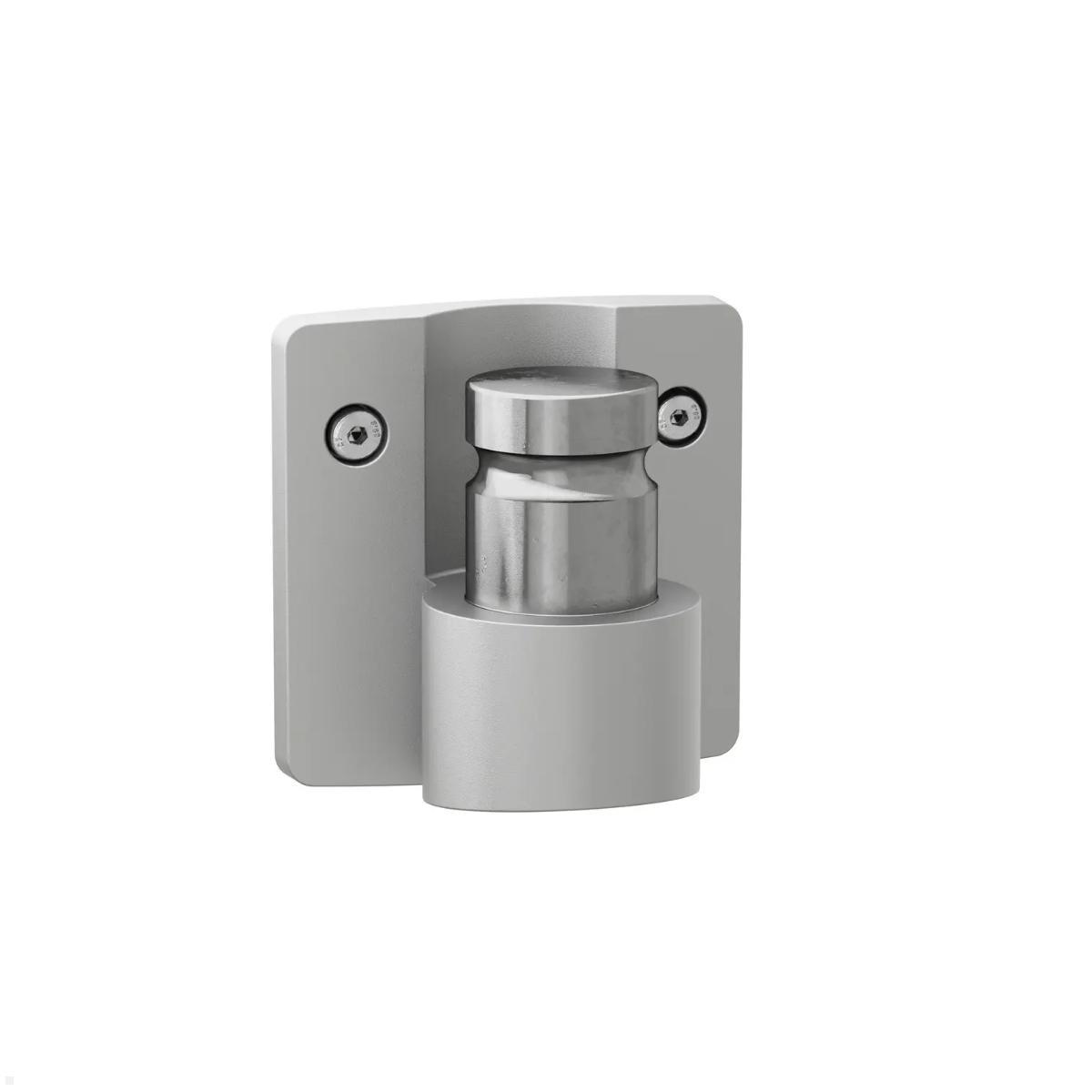

- Novus adapter for Slatwall (099+0089+001)
- Color: Silver
- Warranty: 5 years
Does your screen or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this Novus Clu Plus monitor mount (991+3009+001). Simply provide your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the mount and will contact you if it does not.
VESA standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

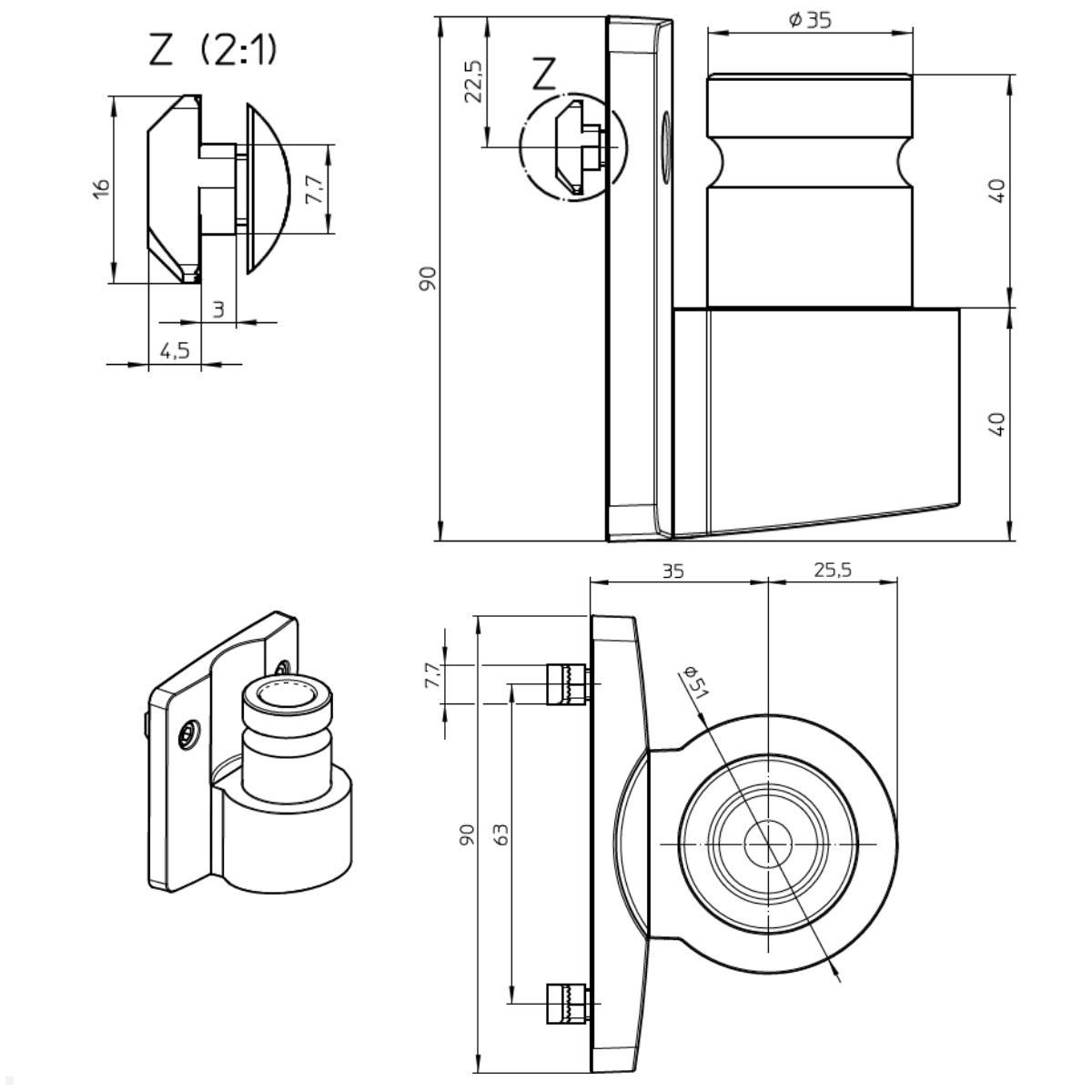

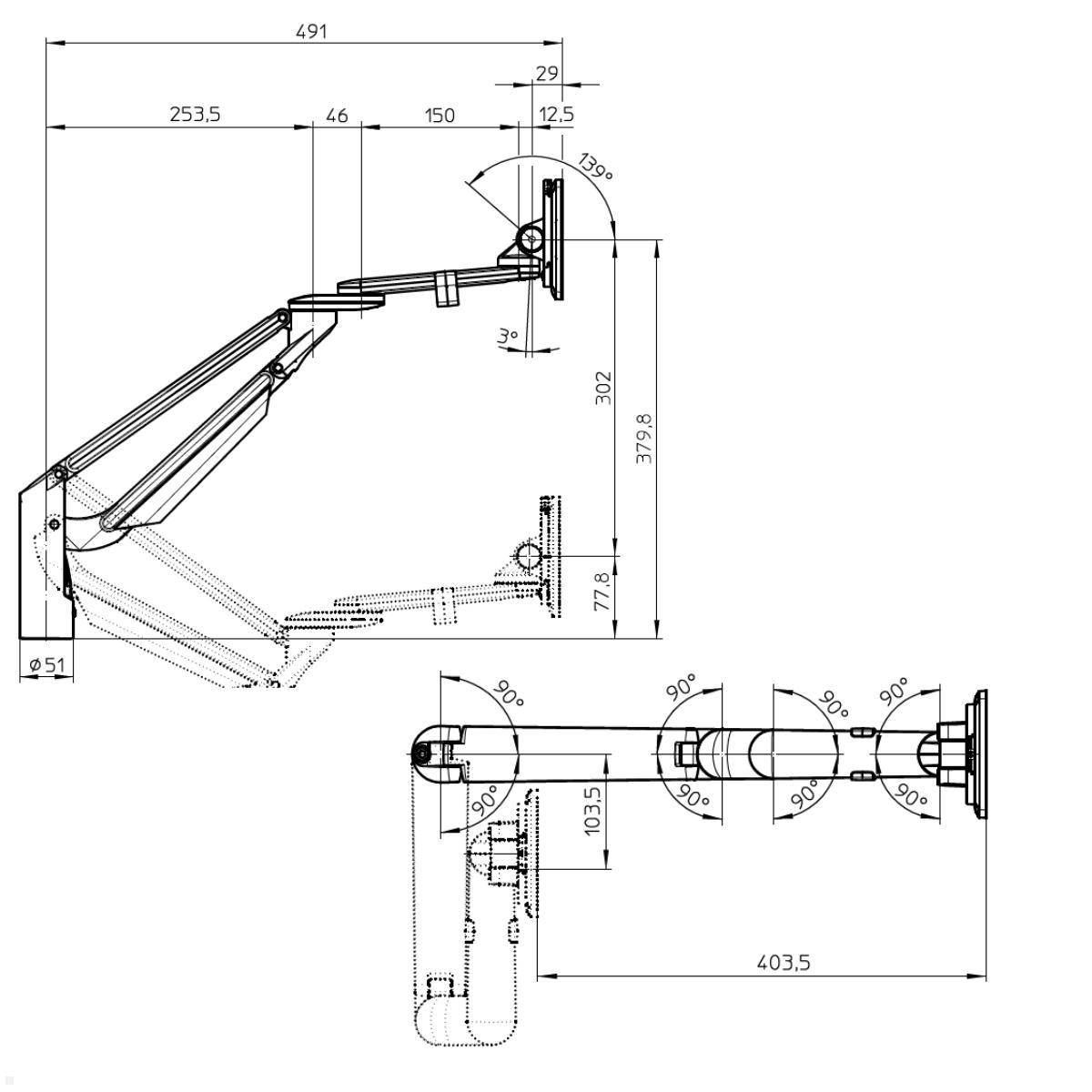

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 6 kg |
| Capacity: | 15 kg |
| Tilt: | 70° |
| Rotate: | 90° |
| Height range (mm): | 150 - 452 mm |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 491 |
| Screen size: | 19 - 50" |
| Material: | Aluminium, plastic |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x Clu Plus monitor bracket with slatwall adapter | 1x spacer screw set | installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | for Slatwall |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
15 December 2025 10:03
Rundum Produkt, lief reibungslos
Tut genau das, was es soll – perfekt. Sieht optisch sehr ansprechend aus.
Questions & Answers
-
What is the Novus Clu Plus Slatwall Monitor Arm?
A swivelling monitor arm for SlatWall organisational walls, in silver.
-
Which VESA sizes are supported?
VESA 75x75 mm and 100x100 mm.
-
What screen sizes and weight can it support?
Supports 19-40 inch screens with a load capacity of 6-15 kg.
-
What features does the arm offer?
Gas spring technology for ergonomic adjustment, QuickRelease with one-handed operation, individually adjustable joints, 360° swivel with an adjustable stop at 180°, tilt up to 70°, 360° rotation (Pivot), and integrated cable management.
-
How far does the arm reach and how adjustable is the height?
Reach is 525 mm; height is adjustable from 150 to 450 mm (center of VESA to desk surface).
-
How is it mounted and what is required?
Designed for SlatWalls/Organisational walls with the included adapter; installation is quick and easy; a spacer set may be required for recessed VESA holes (796+0905+000).
-
What is included in the package?
Spacer Screw Set (796+0905+000), Novus Clu Plus Slatwall Monitor Arm (991+3009+001) and Novus Adapter for Slatwall (099+0089+001).
Kunden kauften auch
Zubehör
What advantages does the Novus Clu Plus monitor arm offer for slatwall systems?
The Novus Clu Plus monitor arm for slatwall systems enables flexible, ergonomic screen positioning on slatwall systems. The powerful, two-part monitor arm with an integrated gas spring supports monitors from 6 to 15 kg and is suitable for screens up to 50 inches, including modern curved screens. The stepless height adjustment over a range of 300 mm ensures the monitor can be positioned precisely at eye level, preventing back and neck strain during long periods of work. The 360-degree rotation function with an adjustable stop at 180 degrees offers maximum flexibility in screen orientation. Thanks to the pivot function, the monitor can also be effortlessly switched from landscape to portrait orientation, which is particularly useful for programmers, graphic designers, or when working on long documents. The practical quick-release system with one-handed operation enables quick mounting and dismounting of the monitor according to VESA standards 75x75 and 100x100 mm. The adjustable friction on the swivel joints ensures the monitor remains securely fixed in any desired position.
For which application areas is the slatwall monitor mount suitable?
The Novus Clu Plus monitor mount for slatwall is ideal for workstations with slatwall systems and organizational panels. In offices and administrative areas, the screen can be mounted directly on the organizer wall, leaving the desk completely free. In workshops and industrial environments, the robust slatwall mounting provides reliable support even for heavy displays. In control rooms and monitoring centers, the swiveling monitor arm allows flexible positioning of multiple screens side by side. The mount also proves useful in retail and at sales counters, as the monitor is mounted space-saving on the wall while remaining flexibly adjustable. In medical practices and laboratories, users benefit from the hygienic wall mounting without intrusive desk clamps. The integrated cable management ensures a tidy appearance in all application areas.
Why is the gas spring technology particularly comfortable?
The gas spring technology used in the Novus Clu Plus clearly sets it apart from conventional monitor arms. While simple mounts can only lock the monitor into predefined stepped positions, the gas spring allows stepless and almost effortless positioning of the screen. The monitor can be adjusted in height with minimal force and remains exactly in the chosen position without slipping or vibrating. This feature makes the Clu Plus especially suitable for workstations where several people work in shifts and need to quickly adapt the monitor to their individual seating height. The reach of 491 mm provides sufficient leeway to pull the monitor closer or push it further away. In combination with the slatwall system, this creates a modular solution that can be flexibly adapted to different workplace requirements while maintaining a professional, uncluttered appearance.
