Novus Clu Plus X2 monitor mount for 2 monitors without mounting (992+2108+000), black
Highlights
- For 2 monitors up to 27 inches
- Gas spring, continuously height-adjustable
- QuickRelease one-handed operation, VESA
- 360° swivel, adjustable to 180°
- No mounting required, flexible use
Dual Monitor Mount with Gas Spring for Ergonomic Working
The powerful 2-part Novus Clu Plus X2 monitor mount for 2 monitors without fixing (992+2108+000), black, allows comfortable, ergonomic adjustment of two screens side by side. Thanks to the integrated gas spring, the height can be adjusted steplessly and almost effortlessly over a range of 300 mm. The double monitor crossbar offers an adjustable viewing angle for a concave monitor positioning so that both displays can be optimally aligned to the user. The maximum monitor width is 670 mm per screen with a load capacity of 2 x 2.5 to 7 kg.
This Novus dual monitor mount is supplied without a fixing and is therefore ideal for use with various Novus mounting systems such as desk clamps, TSS columns or through-bolt fixings. The simple monitor attachment is done via the QuickRelease system with one-hand operation, compatible with the VESA standard 75/100. With 360° swivel range and adjustable stop at 180° as well as a reach of 365 mm, the mount is suitable for offices, control rooms, reception areas and anywhere two monitors need to be positioned flexibly.
Technical Details Novus Clu Plus X2 Dual Monitor Mount
- Number of monitors: 2
- Arrangement: 2 monitors side by side
- Screen sizes: up to approx. 27 inches
- Maximum monitor width: 670 mm per screen
- Load capacity per monitor: 2.5 - 7 kg

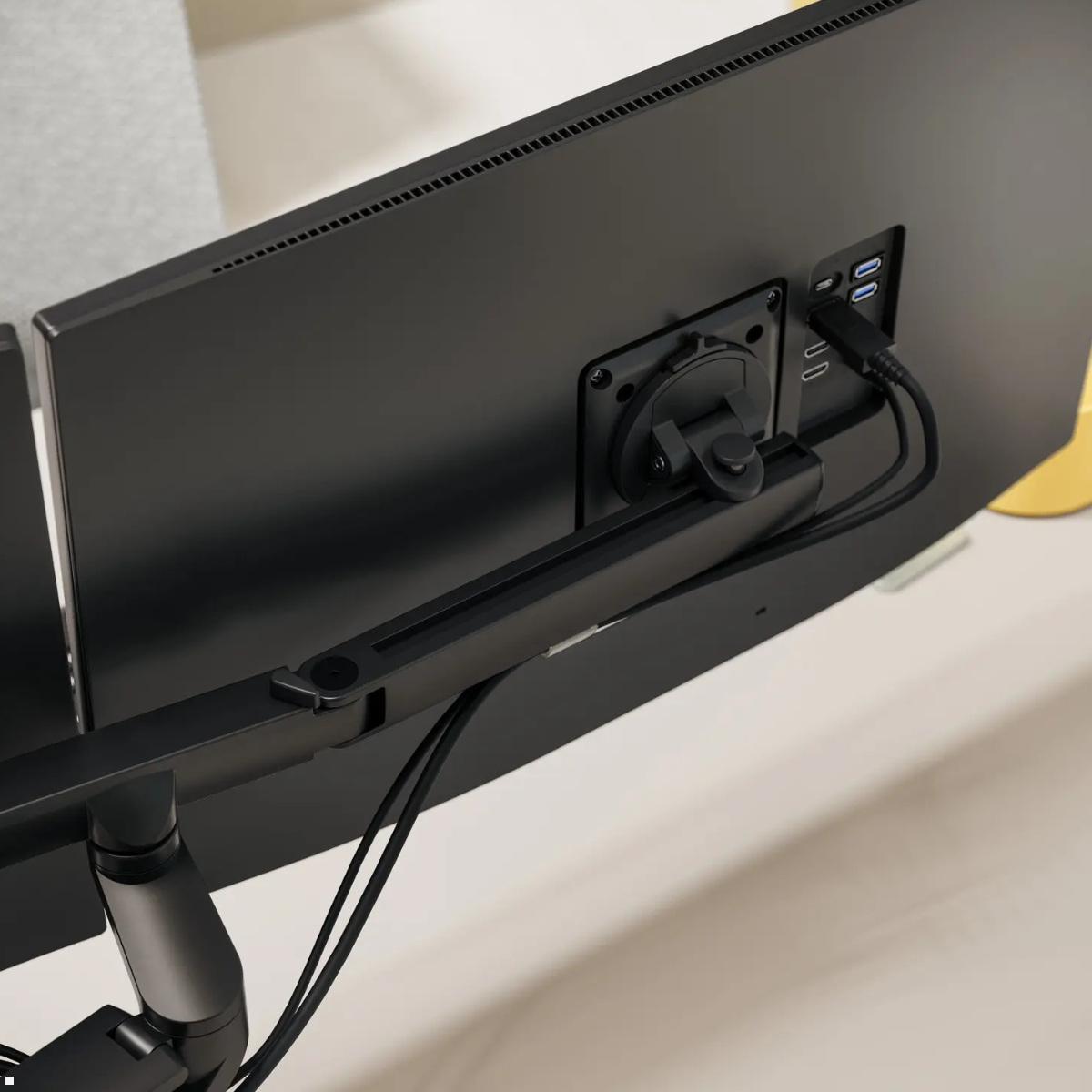

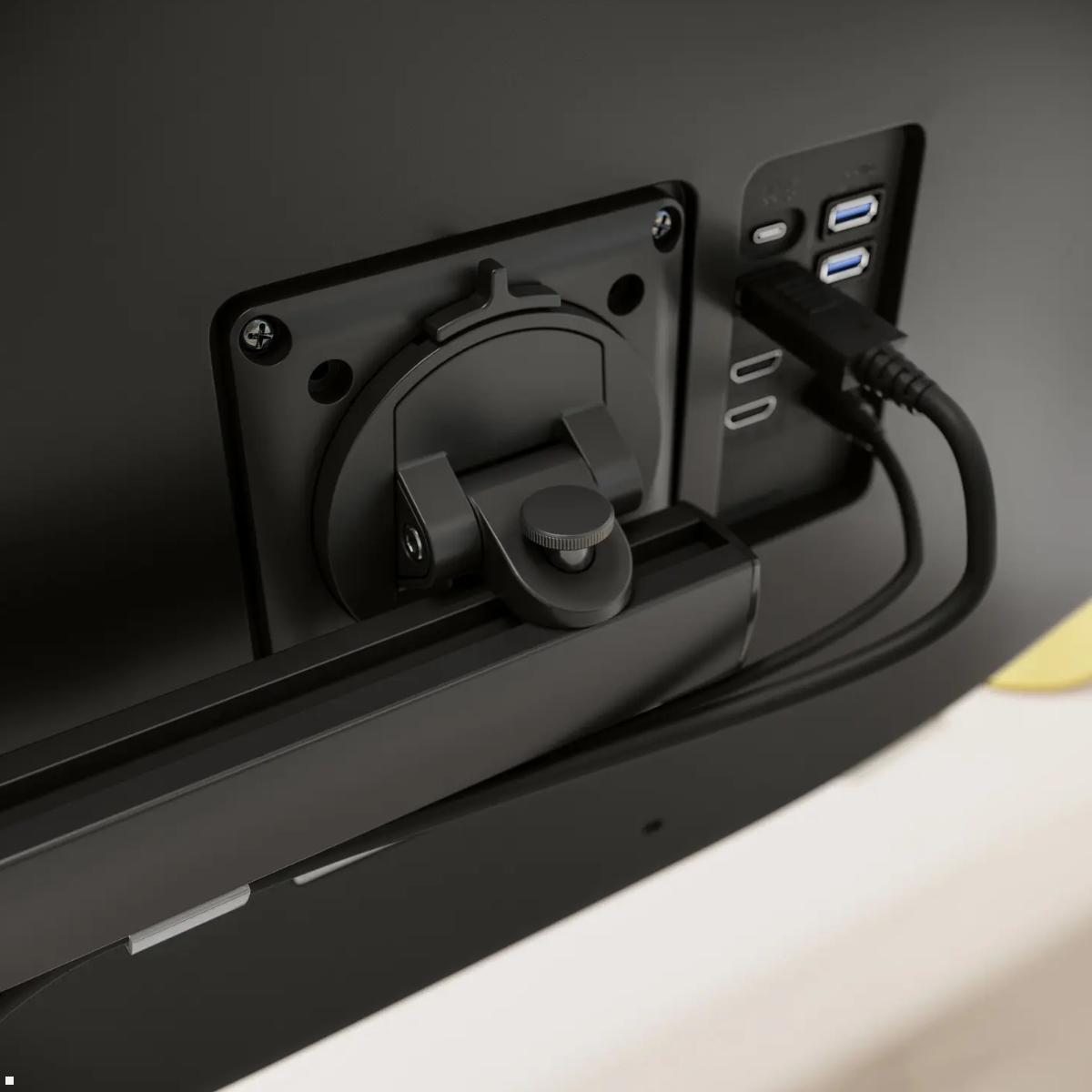

- QuickRelease monitor attachment with one-hand operation
- VESA mount: 75x75, 100x100 mm
- Swiveling: 360° with adjustable stop at 180°
- Height adjustable: 180 - 480 mm (center of VESA mount to table surface)
- Height adjustment range: 300 mm
- Reach: 365 mm
- Adjustable friction of the swivel joints
- Integrated cable management via cable clips
- Double monitor crossbar with adjustable viewing angle for concave positioning
- 2-part monitor arm with gas spring
- Without fixing – available separately
- TÜV Nord tested
- Warranty: 5 years
- Color: black
- Successor to 992+2008+000
Does your monitor or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this Novus Clu Plus X2 monitor mount (992+2108+000). Simply provide your model (manufacturer + model no.) at the end of the ordering process in the comment field. We will then check for you whether the monitor or display fits the mount and, if not, we will contact you.
VESA standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

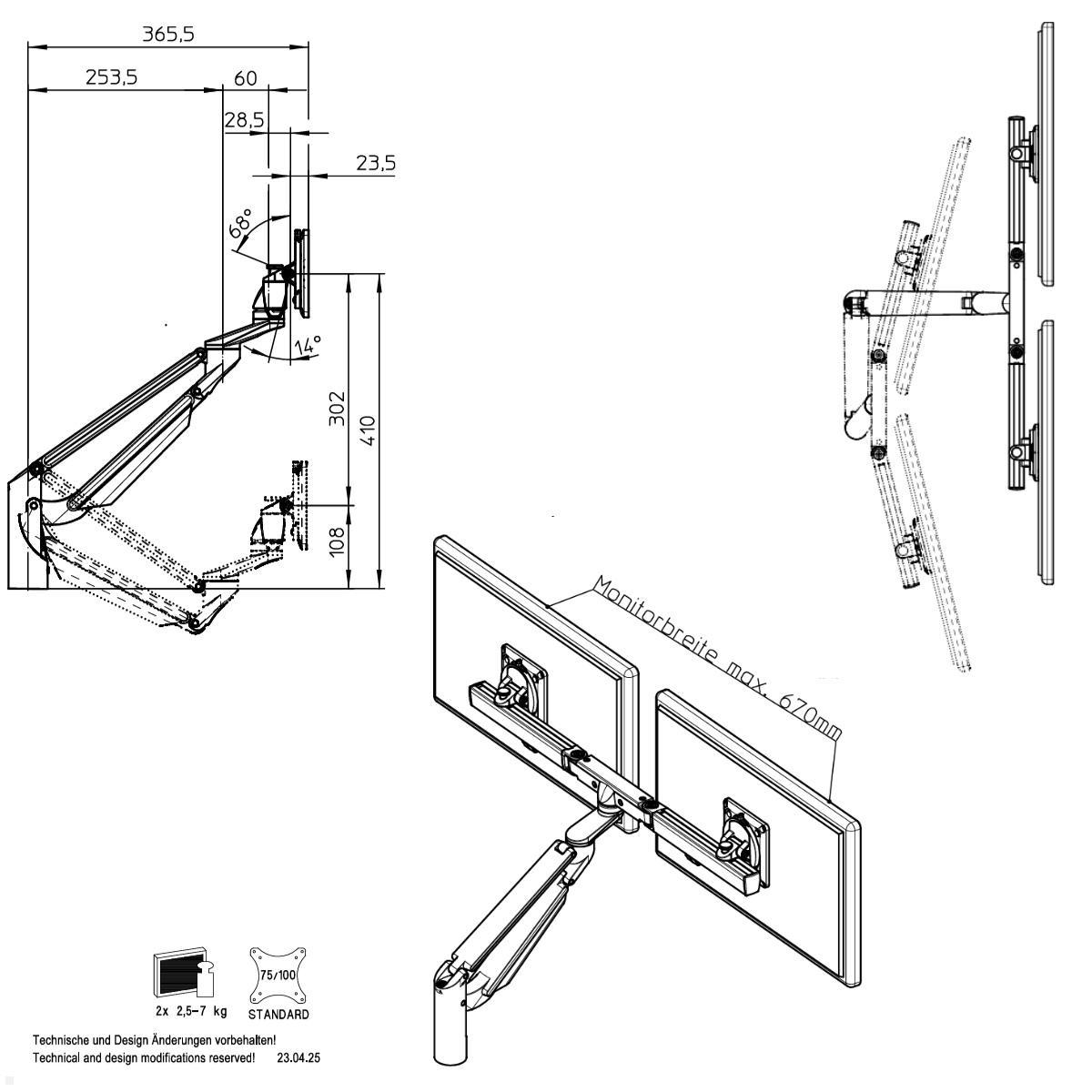

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2,5 kg |
| Capacity: | 7 kg pro Monitor |
| Height range (mm): | 180 - 480 |
| Swivelling range: | 360° |
| Length of the swivel arm: | 365 |
| Screen size: | 19 - 27" |
| Material: | Aluminium, Kunststoff |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x Clu Plus X2 monitor mount without mounting hardware |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | height adjustable , swivelling |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What does the Novus Clu Plus X2 offer?
A 2-part dual monitor arm with a gas spring for ergonomic adjustment of two side-by-side displays.
-
What is the weight capacity per monitor?
Weight capacity per monitor is 2.5–7 kg.
-
Which VESA sizes are supported?
VESA mounting compatible with 75x75 and 100x100 mm.
-
How high can the arm be adjusted?
Height is adjustable from 180 to 480 mm (centre of VESA to desk surface); total height adjustment range is 300 mm.
-
Is mounting hardware included?
Delivered without fixings; compatible with various Novus mounting systems such as desk clamps, TSS columns or through-bolting, sold separately.
-
What is the reach and movement?
Swivel 360° with an adjustable stop at 180°, reach 365 mm.
-
Warranty and certification?
TÜV Nord tested; 5-year warranty.
Kunden kauften auch
What advantages does the Novus Clu Plus X2 offer as a dual monitor arm without a mount?
The Novus Clu Plus X2 monitor mount without a mounting fixture offers maximum flexibility when setting up an ergonomic dual-monitor workstation. Since the monitor arm is supplied without a pre-made desk mounting, it can be combined with various Novus mounting options – whether a desk clamp, through-bolt mounting, or installation on a TSS column. The powerful two-part arm with integrated gas spring supports two monitors weighing 2.5 to 7 kg each and is suitable for screens up to approximately 27 inches with a maximum monitor width of 670 mm. The stepless height adjustment over a range of 300 mm ensures that both displays can be positioned exactly at eye level. Thanks to the gas-spring technology, adjustment is effortless and virtually weightless, which is especially beneficial in workplaces where multiple people work alternately. The double monitor crossbar also allows an adjustable viewing angle for a concave arrangement of the screens, which significantly improves viewing comfort during longer work sessions.
For which application areas is the dual monitor mount suitable?
The Novus Clu Plus X2 dual monitor mount is ideal for professional environments where two screens are required side by side. In offices and administrative settings, the ergonomic positioning reduces neck and back strain during long working hours. In control rooms, monitoring centers, and trading offices, users benefit from the 360-degree swivel with an adjustable stop at 180 degrees, which allows quick realignment of both monitors. Graphic designers and video editors appreciate the precise positioning of the displays and the ability to adjust the viewing angle individually. The swivelable dual monitor arm also proves useful at reception and counter areas, as both screens can be flexibly turned between employee and customer. The integrated cable management with cable holders ensures a tidy appearance at the workstation in all application areas.
Why is the QuickRelease system particularly practical?
The QuickRelease system with one-handed operation on the Novus Clu Plus X2 enables especially fast and uncomplicated mounting and dismounting of monitors according to VESA standard 75x75 and 100x100 mm. While conventional mounts often require loosening several screws, the monitor simply snaps into place with the QuickRelease and can be released again with just one hand. This not only saves time during initial installation but also greatly simplifies later replacement or maintenance of the screens. The adjustable friction of the swivel joints ensures that both monitors remain securely in the desired position. Combined with the robust construction and TÜV Nord certification according to the Equipment and Product Safety Act, the Novus Clu Plus X2 offers a reliable and durable solution for demanding dual-monitor workstations. The five-year manufacturer's warranty underscores the high quality of this product, developed in Germany.
