Novus Clu Plus X2 Monitor mount for 2 monitors up to 27 inches (992+2118+000), black
Highlights
- For 2 monitors up to 27 inches
- Gas spring, continuously height-adjustable
- 3-in-1 mounting, 10–50 mm desk thickness
- 360° swivel, adjustable to 180°
- QuickRelease one-handed operation, VESA

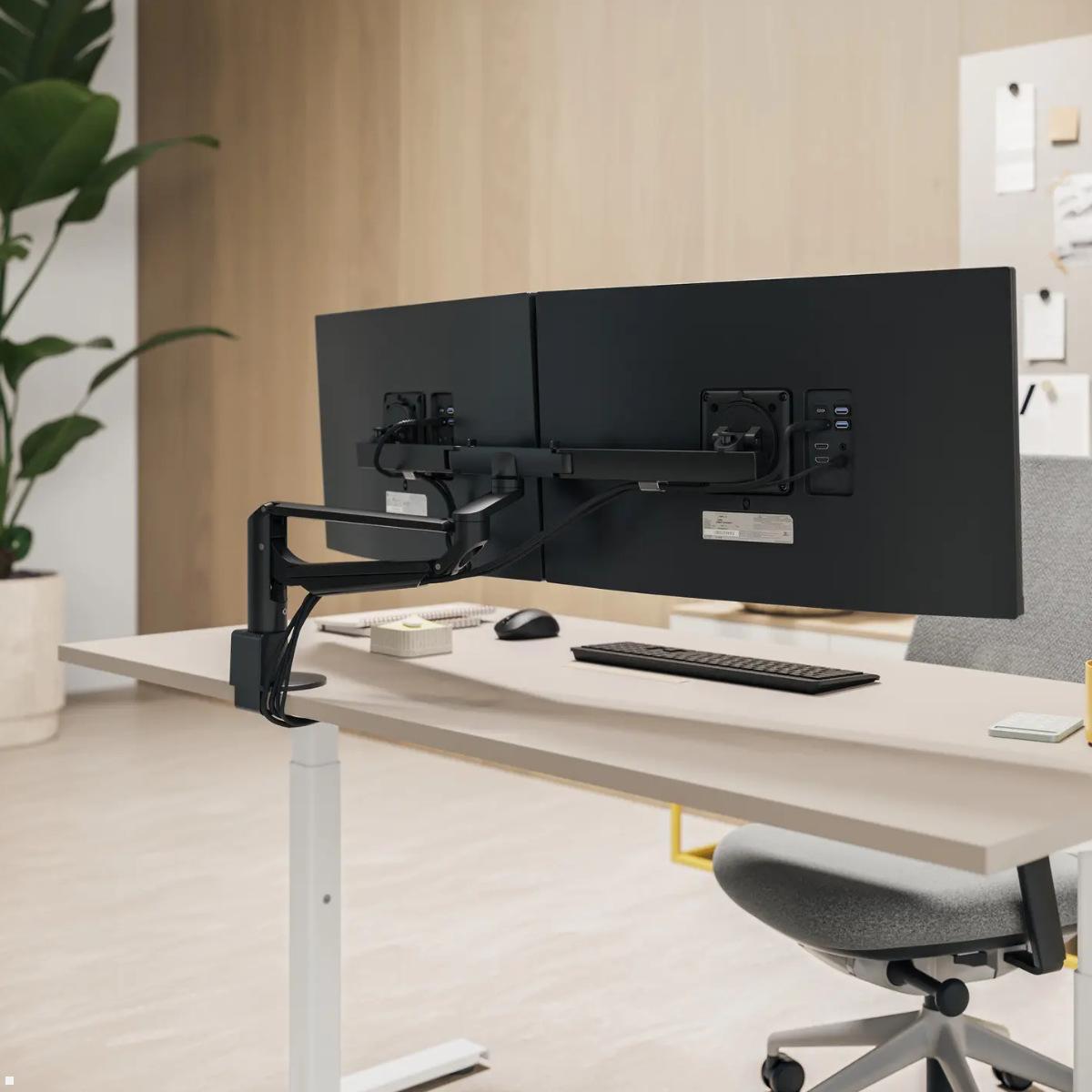

Dual desk mount with gas spring for two monitors side by side
The powerful Novus Clu Plus X2 monitor mount for 2 monitors up to 27 inches (992+2118+000), black, with a 2-piece monitor arm and integrated gas spring allows comfortable, ergonomic adjustment of two screens side by side. Thanks to the flexible 3-in-1 mounting (clamp, grommet and bolt-through mounting) the dual monitor mount can be mounted on tabletops with a thickness of 10-50 mm. The dual monitor crossbar offers an adjustable angle for concave monitor positioning so that both displays can be optimally aligned with the user. The maximum monitor width is 670 mm each with a load capacity of 2 x 2.5 to 7 kg.
The height can be adjusted steplessly and almost effortlessly over a range of 300 mm. The simple attachment of the monitors is done via the QuickRelease system with one-handed operation, compatible with the VESA standard 75/100. With a 360° swivel range and adjustable stop at 180° as well as a reach of 365 mm, the Novus desk mount is suitable for offices, control rooms, reception areas and anywhere two monitors need to be positioned flexibly. The integrated cable routing via cable clips ensures a tidy overall appearance.
Technical details Novus Clu Plus X2 dual desk mount
- Number of monitors: 2
- Configuration: 2 monitors side by side
- Screen sizes: up to approx. 27 inches
- Maximum monitor width: 670 mm per screen
- Load capacity per monitor: 2.5 - 7 kg

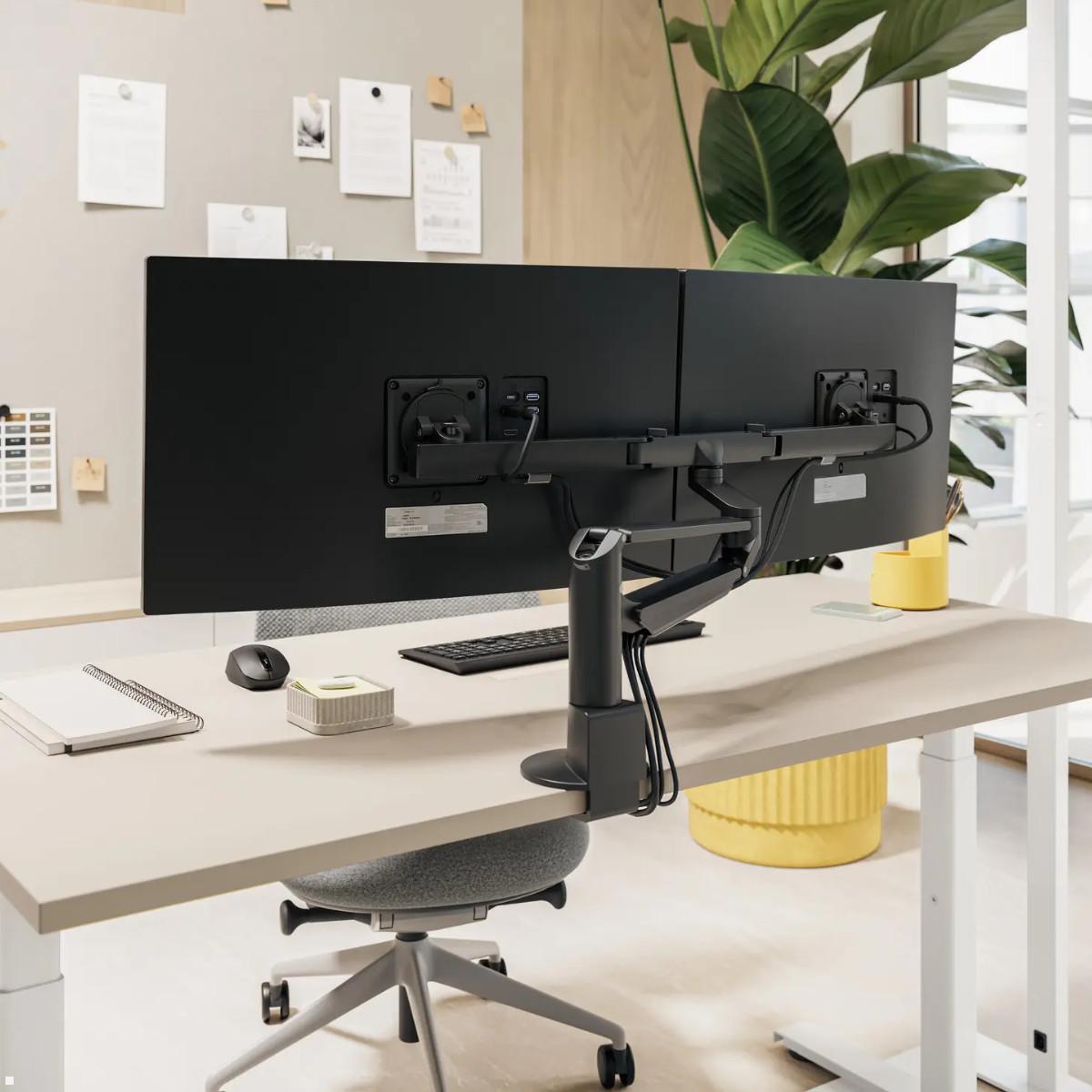

- Flexible 3-in-1 mounting: desk clamp, grommet mounting and bolt-through mounting
- Suitable for tabletop thickness: 10 - 50 mm

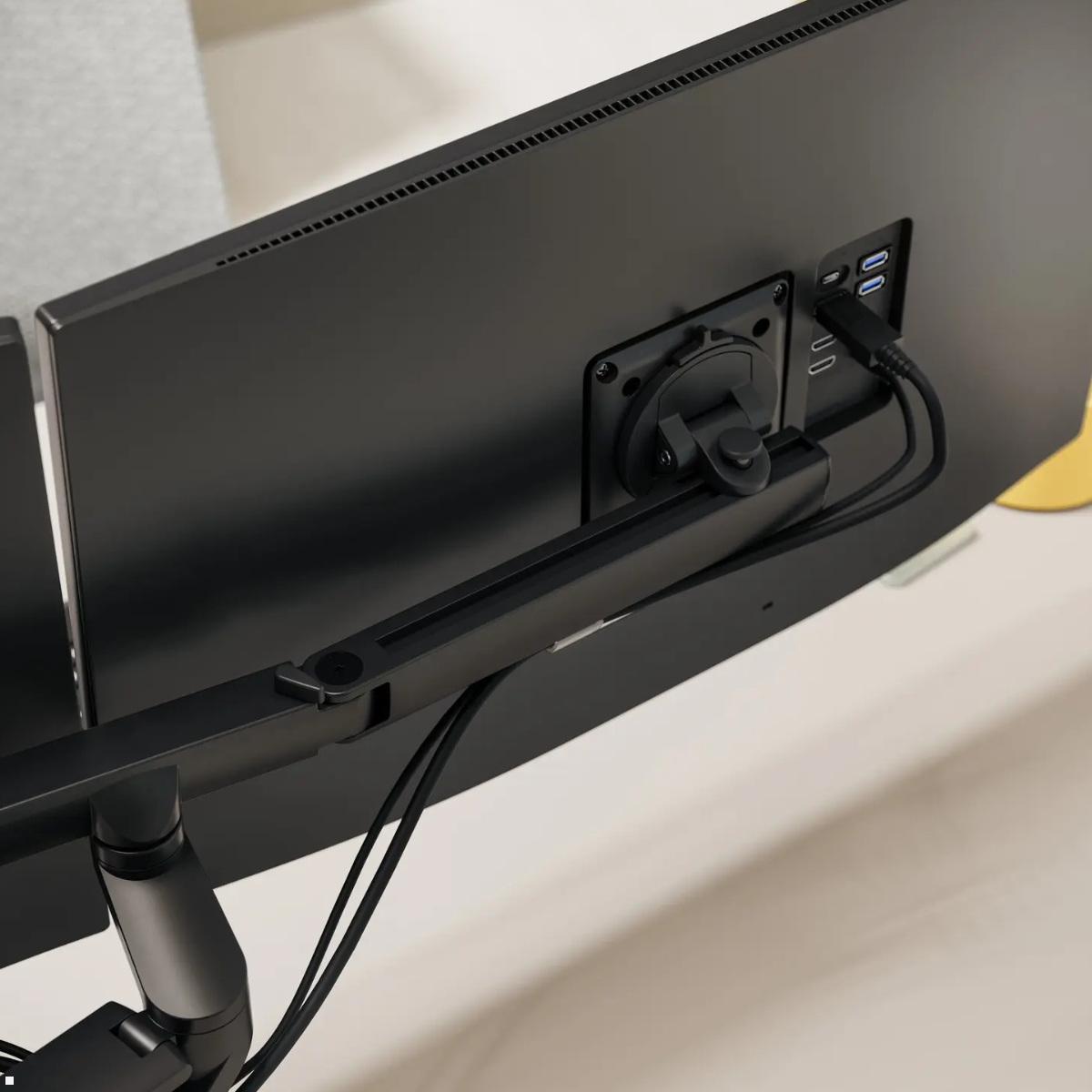

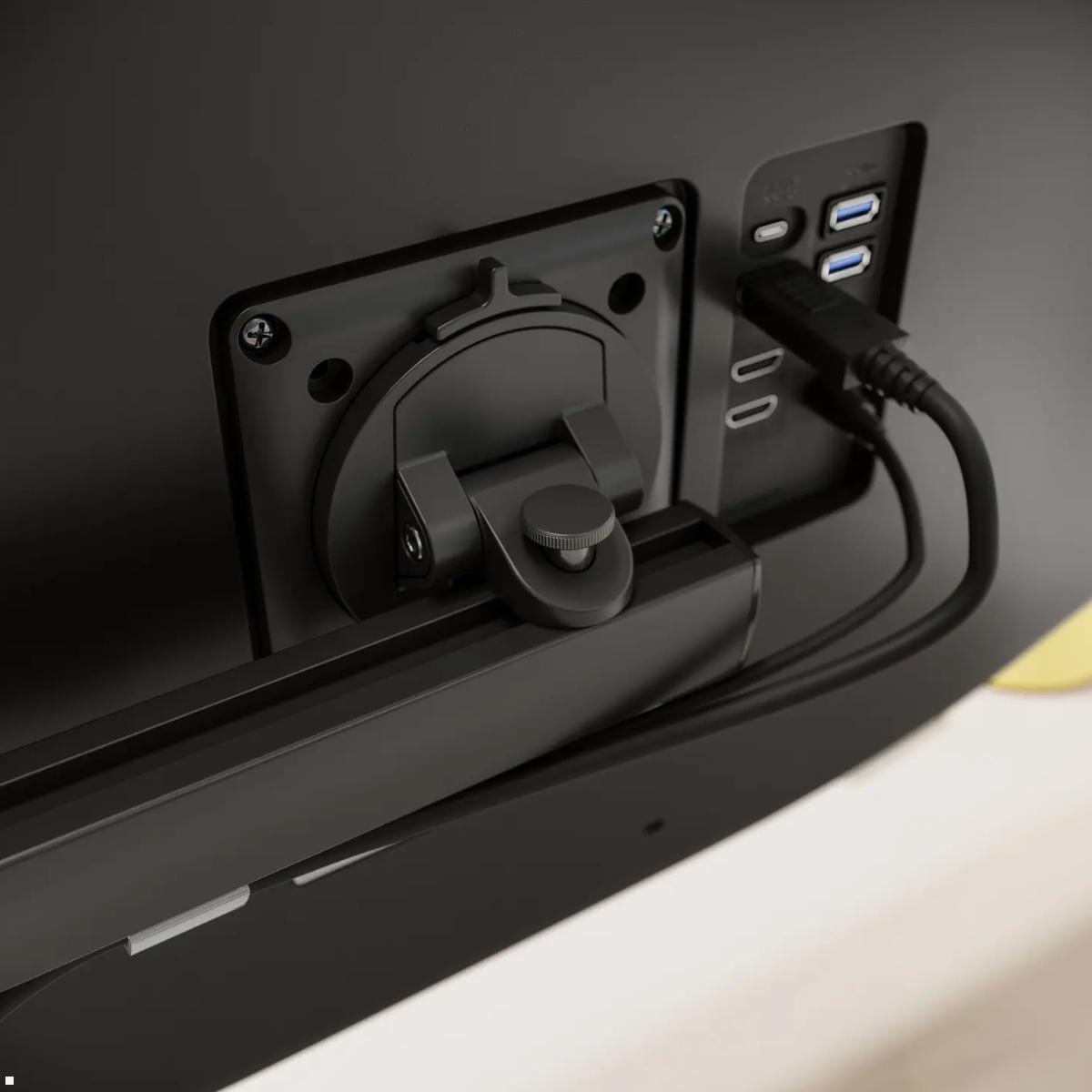

- QuickRelease monitor attachment with one-handed operation
- VESA mount: 75x75, 100x100 mm
- Swivel: 360° with adjustable stop at 180°
- Height adjustable: 180 - 480 mm (center of VESA mount to tabletop)
- Height adjustment range: 300 mm
- Reach: 365 mm
- Adjustable tensions of the swivel joints
- Integrated cable management via cable clips
- Dual monitor crossbar with adjustable angle for concave positioning
- 2-piece monitor arm with gas spring
- TÜV Nord certified
- Warranty: 5 years
- Color: Black
- Successor to 992+2018+000
Does your monitor or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this Novus Clu Plus X2 monitor mount (992+2118+000). Simply provide your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the mount and, if not, we will get back to you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2,5 kg |
| Capacity: | 7 kg pro Monitor |
| Height range (mm): | 180 - 480 |
| Swivelling range: | 360° |
| Length of the swivel arm: | 365 |
| Screen size: | 19 - 27" |
| Thickness of table (mm): | 10 - 50 |
| Material: | Aluminium, Kunststoff |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x Clu Plus X2 monitor mount with 3-in-1 desk mounting (clamp, grommet, and bolt-through mounting) | installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch |
| Mobility: | Drehbar, height adjustable , swivelling, tilting |
| Mounting type: | desk - cable hole fastening, desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
Note on Curved Monitors:
If a curved suitability is not explicitly mentioned with the mount, we do not guarantee that the mount is suitable for curved screens. We are happy to check the compatibility for you! Write us an email with your TV model and the desired monitor mount!
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
How many monitors does the Novus Clu Plus X2 support and what size?
It is designed for two monitors up to about 27 inches; load per monitor 2.5–7 kg.
-
What mounting options does it provide?
Flexible 3-in-1 mounting: desk clamp, cable hole, and drill screw fixing; suitable for desk thickness 10–50 mm.
-
What adjustability does it offer?
Height is adjustable over a 300 mm range; 180–480 mm from the center of the VESA to the desk surface; reach 365 mm; 360° swivel with an adjustable stop at 180°.
-
How do you attach the monitors?
Two-piece monitor arm with gas spring; QuickRelease mounting with one-handed operation; VESA 75×75 and 100×100.
-
Is there cable management?
Integrated cable management via a cable holder.
-
Any special features?
Double-monitor traverse with adjustable viewing angle for concave positioning; TÜV Nord tested; 5-year warranty.
-
How can I check if my screen fits?
Does your screen fit the VESA mounting? We will check by model (manufacturer + model number) at the end of checkout in the comment field.
Kunden kauften auch
What advantages does the Novus Clu Plus X2 monitor mount with 3-in-1 desk mounting offer?
The Novus Clu Plus X2 monitor mount with flexible 3-in-1 desk mounting combines maximum adjustability with ergonomic comfort at the dual-monitor workstation. Thanks to the three integrated mounting options – desk clamp, grommet mount and screw-through mounting – the mount adapts to almost any desk with a top thickness of 10 to 50 mm. The powerful two-part monitor arm with integrated gas spring supports two monitors weighing 2.5 to 7 kg each and is suitable for screens up to approximately 27 inches with a maximum monitor width of 670 mm. The stepless height adjustment over a range of 300 mm ensures that both displays can be positioned precisely at eye level. Thanks to the gas spring technology, adjustments are effortless and virtually weightless, which is especially advantageous at workstations used by multiple people in rotation. The dual monitor crossbar also allows an adjustable viewing angle for a concave arrangement of the screens, which significantly improves viewing comfort during longer work sessions.
For which applications is the 2-way desk mount suitable?
The Novus Clu Plus X2 dual desk mount is ideal for professional environments where two screens are required side by side. In offices and administrative settings, the ergonomic positioning reduces neck and back strain during long working hours. In control rooms, monitoring centers and trading offices, users benefit from the 360-degree swivel with adjustable stops at 180 degrees, which enables quick reorientation of both monitors. Graphic designers and video editors appreciate the precise positioning of the displays and the ability to individually adjust the viewing angle. The swivelable dual monitor arm also proves valuable at reception and service counters, as both screens can be flexibly turned between employee and customer. The integrated cable management via cable clips ensures a tidy appearance at the workstation in all application areas.
Why is the flexible 3-in-1 mounting particularly practical?
The flexible 3-in-1 mounting of the Novus Clu Plus X2 monitor mount offers three different installation variants in a single delivery. The desk clamp enables tool-free attachment to the desk edge and is particularly suitable when the desk is moved more often or the position needs changing. The grommet mount uses an existing cable opening in the desk for a stable and space-saving installation. The screw-through mounting provides the firmest hold and is ideal for permanent installations. The quick-release system with one-handed operation allows especially fast mounting and dismounting of monitors according to VESA standard 75x75 and 100x100 mm. The adjustable friction of the swivel joints ensures that both monitors remain securely in the desired position. In combination with the robust construction and TÜV Nord certification, the Novus Clu Plus X2 provides a reliable and durable solution for demanding dual-monitor workplaces. The five-year manufacturer warranty underlines the high quality of this product developed in Germany.
