Novus TSS Telescopic Arm III XL 700 Monitor Mount
Highlights
- Telescopic arm with long reach: Extends flexibly up to 700 mm
- QuickRelease system: Fast monitor mounting with single-lever operation
- VESA compatible: For 75 x 75 mm and 100 x 100 mm monitors
- High mobility: Swivels, tilts, and is precisely adjustable
- Available in silver or anthracite, suitable for TSS columns
TSS Telescopic Arm III XL 700 Monitor Mount for TSS Columns
The Novus TSS Telescopic Arm III XL 700 is a high-quality monitor arm with a telescopic guide for mounting on compatible TSS columns. The flexible monitor mount was specially developed for modern and ergonomic computer workstations and allows for particularly comfortable monitor positioning. Thanks to the integrated QuickRelease system with single-lever operation, the monitor can be attached or detached quickly and easily – without any tools. The mount supports the common VESA standards 75 x 75 mm and 100 x 100 mm. 100 mm and suitable for flat screens up to 8 kg. A special feature of the monitor arm is the continuously adjustable telescopic guide, which allows for flexible adjustment of the monitor position. The arm's reach can be variably adjusted and offers a maximum extension of up to 700 mm. This allows the monitor to be optimally adjusted to the individual seating position. The integrated ball joint ensures high mobility even in tight spaces and enables precise screen alignment. Additionally, the monitor can be swiveled and tilted, so the ideal viewing angle can always be set. The integrated cable management system ensures a tidy appearance in the workplace by neatly routing cables along the monitor arm. The monitor arm also impresses with its high-quality aluminum design and anodized finish, ensuring stability and a long service life. Removable clamping handles provide additional easy theft protection. Available in silver or anthracite, the monitor arm integrates harmoniously into various office and workplace environments. For a complete monitor mount, the telescopic arm must be combined with a TSS column.
Technical Details Novus TSS Telescopic Arm III XL 700 Monitor Mount Quick Release
- Suitable for 1 monitor
- Swivel: 190 degrees
- Tilt: 180 degrees
- Load capacity: max. 8 kg
- Swivel arm length: 371-619 mm
- Reach: approx. 476 – 724 mm
- VESA mount standard: 75x75mm and 100x100mm

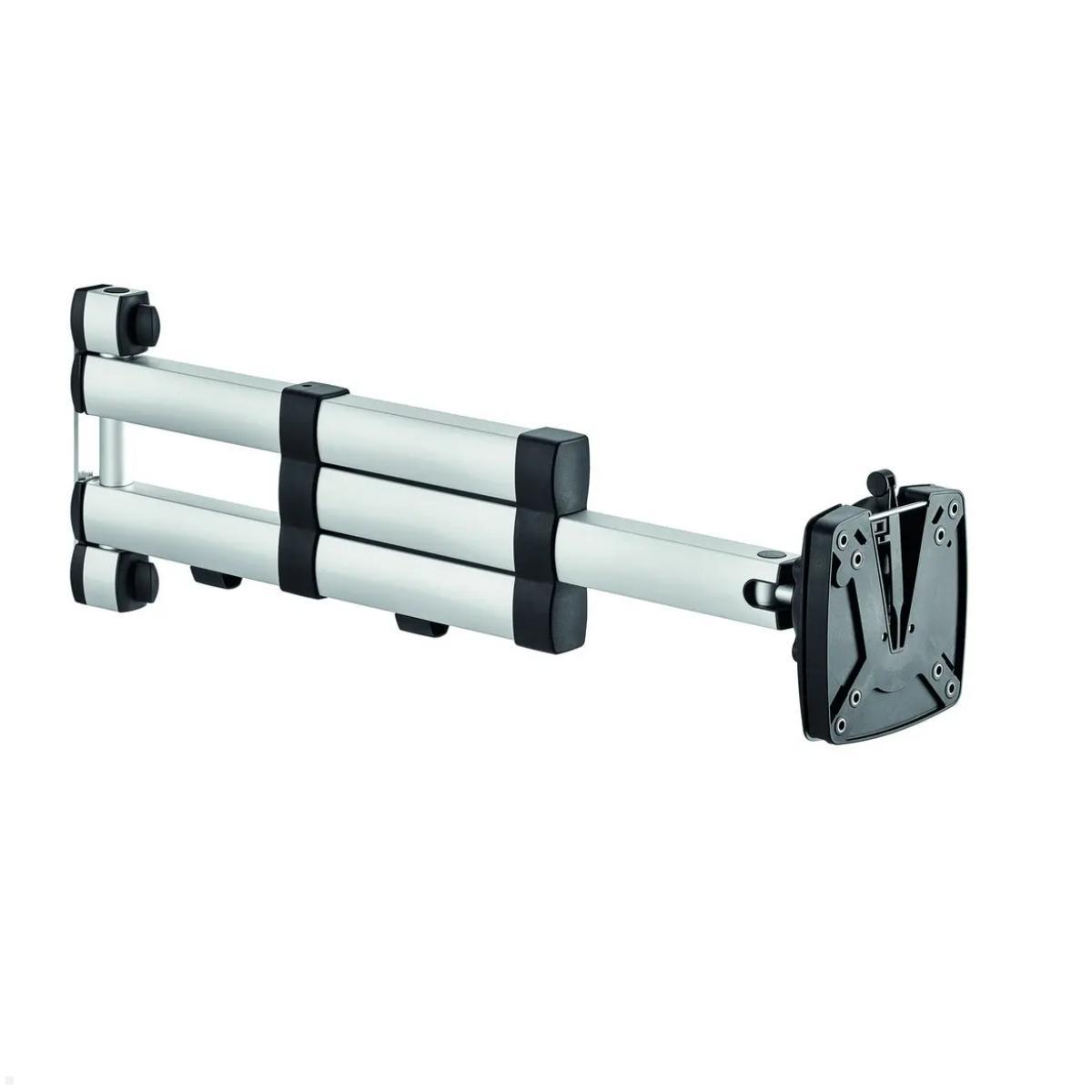

- Telescopic arm with stepless length adjustment
- QuickRelease system with single-lever operation for quick monitor changes
- Perfect cable management on and inside the support arm thanks to cable clips
- Ball joint for precise monitor positioning
- Removable tension handles for theft protection
- Material: Aluminum with anodized surface
- Mounting: on TSS columns

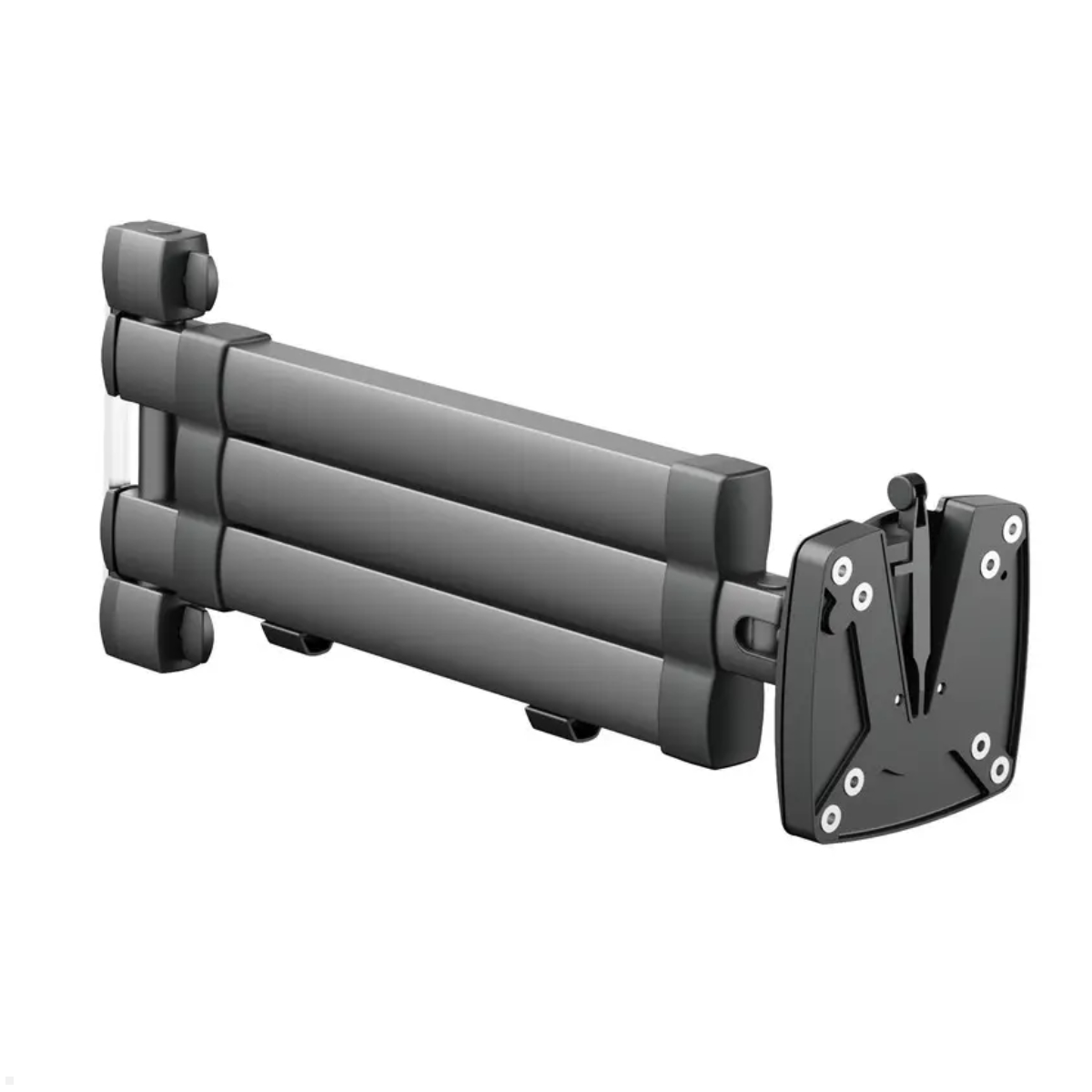

- Available in silver and anthracite
ATTENTION: The TSS Telescopic Arm III XL 700 must be combined with a TSS column for a complete monitor mount!
Will your screen or display fit?
We would be happy to check if your monitor is suitable for this mount. Simply provide us with your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display is compatible with the monitor mount, and if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf, 584 kb] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 8 kg |
| Tilt: | 180° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 190° |
| Length of the swivel arm: | 619 |
| Screen size: | 15 - 24" |
| Material: | Aluminium |
| VESA Standard: | 75x75mm, 100x100mm (www.vesa-standard.com) |
| Accessories: | Novus TSS columns |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | rotatable (pivot), swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
8 January 2026 22:10
Top Beratung
Sehr kompetente und freundliche Beratung.
Questions & Answers
-
What is the Novus TSS Telescoping Arm III XL 700 Monitor Arm?
The Novus TSS Telescoping Arm III XL 700 is a high-quality monitor arm with telescoping guidance for mounting on compatible TSS columns.
-
Which VESA standards does it support and what weight can it bear?
It supports VESA 75×75 mm and 100×100 mm and is suitable for flat panels up to 8 kg.
-
How flexible is its positioning?
The telescoping arm offers a reach of approximately 476–724 mm; it is also swivellable 190°, tiltable 180°, and features a ball joint for precise alignment.
-
How is the monitor mounted or exchanged?
The QuickRelease system with a single lever enables fast monitor mounting and removal without tools.
-
How is cable management handled?
An integrated cable management system keeps cables tidy along the monitor arm.
-
What colours is the arm available in?
Available in silver or anthracite.
-
What is required for a full monitor mounting?
A complete monitor mounting requires pairing the telescopic arm with a TSS column.
-
Is there an anti-theft feature?
Detachable clamping grips provide theft protection.
Kunden kauften auch
What makes the TSS Telescopic Arm III XL 700 monitor mount stand out?
The TSS Telescopic Arm III XL 700 is a high-quality monitor arm with a telescopic design, specifically developed for use with compatible TSS columns. This monitor mount offers a particularly flexible solution for ergonomic workstations in offices, home offices, or professional work environments.
Thanks to its robust construction, the monitor mount is suitable for flat screens weighing up to 8 kg. It attaches using the common VESA standards of 75 x 75 mm and 100 x 100 mm, allowing for easy mounting of numerous office monitors, business displays, and professional screens.
The telescopic function of the monitor arm is a key feature. This allows for stepless adjustment of the arm's length, enabling the monitor to be flexibly positioned closer to the user or further away. With a maximum reach of up to 700 mm, the monitor arm is ideal for workstations requiring a greater range of motion. The combination of a telescopic arm and TSS column enables a particularly space-saving yet highly flexible monitor mount for modern workplaces.
What flexibility does the telescopic monitor arm offer?
The monitor arm features several movable elements that allow for convenient adjustment of the screen position. Thanks to the telescopic mechanism, the arm can be extended or retracted to achieve the ideal monitor position.
In addition, the monitor can be swiveled and tilted. The swivel range of approximately 190° and the generous tilt range allow for optimal screen alignment. This allows the monitor to be precisely adjusted to the individual seating position.
An integrated ball joint ensures particularly precise monitor positioning. Even in confined spaces, the screen can be flexibly adjusted, ensuring a comfortable and ergonomic viewing angle at all times.
How does the QuickRelease system simplify monitor installation?
The monitor arm is equipped with a practical QuickRelease system with single-lever operation. This allows for particularly quick and easy mounting and removal of the monitor.
The monitor is simply inserted into the mount and securely fixed – no tools required. This feature is particularly advantageous in modern office workstations, IT environments, or shared-desk setups where monitors frequently need to be changed or adjusted. In addition, the integrated cable management system on and within the monitor arm ensures clean cable management. Cables are routed safely along the arm, creating a tidy workspace.
Why is this monitor arm ideal for modern office workstations?
The monitor arm impresses with its high-quality construction from anodized aluminum, which ensures stability and a long lifespan. Its elegant design also makes the monitor mount a visual highlight on any desk. Removable clamping handles provide added security, allowing for easy theft prevention. The well-designed construction also allows for particularly convenient adjustment of the monitor's movement.
The monitor arm is available in silver or anthracite, making it easy to integrate seamlessly into various office furnishings, workstation concepts, or modern desk setups. Due to its high flexibility, long reach and easy installation, the monitor arm is ideal for ergonomic screen workstations, professional monitor mounts, control stations or flexible office environments.
