RAM Mounts Screw Clamp B-Ball for 12.7-25.4 mm Diameter (RAM-B-231U)
Highlights
- For pipes 12.7 - 25.4 mm in diameter
- B-ball (1 inch) ball system

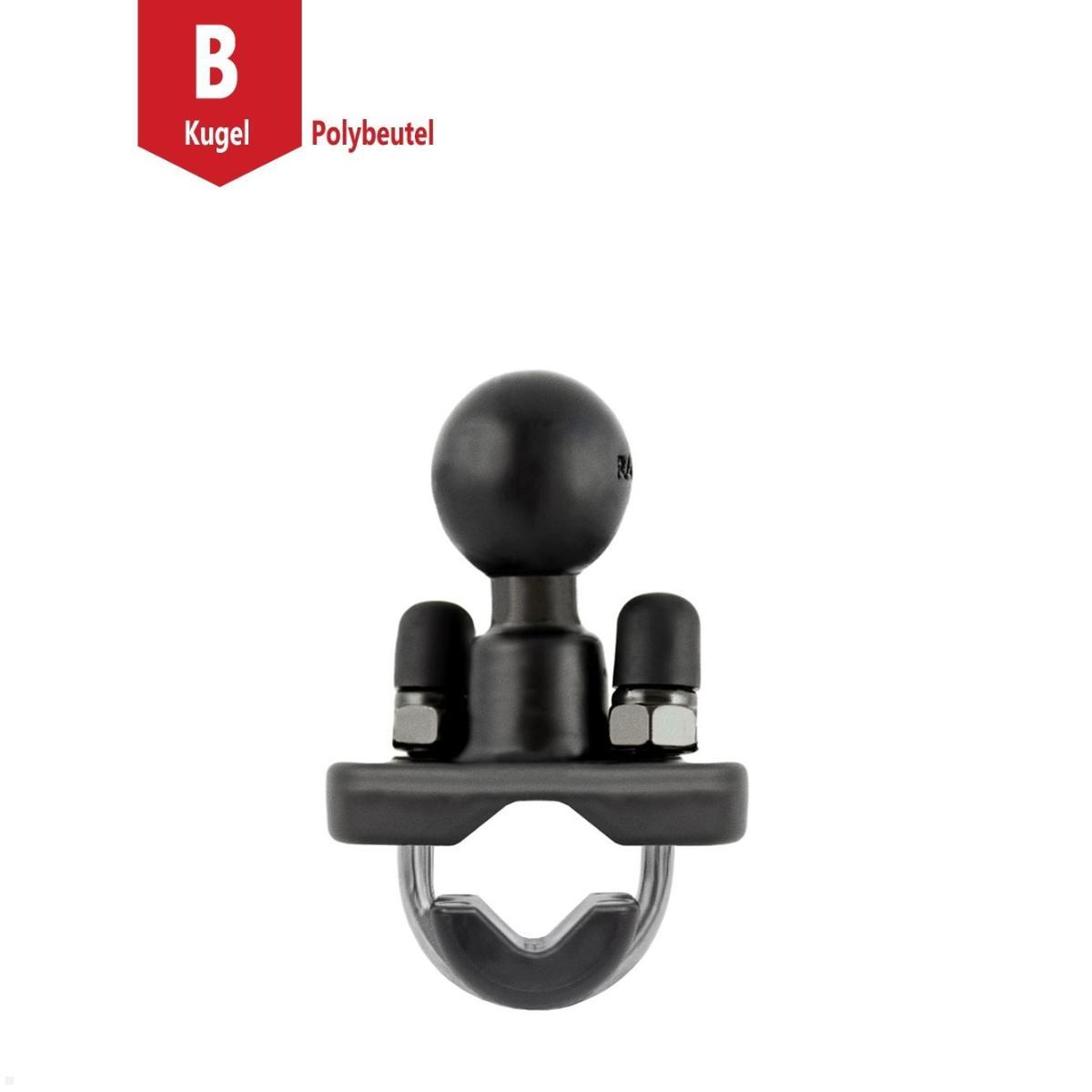

- Includes U-bracket made of stainless steel

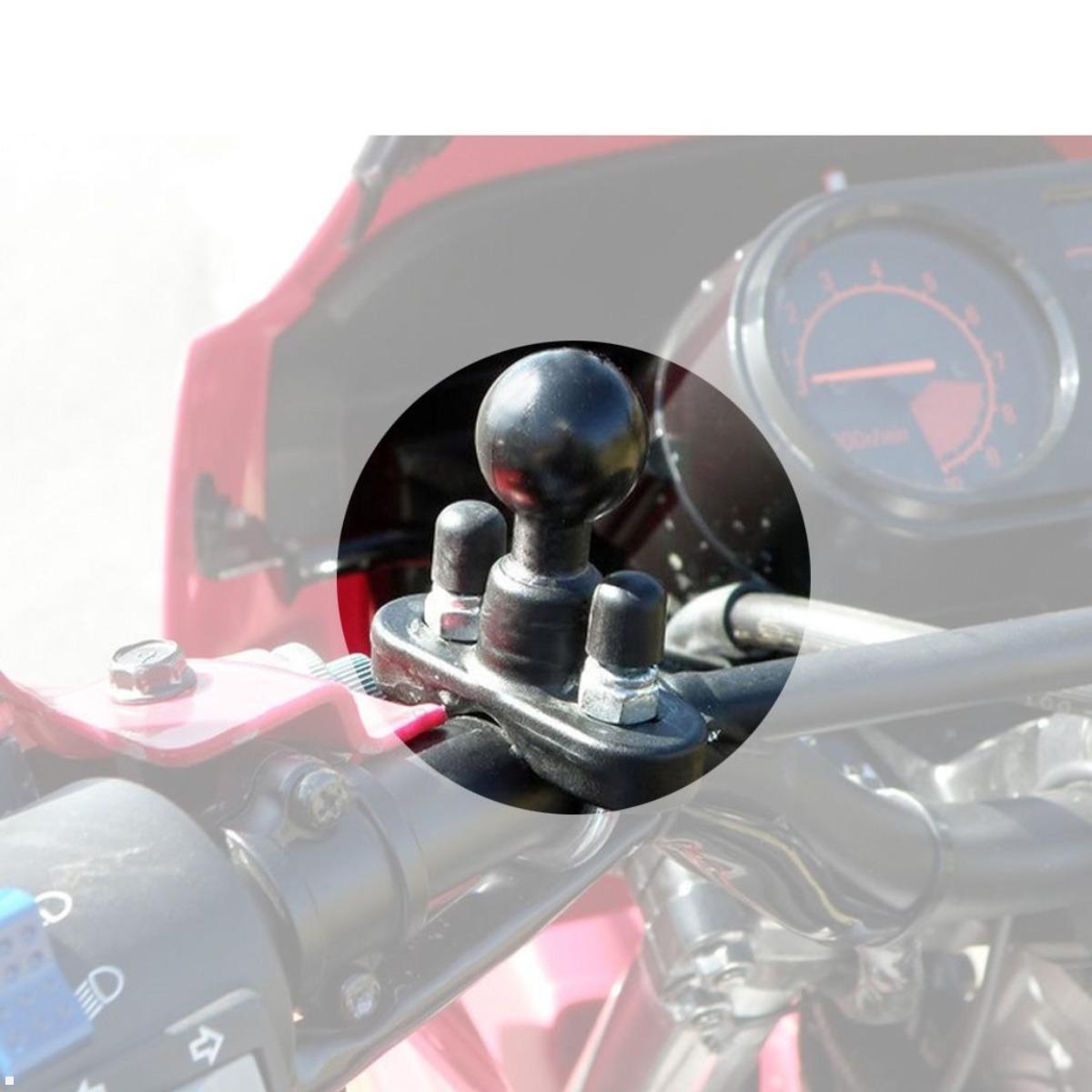

- Composite adapter for thin pipes
- 30-year manufacturer's warranty
Clamp for Handlebars and Tubes with B-Ball
The RAM Mounts screw clamp B-Ball for 12.7–25.4 mm diameter (RAM-B-231U) is a compact clamping base for the RAM ball-arm system. It is ideal for mounting on handlebars, tubes and similar constructions with a diameter of up to 25.4 mm. Thanks to the included composite adapter, thinner tubes from 12.7 mm diameter can also be securely fastened.
The U-bolt made of stainless steel provides lasting corrosion resistance. Two rubber covers protect the tube surface from damage. Made of powder-coated aluminum, the clamp weighs only approx. 95 g. Areas of application range from motorcycles and bicycles to boats and industrial pipe constructions.

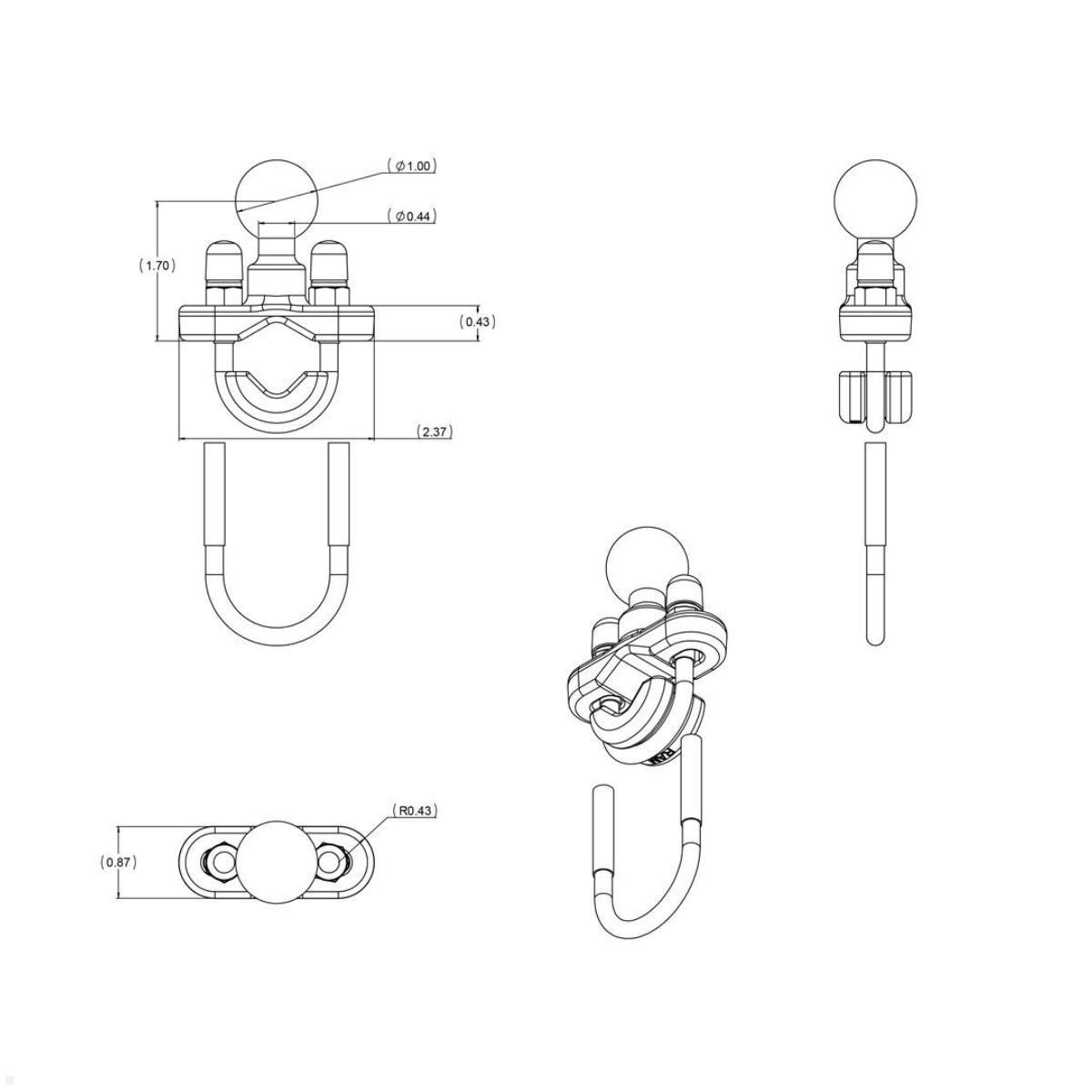

Technical Details RAM Mounts Clamp Tube Fastening
- Material: powder-coated aluminum, stainless steel (U-bolt), rubber caps
- Ball diameter: 25.4 mm (1 inch, B-Ball)
- Tube diameter: 12.7 to 25.4 mm
- Weight: approx. 95 g
- Color: black
- Packaging: polybag
- Package contents: 1x clamp, U-bolt, 2x nuts, 2x rubber covers, 1x composite adapter
| Material: | pulverbeschichtetes Aluminium, rostfreier Stahl, Gummikappen |
|---|---|
| Contains installation material: | + |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What can the RAM Mounts clamp RAM-B-231U do?
The RAM Mounts clamp B-ball 12-25 mm (RAM-B-231U) is a versatile clamping base specifically designed for thinner tubes and handlebars. The clamping range extends from 12.7 to 25.4 mm in diameter, covering a wide spectrum of tube profiles. Particularly noteworthy is the included composite adapter, which enables mounting on especially thin tubes from 12.7 mm in diameter. The B-ball with a 1-inch diameter forms the connection to the patented RAM ball-and-arm system. The U-bolt made of stainless steel offers excellent corrosion resistance and is also well suited for marine use. Two rubber covers protect the tube surface from damage and prevent the clamp from slipping.
What special features does the clamp have compared to other tube clamps?
Compared to the sister clamp RAM-B-231-1U for larger tubes, the RAM-B-231U is distinguished by its extended lower range. The composite adapter fills the gap on thinner tubes and ensures a flush contact of the clamp. The combination of powder-coated aluminum for the clamp and stainless steel for the U-bolt offers an optimal material pairing. The clamp weighs only about 95 g and is delivered in a polybag. The compact design also allows use in hard-to-reach places, such as on thin tubes under dashboards or on instrument mounts.
On which vehicles and devices is the RAM-B-231U used?

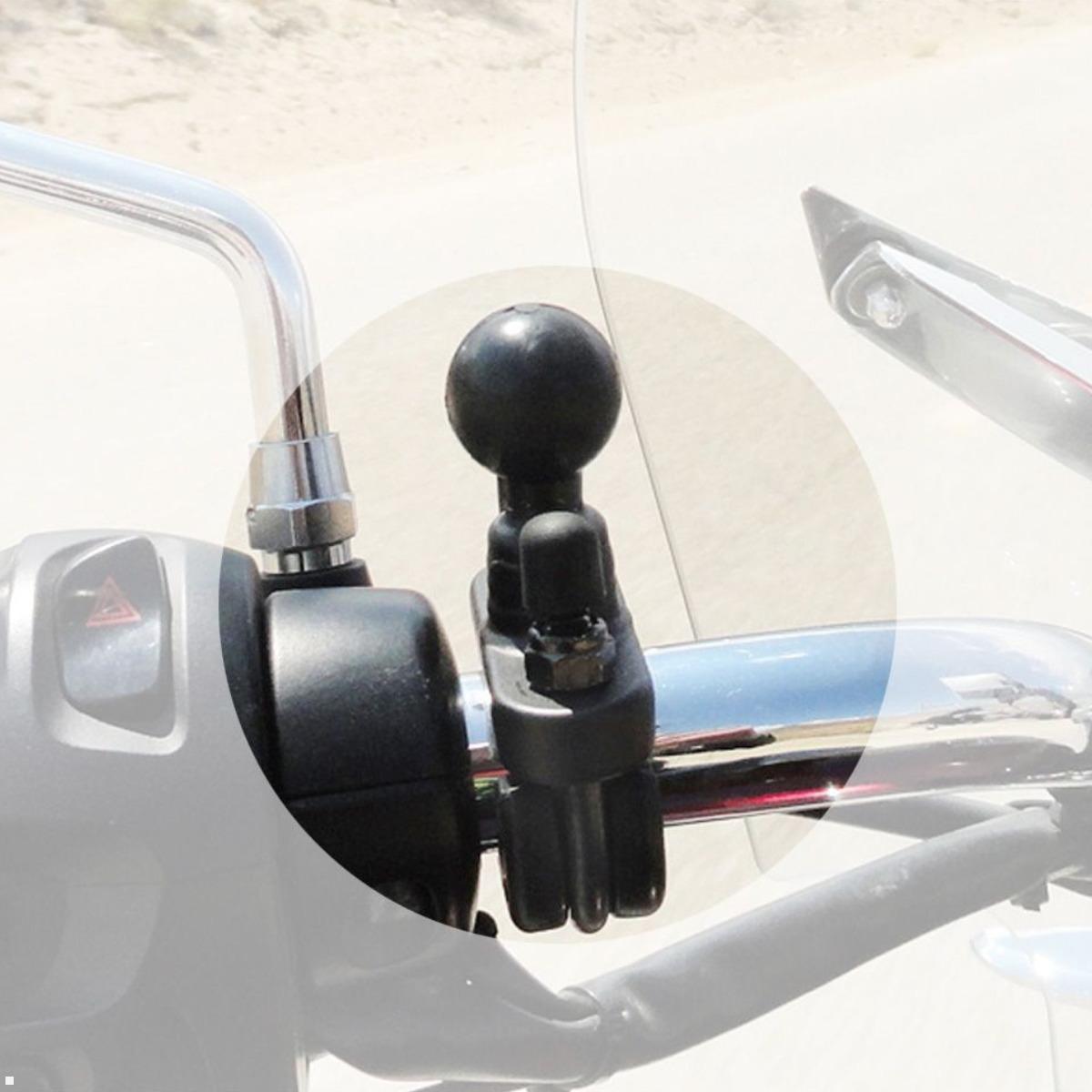

The clamp is used in numerous areas. Cyclists use it to mount smartphones and GPS devices to handlebars. In the marine sector it is used on thin railings or instrument tubes. It is also used in industry, on machines, or in special-purpose vehicles. Thanks to universal compatibility with the RAM B-ball system, mounts for almost any device can be configured. RAM Mounts' 30-year manufacturer warranty completes the package and provides long-term assurance.
