RAM Mounts V-base with tube clamp B-ball (RAM-B-108BU)
Highlights
- B-ball (1 inch) at a right angle
- For pipes 25.4 - 53.34 mm
- Powder-coated aluminum and steel
- Includes metal loops and rubber band
- 30-year manufacturer's warranty
V-base with Pipe Clamp and B-ball System
The RAM Mounts V-base with pipe clamp B-ball (RAM-B-108BU) provides a reliable mounting solution for the patented RAM ball-arm system. The B-ball (1 inch) is positioned at a right angle to the base and allows flexible mounting configurations. The supplied pipe clamps fit pipes with a diameter of 25.4 mm to 53.34 mm and provide a secure hold on handlebar tubes, railings, or pipe structures.

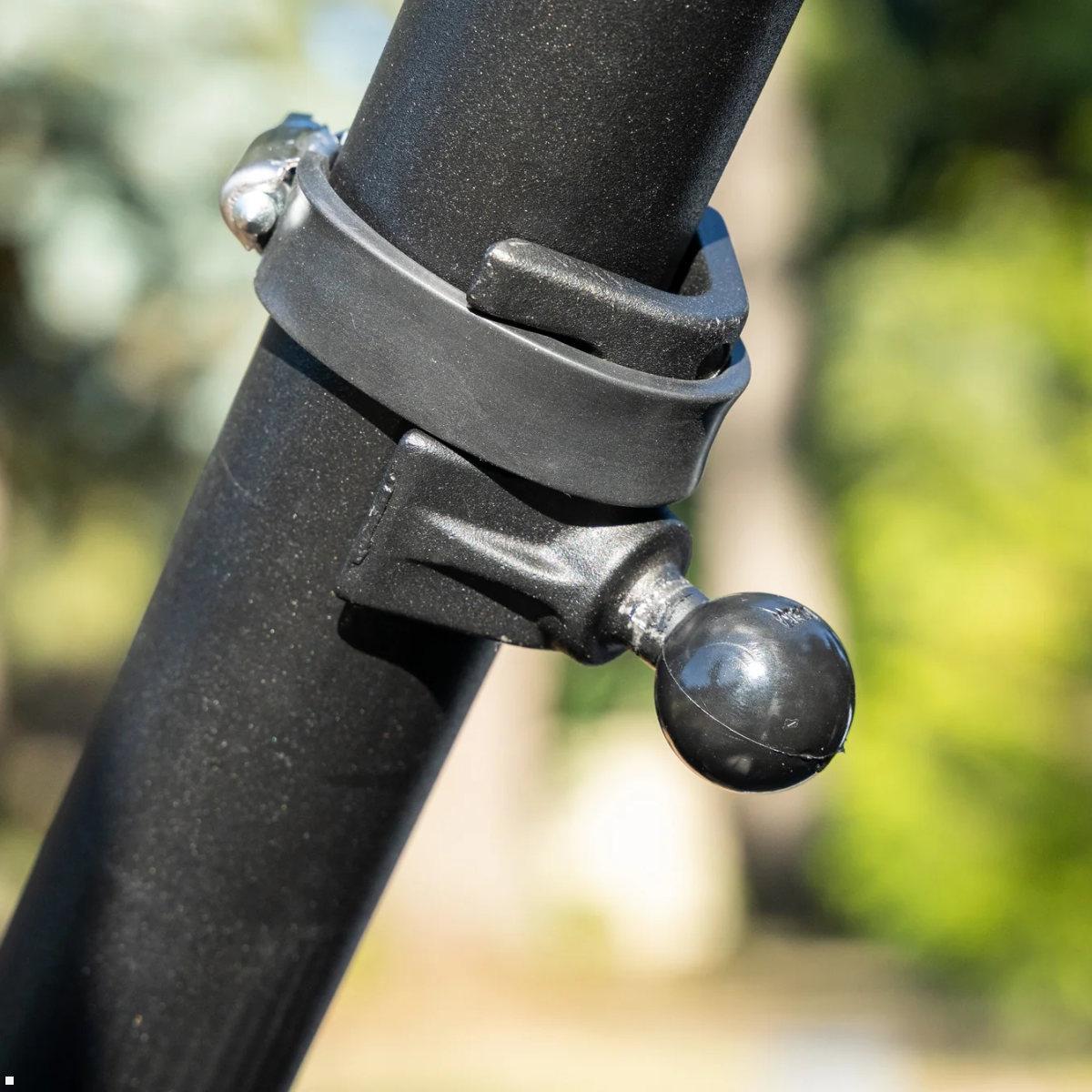

Installation is particularly simple: position the V-base on the desired pipe, place the metal clamp around pipe and base, and tighten the screw. The included rubber band protects the pipe surface from scratches. Made from powder-coated aluminum and steel, this base is suitable for use on motorcycles, bicycles, boats and in industrial applications.

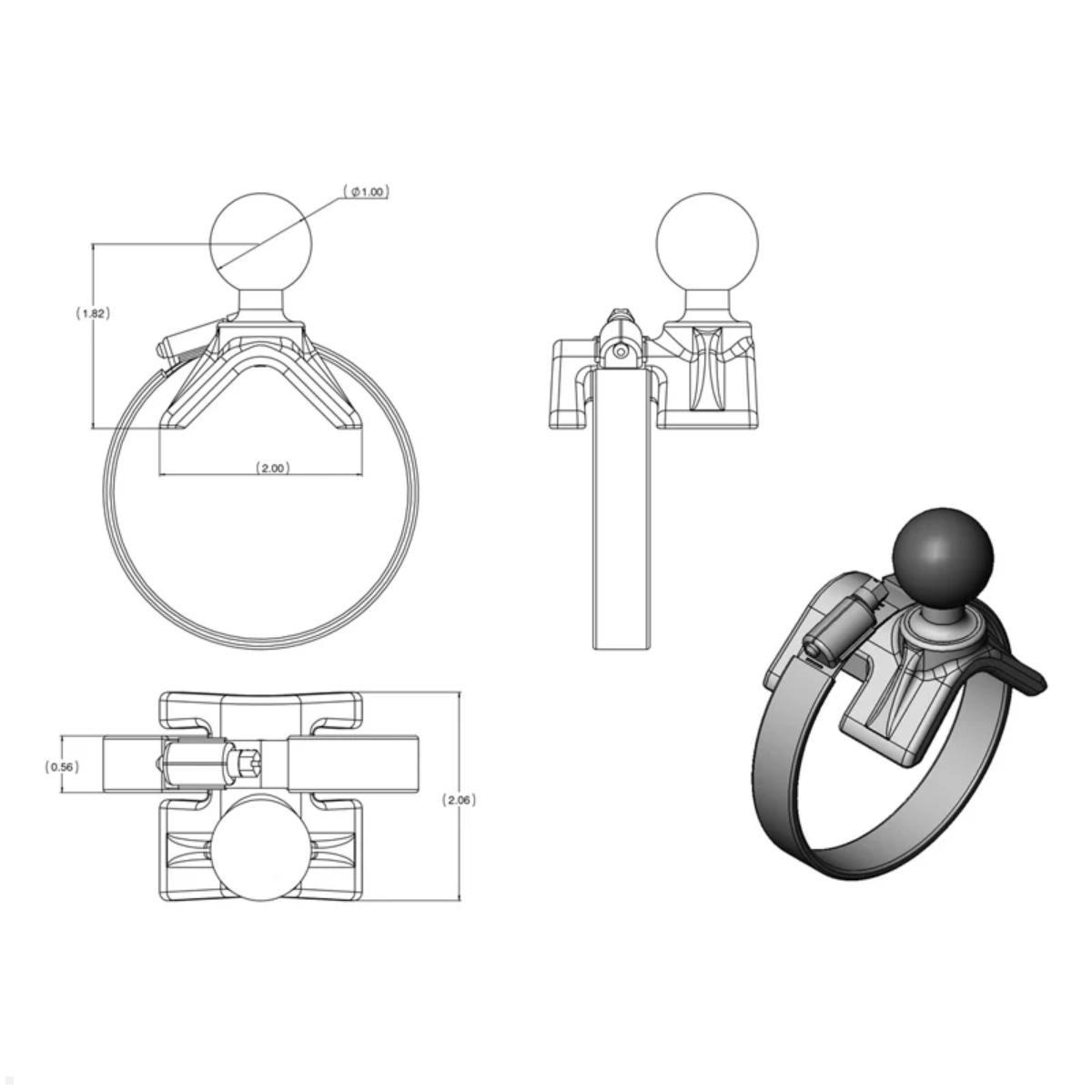

Technical Details RAM Mounts V-base Pipe Clamp B-ball
- Material: powder-coated aluminum, steel
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Pipe diameter: 25.4 mm to 53.34 mm
- Color: black
- Weight: approx. 127 g
- Contents: 1x V-base with B-ball, 1x metal clamp 152.4 mm, 1x metal clamp 203.2 mm, 1x rubber band 139.7 mm
- Packaging: polybag
| Material: | pulverbeschichtetes Aluminium, Stahl |
|---|---|
| Contains installation material: | + |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What is the RAM Mounts V-base with pipe clamp suited for?
The RAM Mounts V-base with pipe clamp B-ball (RAM-B-108BU) is a versatile base element for the RAM ball-arm system. With this V-base, various mounts can be attached to pipes with a diameter from 25.4 mm to 53.34 mm. Areas of use range from motorcycles and bicycles to boats and industrial pipe constructions. The B-ball with a 1-inch diameter forms the starting point for individual mounting configurations that securely hold smartphones, GPS devices, cameras, or other small devices. Installation is quick and requires little or no tools: position the V-base on the pipe, fit the metal strap and tighten the screw. The included rubber band prevents scratches on the pipe surface and provides extra grip. Weighing only 127 g, the base is light enough to be used on more delicate structures.
What materials and properties does the RAM-B-108BU V-base have?
The V-base is made of powder-coated aluminium and steel. The powder coating provides a scratch-resistant surface and protects the material from corrosion. The steel components are found in the metal straps used to attach the base to the pipe. The scope of delivery includes two metal straps in different lengths (152.4 mm and 203.2 mm), so various pipe diameters can be covered. The set is complemented by a rubber band with a length of 139.7 mm. The black colouring blends unobtrusively into almost any environment. As part of the patented RAM ball-arm system, the V-base is compatible with all B-ball components and can be freely combined with arms, adapters and device holders.
How is the V-base mounted on the pipe and which pipe diameters are compatible?
Mounting the RAM Mounts V-base is straightforward and does not require special tools. First position the V-shaped base at the desired location on the pipe. Then place the appropriate metal strap around the pipe and the V-base. Finally tighten the screw on the strap until the base is firmly seated. For sensitive surfaces, it is recommended to use the included rubber band placed between the pipe and the base. Compatible pipe diameters range from 25.4 mm to 53.34 mm, covering a wide spectrum of handlebar tubes, railings and industrial pipe profiles. The 30-year manufacturer warranty from RAM Mounts underscores the high quality and durability of this mounting solution. Whether in a professional environment, during sports or in everyday life, the V-base offers a secure and flexible attachment point for numerous applications.
