RAM Mounts Tough-Mag base plate magnetic 88 mm with B-ball (RAM-B-238-MAG88U)
Highlights
- Magnetic base with 88 mm diameter
- Diamond base plate with B-ball (1 inch)
- AMPS 2-hole pattern
- Powder-coated aluminum, black
- 30-year manufacturer's warranty
Magnetic Mounting Base Tough-Mag with B-Ball

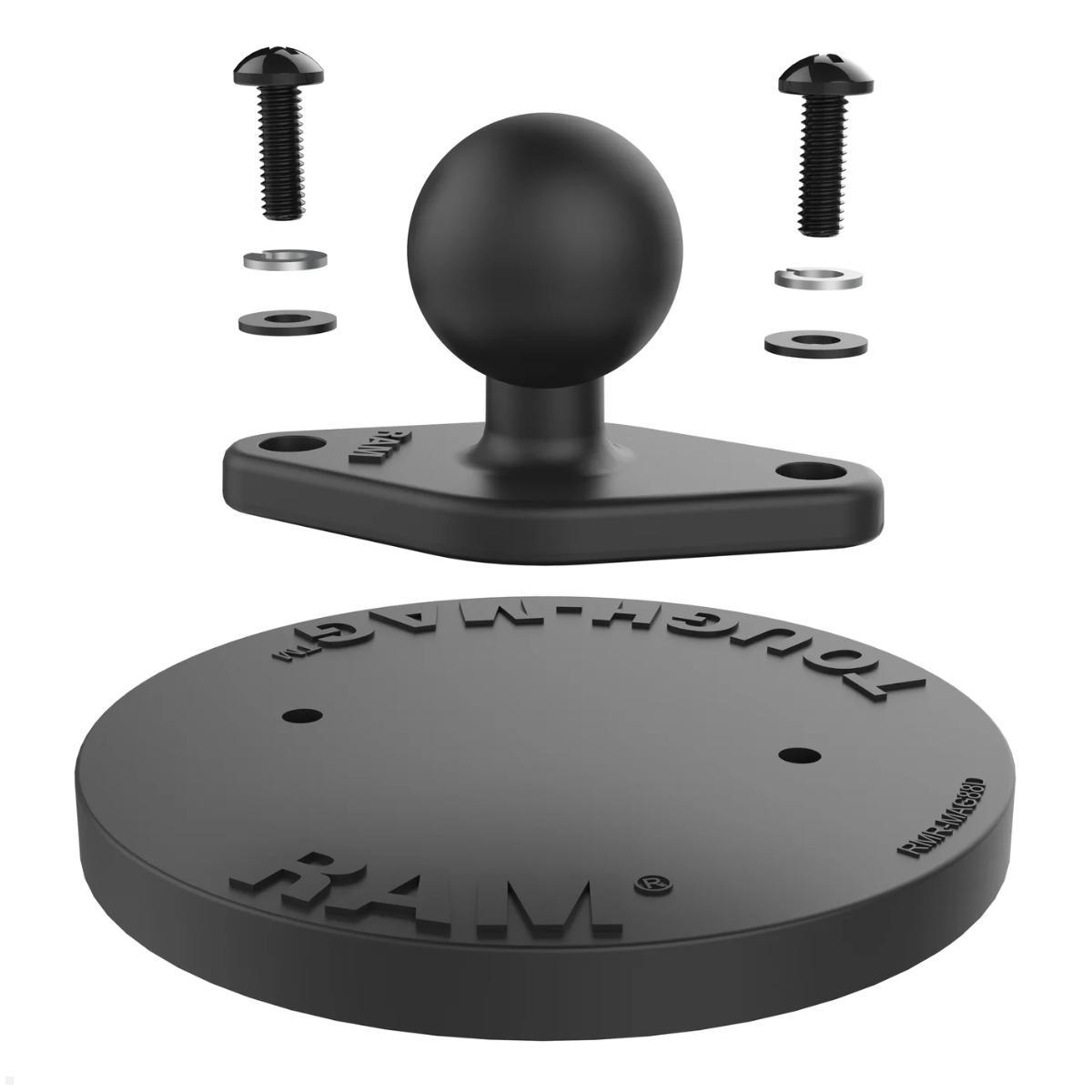

The RAM Mounts Tough-Mag magnetic base plate 88 mm with B-ball (RAM-B-238-MAG88U) combines a powerful magnetic base with the proven RAM ball-and-socket arm system. The base plate with an 88 mm diameter adheres securely to metallic surfaces and provides a mobile starting point for a variety of mounting solutions. A diamond base plate (trapezoid) with B-ball (1 inch) is screwed onto the magnetic base.
The AMPS 2-hole pattern allows universal compatibility with numerous RAM holders. Manufactured from powder-coated aluminum, the Tough-Mag base is ideal for use on vehicles, machines, workbenches, or anywhere a flexible magnetic mount is desired.
Technical Details RAM Mounts Tough-Mag Magnetic Base
- Material: powder-coated aluminum
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Magnetic base diameter: 88 mm
- Hole pattern: AMPS 2-hole
- Color: black
| Material: | pulverbeschichtetes Aluminium |
|---|---|
| Contains installation material: | + |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
How does the RAM Mounts Tough-Mag magnetic base work?
The RAM Mounts Tough-Mag 88 mm B-ball magnet base uses a strong magnet with an 88 mm diameter as the contact surface. A diamond base plate in trapezoid format with a B-ball (1 inch) is firmly screwed to this magnet base. The combination of the magnetic mount and the RAM ball-arm system creates a mobile starting point for numerous mounting solutions. The magnet adheres securely to metallic surfaces such as vehicle roofs, machine housings or workbenches. The AMPS 2-hole pattern on the diamond plate ensures universal compatibility with a wide range of RAM mounting components. Manufactured from powder-coated aluminum, the base offers high load capacity despite its compact design.
What advantages does a magnetic mounting base offer compared to screw fastenings?
The biggest advantage of a magnetic base is flexible positioning without drilling or screws. The Tough-Mag base can be attached to a metallic surface in seconds and just as quickly removed. This is especially practical for rental vehicles, temporary workplaces or changing locations. The magnetic force is sufficient, in combination with a ball arm, to securely hold lightweight devices such as smartphones, GPS receivers or small cameras. If needed, the base can be repositioned without tools. The black powder coating protects both the base and the contact surface from scratches.
In which areas is the Tough-Mag RAM-B-238-MAG88U used?
Typical areas of application for the magnetic base plate are vehicle roofs for antennas or cameras, machine surfaces in industry, workbenches in workshops and metallic furniture surfaces in offices. The magnetic base is also used outdoors, for example on off-road vehicles or camping equipment with metallic elements. RAM Mounts' 30-year manufacturer's warranty stands for lasting quality and reliability. In combination with the extensive range of B-ball arms and device holders, the Tough-Mag base offers virtually limitless configuration options for individual mounting requirements.
