Rextron HDBaseT receiver 1x HDMI input (903.201)
The Rextron 903.201 HDBaseT receiver allows the transmission of video and audio signals without loss through CAT cables up to 70 meters. Resolution up to UHD (4K) possible.
Rextron HDBaseT Receiver 903.201

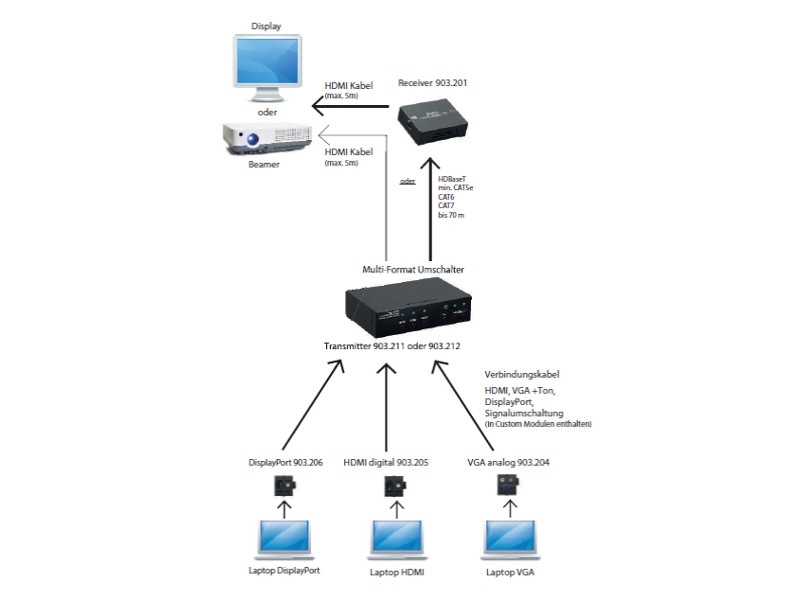

The plug-and-play solution for meeting points and meeting rooms - Use the Rextron HDBaseT 903.201 to share information from up to 4 devices (laptops) with simple push-button printing. The buttons are already integrated into the appropriate Bachmann CUSTOM modules. The signals from the switch to the display or projector are either transmitted via HDBaseT or as an original HDMI signal.
Technische Details Rextron HDBaseT Receiver (903.201):
- Input: 1x RJ45 CAT5e/6 for HDBaseT
- Output: 1x HDMI, HDCP compatible
- Bei 70m CAT max. FullHD 1920x1080
- Bei 35m CAT max. UHD 3840x2160
- Input voltage: 12V (PoE via network connection and transmitter, no power supply required)
- Dimensions: 25 x 84 x 68 mm
- Housing: metal
- Accessories: 903.203 Mounting bracket
Benefits Rextron HDBaseT at a glance:
- Zero-loss transmission of image and sound signals via CAT cable up to 70 metres
- Simple cabling
- Plug & Play
- No programming needed
- Resolution up to UHD (4K) possible
- Compatible with HDBaseT-capable displays and projectors
| Product sheet: |  [pdf, 124 kb] |
|---|---|
| Technical drawing: | [pdf, 138 kb] |
| RoHS / REACH: | [pdf, 110 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
