smart things Power+Data PoE Splitter 25W USB-C (s26 C)
Highlights
- PoE+ to USB-C Splitter 25W
- Power+Data over a single cable
- Range up to 100 meters
- Incl. bidirectional USB-C cable
- IEEE 802.3at PoE+ compatible
PoE+ to USB-C Power and Data Transmission for Tablets
The Smart Things s26 C Power+Data PoE Splitter 25W USB-C is a professional solution for wired power and data supply to tablets via Power over Ethernet. The PoE+ splitter continuously delivers 25 watts of USB-C power as well as 10/100 Fast Ethernet data over a single network cable up to a distance of 100 meters. The device from smart things is ideal for permanently installed tablets in kiosks, conference rooms, reception areas, POS stations, and digital signage applications.
The scope of delivery includes a right-angled bidirectional USB-C cable that provides a flexible connection to the end device. The s26 C is compatible with Apple iPads with USB-C connector (from iPad Pro Gen 3), Microsoft Surface Go, Google Pixel, Lenovo M10 Plus (Gen 3) and Samsung Galaxy Tab Active 2. Optionally, the splitter can also be used with Apple devices with a Lightning connector via separately available Lightning cables. The s26 C is fully compatible with the sDock Fix series from smart things and is suitable for video conferencing systems such as Zoom Rooms, Webex and Skype.
Technical Details – smart things s26 C PoE Adapter USB-C
- Output power: 25 watts (USB PD)
- Output voltage: 5V/2.6A, 9V/1.78A, 12V/1.34A, 15V/1.37A, 20V/1.15A
- Input voltage: 48–56V (PoE+)
- Input data rate: 10/100/1000 Gigabit
- Output data rate: 10/100 Mbps
- Data standard: USB 2.0 (output)
- PoE standard: IEEE 802.3at
- Range: up to 100 meters

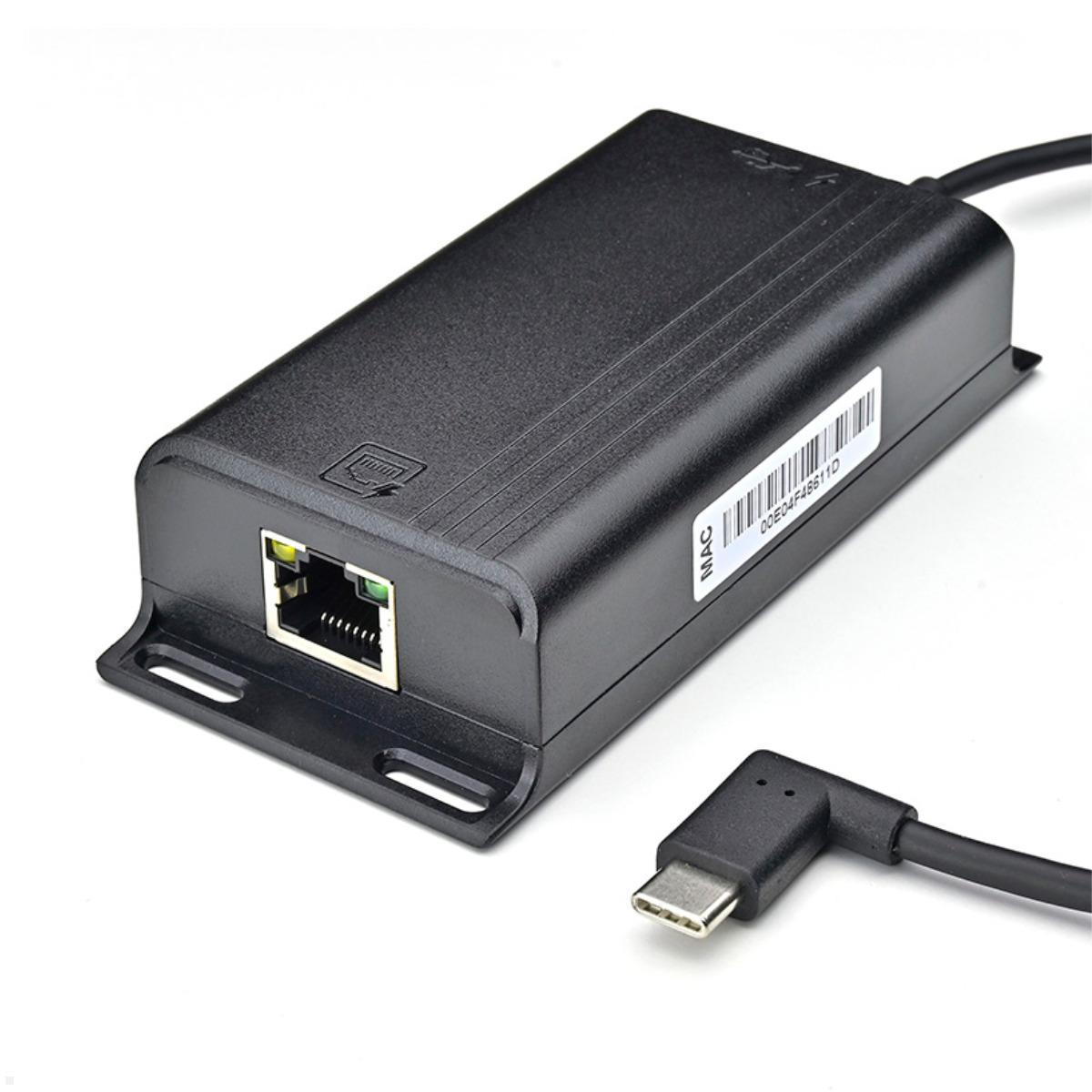

- Includes right-angle bidirectional USB-C to USB-C cable
- Material: plastic housing
- Color: anthracite
- Operating temperature: -10°C to 60°C

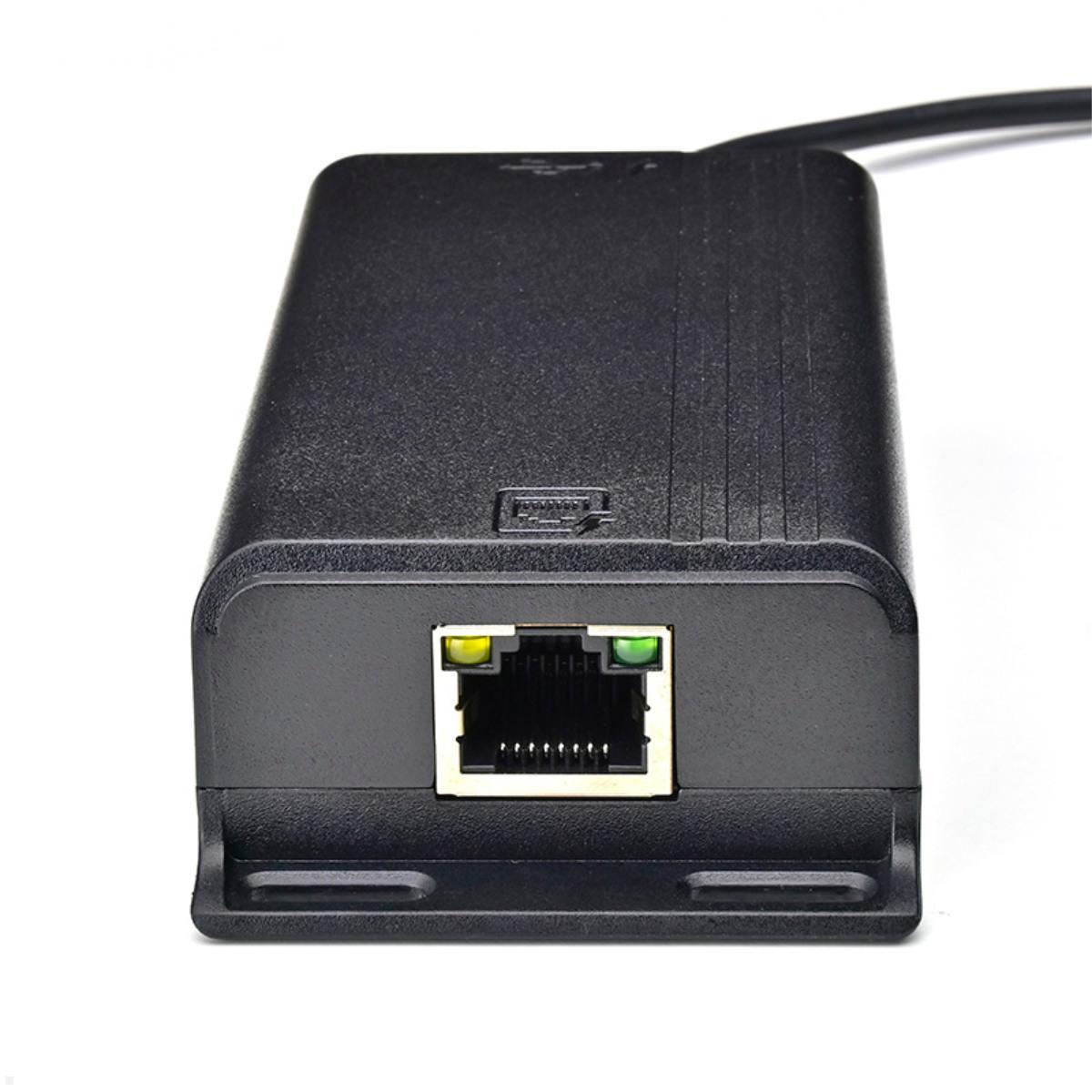

- LED indicators: Green (PoE), Yellow (USB-C)
- Certifications: CE, FCC, RoHS

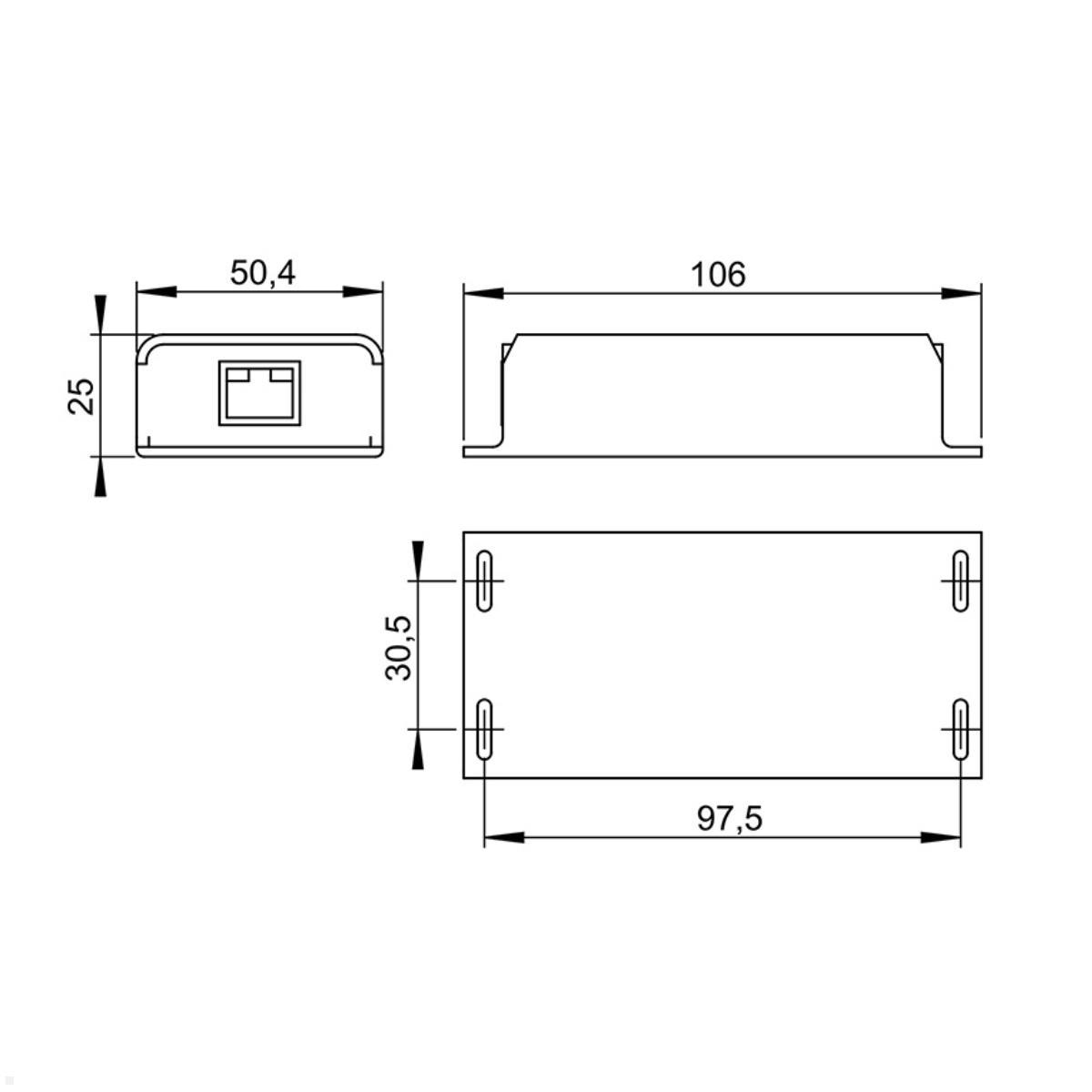

- Dimensions (L×W×H): 105 x 50 x 25 mm
- Weight: 80 g (including cable and packaging)
| Material: | Kunststoff |
|---|---|
| Packaging dimensions (LxWxH in mm): | 143 x 88 x 37 |
| Scope of delivery: | 1x sCharge PoE P+D USB-C Splitter | 1x USB-C to USB-C cable (60 cm) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | smart things solutions GmbH, Grubmühlerfeldstraße 54, 82131 Gauting, sales@smart-things.com |
| color: | Anthrazit |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
13 July 2026 03:33
Rundum Produkt, lief reibungslos
Tut genau das, was es soll – perfekt. Sieht optisch sehr ansprechend aus.
Questions & Answers
-
What is the Smart Things s26 C Power+Data PoE Splitter 25W USB-C?
A professional solution for wired power and data to tablets over Power over Ethernet (PoE+). It delivers 25 W USB-C power and 10/100 Fast Ethernet data over a single network cable up to 100 m.
-
What power and distance does it support?
Output 25 W (USB PD) with 5V/2.6A, 9V/1.78A, 12V/1.34A, 15V/1.37A or 20V/1.15A; range up to 100 metres over PoE+.
-
Which devices are compatible?
Compatible with USB-C Apple iPads (from iPad Pro Gen 3), Microsoft Surface Go, Google Pixel, Lenovo M10 Plus Gen 3 and Samsung Galaxy Tab Active 2. Optional use with Lightning devices via separate Lightning cables.
-
What is included in the box?
Includes a right-angled USB-C to USB-C bidirectional cable.
-
What are the technical specifications?
Input 48–56 V PoE+; data input 10/100/1000 Mbps; data output 10/100 Mbps; USB 2.0 (output); PoE standard IEEE 802.3at; LED indicators Green (PoE), Yellow (USB-C).
-
What are the dimensions and physical specs?
Size 105 x 50 x 25 mm; weight 80 g (including cable and packaging); housing plastic; colour Anthracite.
-
Is it suitable for videoconferencing or digital signage?
Yes, it is compatible with the sDock Fix Series and suitable for videoconferencing systems like Zoom Rooms, Webex and Skype.
How does the Smart Things s26 C supply tablets with power and data via PoE+?
The smart things s26 C Power+Data PoE splitter converts a PoE+ signal from an IEEE 802.3at-compatible switch or injector into USB-C power and Ethernet data. With an output power of 25 watts, the splitter provides sufficient energy to reliably charge tablets such as the Apple iPad, Microsoft Surface Go or Samsung Galaxy Tab Active 2 while simultaneously connecting them to the network. Power and data are transmitted over a single Ethernet cable over distances of up to 100 meters. This makes the s26 C the ideal solution for professional installations in offices, conference rooms, hotels and retail environments where tablets are used as information or control terminals, for POS stations or as appointment schedulers. Data transfer is performed at up to 10/100 Mbit/s via the USB 2.0 standard, while the input supports gigabit speeds. The compact dimensions of 105 x 50 x 25 mm allow discreet integration into existing installations. The adapter supports USB Power Delivery with various voltage levels from 5V to 20V and automatically adjusts the power supply to the connected device.
Which devices are compatible with the PoE USB-C splitter?
The smart things s26 C is specifically designed for devices with a USB-C connector. These include all Apple iPads with a USB-C port from the third generation of the iPad Pro onwards as well as the Microsoft Surface Go, Google Pixel smartphones, Lenovo M10 Plus (Gen 3) and selected Samsung Galaxy Tab models such as the Tab Active 2. The included right-angle bidirectional USB-C cable enables a flexible connection between the splitter and the end device. The adapter is also fully compatible with smart things' sDock Fix series, making it a perfect complement to the manufacturer's tablet wall mounts. In addition, the s26 C can be used with Apple devices that have a Lightning connector via optionally available Lightning cables. For videoconference systems such as Zoom Rooms, Microsoft Teams Rooms, Webex or Skype, the s26 C offers a stable wired connection that provides higher network security compared to Wi‑Fi. The wired data connection via Fast Ethernet ensures that a constant connection quality is maintained even under high network load.
What should be considered when installing the PoE splitter?
Operation of the smart things s26 C requires an IEEE 802.3at PoE+ compatible switch or injector. The splitter itself is designed as a plug-and-play solution and can be ordered online and put into operation without additional configuration. The input voltage is between 48 and 56 volts, which is delivered via the Ethernet cable. Two LED indicators indicate the operating status: a green LED signals the PoE connection, a yellow LED shows the USB-C output. The plastic housing weighs only 80 grams including cable and packaging and can easily be hidden behind a wall mount or furniture. The operating temperature ranges from minus 10 to plus 60 degrees Celsius, so the splitter also operates reliably in demanding environments. With CE, FCC and RoHS certifications, the s26 C meets all relevant safety and environmental standards. The s26 C is not compatible with the classic sDock series, but exclusively with the sDock Fix series. With Samsung tablets, compatibility may vary depending on the model, so checking the specific tablet model beforehand is recommended.
