TecLines TNT006 Dual USB-C In-Wall Tablet Power Supply, Flush-Mounted, 60W Output
Highlights
- 60W total output with USB-C PD 3.0
- 2x USB-C ports
- Flush-mounted in-wall installation
- Compatible with US & EU flush-mount back boxes
- High safety standards
TecLines TNT006 Dual USB-C Flush-Mounted 60W Power Supply for In-Wall Tablet Installation
The TecLines TNT006 is a powerful and compact power supply solution for permanently installed tablets, touch panels, and other USB-C devices. The dual USB-C flush-mounted power supply is specifically designed for concealed in-wall installation and is ideal for smart home controls, conference rooms, kiosk systems, or digital signage applications. Thanks to modern USB-C Power Delivery 3.0 technology, the power supply automatically adjusts the output to the connected device, ensuring fast, safe, and efficient charging. With up to 60W output power, even high-performance tablets and most laptops can be reliably powered or charged.
Professional 60W USB-C PD Flush-Mounted Power Supply for Permanently Installed Tablets and Smart Home Applications
The two integrated USB-C ports allow two devices to be charged simultaneously. When used in parallel, up to 30W per port is available. The compact design enables nearly invisible installation behind wall-mounted tablets or monitors and fits into US single-gang and EU 86 flush-mount back boxes. Reusable connection terminals ensure quick and secure installation. Certifications including ETL, CE, FCC, and RoHS guarantee the highest safety and quality standards.
Charging Tablets with a Flush-Mounted Power Supply
Please note: Only the TecLines USB charger is included in the scope of delivery. To create a complete wall mount solution for your tablet, you will additionally need a TabLines enclosure (TabLines TWH, TabLines TWP, TabLines TWE, or TabLines TSG), a suitable charging cable, and a flush-mount back box. The TecLines USB charger features a USB-C port. Depending on the connector of your tablet or end device, a compatible charging cable is required. TecLines – Intelligent technology by creative minds.
The WAGO 221 connection terminals (made in Germany) enable simple and hassle-free installation. The 221 series connectors guarantee tool-free, fast, and secure electrical installation of solid, stranded, and fine-stranded conductors.
Key features 60W USB-C PD 3.0 Flush-Mounted Power Supply for In-Wall Tablet Installation
- USB-C flush-mounted power supply for in-wall installation
- Input voltage: 100–240 VAC
- Frequency: 50/60 Hz
- Input current: 1.5 A
- Output (per USB-C port): 5V ⎓ 3A (15W), 9V ⎓ 3A (27W), 12V ⎓ 3A (36W), 15V ⎓ 3A (45W), 20V ⎓ 3A (60W)
- Maximum output power: 60W
- Power when used simultaneously: up to 30W per port
- Ports: 2 × USB-C PD 3.0
- LED indicator: Yes

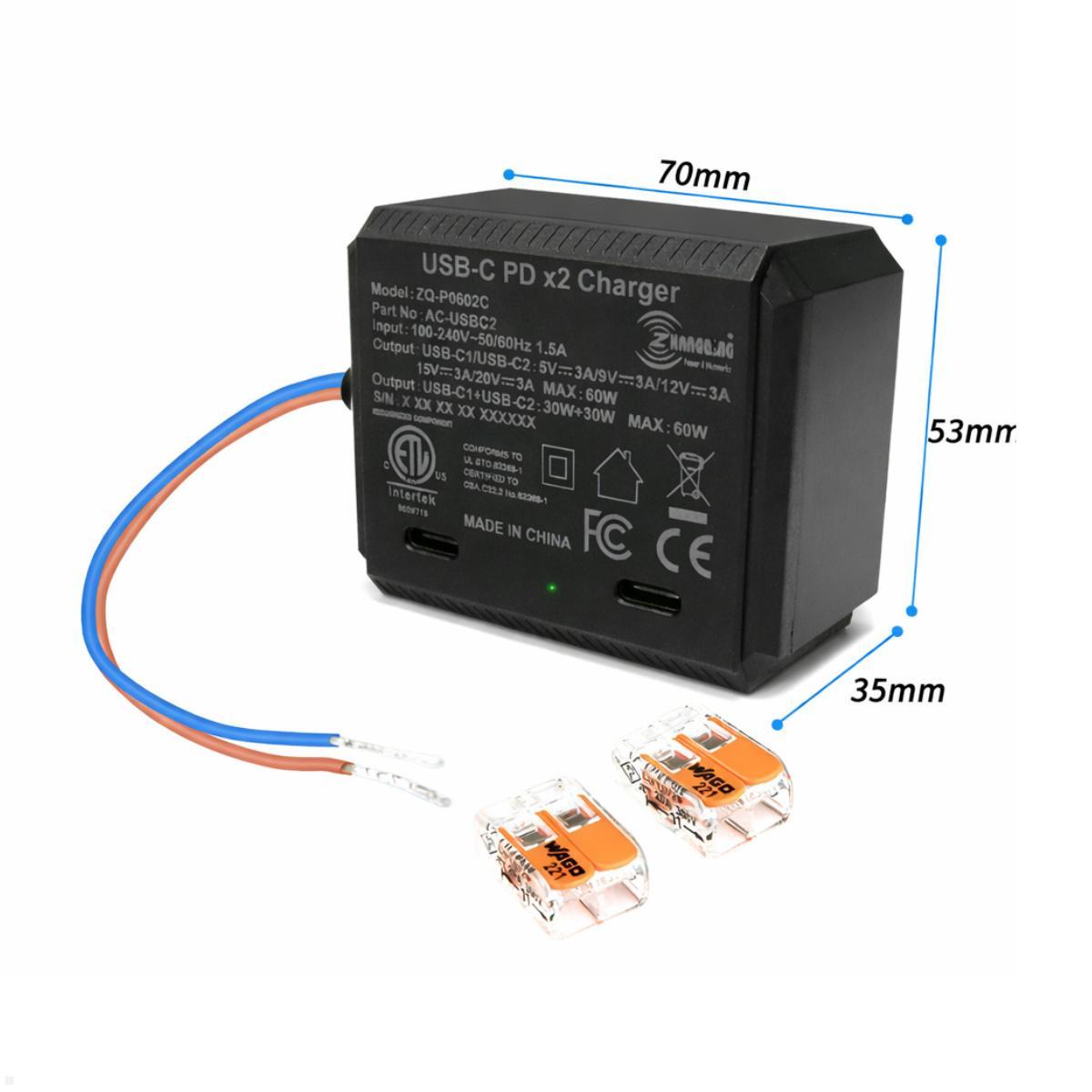

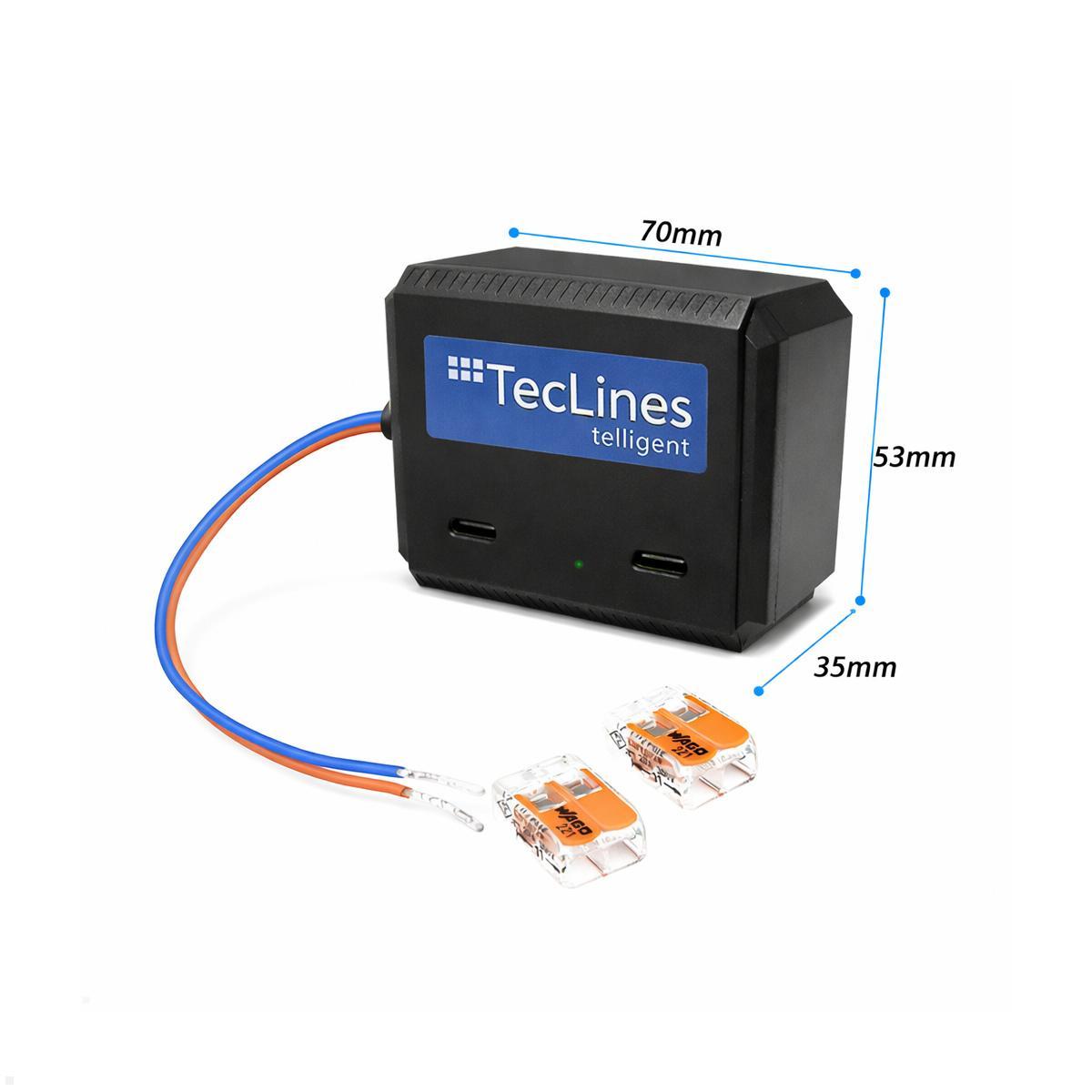

- Dimensions: 70 × 53 × 35 mm
- Cable length: approx. 140 mm
- Mounting: Suitable for US single-gang and EU 86 flush-mount back boxes
- Protection class: Class II
- Insulation: 1500V
- Certifications: ETL, CE, FCC, RoHS

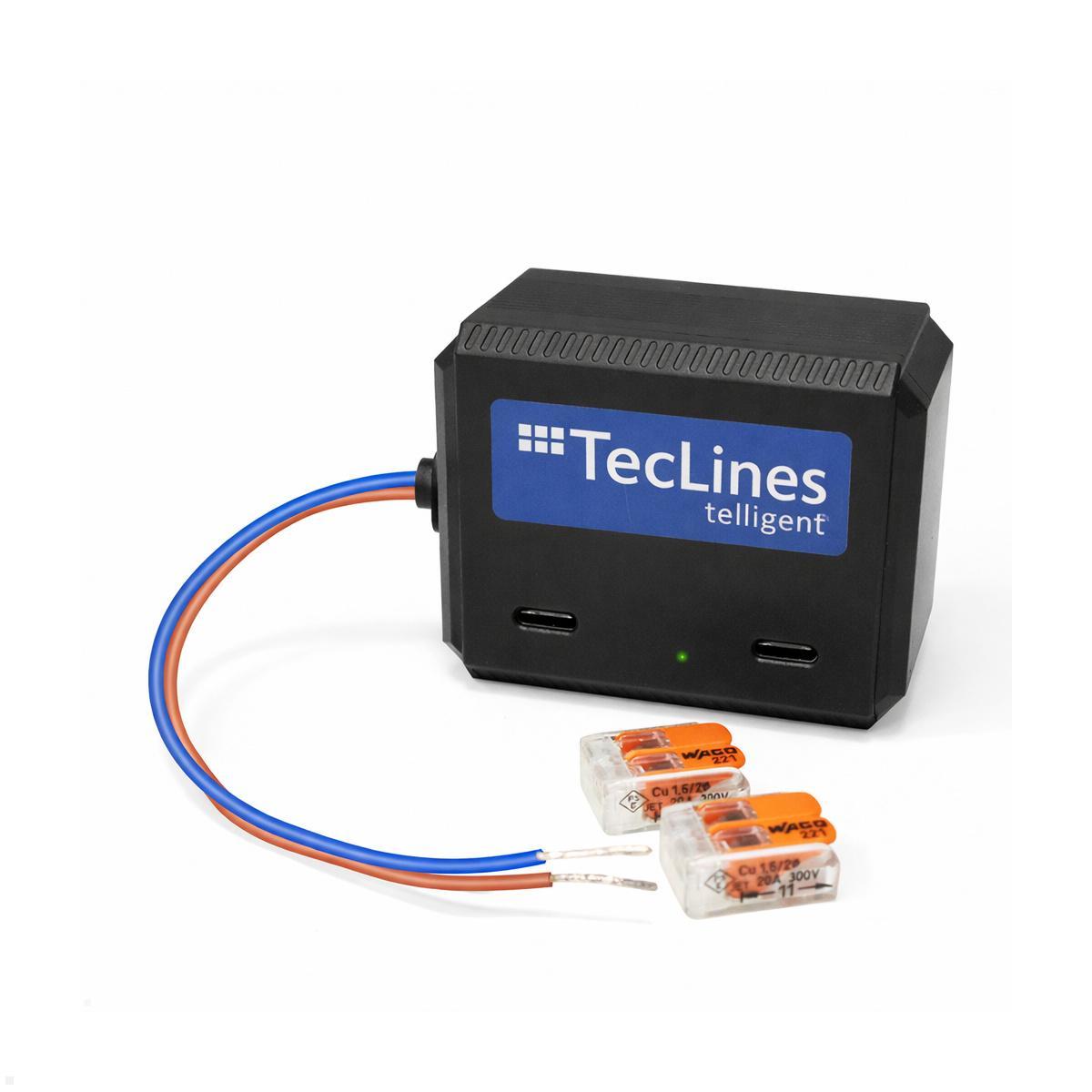

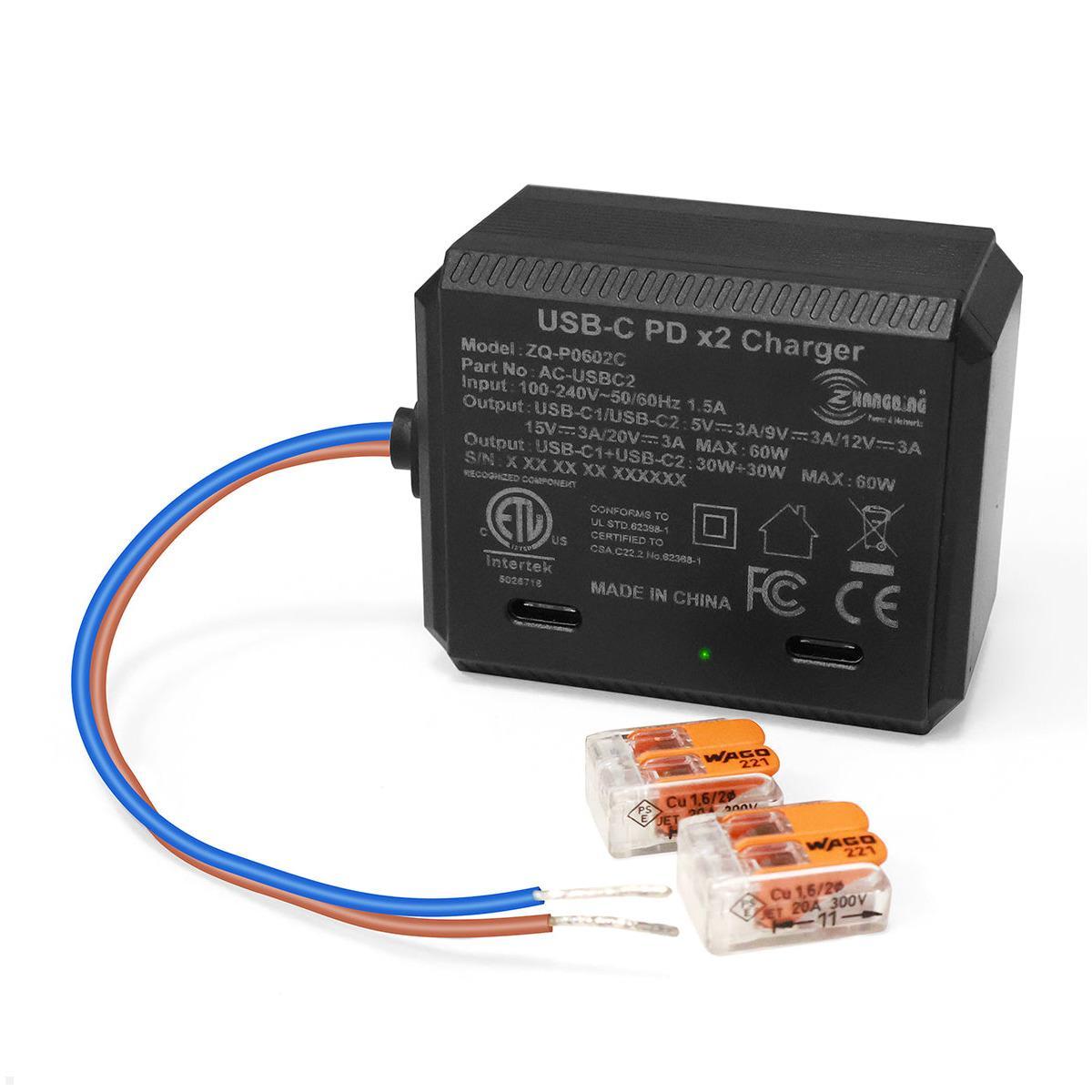

- Incl. 2x WAGO 221 series connection terminals (made in Germany)
- Suitable for flush-mounted installation
- Flush-mount back box can be screwed directly onto the back of the TabLines TWE in-wall tablet mount / case (optional TecLines THWD001 / THWD002 drywall device box)
- Compatible with TabLines TWE in-wall tablet mount (not included)
- Compatible with TabLines TWH tablet wall mount (not included)
- Compatible with TabLines TSG tablet protective enclosure (not included)
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Material: | Kunststoff |
| Suitable for: | Almost all tablets |
| Packaging dimensions (LxWxH in mm): | 86 x 58 x 75 |
| Scope of delivery: | 1x TecLines TNT006 | 2x Wago connectors |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / TecLines, Am Marienhof 8, 22880 Wedel, info@teclines.de |
| Mounting type: | in-wall solution |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the TecLines TNT006?
The TNT006 is a dual USB-C in-wall power supply with 60 W output, designed for fixed installations such as tablets, touch panels, and USB-C devices.
-
How much power does it provide and how is it distributed?
It delivers up to 60 W total; when both ports are used, up to 30 W per port. Output per port is 5V 3A, 9V 3A, 12V 3A, 15V 3A or 20V 3A.
-
What applications is it suitable for?
It is suitable for smart-home controls, conference rooms, kiosks, and digital signage, and can reliably power tablets and most laptops.
-
What ports does it have and is there an LED indicator?
It features two USB-C PD 3.0 ports and an LED indicator; cable length is about 140 mm. Input: 100–240 VAC, 50/60 Hz; dimensions: 70 × 53 × 35 mm; mounting fits US single‑gang and EU 86 back boxes.
-
How is it installed and what mounting options are available?
It is designed for concealed wall installation and comes with two WAGO 221 terminal blocks (Made in Germany) for tool-free, quick installation.
-
What safety and quality features does it have?
Certifications include ETL, CE, FCC, RoHS; Class II insulation; isolation 1500 V.
-
What is included in the package and is there any additional accessory needed?
The package includes the TecLines USB charger and two WAGO 221 terminals; to complete a wall mount for your tablet you may need TabLines housings (TWE/TWH/TSG), a suitable charging cable and a back box (sold separately).
Kunden kauften auch
Why is the TecLines TNT006 Dual USB-C Flush-Mounted 60W Power Supply the Ideal Solution for Professional Tablet Installations?

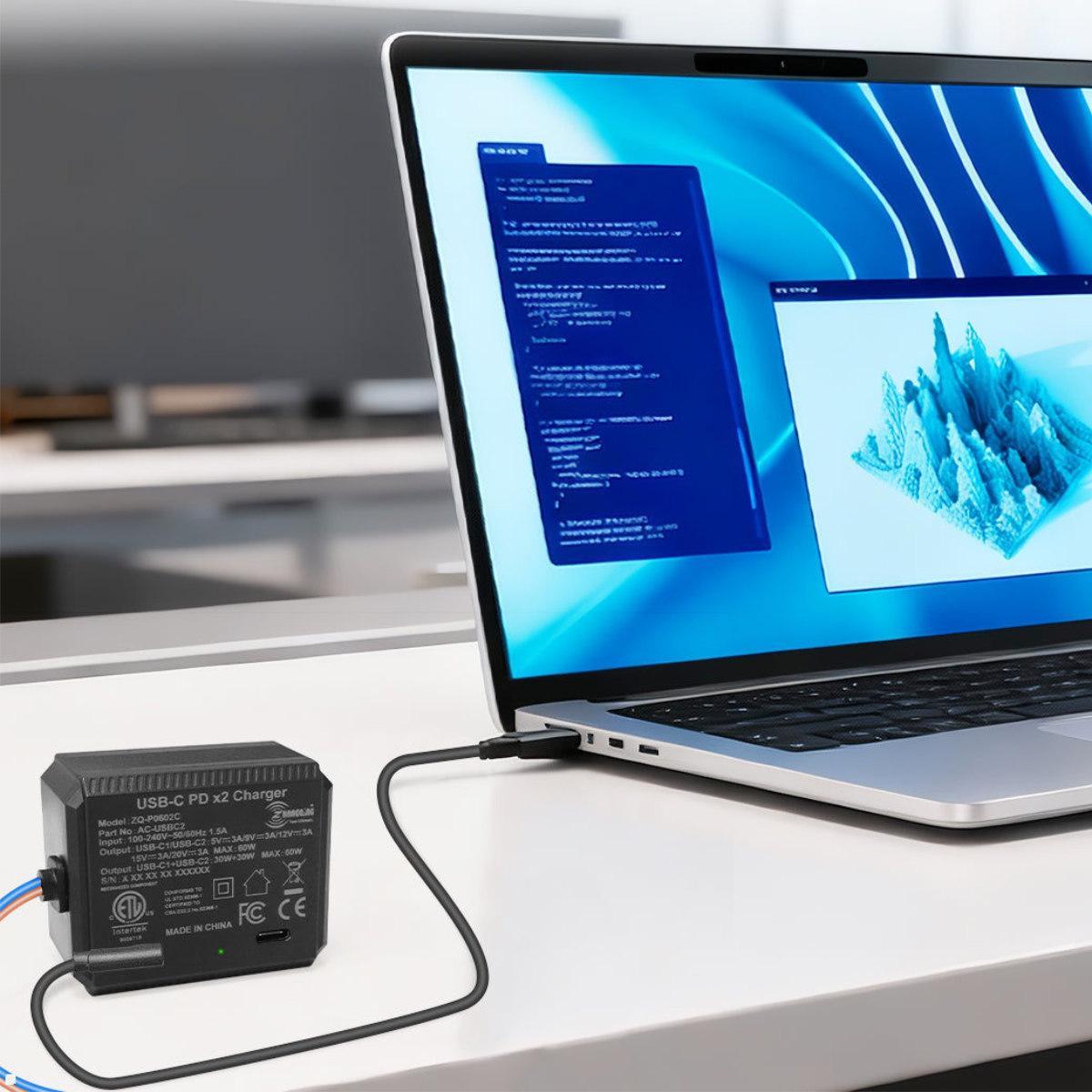

The TecLines TNT006 Dual USB-C flush-mounted power supply with 60W output is the ideal solution for anyone requiring a reliable and invisible power source for permanently installed tablets. Specifically designed for in-wall installation, this powerful USB-C power supply is perfectly suited for smart home controls, conference rooms, kiosk systems, digital signage, or commercial touch panel applications. Thanks to its compact design, the unit can be easily integrated behind a tablet or monitor, ensuring a clean and organized appearance without visible cables or external power adapters. With modern USB-C Power Delivery 3.0 technology, the TecLines TNT006 automatically adjusts the output voltage to the connected device, guaranteeing fast, safe, and efficient charging. With a maximum output of 60W, this flush-mounted power supply is suitable not only for tablets and smartphones but also for many laptops with USB-C charging capability. This flexibility makes it a future-proof power solution for both private and commercial installations.
How Does Dual USB-C Power Delivery Ensure Maximum Flexibility?

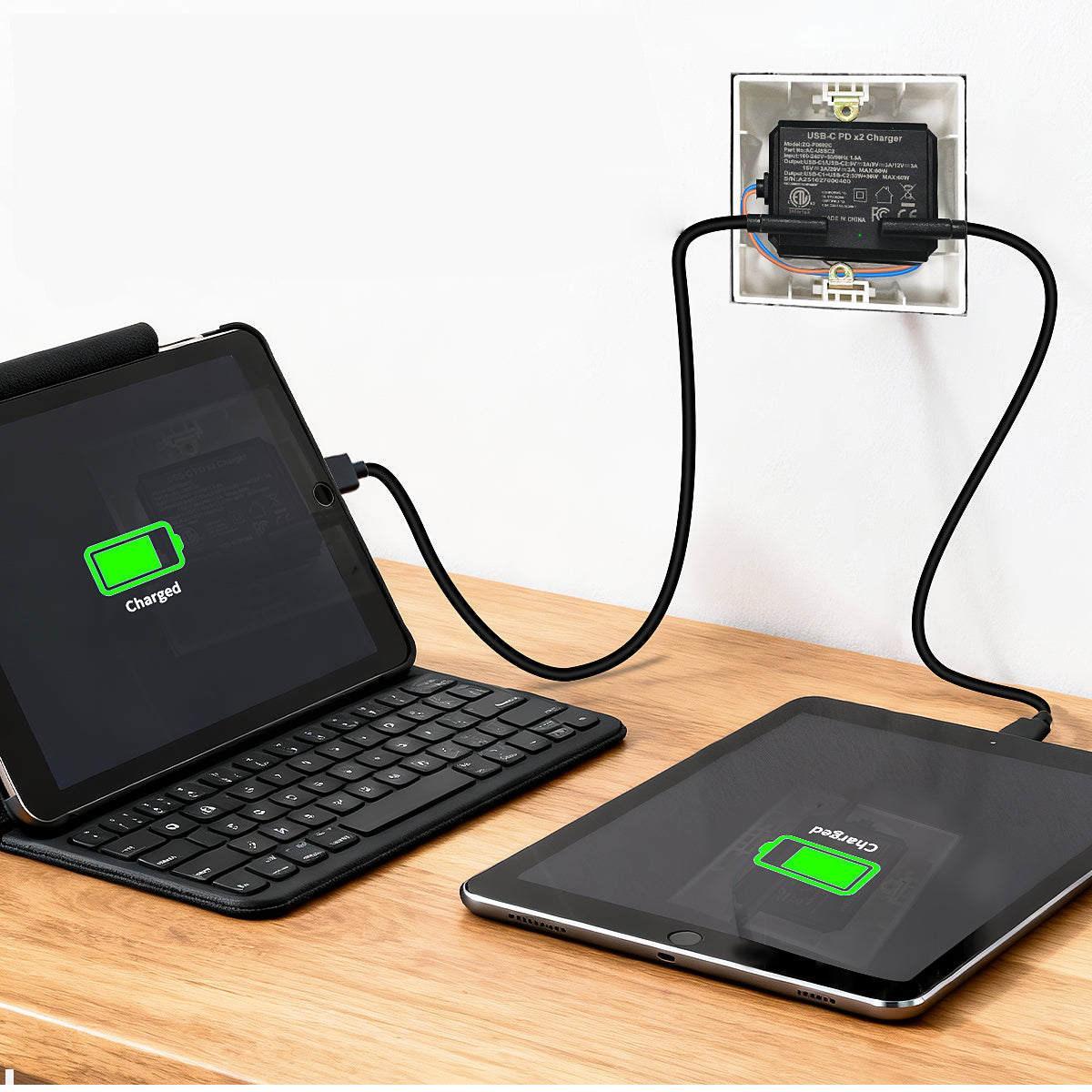

A key advantage of the TecLines TNT006 is its two integrated USB-C ports. This allows two devices to be charged or powered simultaneously. When used in parallel, the power supply provides up to 30W per port, ensuring a stable energy supply for typical tablet and smart home applications. If only one port is used, the full output of up to 60W is available, which is particularly beneficial for higher-performance devices. This dual USB-C solution is ideal for conference rooms, for example, where a permanently installed tablet is used for room control while another device needs to be charged at the same time. It also offers a professional and space-saving power solution for reception areas, showrooms, and industrial applications.
How Is Concealed Flush-Mounted Installation Achieved in Smart Homes or Commercial Environments?
The TecLines TNT006 has been specifically developed for concealed in-wall installation. It fits both US single-gang back boxes and EU 86 flush-mount boxes, allowing flexible use in various installation environments. When combined with suitable in-wall tablet enclosures, such as TabLines models, it creates a nearly invisible power supply solution directly behind the device. In addition to its high performance, the USB-C flush-mounted power supply stands out for its high safety standards. Certifications including ETL, CE, FCC, and RoHS confirm compliance with international regulations. Protection Class II and 1500V insulation provide additional safety for continuous operation. The included WAGO 221 series connection terminals enable quick, tool-free, and secure electrical installation. This makes the TecLines TNT006 suitable for professional installers as well as demanding residential construction projects. Overall, the TecLines TNT006 Dual USB-C flush-mounted 60W power supply offers a powerful, safe, and visually elegant solution for the permanent in-wall power supply of tablets and USB-C devices.
