Vogels Motion MOMO 2117W Monitor desk mount, white
Highlights
- For 1 monitor, 10 - 43 inches
- Load capacity up to 20 kg
- 250 mm height adjustment
- TÜV and IGR certified
- 10-year manufacturer's warranty
Height-adjustable monitor arm for screens up to 43 inches
The Vogels Motion MOMO 2117W monitor desk mount, white (7121171) is an ergonomic monitor arm specifically designed for stepless height adjustment at the workplace. With a load capacity of up to 20 kg the monitor mount holds screens from 10 to 43 inches securely in position. The manual height adjustment over 250 mm allows individual adjustment of the screen height for ergonomic working while sitting and standing. The 1 pivot point offers a swivel range of up to 180° for flexible monitor positioning.
This swivel arm for the desk is suitable for flat and curved displays up to 10 kg. The versatile desk clamp offers two mounting options: clamped to the desk or bolt-through. An integrated Allen key makes additional tools unnecessary. The VESA-compatible screen mount supports the hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. The integrated cable management ensures a tidy workspace. Perfect for offices, home offices, schools and conference rooms.
Technical details Vogels MOMO monitor mount with jointed arm
- Suitable for 1 monitor from 10" to 43"
- Maximum load capacity: 20 kg
- Max. weight curved display: 10 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +55°
- Swivel range: up to 180°
- Number of pivot points: 1

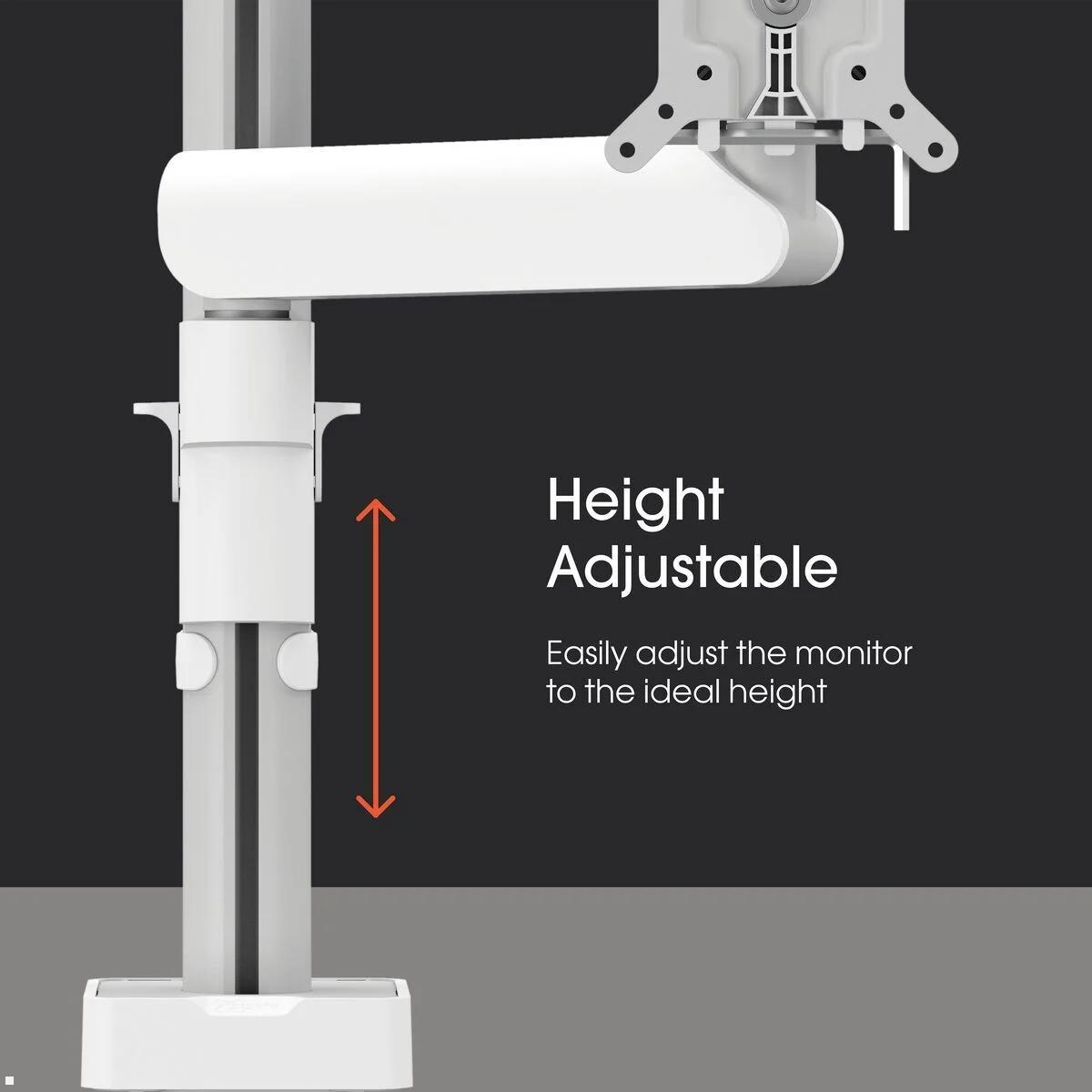

- Height adjustment: 250 mm (manual)
- Adjustable depth: No
- Maximum desk thickness: 66 mm
- Mounting: desk clamp or bolt-through
- Color: White
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|

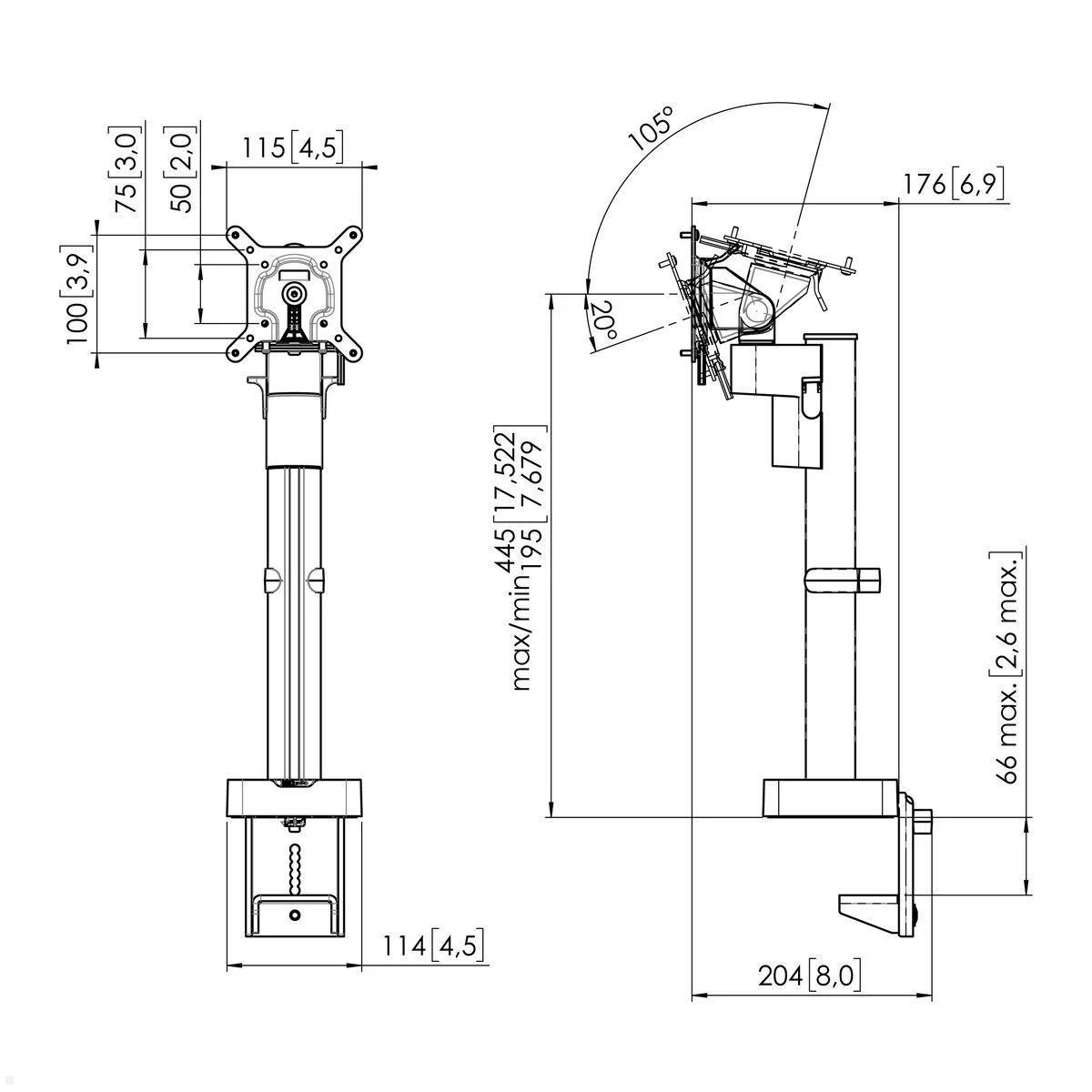

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+55° |
| Height range (mm): | 250 |
| Swivelling range: | 180° |
| Screen size: | 10" - 43" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 464 x 220 x 135 mm |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Weiß |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Vogels Motion MOMO 2117W Monitor Desk Mount?
An ergonomic monitor arm designed for stepless height adjustment at the workstation.
-
What screen sizes and weight does it support?
Supports 10-43 inch monitors with a maximum load of 20 kg; suitable for flat and curved displays up to 10 kg.
-
Which VESA patterns does it support?
VESA patterns 50 x 50, 75 x 75, and 100 x 100 mm.
-
What is the range of motion and height adjustment?
Tilt range -20° to +55°, swivel up to 180°, and manual height adjustment of 250 mm.
-
What mounting options are available?
Desk clamp or through-bolted mounting; integrated hex key eliminates the need for extra tools.
-
Does it have a cable management feature?
Yes, integrated cable management helps keep the workspace tidy.
-
Is depth adjustable and what is the maximum desk thickness?
Depth is not adjustable; maximum desk thickness is 66 mm.
-
Where is it suitable and what warranty/certifications does it have?
Ideal for offices, home offices, schools, and conference rooms. 10-year warranty; TÜV and IGR certifications.
Kunden kauften auch
Why is the Vogels MOMO 2117W the optimal monitor mount for the workplace?
Ergonomic work begins with the correct screen position. The Vogels Motion MOMO 2117W monitor desk mount, white, offers exactly that: a stepless height adjustment of 250 mm that aligns the monitor optimally for both sitting and standing working positions. The load capacity of 20 kg and compatibility with monitors from 10 to 43 inches make this monitor arm the universal solution for nearly any screen. The 180-degree swivel range at the single pivot point allows quick repositioning of the monitor, for example when colleagues want to take a look at the screen. The VESA mount supports the common hole patterns 50 x 50, 75 x 75 and 100 x 100 mm for broad device compatibility. Curved displays up to 10 kg are also held securely. The compact design saves valuable desk space compared to the supplied monitor base.
How is the Vogels MOMO desk mount installed?

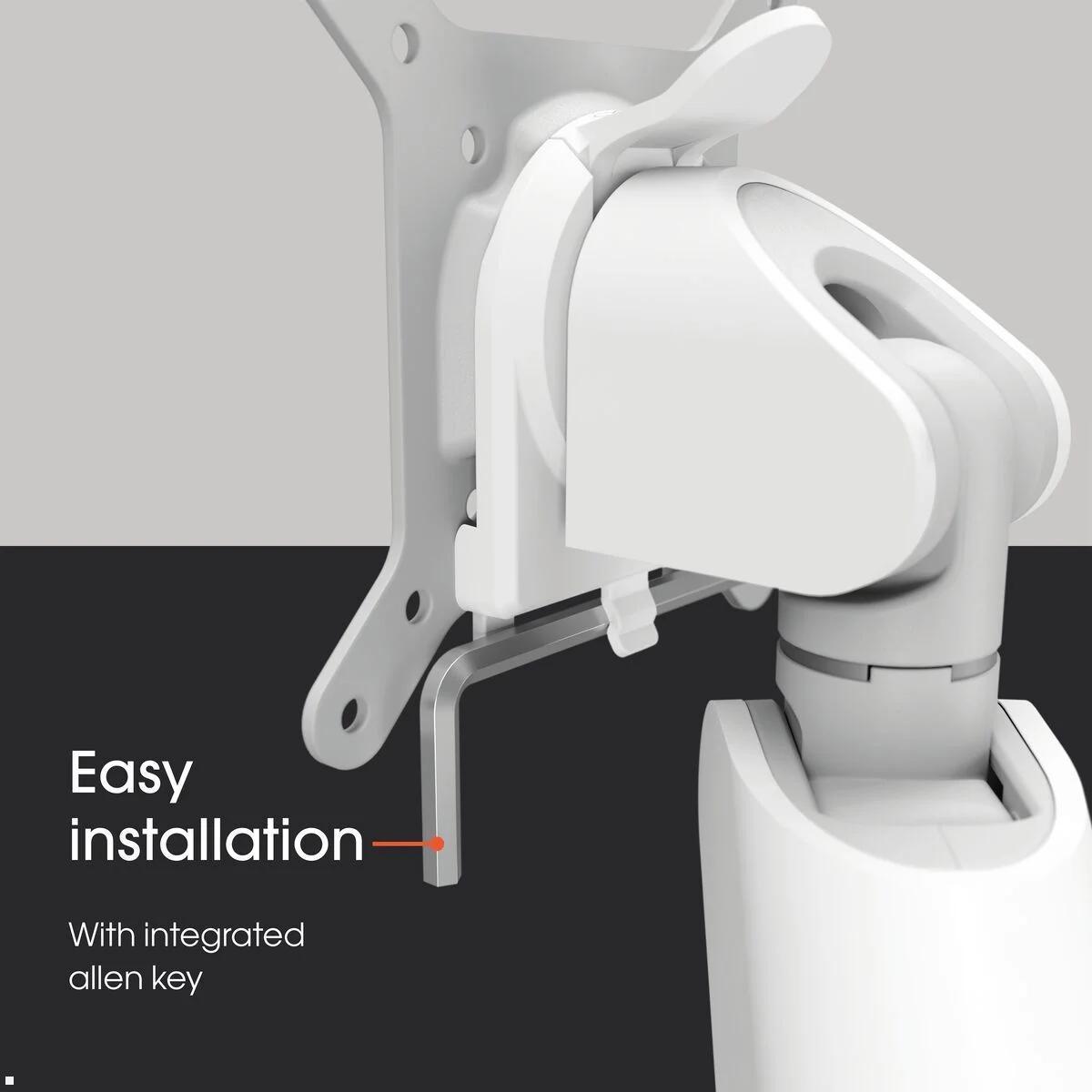

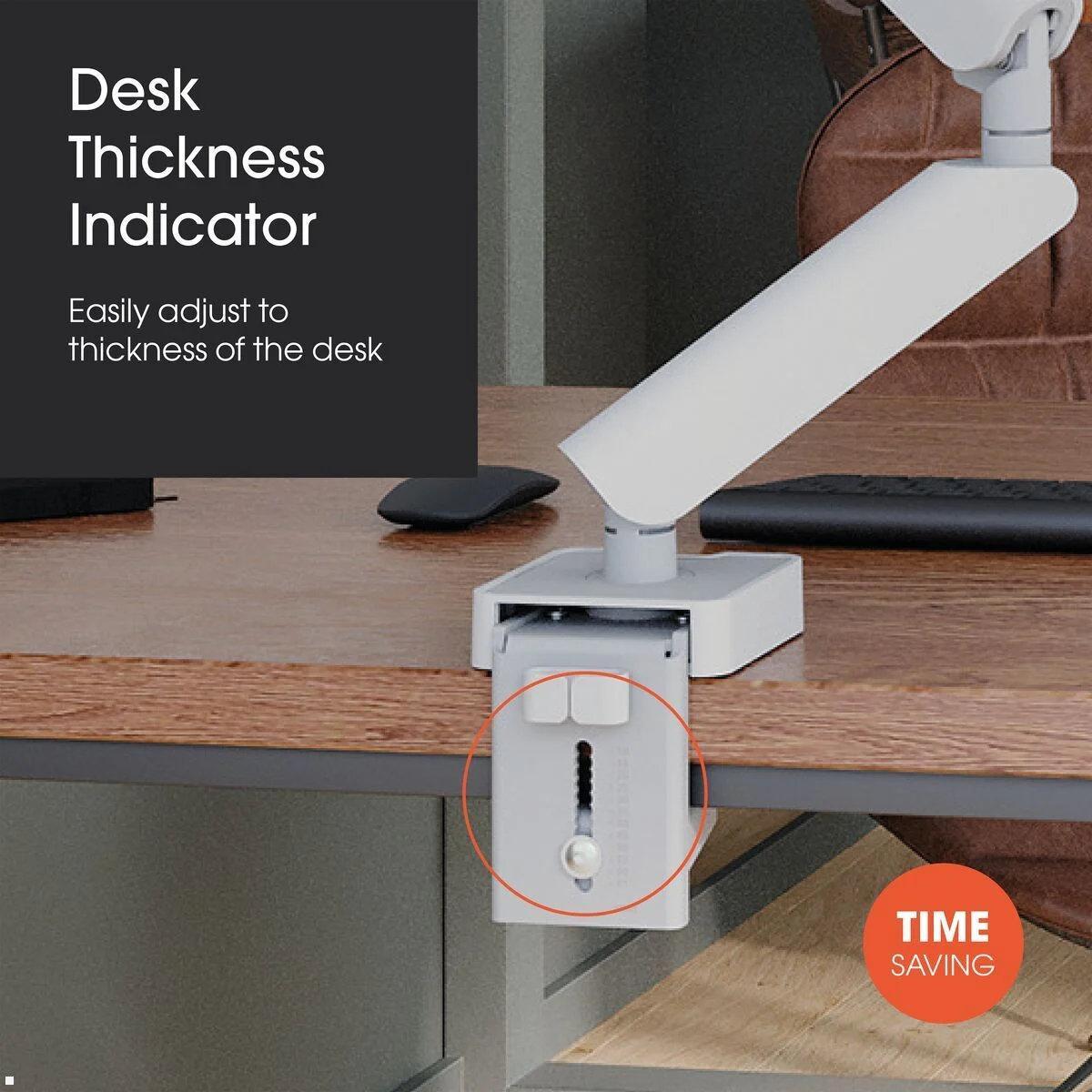

Assembly of the MOMO 2117 is quick and straightforward. The supplied desk clamp offers two flexible mounting options: clamped to the desk edge or securely bolted through a hole in the desktop. Desktops up to 66 mm thick are supported without difficulty. An integrated hex key makes additional tools unnecessary. A built-in weight indicator helps to set the monitor balance precisely. The desk-thickness indicator facilitates correct adjustment of the clamp. All adjustments are made from above, without awkward fiddling under the desk.
What advantages does the MOMO monitor arm offer compared to a conventional monitor stand?
Unlike a fixed monitor stand, the MOMO 2117 frees the entire area under the screen, creating significantly more usable workspace on the desk. The manual height adjustment allows the screen to be adapted to changing working postures throughout the day, relieving the back and neck. An integrated rotation stop reliably prevents cable breakage and damage to the monitor. The concealed cable management keeps all cables neatly hidden. As part of the modular MOMO system, the arm can be expanded at any time with additional components, for example to a dual-monitor configuration. The TÜV and IGR certifications confirm compliance with strict safety and ergonomic standards. With a 10-year manufacturer’s warranty, Vogels sends a clear signal of durability and quality.
