Vogels Essential M3021B Monitor Desk Mount height-adjustable 49 cm, black
Highlights
- For 1 monitor, 17 - 49 inches
- Load capacity up to 20 kg
- Gas spring height adjustment 490 mm
- Tilt -75° to +75°
- 5 year warranty

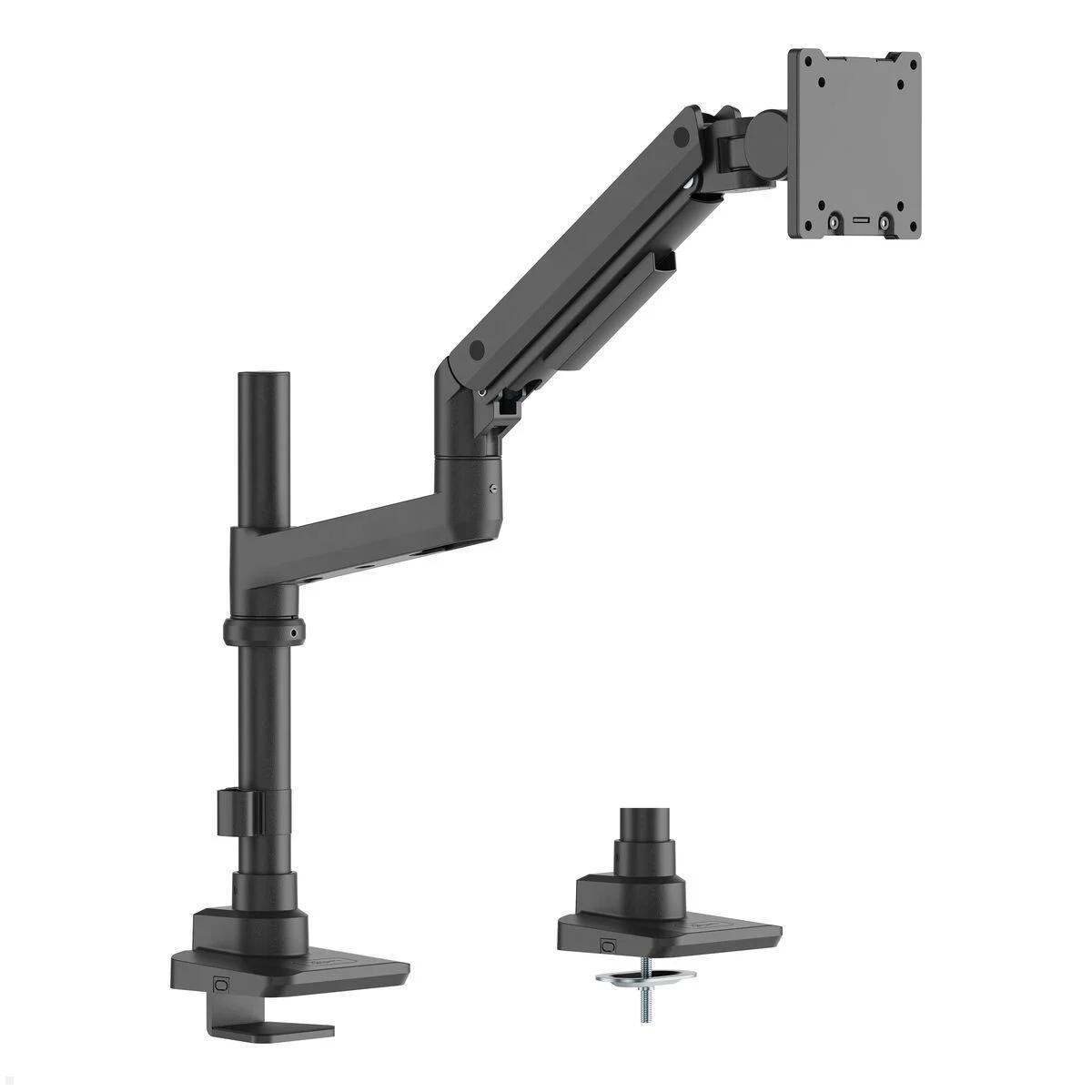

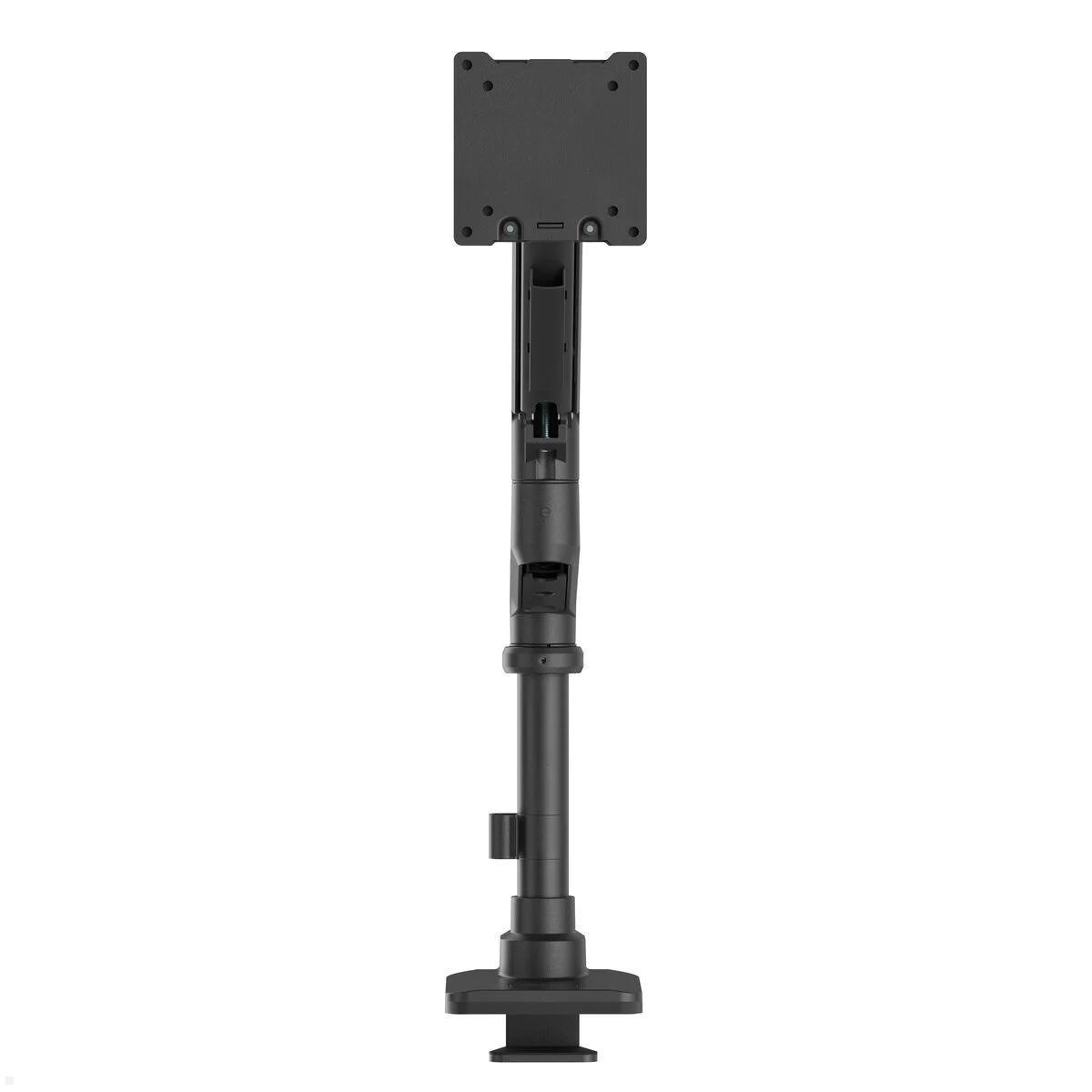

Height-adjustable swivel arm with gas spring and 49 cm column height
The Vogels Essential M3021B monitor desk mount is a high-quality screen mount for a display from 17 to 49 inches with a maximum weight of 20 kg. The integrated gas spring allows stepless height adjustment along the 490 mm high column, so you can position your screen at the optimal ergonomic position at any time.
With 3 pivot points and a swivel range of up to 360°, the Vogels Essential M3021B height-adjustable monitor desk mount (49 cm, black) offers maximum flexibility at the workplace. The tilt range from -75° to +75° ensures a glare-free alignment of the monitor. Installation is possible either with a desk clamp or a grommet (through-desk) mount for a maximum desk thickness of 50 mm. The monitor arm is ideal for office, home office, or creative workspaces.
Technical details Essential M3021B swivel arm screen mount
- For 1 monitor, 17 - 49 inches
- Load capacity: 2 - 20 kg (Curved max. 15 kg)
- VESA: 75 x 75 mm, 100 x 100 mm
- Gas spring height adjustment, column height 490 mm
- 3 pivot points, swivel range up to 360°
- Tilt: -75° / +75°
- Mounting: desk clamp or grommet (through-desk)
- Max. desk thickness: 50 mm
- Color: Black
- Warranty: 5 years
| Installation manual: |  [pdf] |
|---|---|
| Minimum weight: | 2 kg |
| Capacity: | 20 kg |
| Tilt: | -75°/+75° |
| Height range (mm): | 490 mm |
| Swivelling range: | 360° |
| Screen size: | 17" - 49" |
| Thickness of table (mm): | max. 50 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What screen sizes is the Vogels Essential M3021B suitable for?
Supports 17–49 inch monitors with a load capacity of 2–20 kg (Curved max 15 kg).
-
How adjustable is the height?
Gas spring height adjustment with a 490 mm column; height is adjustable continuously.
-
How flexible is the arm's movement?
Three pivot points and a swivel range up to 360°, with tilt from -75° to +75°.
-
How is the monitor arm mounted?
Mounting options include a desk clamp or through-desk mounting for desks up to 50 mm thick.
-
Which VESA patterns are supported?
VESA 75 x 75 mm and 100 x 100 mm.
-
What color is it and what warranty does it have?
Color is black; 5-year warranty.
-
What environments is it suitable for?
Ideal for office, home office or creative workplaces.
-
Can curved monitors be used with this mount?
Weight range 2–20 kg; curved monitors up to 15 kg are supported.
Why is the Vogels Essential M3021B the right monitor arm for the desk?
An ergonomically arranged workspace increases productivity and well-being alike. The Vogels Essential M3021B monitor desk mount offers, with its 490 mm high pole and integrated gas spring, stepless height adjustment for screens from 17 to 49 inches. Mounting can be done either with a desk clamp or a grommet for a maximum desk thickness of 50 mm. Thanks to VESA compatibility with 75 x 75 mm and 100 x 100 mm, the monitor arm fits a wide range of common monitors. The maximum weight is 20 kg, for curved displays 15 kg.
What ergonomic benefits does a 49 cm high swivel arm offer at the workplace?
Workplace ergonomics starts with the correct monitor position. The Vogels Essential M3021B allows the screen to be adjusted individually in height, tilt and swivel angle. With a tilt of -75° to +75° and a swivel range of up to 360°, every user can find the optimal viewing position. The gas spring technology ensures that adjustments can be made with minimal effort. Especially in the home office or in shared-desk environments, where different people use the workspace, this flexibility is indispensable. The three pivot points enable precise positioning in any desired direction.
For which applications is the Vogels M3021B monitor mount suitable?

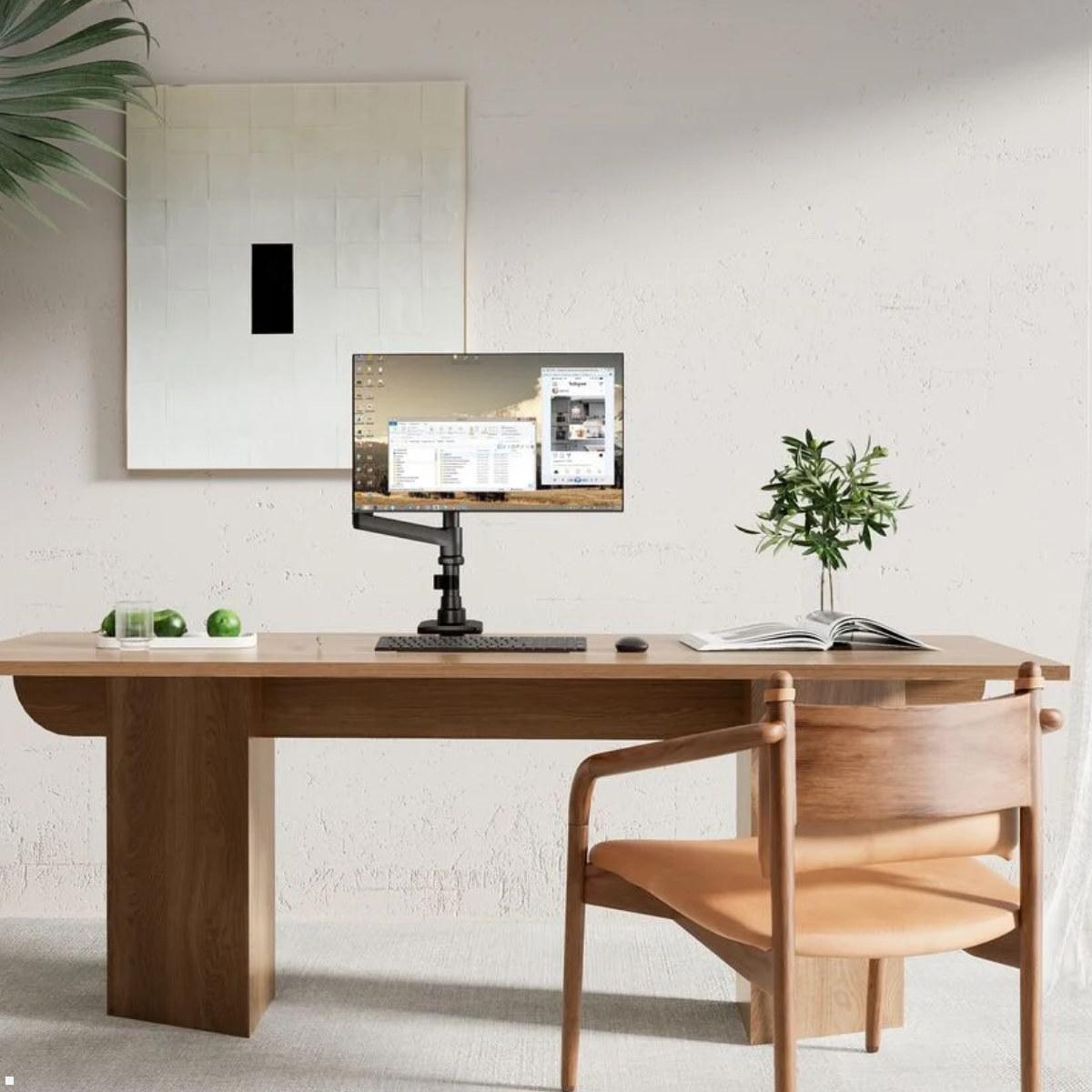

The Vogels Essential M3021B monitor desk mount is versatile. In the office it creates more space on the desk because the monitor floats freely above the work surface. Graphic designers benefit from the ability to flexibly rotate and tilt the screen. The monitor arm is also a sensible addition in the home office, because the simple mounting with a desk clamp does not require drilling into the desktop. At reception desks or in meeting rooms the screen can be quickly turned to face the person opposite. The mount is maintenance-free and comes with a 5-year warranty, which speaks to the high quality of the Vogels Essential series. The integrated cable management additionally ensures a tidy workspace.
