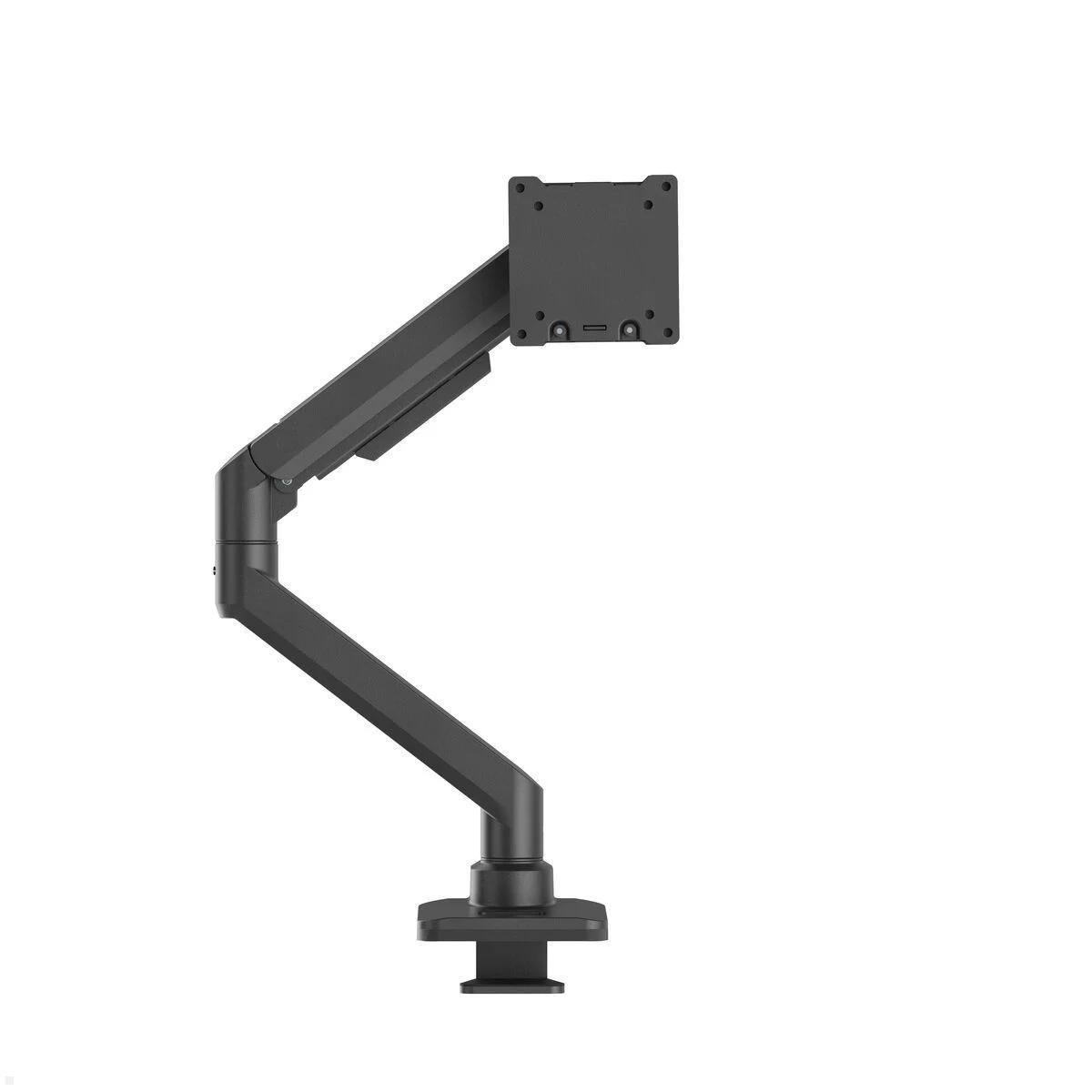

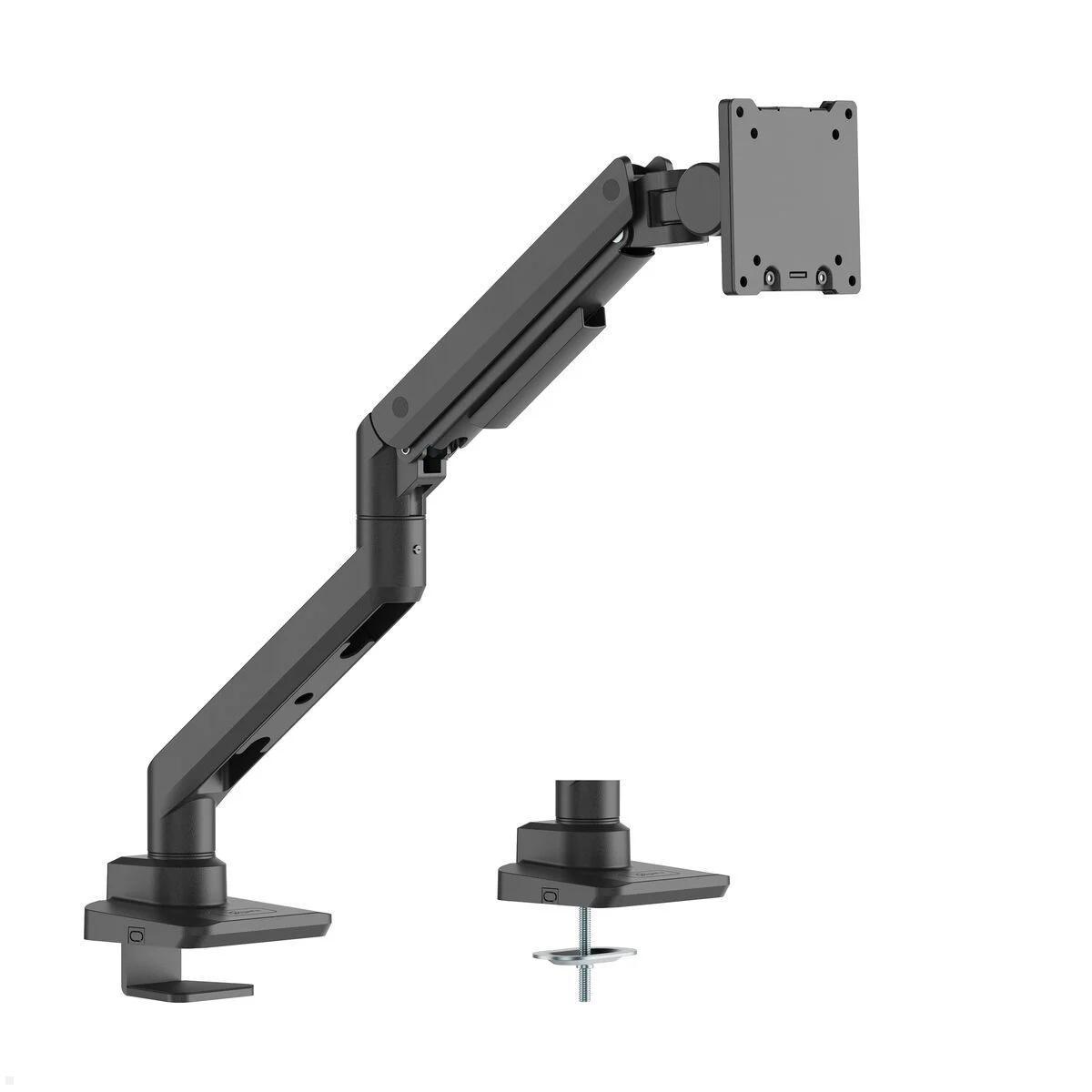

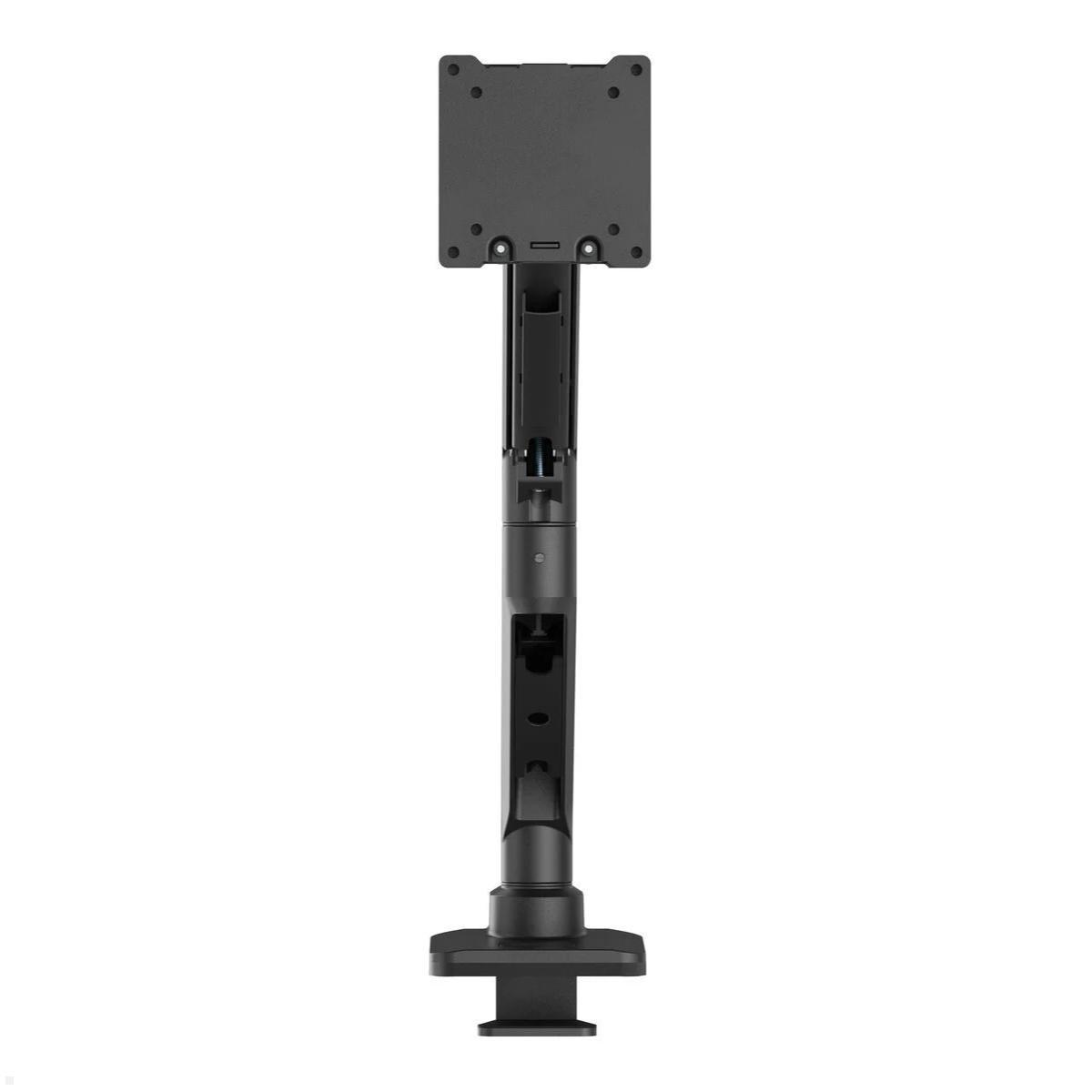

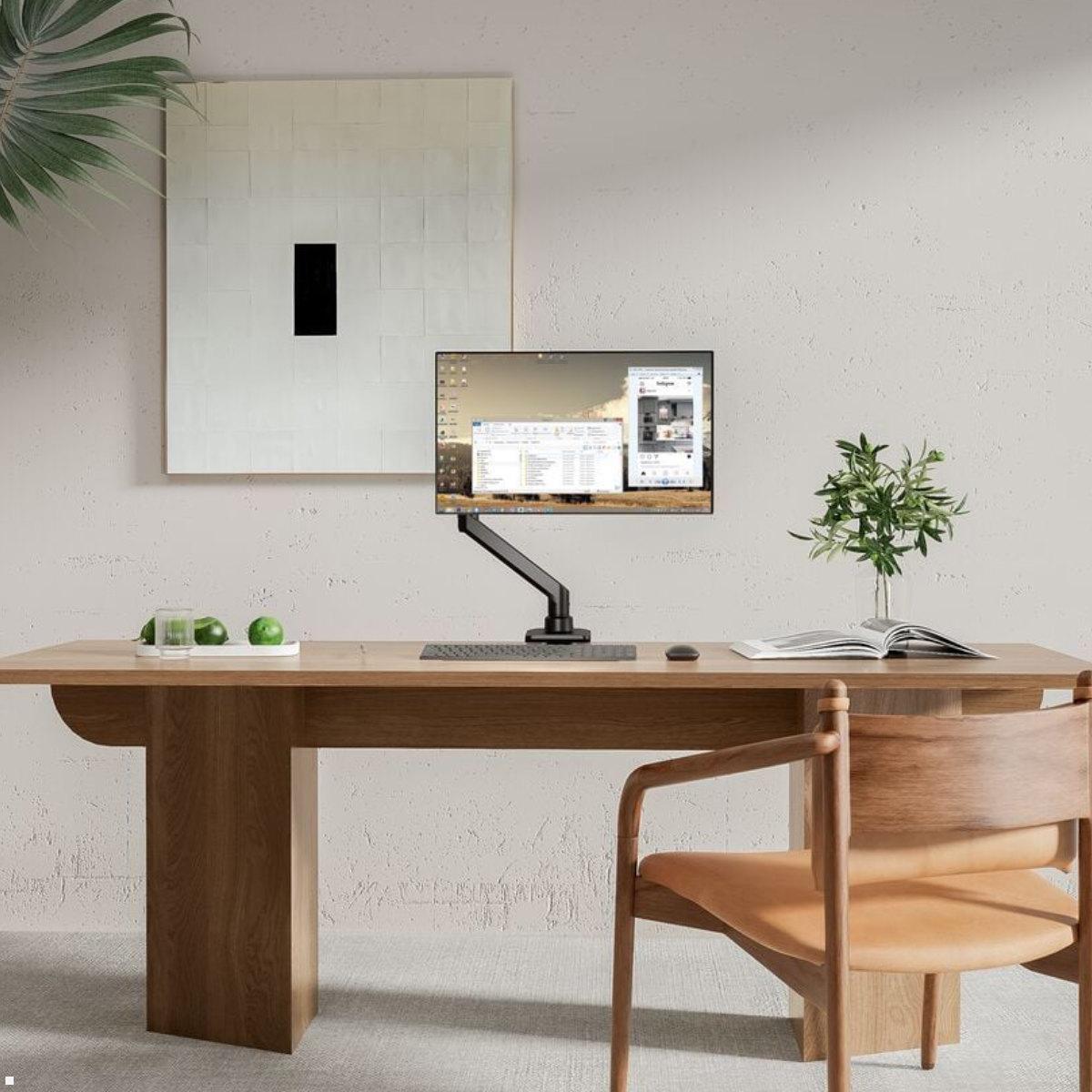

Vogels Essential M3011B Monitor desk mount height-adjustable 27 cm, black
Highlights
- For 1 monitor, 17 - 49 inches
- Load capacity up to 20 kg
- Gas spring height adjustment 270 mm
- Tilt -75° to +75°
- 5 years warranty
Compact monitor arm with gas spring for ergonomic work
The Vogels Essential M3011B monitor desk mount is a high-quality screen mount for a display from 17 to 49 inches with a maximum weight of 20 kg. The integrated gas spring enables stepless height adjustment along the 270 mm tall column, so you can always bring your screen into the optimal ergonomic position.
With 3 pivot points and a swivel range of up to 180°, the Vogels Essential M3011B monitor desk mount (height-adjustable 27 cm, black) offers maximum flexibility in the workplace. The tilt of -75° to +75° ensures a glare-free alignment of the monitor. Mounting is possible either via desk clamp or through-desk mounting for a maximum desk thickness of 50 mm. The monitor arm is ideal for office, home office, or creative workspaces.
Technical details Essential M3011B monitor mount for desk
- For 1 monitor, 17 - 49 inches
- Load capacity: 2 - 20 kg (Curved max. 15 kg)
- VESA: 75 x 75 mm, 100 x 100 mm
- Gas spring height adjustment, column height 270 mm
- 3 pivot points, swivel range up to 180°
- Tilt: -75° / +75°
- Mounting: desk clamp or through-desk mounting
- Max. desk thickness: 50 mm
- Color: Black
- Warranty: 5 years
| Installation manual: |  [pdf] |
|---|---|
| Minimum weight: | 2 kg |
| Capacity: | 20 kg |
| Tilt: | -75°/+75° |
| Height range (mm): | 270 mm |
| Swivelling range: | 180° |
| Screen size: | 17" - 49" |
| Thickness of table (mm): | max. 50 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What screen sizes does the Vogels Essential M3011B support?
It supports monitors from 17 to 49 inches with a weight capacity of 2–20 kg (Curved screens up to 15 kg).
-
How does the height adjustment work?
Height is adjustable with a gas spring along a 270 mm high column.
-
What are the movement capabilities?
It has 3 pivots, a swivel range up to 180°, and a tilt from -75° to +75°.
-
How can the monitor be mounted?
Mounting options are desk clamp or through-desk, with a maximum desk thickness of 50 mm.
-
Which VESA standards are supported?
VESA compatibility is 75 x 75 mm and 100 x 100 mm.
-
What is the colour and warranty?
The unit is black and comes with a 5-year warranty.
-
What environments is it suitable for?
Ideal for office, home office or creative workplaces.
Why is the Vogels Essential M3011B the right monitor arm for your desk?
An ergonomically arranged workspace boosts productivity and well-being alike. The Vogels Essential M3011B monitor desk mount offers stepless height adjustment for screens from 17 to 49 inches with its 270 mm high column and integrated gas spring. Mounting can be done either via a desk clamp or a grommet (through-desk) for a maximum desk thickness of 50 mm. Thanks to VESA compatibility of 75 x 75 mm and 100 x 100 mm, the monitor arm fits a wide range of common monitors. The maximum weight capacity is 20 kg; for curved displays it is 15 kg.
What ergonomic advantages does a 27 cm high swivel arm offer at the workplace?
Workplace ergonomics start with the correct monitor position. The Vogels Essential M3011B lets you adjust the screen individually in height, tilt and swivel. With a tilt range of -75° to +75° and a swivel range of up to 180°, every user can find the optimal viewing position. The gas spring technology ensures adjustments with minimal effort. Especially in home office or shared-desk environments, where different people use the workspace, this flexibility is indispensable. The three pivot points enable precise positioning in any desired direction.
What applications is the Vogels M3011B monitor mount suitable for?
The Vogels Essential M3011B monitor desk mount is versatile. In the office it creates more desk space because the monitor floats above the work surface. Graphic designers benefit from the ability to flexibly rotate and tilt the screen. In the home office the simple mounting with a desk clamp requires no drilling into the tabletop. At reception counters or in meeting rooms the screen can be quickly turned to face the person opposite. The mount is maintenance-free and comes with a 5-year warranty, which speaks to the high quality of the Vogels Essential series. The integrated cable management additionally ensures a tidy workspace.
