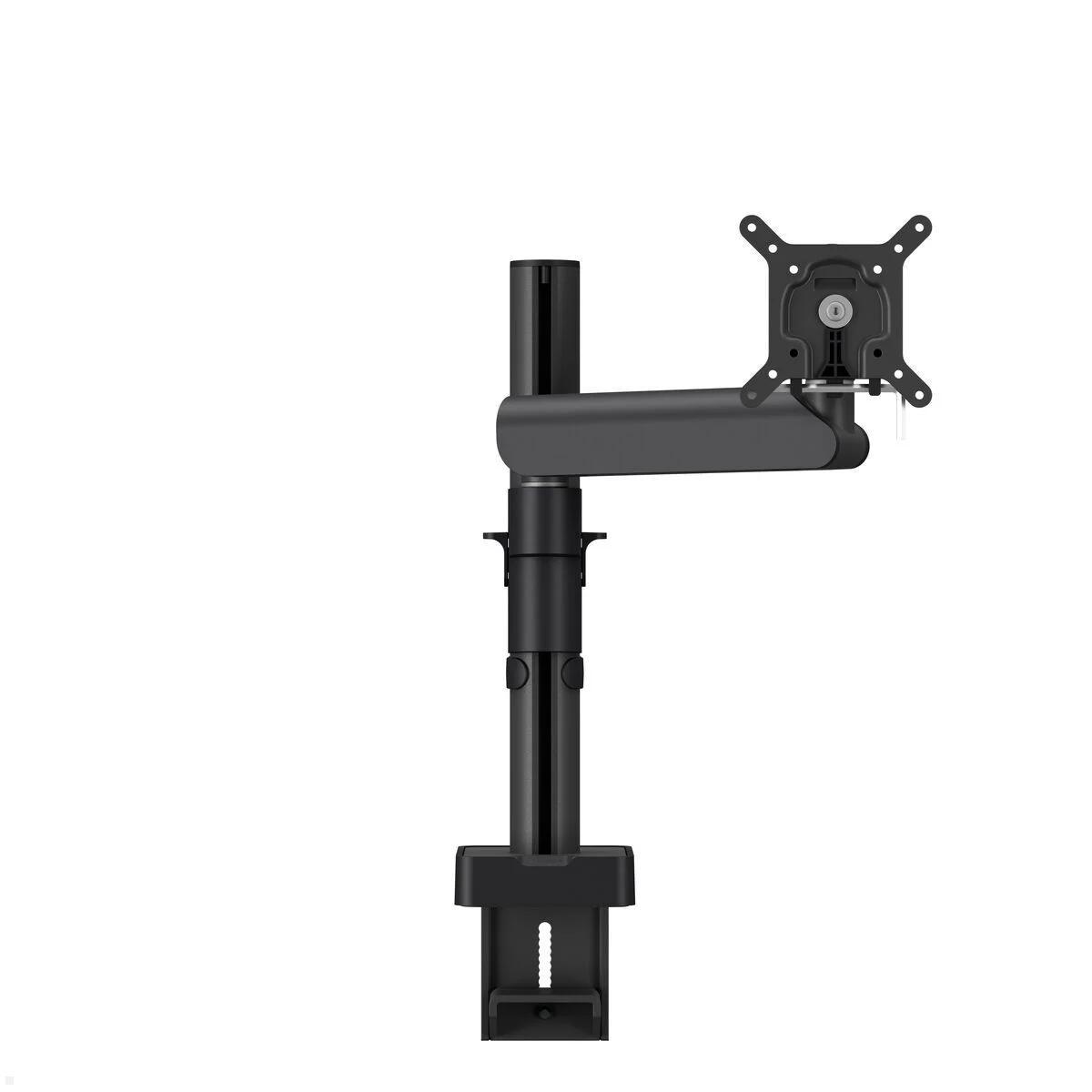

Vogels Motion MOMO 2127B monitor desk mount, tiltable, black
Highlights
- For 1 monitor, 10 - 43 inches
- Load capacity up to 20 kg
- 2 pivot points, adjustable depth
- TÜV and IGR certified
- 10 years manufacturer's warranty
Tiltable swivel arm for ergonomic desk work
The Vogels Motion MOMO 2127B monitor desk mount tiltable, black (7121270) is a powerful monitor arm with 2 pivot points for maximum flexibility. The monitor mount supports screens from 10 to 43 inches with a weight of up to 20 kg. Thanks to the 250 mm height adjustment and the extended tilt range of -20° to +105°, the monitor can be positioned as desired. The adjustable depth allows further customization of the viewing distance.
This articulating arm for the desk is suitable for flat and curved displays up to 10 kg. The versatile desk clamp offers two mounting options: clamped to the desk or bolt-through. An integrated Allen key makes additional tools unnecessary. The VESA-compatible display mount supports the hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. The integrated cable management keeps the workspace tidy. Ideal for offices, home offices, schools and meeting rooms.
Technical details Vogels MOMO tiltable monitor mount for desk
- Suitable for 1 monitor from 10" to 43"
- Maximum load capacity: 20 kg
- Max. weight curved display: 10 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +105°
- Swivel range: up to 180°
- Number of pivot points: 2

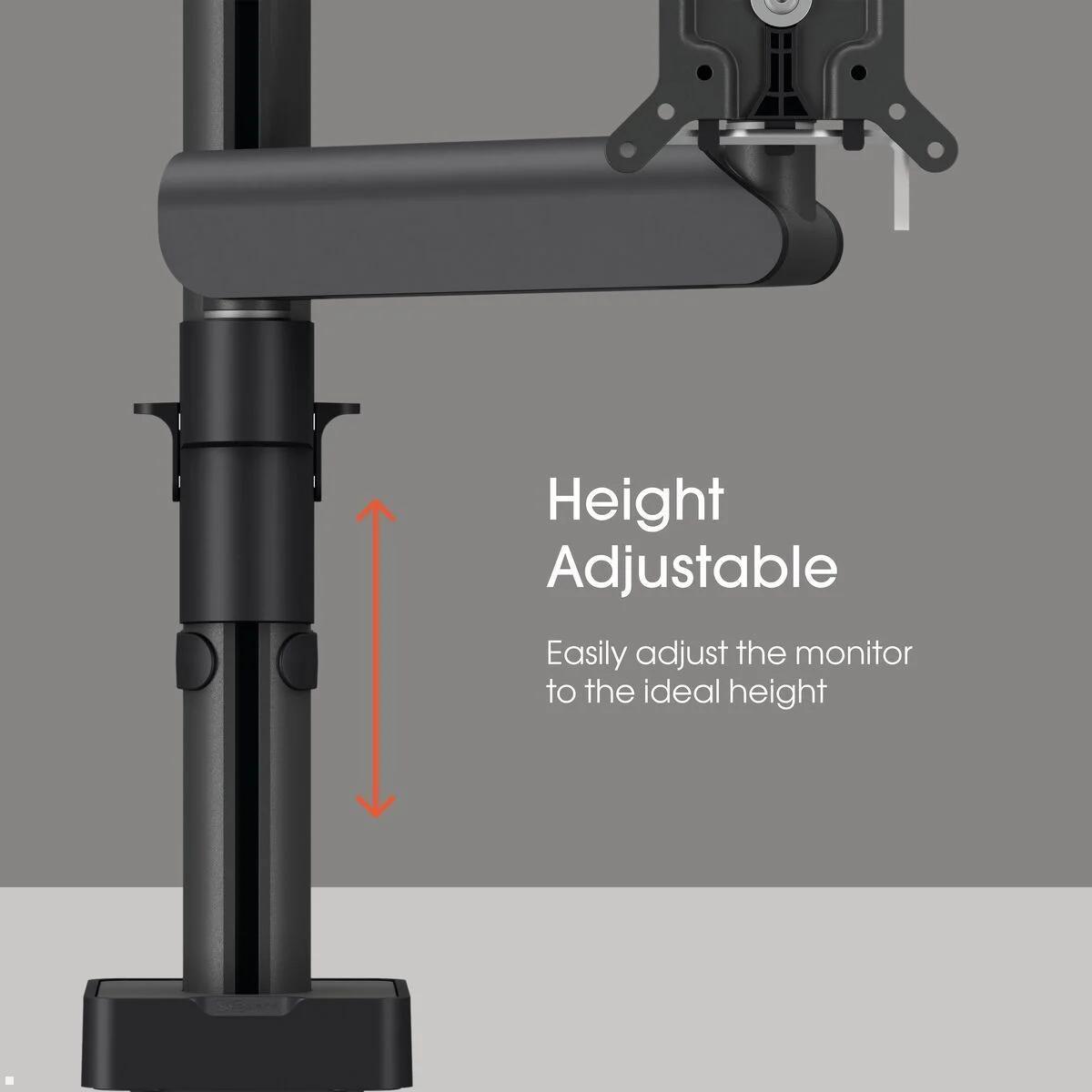

- Height adjustment: 250 mm (manual)
- Adjustable depth: Yes
- Maximum desk thickness: 66 mm
- Mounting: desk clamp or bolt-through
- Color: Black
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|

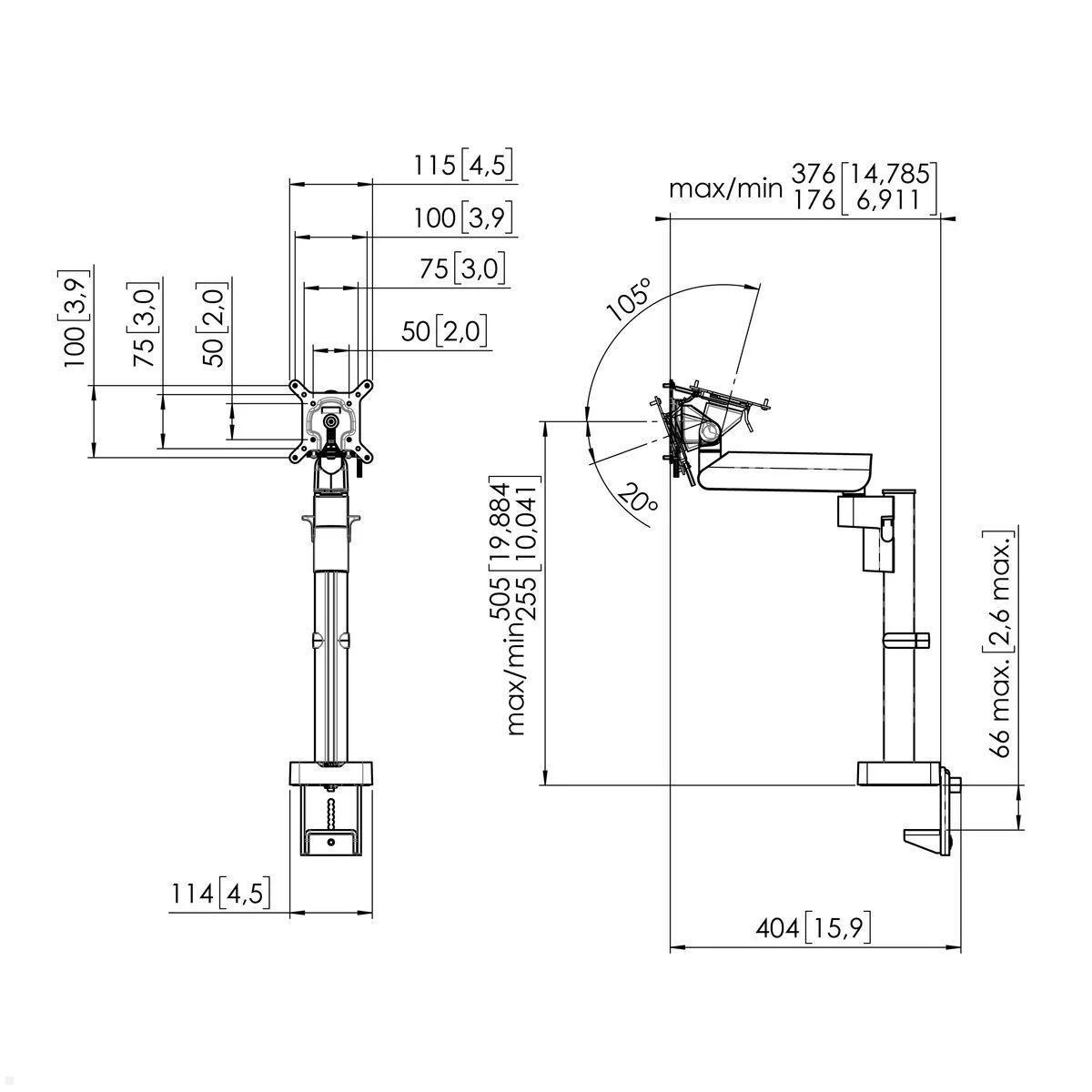

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+105° |
| Height range (mm): | 250 |
| Swivelling range: | 180° |
| Screen size: | 10" - 43" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 707 x 199 x 135 mm |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
Which monitors can the Vogels Motion MOMO 2127B monitor arm support?
It supports 10–43 inch screens with a maximum weight of 20 kg; curved displays are supported up to 10 kg.
-
What are the tilt and swivel ranges?
Tilt from -20° to +105° and swivel up to 180°.
-
Which VESA patterns are supported?
VESA-compatible with 50x50, 75x75 and 100x100 mm.
-
How is it mounted?
Desk clamp or through-bolted fixing; integrated hex key.
-
How much height adjustment does it have?
250 mm manual height adjustment.
-
What other features does it have?
Adjustable depth; two pivot points; integrated cable management; colour black.
-
What is the maximum desk thickness?
Maximum desk thickness is 66 mm.
-
What warranty and certifications does the product have?
10-year warranty; Certifications: TÜV, IGR. Ideal for offices, home offices, schools and meeting rooms.
Why is the Vogels MOMO 2127B the ideal tiltable monitor mount for the desk?
Maximum flexibility at the workplace requires more than just height adjustment. The Vogels Motion MOMO 2127B tiltable monitor desk mount, black, combines 250 mm of height adjustment with an extended tilt range of -20 to +105 degrees and adjustable depth. The 2 pivot points allow precise positioning of the screen in any working direction. With a load capacity of 20 kg and compatibility with monitors from 10 to 43 inches, this swivel arm covers a wide range of screen sizes. The VESA mount supports hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. Curved displays up to 10 kg also find secure support. The compact design frees up valuable desk space.
What mounting options does the Vogels MOMO articulating arm offer?

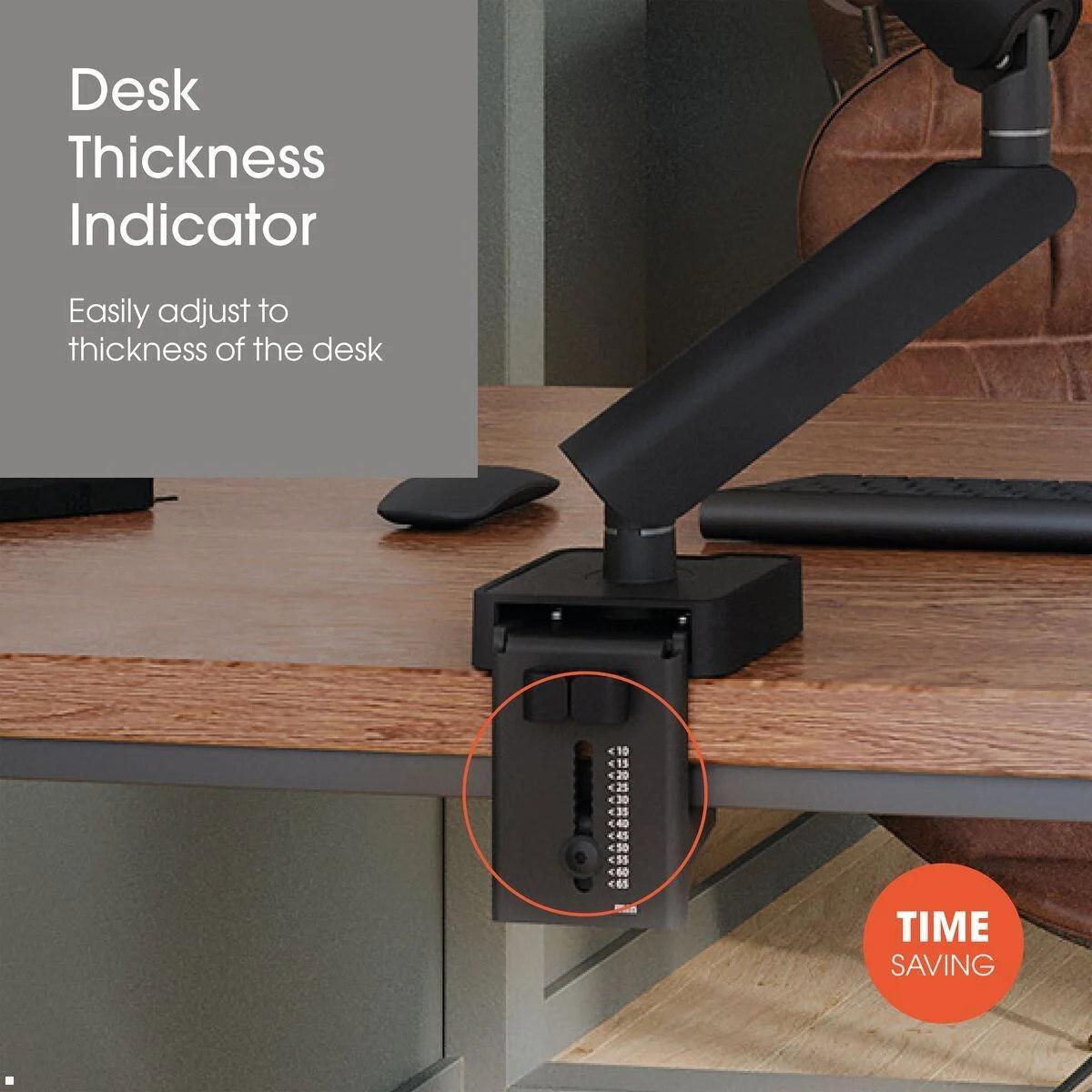

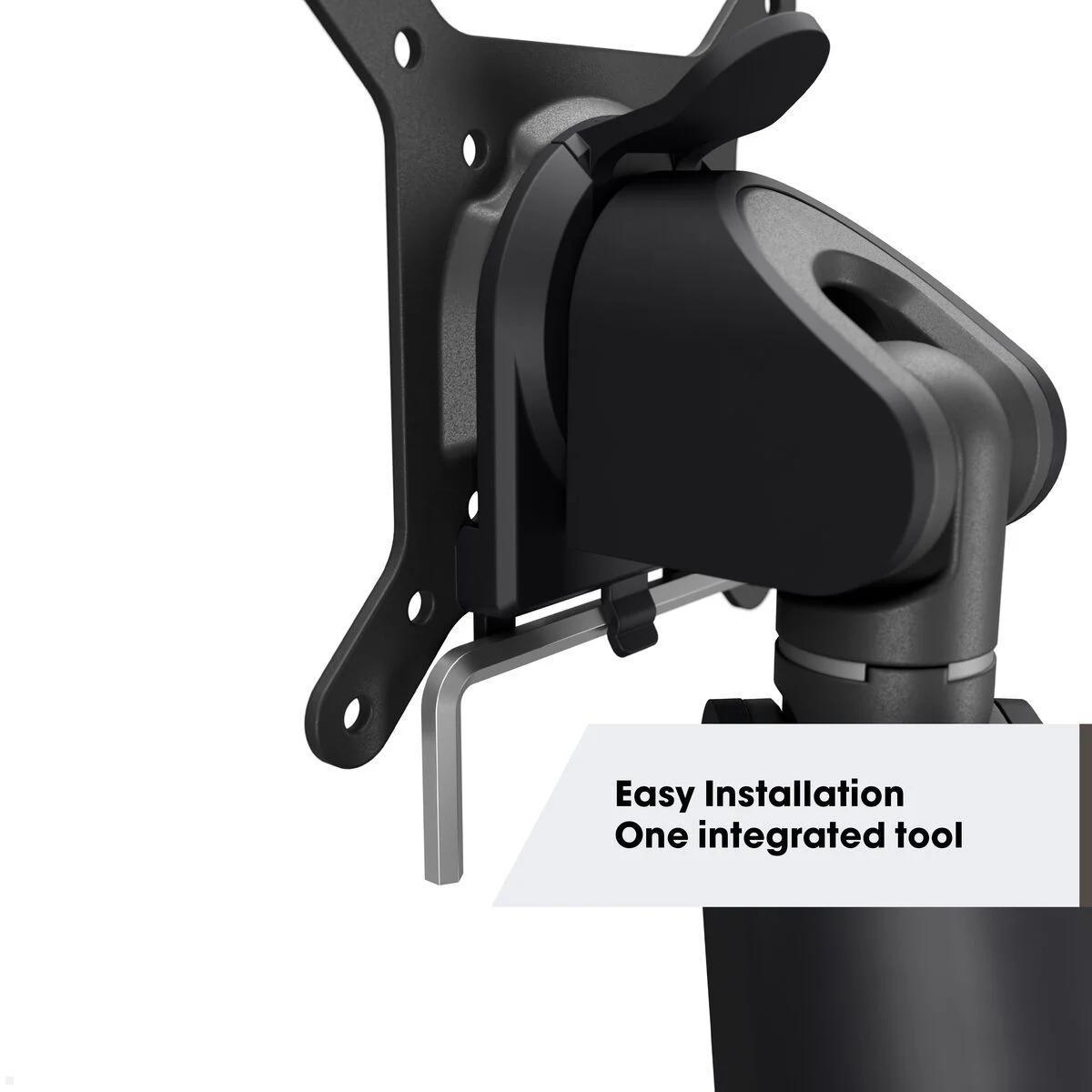

Installation of the MOMO 2127 is simple and tool-free. The supplied desk clamp offers two fastening options: as a clamp on the desk edge or as a through-desk mount bolted through the desktop. Desks up to 66 mm thick are supported. The integrated Allen key makes external tools unnecessary. A built-in weight indicator allows precise adjustment of the monitor balance, while the desk-thickness indicator facilitates correct clamp setting. The entire mounting is done comfortably from above. These features make the MOMO 2127 particularly attractive for mass installations in businesses, as each unit can be pre-configured.
Which work environments is the tiltable MOMO display arm suitable for?

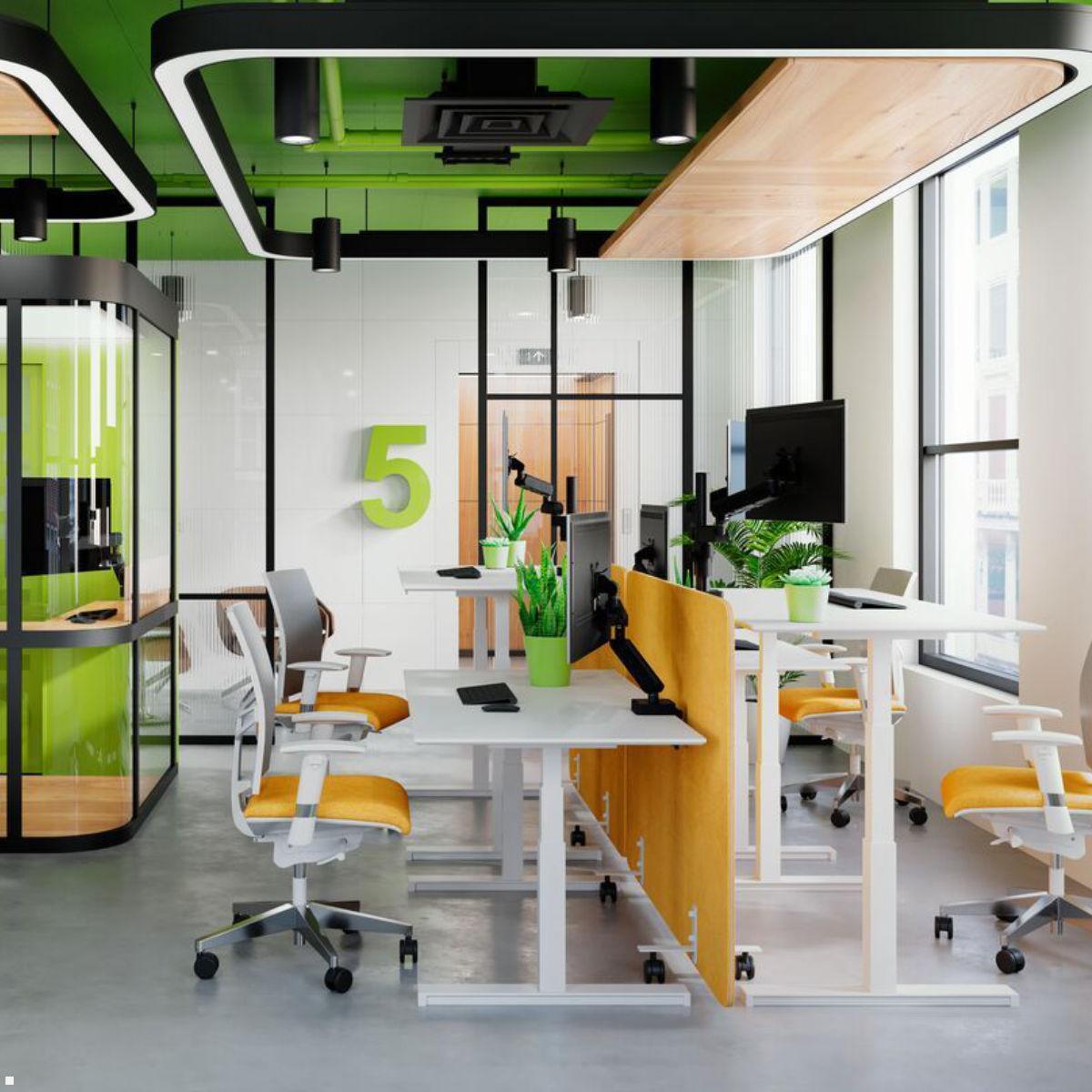

The wide tilt range of -20 to +105 degrees makes the MOMO 2127 particularly versatile. In the office or home office, users benefit from ergonomic adjustment to changing sitting and standing positions. In schools and seminar rooms, the strong backward tilt enables sharing screen content with seated neighbors. At reception desks and in conference rooms, the screen can be quickly turned toward the person opposite. The concealed cable management ensures a tidy appearance in any environment. An integrated rotation stop reliably protects against cable breakage. As part of the modular MOMO system, the arm can be expanded at any time with additional components. TÜV and IGR certification guarantee the highest safety and ergonomic standards, backed by a 10-year manufacturer's warranty from Vogels.
