Vogels Motion MOMO 2237B Dual Monitor Desk Mount, black
Highlights
- For 2 monitors, 10 - 34 inches
- Load capacity up to 20 kg total
- 3 pivot points per arm
- TÜV- and IGR-certified
- 10 years manufacturer's warranty
Dual monitor arm for two screens with infinitely adjustable positioning
The Vogels Motion MOMO 2237B dual monitor desk mount, black (7122370) is the ideal solution for workstations with two monitors. Thanks to 3 pivot points per arm, both screens can be adjusted independently and continuously in height, depth and tilt. The maximum load capacity is 20 kg in total, with each individual arm securely holding monitors up to 10 kg. The swivel range of up to 180° and the tilt from -20° to +105° allow individual positioning of each screen.

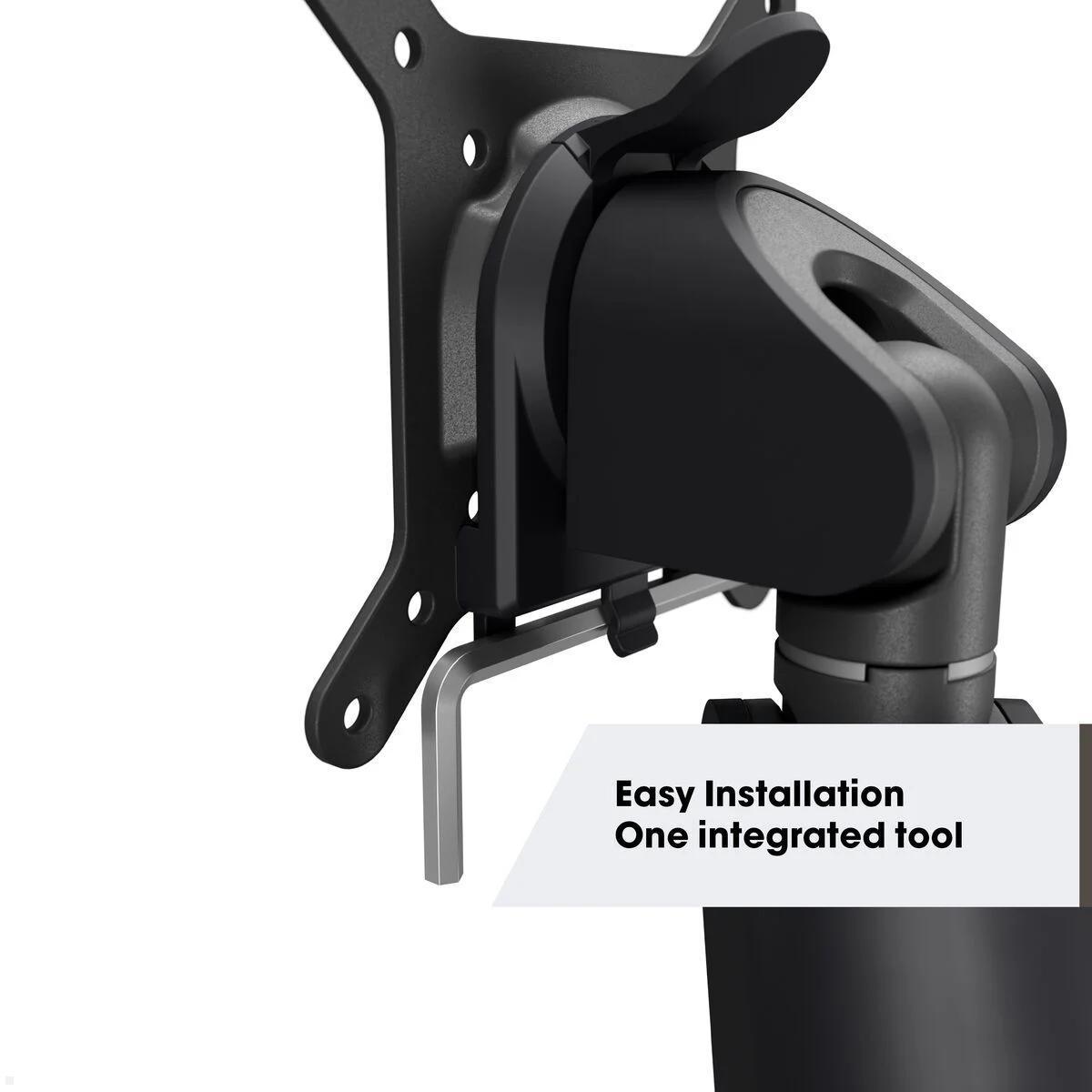

This two-arm swivel arm for the desk is suitable for monitors from 10" to 34". The versatile desk clamp offers two mounting options: clamped to the desk or bolt-through. An integrated Allen key makes additional tools unnecessary. The VESA-compatible dual bracket supports the hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. The integrated cable management keeps the workspace tidy even with two monitors. Perfect for offices, trading desks, graphic workstations and control rooms.
Technical details Vogels MOMO dual monitor mount with swivel arm
- Suitable for 2 monitors from 10" to 34"
- Maximum total load capacity: 20 kg (10 kg per arm)
- Max. weight for curved display: 10 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +105°
- Swivel range: up to 180°
- Number of pivot points: 3 per arm

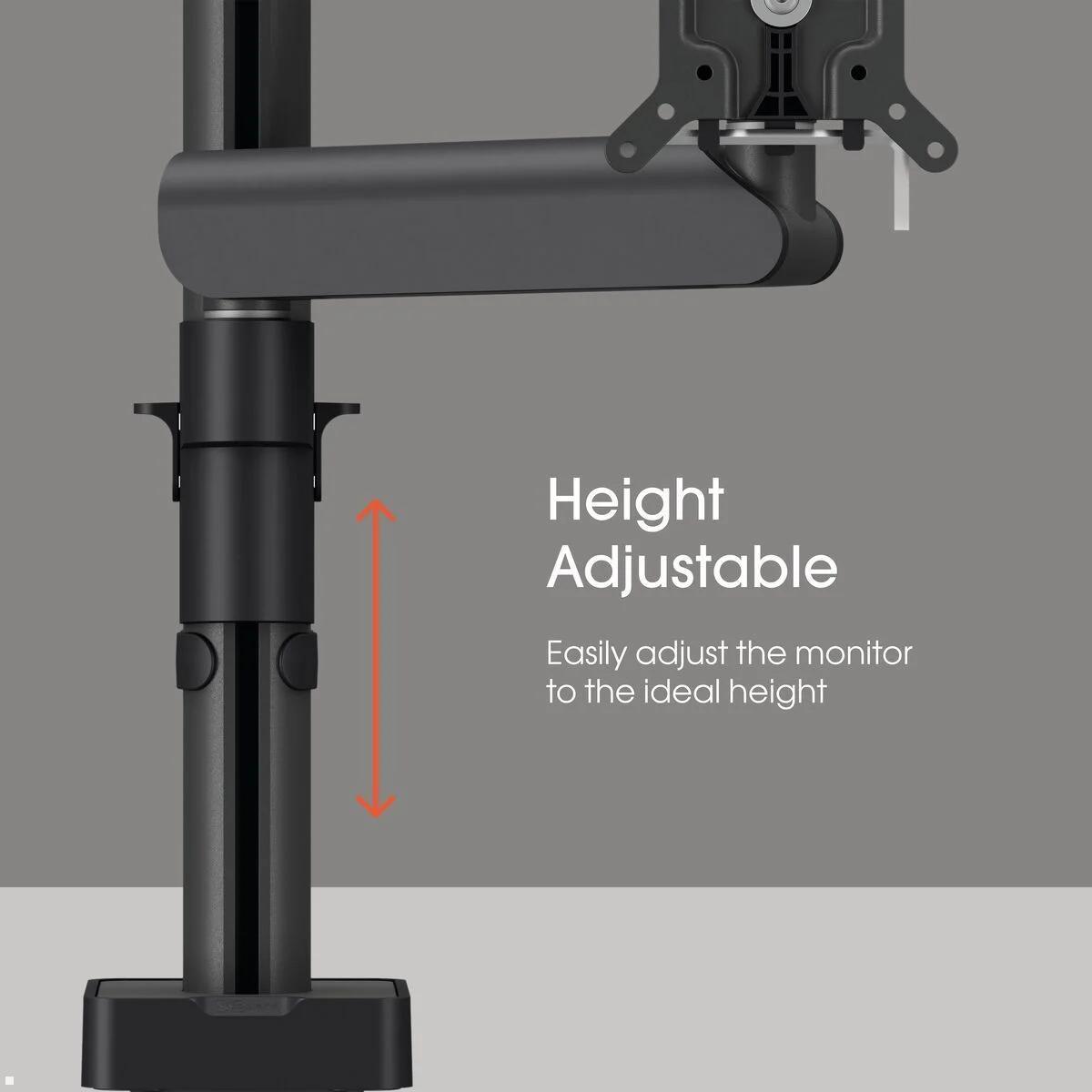

- Height adjustment: 250 mm (manual)
- Adjustable depth: Yes
- Maximum desk thickness: 66 mm
- Mounting: desk clamp or bolt-through installation
- Color: Black
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|

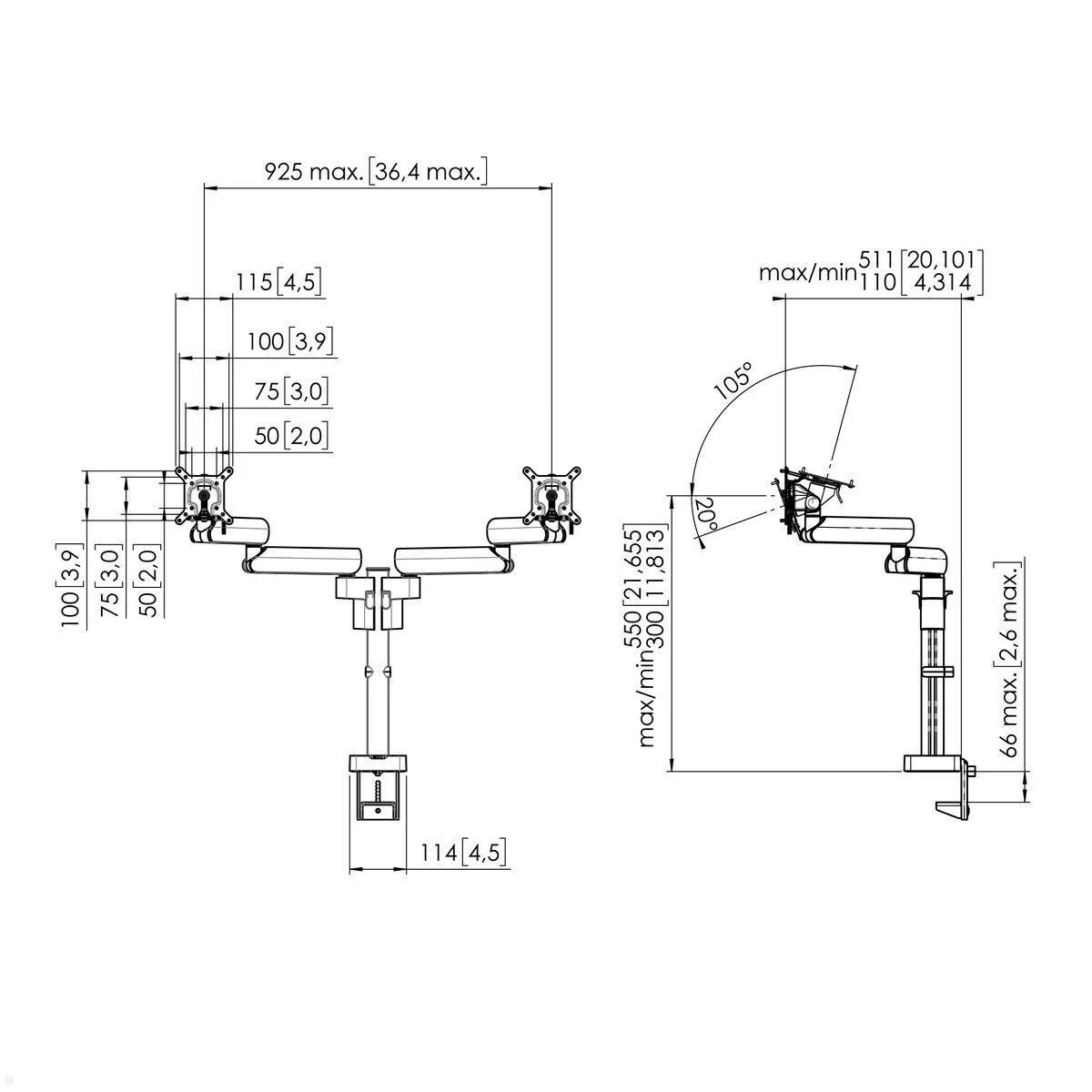

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+105° |
| Height range (mm): | 250 |
| Swivelling range: | 180° |
| Screen size: | 10" - 34" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Vogels Motion MOMO 2237B Dual Monitor Arm?
A dual monitor arm for two monitors at a desk, in black.
-
What monitors is it suitable for?
Suitable for two monitors from 10" to 34".
-
What is the weight capacity?
Maximum total load 20 kg (10 kg per arm).
-
How adjustable is it?
3 pivot points per arm with stepless height, depth and tilt; swivel up to 180°; tilt from -20° to +105°.
-
How is it mounted?
Desk clamp or through-bolted mounting.
-
What VESA patterns are supported?
VESA patterns 50x50, 75x75 and 100x100 mm.
-
Any other features?
Integrated Allen key; integrated cable management; maximum desk thickness 66 mm; manual height adjustment 250 mm; colour: black; 10-year warranty; certifications: TÜV, IGR.
Why is the Vogels MOMO 2237B the optimal dual monitor mount for productive work?
Two monitors at the workplace demonstrably increase productivity. The Vogels Motion MOMO 2237B Dual Monitor Desk Mount, black, was specially designed for use with two screens and offers maximum ergonomics with minimal desk footprint. Each of the two arms features 3 pivot points, allowing the monitors to be steplessly adjusted independently in height, depth and tilt. The total load capacity of 20 kg is distributed across two arms with 10 kg capacity each. Both monitors can be between 10 and 34 inches in size; curved displays up to 10 kg are also securely held. The VESA mount supports the common hole patterns 50 x 50, 75 x 75 and 100 x 100 mm for broad device compatibility. Due to the compact single column with two arms, significantly less space is required than with two separate monitor mounts.
How is the Vogels MOMO dual monitor mount attached to the desk?

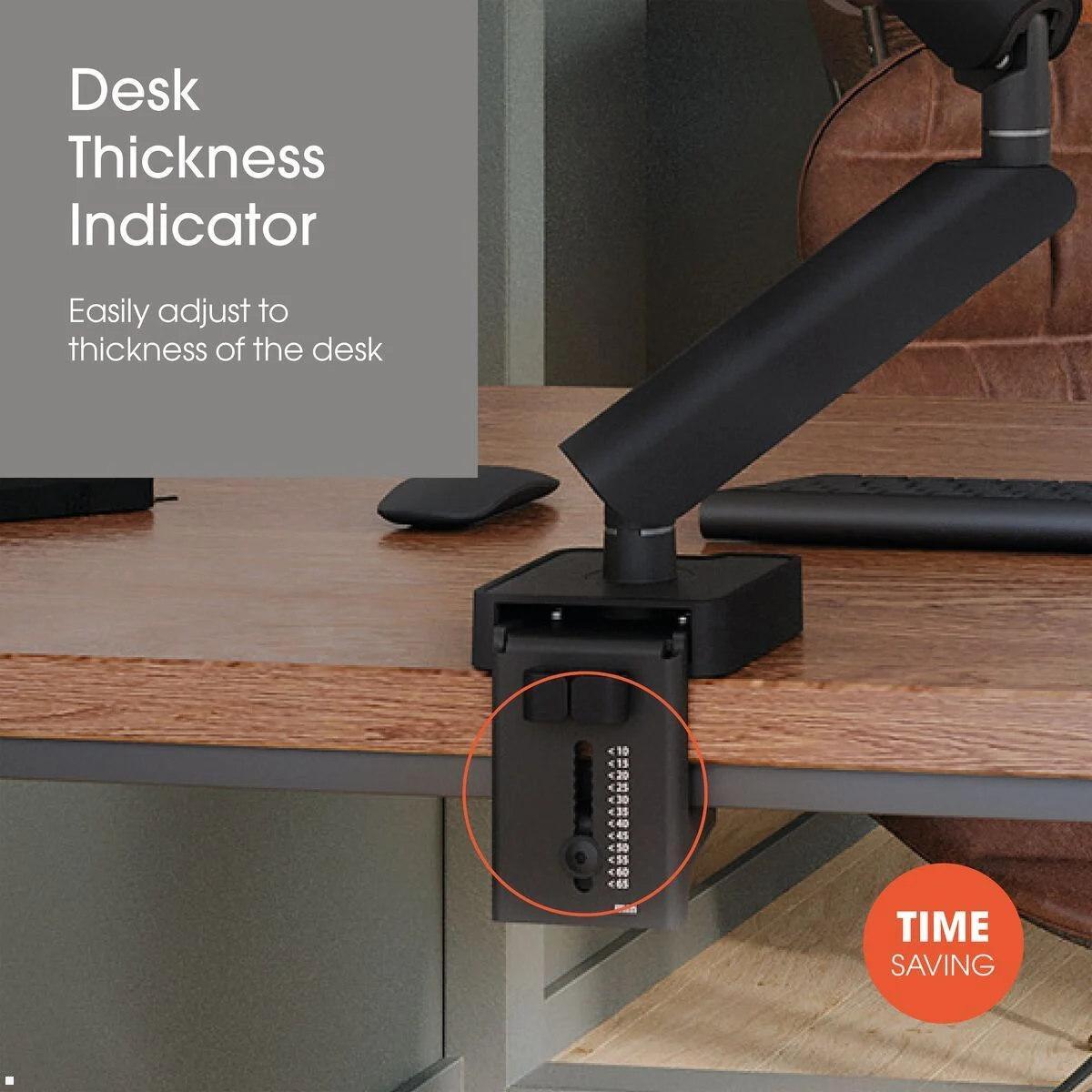

Despite the dual configuration, assembly is uncomplicated and quick. The supplied desk clamp offers two flexible mounting options: clamped to the desk edge or firmly screwed through a hole in the desktop. Desktop panels up to a thickness of 66 mm are supported without problems. An integrated hex key makes additional tools unnecessary. Each arm features a built-in weight indicator, allowing the balance of the individual monitors to be precisely adjusted. The complete assembly is performed from above, without awkward handling under the desk.
What advantages does the 2-joint articulated arm offer over two individual monitor stands?
The main advantage of the MOMO 2237B lies in the space-saving single column that serves as a common base for both arms. Instead of two desk clamps, the dual mount occupies only a single fastening point and thus creates significantly more free workspace. The swivel range of up to 180 degrees and the tilt of -20 to +105 degrees per arm enable maximum adaptability of both screens independently. An integrated rotation-stop mechanism reliably prevents cable breakage and damage to the monitors. Concealed cable sleeves keep all cables from both monitors neatly hidden. TÜV and IGR certification confirm compliance with the strictest safety standards even under the higher load of a dual configuration. With a 10-year manufacturer's warranty, Vogels makes a clear statement for durability. Whether in open-plan offices, home offices, on trading desks or in control rooms, the MOMO 2237B is the professional solution for ergonomic work with two monitors.
