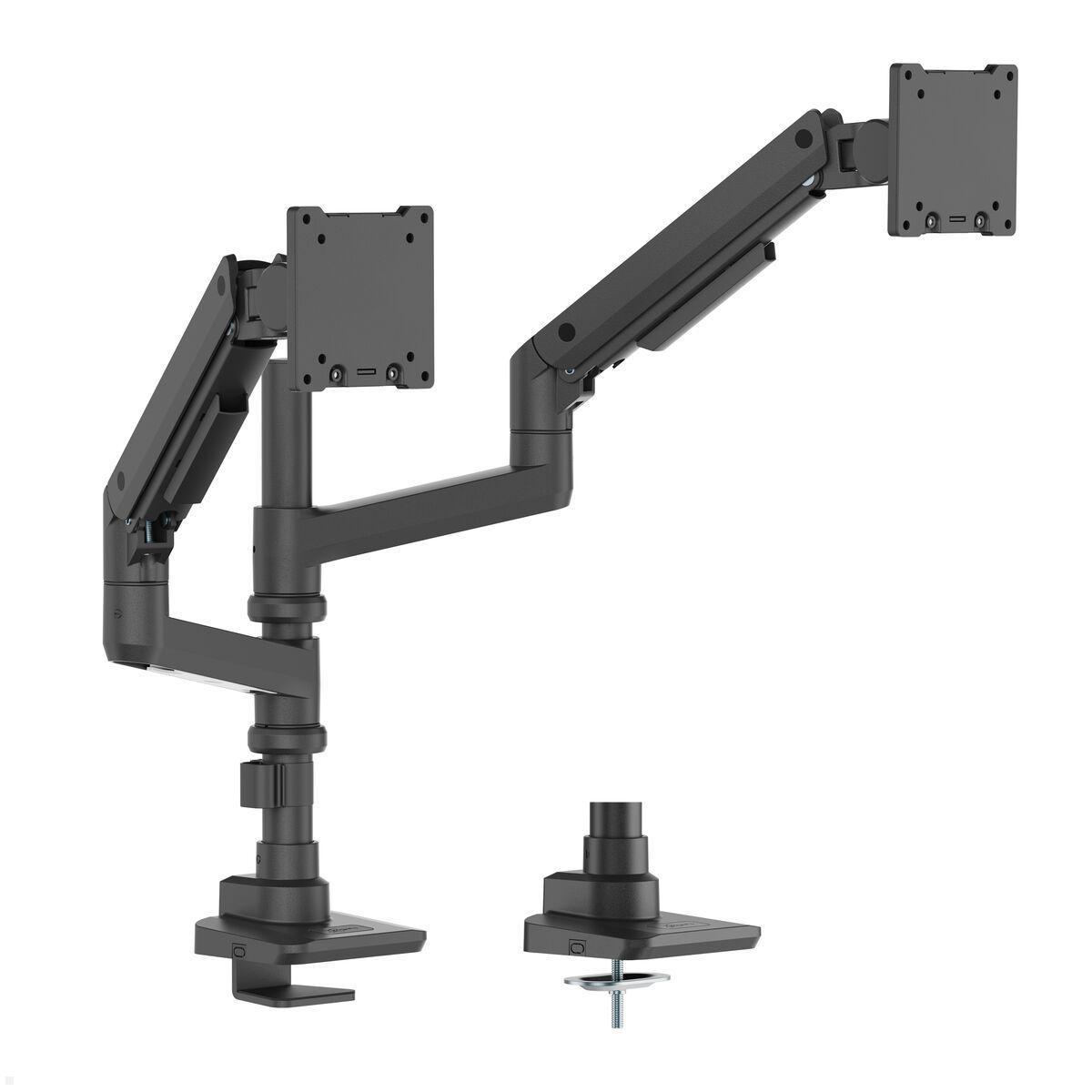

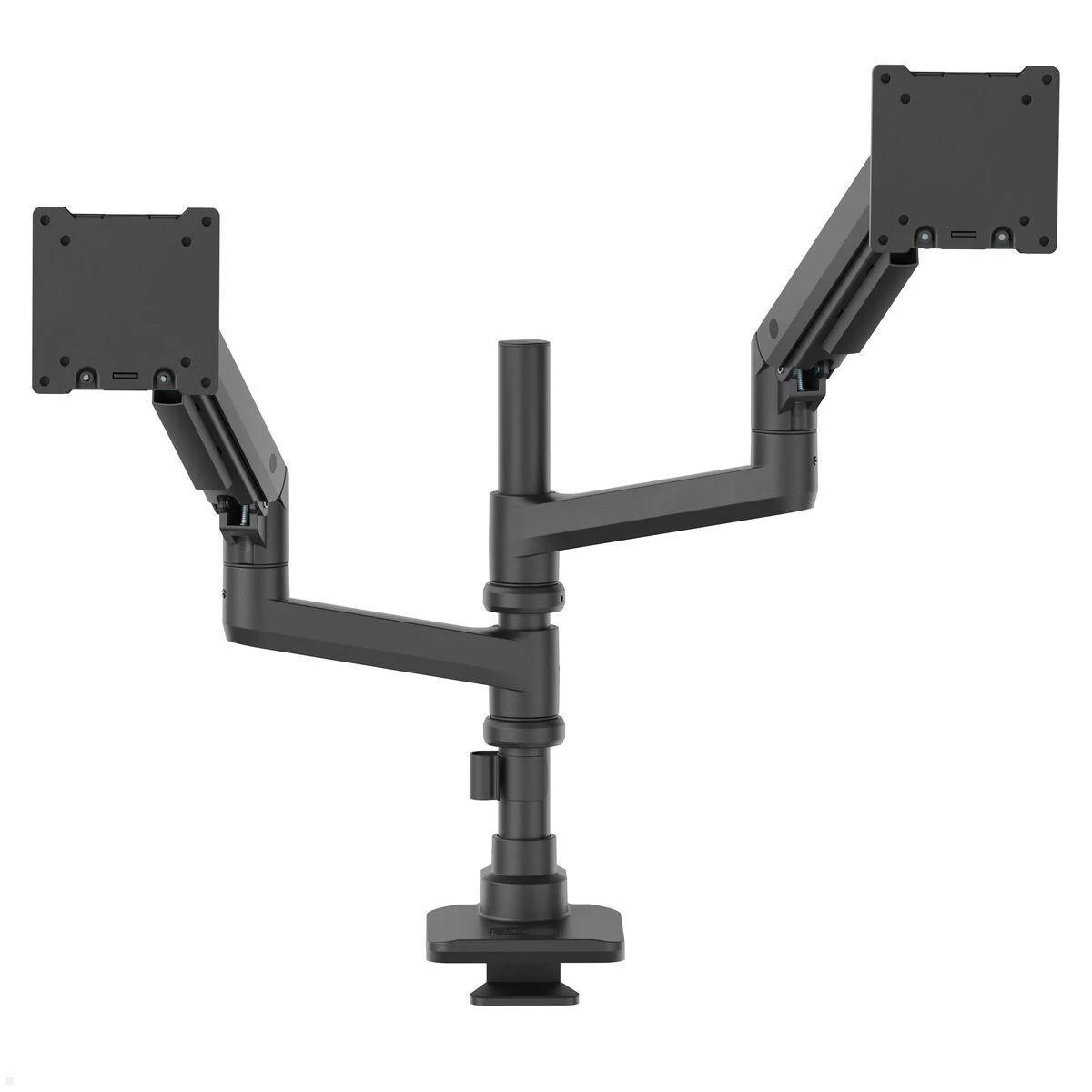

Vogels Essential M3032B Dual Monitor desk mount height-adjustable 49 cm, black
Highlights
- For 2 monitors, 17 - 49 inches
- Load capacity up to 20 kg each
- Gas spring height adjustment 490 mm
- Tilt -75° to +75°
- 5 years warranty
Ergonomic Dual Monitor Arm with Gas Spring and 49 cm Column Height
The Vogels Essential M3032B dual monitor desk mount is a high-quality screen mount for two displays from 17 to 49 inches with a maximum weight of 20 kg each. The integrated gas spring allows stepless height adjustment along the 490 mm-high column, so you can position your screen at the optimal ergonomic height at any time.
With 3 pivot points per arm and a swivel range of up to 180°, the Vogels Essential M3032B dual monitor desk mount (height adjustable 49 cm, black) offers maximum flexibility at the workplace. The tilt from -75° to +75° ensures glare-free alignment of the monitor. Mounting can be done either with a desk clamp or through-desk mounting for a maximum desk thickness of 50 mm. The dual monitor arm is ideal for office, home office, or creative workspaces.
Technical Details Essential M3032B Dual Articulating Arm for Monitors
- For 2 monitors, 17 - 49 inches
- Load capacity: each 2 - 20 kg (Curved max. 15 kg)
- VESA: 75 x 75 mm, 100 x 100 mm
- Gas spring height adjustment, column height 490 mm
- 3 pivot points per arm, swivel range up to 180°
- Tilt: -75° / +75°
- Mounting: desk clamp or through-desk
- Max. desk thickness: 50 mm
- Color: Black
- Warranty: 5 years
| Installation manual: |  [pdf] |
|---|---|
| Minimum weight: | 2 kg |
| Capacity: | 20 kg |
| Tilt: | -75°/+75° |
| Height range (mm): | 490 mm |
| Swivelling range: | 180° |
| Screen size: | 17" - 49" |
| Thickness of table (mm): | max. 50 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Vogels Essential M3032B Dual Monitor Arm?
A high-quality dual monitor mount with a gas spring, height-adjustable along a 490 mm column for two screens from 17 to 49 inches, with a maximum load of 20 kg per monitor (Curved max 15 kg).
-
What screens are supported?
Two monitors, 17–49 inches; load capacity per monitor 2–20 kg (Curved max 15 kg).
-
How does the height adjustment work?
Gas spring height adjustment along a 490 mm column with stepless height adjustment.
-
What are the movement capabilities?
Three joints per arm, swivel up to 180°, tilt from -75° to +75°.
-
What VESA standards are supported?
VESA 75 x 75 mm and 100 x 100 mm.
-
How is it mounted?
Table clamp or through-desk mounting for desks up to 50 mm thick.
-
What is the warranty?
5-year warranty.
-
What color is it?
Black.
Why is the Vogels Essential M3032B the ideal dual monitor mount for productive work?
Anyone who works with two monitors daily knows how important a stable and flexible mount is. The Vogels Essential M3032B dual monitor desk mount offers just that: with its 490 mm high pole and integrated gas spring, the height of both screens can be adjusted steplessly and effortlessly. Attachment can be done either with a desk clamp or grommet, allowing the monitor arm to be mounted on almost any desk up to 50 mm thick. With VESA compatibility of 75 x 75 mm and 100 x 100 mm, the mount is compatible with a wide range of monitors between 17 and 49 inches. The maximum weight is 20 kg per monitor, and 15 kg for curved displays.
What ergonomic benefits does a 49 cm high dual monitor arm offer in the workplace?
Workplace ergonomics are crucial for health and productivity. The Vogels Essential M3032B allows both screens to be adjusted individually in height, tilt, and swivel angle. With a tilt range of -75° to +75° and a swivel range of up to 180°, every user can find the optimal viewing position. The gas spring technology ensures adjustments can be made with minimal effort. This flexibility is a major advantage, especially in home offices or shared workspaces. The three pivot points per arm enable precise positioning of each individual monitor.
For which use cases is the Vogels M3032B dual desk mount suitable?
The Vogels Essential M3032B dual monitor desk mount is versatile. In the office it creates tidy workspaces by allowing monitors to hover above the desk, leaving room beneath for keyboards, documents, and accessories. Graphic designers and video editors benefit from the ability to position two screens side by side at ideal eye level. In the home office, the dual monitor arm is also a worthwhile investment, as the simple desk clamp mounting requires no drilling. The mount is maintenance-free and comes with a 5-year warranty, reflecting the high build quality of the Vogels Essential series. Integrated cable management keeps the workspace neat as well.
