Vogels Motion Plus MOMO 4237B Dual Monitor Desk Mount, black
Highlights
- For 2 monitors, 10 - 34 inches
- Load capacity up to 20 kg total
- 3 pivot points per arm
- TÜV- and IGR-certified
- 10-year manufacturer's warranty
Dual monitor arm for two screens with continuously adjustable height
The Vogels Motion Plus MOMO 4237B Dual Monitor desk mount, black (7142370) is the ideal solution for workstations with two monitors. Thanks to 3 pivot points per arm and the innovative OneFinger Movement spring system, both screens can be adjusted independently and continuously in height, depth and tilt. The maximum load capacity is 20 kg in total, with each individual arm securely holding monitors up to 10 kg. The swivel range of up to 180° and the tilt from -20° to +105° allow individual positioning of each screen.
This 2-way swivel arm for the desk is suitable for monitors from 10" to 34". The versatile desk clamp offers two mounting options: clamped to the desk or bolted through. An integrated Allen key makes additional tools unnecessary. The VESA-compatible dual mount supports the hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. The integrated cable management with stainless steel clips keeps the workspace tidy even with two monitors. Perfect for offices, trading desks, graphic workstations and control rooms.
Technical details Vogels MOMO dual monitor mount with articulated arm
- Suitable for 2 monitors from 10" to 34"
- Maximum total load capacity: 20 kg (10 kg per arm)
- Max. weight (curved display): 10 kg
- Minimum weight: 1 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +105°
- Swivel range: up to 180°
- Number of pivot points: 3 per arm
- Height adjustment: mechanical spring (OneFinger Movement)
- Adjustable depth: Yes
- Maximum desk thickness: 66 mm
- Mounting: desk clamp or through-bolt mounting
- Color: Black
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+105° |
| Swivelling range: | 180° |
| Screen size: | 10" - 34" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Vogels Motion Plus MOMO 4237B Dual Monitor Arm?
Dual-monitor arm for two displays with stepless height adjustment.
-
How much weight can the mount support?
Maximum total load 20 kg (10 kg per arm).
-
What monitor sizes are supported?
Suitable for two monitors from 10 to 34 inches.
-
What is the range of motion?
Three joints per arm allow independent height, depth and tilt, with height adjustment by a mechanical spring (OneFinger Movement); swivel up to 180°, and tilt from -20° to +105°.
-
How is it mounted on the desk?
Desk clamp or through-bolted mounting.
-
Is a tool included?
An integrated Allen key eliminates the need for extra tools.
-
Which VESA patterns are supported?
VESA standards 50x50, 75x75 and 100x100 mm.
Kunden kauften auch
Why is the Vogels MOMO 4237B the optimal dual-monitor mount for productive work?

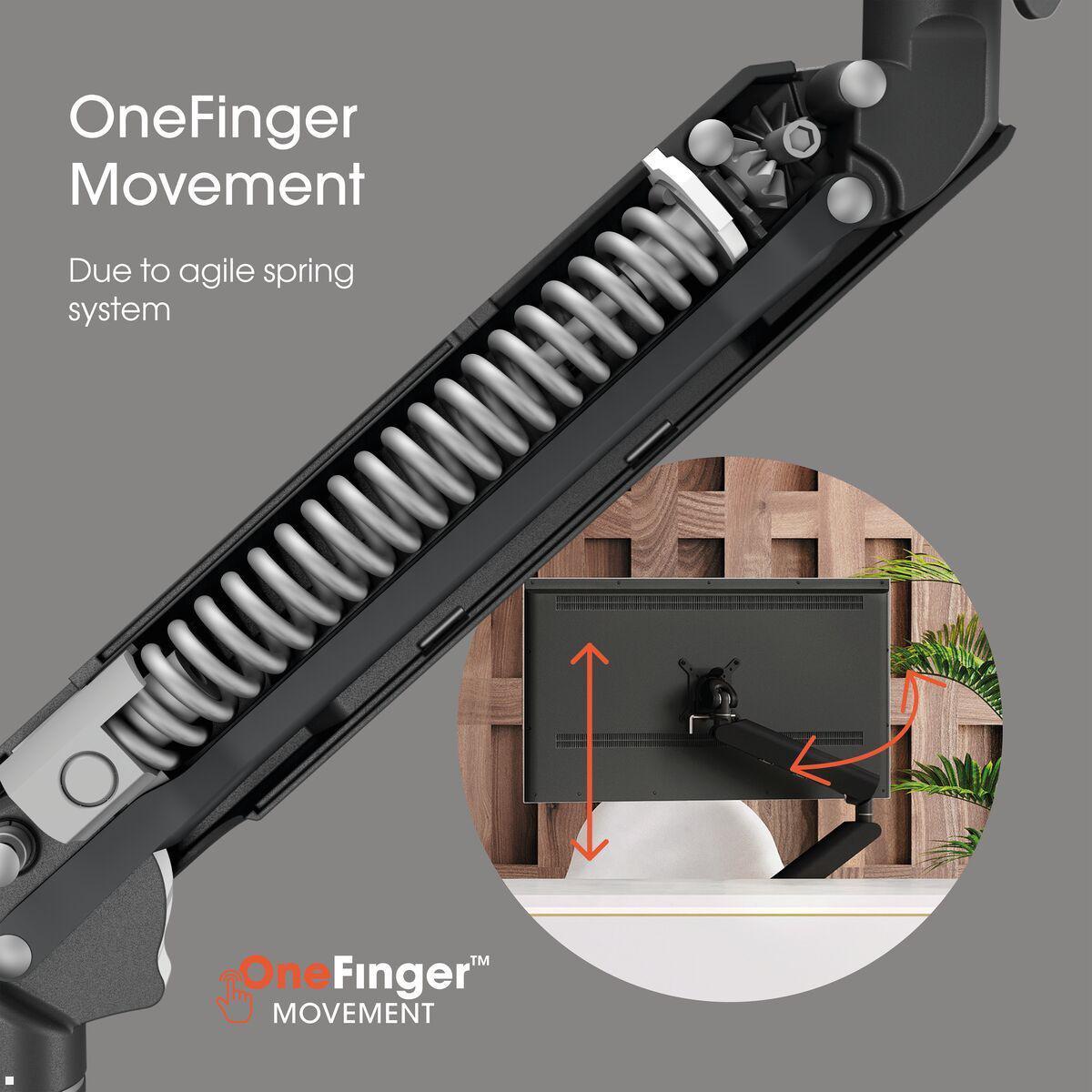

Two monitors at the workplace have been proven to increase productivity. The Vogels Motion Plus MOMO 4237B Dual Monitor Desk Mount, black was specifically designed for use with two screens and offers maximum ergonomics with minimal desk footprint. Each of the two arms features 3 pivot points and the patented OneFinger Movement System, which allows the monitors to be adjusted independently and steplessly in height and depth. Whether sitting or standing, the individual positioning of each screen provides an optimal working environment. The total load capacity of 20 kg is divided across two arms with a capacity of 10 kg each. Both monitors can be between 10 and 34 inches, and curved displays up to 10 kg are also held securely. The VESA mount supports the common hole patterns 50 x 50, 75 x 75 and 100 x 100 mm for broad device compatibility. The compact single column with two arms takes up significantly less space than two separate monitor mounts.
How is the Vogels MOMO dual-monitor mount attached to the desk?

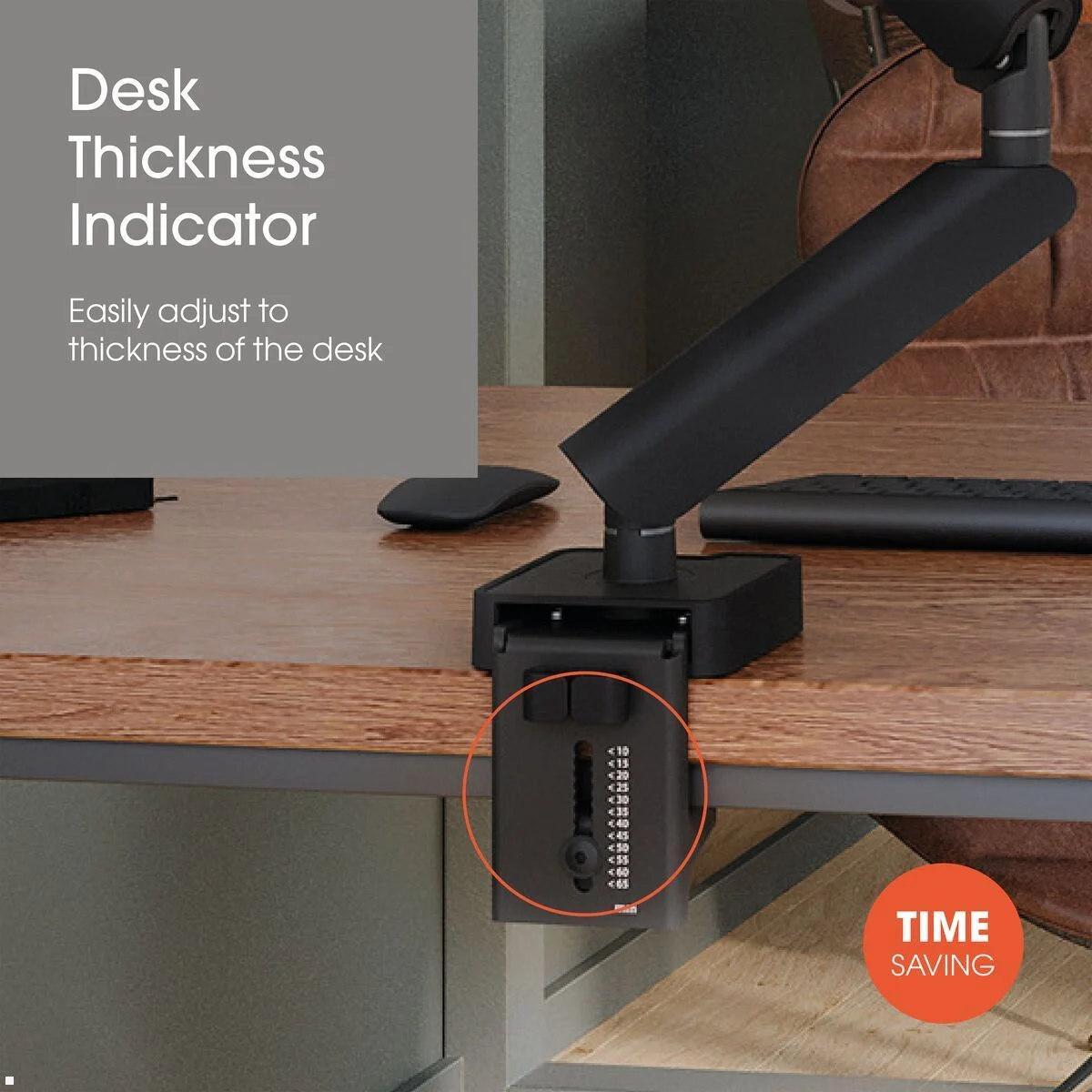

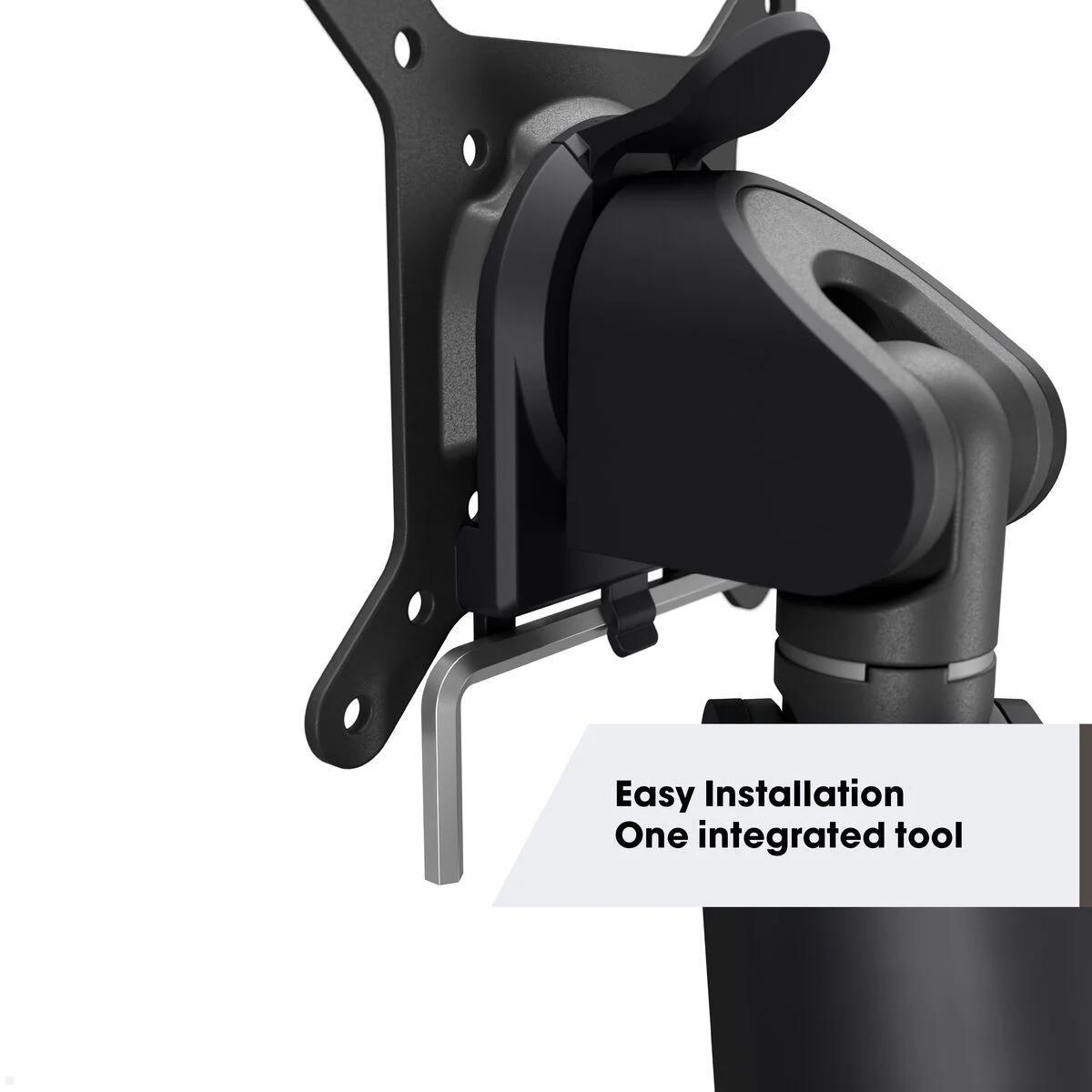

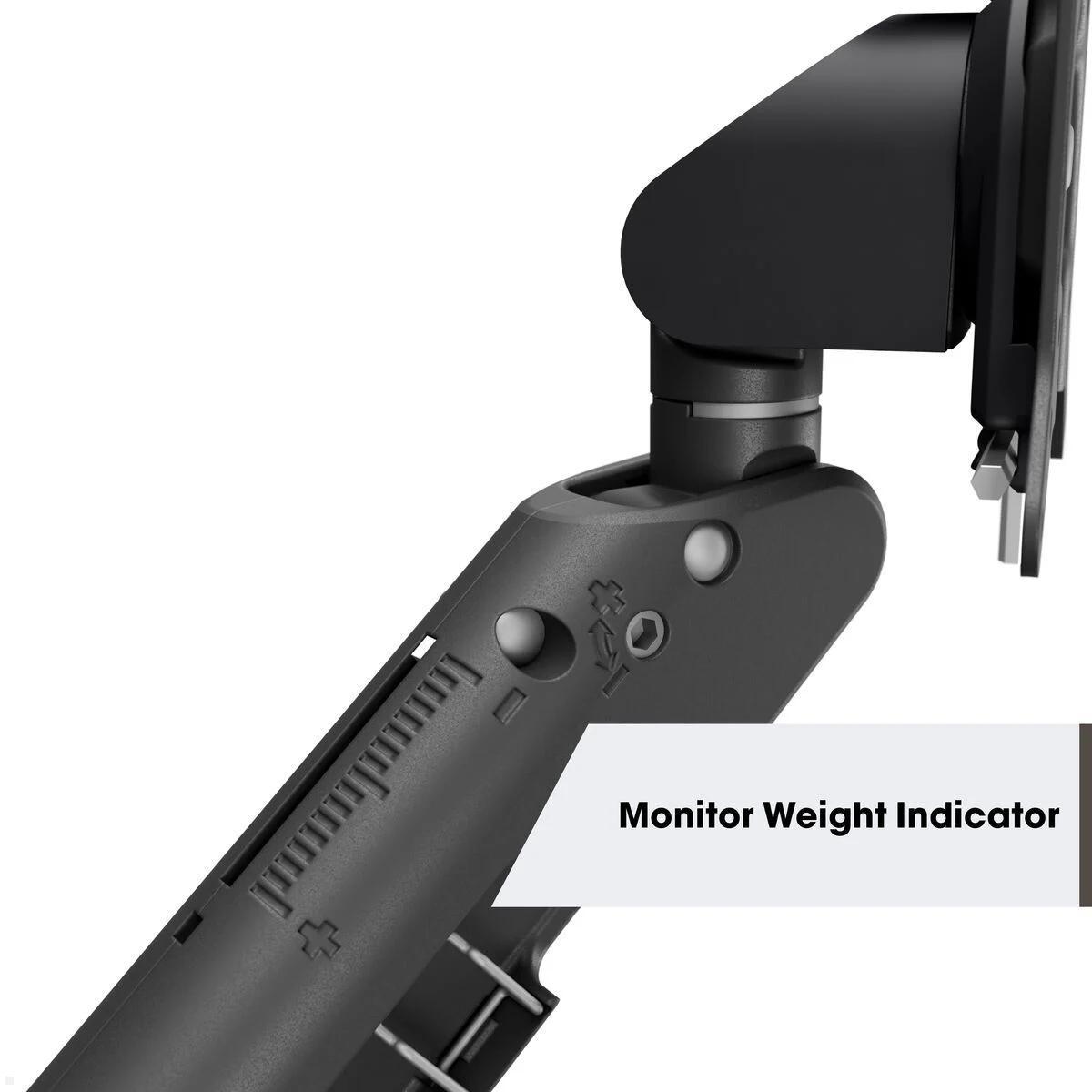

Despite the dual configuration, assembly is uncomplicated and quick. The supplied desk clamp offers two flexible mounting options: clamped to the desk edge or firmly screwed through a hole in the desktop. Desk tops up to 66 mm thick are supported without issue. An integrated hex key makes additional tools unnecessary. Each arm has a built-in weight indicator that allows the balance of the individual monitors to be adjusted precisely. A desk-thickness indicator simplifies the correct adjustment of the clamp. These features make the dual mount particularly attractive for mass installations in companies, as all units can be preconfigured in advance. Installation is carried out entirely from above, without cumbersome fiddling under the desk.
What advantages does the 2-arm swivel mount offer compared to two separate monitor stands?
The central advantage of the MOMO 4237B lies in the space-saving single column that serves as the common base for both arms. Instead of two desk clamps, the dual mount occupies only a single attachment point and thus creates significantly more free workspace. The swivel range of up to 180 degrees and the tilt of -20 to +105 degrees per arm enable maximum adaptability of both screens independently. An integrated rotation-stop mechanism reliably prevents cable breakage and damage to the monitors. Concealed cable channels with stainless steel clips keep all cables from both screens neatly hidden. TÜV and IGR certification confirms compliance with the strictest safety standards even under the higher load of a dual configuration. With a 10-year manufacturer’s warranty, Vogels sends a clear signal for durability. Whether in open-plan offices, home offices, at trading desks or in control rooms, the MOMO 4237B is the professional solution for ergonomic dual-monitor working.
